We thank you for purchasing this BADECO product and are confident that you will be satisfied with your choice.
This product has been designed to meet all of your professional requirements, whether simple or complex.
To avoid any damage or danger to the user, it is absolutely essential to use ONLY
original or approved BADECO accessories (incompatibilities with third-party accessories!).
Specifications :
1) Compact and simple design.
2) Intuitive and easy-to-use control unit.
3) DC power supply (Primary AC-230V/115V) - Output power 24V / 4A.
4) Automatic protection system against electrical surge with fuse on the back.
5) Automatic energy-saving function (Class VI).
6) Independent dual speed adjustment in manual or foot pedal mode.
7) Dual pedal control (on/off contact mode and variable speed mode) – directly connected to the potentiometer.
8) Left/Right rotation with neutral safety position.
9) Dual output for 2 motors with selector switch on the control unit and independent adjustment system.
10) High-quality OLED screen with motor identification system and real-time speed indicator
11) Memory function for motor settings (speed and pedal or manual mode) – saves the last setting

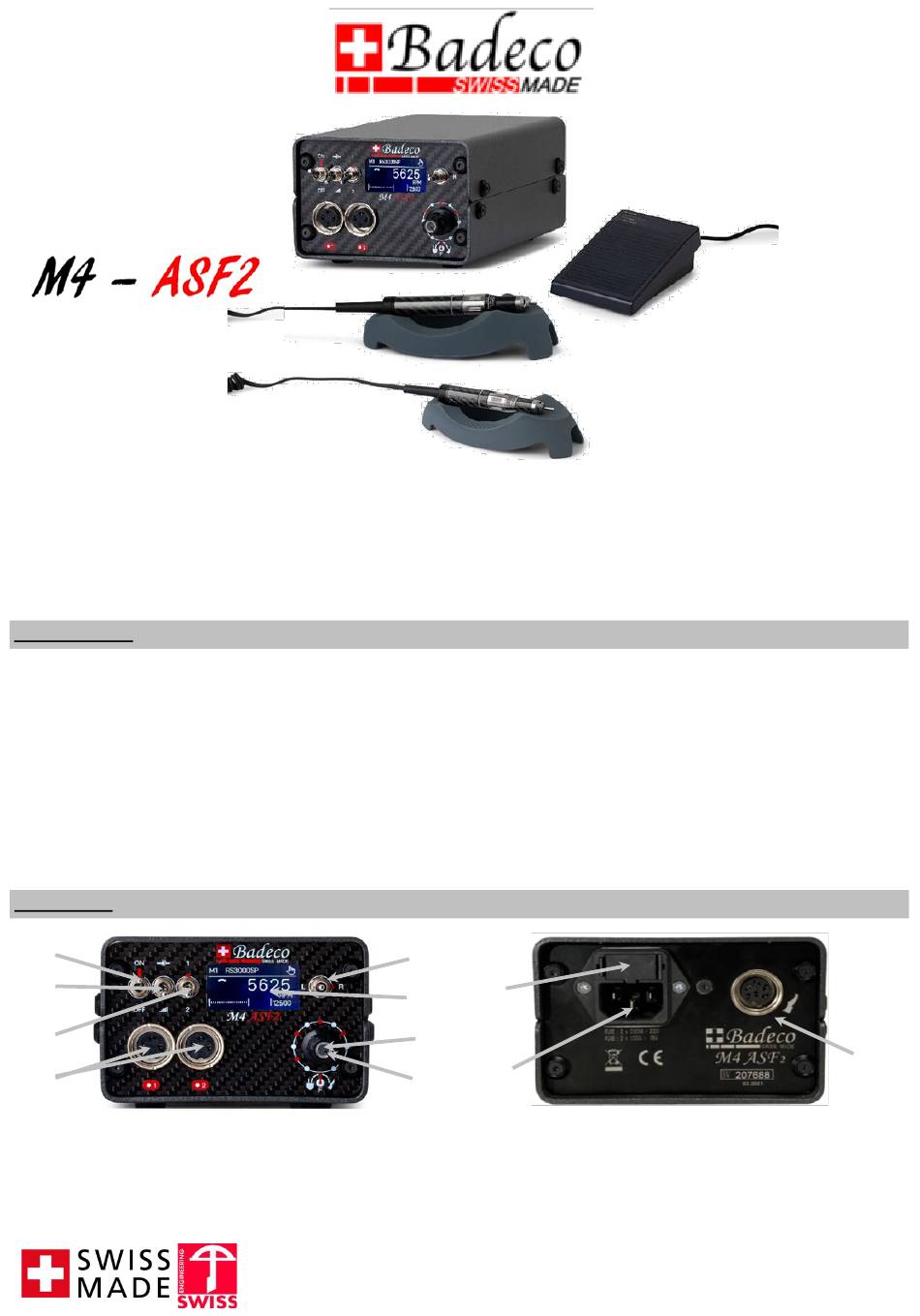

Description :
1
2
3
4
1) Power On/Off
2) Pedal switch for contact or variable mode
3) Switch fo Motor 1 & Motor 2
4) Connectors for Motor 1 & Motor 2 connections
5) Switch for motor rotation direction: left (L) / neutral / right (R)
6) OLED screen displaying speed, operation mode, and motor
setup selector
M4-ASF2 OLED Control Unit
Warning before use
5
9
6
7
10
8
7) Rotary knob for manual speed adjustment
8) Manual mode adjustment (green LED) or pedal mode
9) Safety fuse
10) DC power supply (Primary AC – 230V / 115V)
11) Pedal connector (PC800)
Please read all safety instructions carefully before using the device.
(blue LED) and motor setup mode (long press)
M4-ASF2 OLED Instruction Manual Version 1.0 – 07.2024
Keep this manual in a safe place for future reference.
11
Page 1 / All Rights Reserved
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BADECO M4-ASF2
Summary of Contents for BADECO M4-ASF2
- Page 1 M4-ASF2 OLED Control Unit We thank you for purchasing this BADECO product and are confident that you will be satisfied with your choice. This product has been designed to meet all of your professional requirements, whether simple or complex. Warning before use To avoid any damage or danger to the user, it is absolutely essential to use ONLY original or approved BADECO accessories (incompatibilities with third-party accessories!).
- Page 2 * If any issues arise while using the adapter, immediately cut the power by unplugging it from the wall socket. * Only use original BADECO pedals, designed for the unit's electronics. Significant damage not covered by the warranty may occur if other pedals used.
- Page 3 Overheat protection system : BADECO devices are configured for industrial use without limitations or restrictions, provided that good practices are fol- lowed. Overheating of the device beyond the predefined value will trigger the protection system to shut down the transistor.
- Page 4 Available accessories / motors / handpieces : M4-ASF2 OLED Instruction Manual Version 1.0 – 07.2024 Please read all safety instructions carefully before using the device. Keep this manual in a safe place for future reference. Page 4 / All Rights Reserved...
