We thank you for purchasing this BADECO product and are confident that you will be satisfied with your choice.
This product has been designed to meet all of your professional requirements, whether simple or complex.
To avoid any damage or danger to the user, it is absolutely essential to use ONLY
original or approved BADECO accessories (incompatibilities with third-party accessories!).
Specifications :
1) Compact and simple design.
2) Intuitive and easy-to-use control unit.
3) DC power supply (Primary AC-230V/115V) - Output power 24V / 4A.
4) Automatic protection system against electrical surge.
5) Automatic energy-saving function (Class VI).
6) Independent speed adjustment per motor in manual or pedal mode, with memory system.
7) Dual pedal control (on/off contact mode and variable speed mode) – directly connected to the potentiometer.
8) Left/Right rotation with safety neutral position.
9) Quadruple output for 4 motors with selection buttons on the front of the control unit.
10) High-quality LCD screen with motor identification system and relative speed indicator (displayed as a percentage).
11) Memory of settings for each motor (speed and pedal or manual mode) - memory of the last setting.
Description :
1
2
3
4
5
1) Pedal switch for contact or variable mode
2) Switch for motor rotation direction: left (L) / neutral / right (R)
3) Rotary knob for manual speed adjustment
4) Button to switch from manual (green LED) to pedal (blue LED)
5) Power On/Off
6) Push selector buttons for motor selection

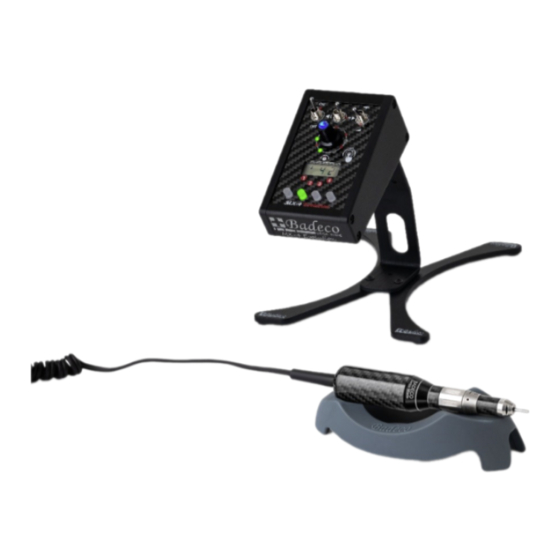

MX-4 Evolution LCD Control Unit
Warning before use
6
7
MX-4 Evolution LCD Instruction Manual Version 1.0 – 07.2024
Please read all safety instructions carefully before using the device.
8
9
10
7) LCD display showing relative speed (in %)
8) DC power supply (Primary AC – 230V / 115V)
9) Screw mount for MX and MX-SF2 screw-on feet (on top)
10) Pedal connector (PC800 or PC200)
11) Connectors for motor connections 1, 2, 3 and 4
Keep this manual in a safe place for future reference.
11
Page 1 / All Rights Reserved
