- Page 1 User Manual Smart Cube Energy Controller Home Three-phase System...
-
Page 2: Copyright Notice
User manual Copyright Notice • Copyright© 2024 Qingdao NaHui Intelligent Technologies Co.,Ltd. All Rights Reserved. • Description in this document may contain predictive statements regarding financial and operating results, product portfolio, new technology, configurations and features of product. Several factors could cause difference between actual results and those expressed or implied in the predictive statements. -
Page 3: Table Of Contents
Chapter 3 Site Selection Requirements.....................14 Chapter 4 Equipment Installation and Wiring...................16 Chapter 5 System Operation.........................16 5.1 Working Mode..........................16 5.2 LED Indicator State........................19 5.3 Haier Smart Cube App ........................22 Chapter 6 System Maintenance......................23 6.1 Routine Maintenance........................23 6.2 Equipment Power-on/Power-off....................24 6.3 Low SOC............................25 6.4 Emergency Treatment.........................26... -
Page 4: Overview
User manual User Manual Overview Introduction This document mainly introduces the product feature, networking, system operation and maintenance of the devices in the Energy Controller Home Three-phase system Readers This document is suitable for product users and professionals Sign Definition The following signs may be used in the document to indicate security precautions or key information. -
Page 5: Chapter 1 Safety Precautions
User manual Chapter 1 Safety Precautions Basic Information Before installing, operating, and maintaining the equipment, familiarize yourself with this document. The "Danger ", "Warning", "Caution" items described in this manual are only supplementary to all precautions. The Company shall not be liable for equipment damage or property loss caused by the following reasons: •... -
Page 6: Safety Requirements
User manual Safety Requirements • An overheated battery pack may cause fire or explosion. Do not expose the device to high temperature or heat sources (such as fire, or heaters) around the equipment for a long time. • Do not clean or soak the equipment with water, alcohol, or oil to avoid power leakage or battery pack leakage. •... -
Page 7: Chapter 2 Introduction To Energy Storage System

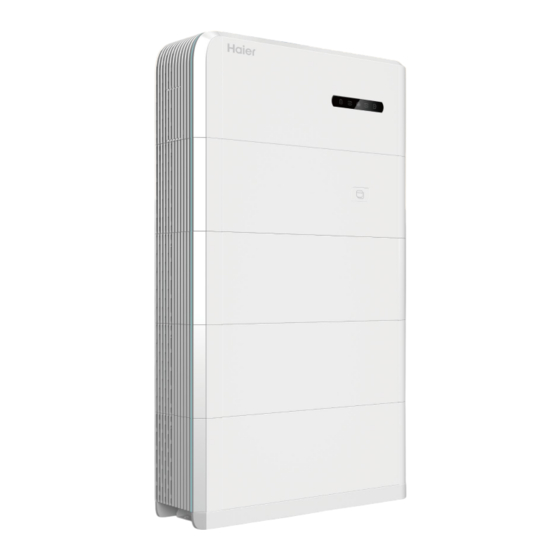

Chapter 2 Introduction to energy storage system 2.1 Product Introduction Inverter Product Model No. Name Function specification code Energy Controller 5.0 kW Three HH3P-5K-A Phase Energy Controller 6.0 kW Three HH3P-6K-A Phase Energy Controller 8.0 kW Three HH3P-8K-A Phase Energy Controller Energy Controller 10.0 kW... -
Page 8: Power Sensor
User manual Power Sensor Product Function Model No. Name code specification HMT-A Power Sensor Three Phase SDM630MODBUS V2） HMT-CT120A Power Sensor Three Phase External CT (SDM630MCT 40mA/120A) 120 A Data acquisition for grid connection points Power Sensor enables zero-power grid HMT-CT300A Power Sensor Three Phase External CT connection. -
Page 9: Appearance Introduction
User manual 2.2 Appearance Introduction 2.2.1 Appearance and Dimensions Inverter and Battery Pack Energy Controller Battery Battery Base Tripod (for wall mounting only) CommMod... -
Page 10: Port Introduction
User manual 2.2.2 Port Introduction Energy Controller Left View Name Marking Decorative cover light strip connector Network interface RJ45 1/ RJ45 2 PV1+/PV2+/ PV3+/PV4+/ PV1-/PV2- DC input interface /PV3-/PV4- AC output interface Communication interface Ground screw Switch button ON/OFF DC switch DC SWITCH CommMod interface Antenna interface... -
Page 11: Label Description
User manual 2.3 Label Description Symbols Definition Warning! Life at risk. The equipment has potential hazards after running. Take proper protection when operating the equipment. After the equipment is powered off, the discharge of internal components is delayed. Wait 10 minutes until the equipment is fully discharged according to the label time. - Page 12 C. Battery B. Energy Controller A. PV panel E. Backup Distribution panel F. Backup Electric equipment D. Gateway I. Haier Smart Cube G. Diesel generator H. Power grid J. Router K. Antenna L. CommMod • As a backup energy source for long-term off-grid applications, the diesel generator can work in tandem with the Gateway to provide a smooth transition between PV, storage and diesel power generation.
- Page 13 F2. Non-Backup Electric equipment G. Diesel generator H. Power sensor I. Power grid J. Haier Smart Cube K. Router K. Antenna M. CommMod • H has the function of data acquisition for grid connection points enables zero-power grid connection. For partial home backup, H does not need to be configured.For partial backup power and zero-power grid...
- Page 14 Networking Diagram (Non-backup Networking) NAHUI Cloud Haier Smart Cube B. Energy Controller A. PV panel C. Battery D. AC switch E. Distribution panel F. Electric equipment G. Power sensor H. Power grid I. Haier Smart Cube App J. Router K. Antenna L. CommMod...
-
Page 15: Chapter 3 Site Selection Requirements
User manual • It is recommended to use FE and WLAN for communication with inverter. CommMod users must top up their own 4G data plan after a period of 2 years. • The rated voltage of the AC switch of the distribution panel should be not less than 380Vac, and the rated current is recommended, that is, not less than the maximum output current of an inverter ×... -
Page 16: Installation Position Requirements
User manual Installation Position Requirements • Do not tilt or overturn the equipment to ensure that it is installed horizontally. • Do not install the equipment in a place where children can easily reach it. • Do not install the equipment in areas subject to fire or moisture (including but not limited to kitchen, tea room, toilet, shower room, laundry room, etc.). - Page 17 User manual • The maximum operating temperature range applicable to the equipment is -20°C to 55°C, and the recommended optimal operating temperature range is 10°C ≤ T ≤ 35°C. • When the battery pack temperature is below 0°C, immediate charging is not possible, and the battery pack (the built-in heating module can be automatically enabled) will activate the heating feature automatically.
-
Page 18: Chapter 4 Equipment Installation And Wiring
User manual Chapter 4 Equipment Installation and Wiring Only company authorized personnel should install and connect the equipment. For details, see Energy Controller Home Installation Guide - Three-phase System A1. Chapter 5 System Operation Working Mode • There are four operating modes of the energy storage system: AI Mode, Self-Consumption Mode, Fully Fed to Grid Mode, Time-based Control Mode. - Page 19 Time-based Control Mode In Time-based Control Mode, the charging period and discharge period should be manually set in the Haier Smart Cube App, and the other periods are non-charging and non-discharging ones. The surplus electricity generated by PV during the day can be sold to the grid or charged to the battery, and the battery can be charged at night during the period of low electricity price of the grid to save electricity costs.
- Page 20 Backup Reserve If there is a Gateway in the network, you can manually set the "Backup Reserve" value in Haier Smart Cube App. When the grid is connected, the battery stops discharging when the set backup SOC is reached; when the grid is powered down, the battery power from the backup can be used.
-
Page 21: Led Indicator State
User manual 5.2 LED Indicator State Energy Controller Indicator Energy storage indicator DC charger indicator DC indicator AC indicator Signal indicator Indicator Color State Description Always on All batteries are connected but not running. Flash Battery is charging. Flash Battery is discharging. All batteries lie dormant. - Page 22 User manual CommMod Indicator Code Name State Description Power indicator Slow flashing (200ms The network is being connected on/1800ms off) Network state Slow flashing (1800ms Standby. indicator on/200ms off) Quick flashing (125 ms Data is being transferred. on/125ms off)
-
Page 23: Haier Smart Cube App
User manual 5.3 Haier Smart Cube App The App can be downloaded in the following two ways. For details, see Haier Smart Cube App User Manual. Haier Smart Cube Haier Smart Cube... -
Page 24: Chapter 6 System Maintenance
User manual Chapter 6 System Maintenance 6.1 Routine Maintenance To ensure the long-term running of the equipment, you are advised to perform routine maintenance according to this section. Inspection Maintenance Inspection method Power off content cycle Check the decorative cover regularly for shielding and dirt. -
Page 25: Equipment Power-On/Power-Off
6.2 Equipment Power-on/Power-off Scheme 1: App operation In the Haier Smart Cube app, tap "Settings" to turn the device on or off. Scheme 2: Manual operation Follow the steps shown to remove the side and top decorative cover, and press the ON/OFF switch button. -
Page 26: Low Soc
User manual In case of prolonged inactivity of the equipment (such as being offline for several consecutive days or having minimal operational hours), the system will issue a reminder. If no feedback is received from you, the equipment will be automatically turned off as a precautionary measure for safety. To resume operation of the equipment, please reach out to us for further instructions. -
Page 27: Emergency Treatment
User manual 6.4 Emergency Treatment Emergency in case of Fire Danger • Please shut down the equipment or disconnect the main power switch when it is safe. • The high temperature may distort or damage the battery pack, resulting in electrolyte overflow or toxic gas leakage. Do not go near the battery pack and wear protective equipment. -
Page 28: Chapter 7 Appendix
User manual Emergency in case of Battery Pack Drops or Impacts If there is an obvious odor, smoke, or fire, keep away from the equipment immediately and contact professional personnel. • Do not use the battery pack if it has been dropped or hit. Please contact your installer. Chapter 7 Appendix 7.1 Technical Parameters For details about equipment parameters, see the Data sheets of the product. - Page 29 20240418_V1.0...
