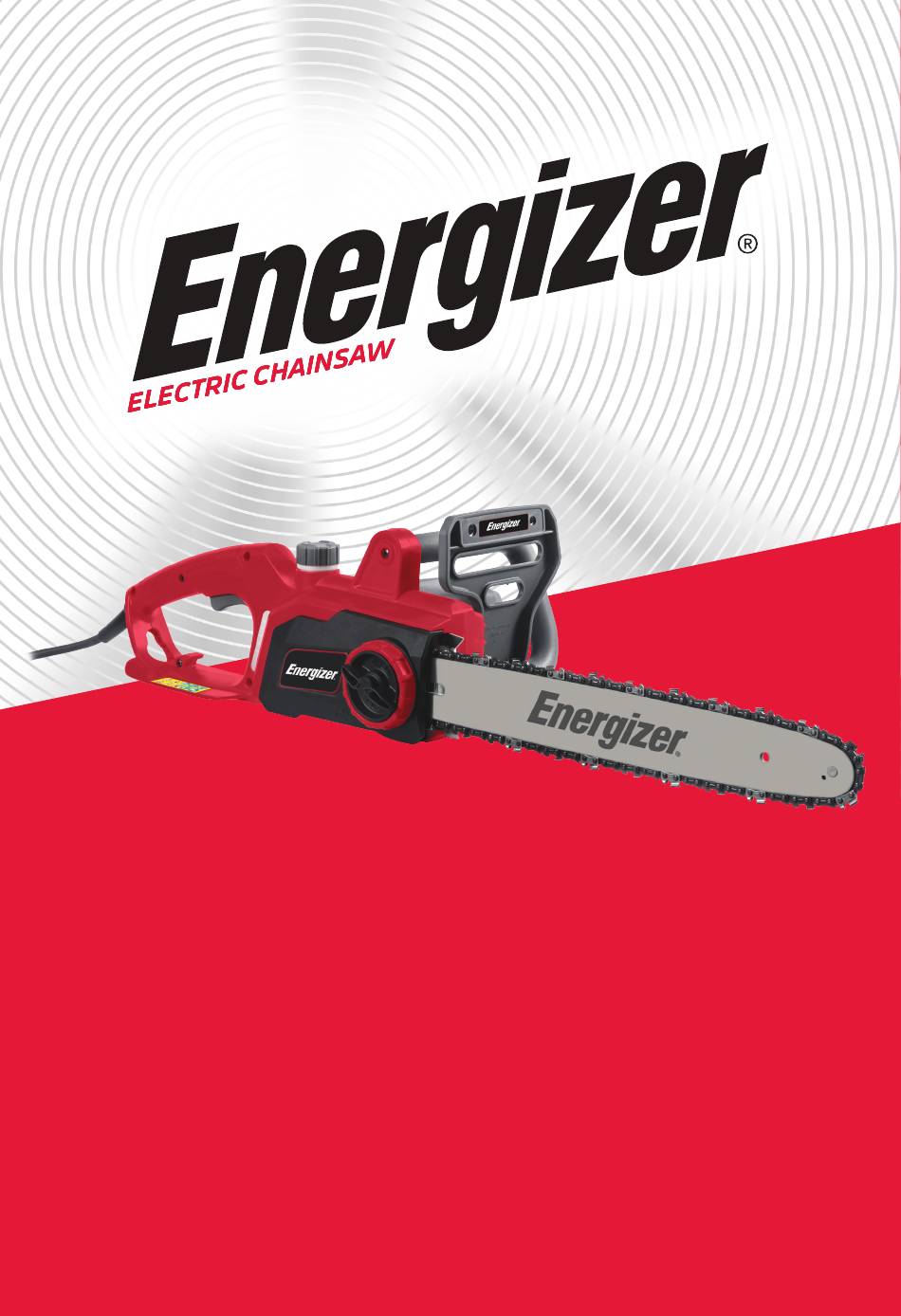

- Page 1 USER MANUAL...
-
Page 3: Electric Chainsaw
Thank you for purchasing your Energizer ® Electric Chainsaw This manual will show you the great features of Energizer ® eZ1614ECS... -
Page 4: Table Of Contents
INDEX CONTENTS 1. GENERAL SAFETY INSTRUCTIONS 2. YOUR DEVICE AT A GLANCE 3. ASSEMBLY 4. OPERATION 5. USE 6. CLEANING AND MAINTENANCE 7. STORAGE AND TRANSPORTATION 8. TECHNICAL DATA 9. DISPOSAL 10. WARRANTY... - Page 5 Fig.1 1. Handle 2. Saw chain 3. Chain bar 4. Chain adjustment ring 5. Fastening bolt for chain sprocket 6. Sight view for oil level 7. Rear hand guard 8. Hand guard 14. Chain wheel cover Fig.2 9. Handle 10. Fill opening for chain oil (tank cover) 11.
- Page 6 Fig.3 4. Chain adjustment ring 5. Fastening bolt for chain sprocket chain wheel cover 14. Chain wheel cover Fig.4 16. Bar bolt...
- Page 7 Fig.5 15. Tension plate 17. Sprocket Fig.6 6. Sight view for oil level Fig.7 13. Strain relief mechanism for extension cable...
-
Page 8: Intended Use
Fig.8 8. Hand guard 11. Switch-on safety lock 12. Start bu on Fig.9 How to use these instructions: All of the necessary diagrams can be found on the first pages of this set of instructions. Within the descriptions, you will be directed by cross-references to the appropriate diagrams. Before using your electric chainsaw, please read this manual carefully to understand the proper use of your unit. -
Page 9: For Your Safety
What are the meanings of the symbols used? Danger notices and information are clearly marked throughout these instructions for use. The following symbols are used: DANGER! Direct danger to life and risk of injury! Directly dangerous situation that may lead to death or severe injuries. WARNING! Probable danger to life and risk of injury! Generally dangerous situation that may lead to death or severe injuries. -
Page 10: Electrical Safety
RISKS CAUSED BY VIBRATIONS CAUTION! Risk of injury due to vibrations! Vibrations may cause damage to blood vessels and/or nerves, particularly for people with circulation problems. If you notice any of the following symptoms, stop working immediately and consult a doctor. Numbness of body parts, loss of sense of feeling, itching, pins and needles, pain, changes in skin color. - Page 11 must not use the device. • Make sure that the device is assembled completely and according to regulations. • Check the device to ensure that it works correctly, especially check for the correct and secure fit of the chain rail. •...
-
Page 12: Residual Risks
Observe the safety instructions before using the product for the first time. Read and observe the operating instructions before commissioning. Protect the device from wet conditions. Store in a dry location. Remove the plug from the electrical network immediately if the cable is damaged or cut. Wear personal protective equipment and sensible clothing. -
Page 13: Your Device At A Glance
2. YOUR DEVICE AT A GLANCE Fig. 1 to Fig. 9 1. Handle 2. Saw chain 3. Chain bar 4. Chain adjustment ring 5. Fastening bolt for chain sprocket chain 6. Sight view for oil level 7. Rear hand guard 8. - Page 14 WARNING! Risk of injury during assembly. Parts may only be assembled and disassembled when the motor is switched o . CAUTION! Risk of injuries due to cuts! The teeth of the saw chain are very sharp! Protective gloves must be worn for all work on the chain. DANGER! Risk of injury! An improperly mounted saw chain causes uncontrolled cu ing behavior of the device! When assem-...
-
Page 15: Operation
The saw chain is tensioned correctly if it lies close against the underside of the saw rail and can be moved easily by hand. Readjust tension of the saw chain when necessary (retensioning the saw chain). If there is su cient chain greasing, the oil spraying o of the saw chain will form a slight trail. CHECKING THE CHAIN GREASING NOTICE! Device damage! -
Page 16: Use
The chain catcher serves to catch a torn saw chain or one which has jumped out of the guide. Through regular maintenance of the saw rail and correct and regular tensioning of the saw chain, accidents of this type can be prevented. The rear hand guard. -
Page 17: Correct Posture
Before use, familiarize yourself su ciently with the sawing technique for chainsaws. You will find information about this in the trade literature. We recommend that you a end suitable training sessions. The notes here serve only as a complement. CORRECT POSTURE DANGER! Risk of injury! •... -
Page 18: Before Each Use
Avoid le ing the area of the saw rail depicted on the right touch wood or other hard objects. In order to reduce the risk of injury in case of a rebound, the device is equipped with a chain brake which is triggered automatically on impact and stops the saw chain immediately. -
Page 19: Felling A Tree
SAWING TECHNIQUE: PUSHING SAWING With this technique, sawing occurs with the upper edge of the saw rail from bo om to top. The saw chain thus pushes the device backwards towards the user. If the saw rail twists, the device can fly towards the user with great force. - Page 20 • The next workplace is at least two and a half tree lengths away. Before felling, the felling direction of the tree must be checked and it must be ensured that there are no objects, people or animals in a distance of 2 1/2 tree lengths.
-
Page 21: Removing Branches
DANGER! Risk of injury! Do not saw any trunks under tension! Splintering wood or a twisted saw rail can cause extremely severe injuries! REMOVING BRANCHES • Always work on the side opposite the branch in question. • Begin at the bo om of the trunk and work upwards. •... -
Page 22: Storage And Transportation
CLEANING THE DEVICE • Remove coarse dirt. • Wipe down the device with a slightly damp cloth regularly, depending on the conditions of use. CLEANING THE OIL GUIDE GROOVE OF THE SAW RAIL NOTICE! Device damage! To clean the saw rail, use only a plastic spatula, never a steel tool. •... -
Page 23: Technical Data
LONGER DOWNTIMES If you are not going to be using the device for a while, remove the chain oil from the device. Store the device in a dry place. TRANSPORTATION If you are transporting the device in a vehicle: • Slip the protective cover onto the cu ing tool. •... -
Page 24: Disposal
APPROPRIATE CHAIN OIL NOTICE! Risk of damage to the device! Under no circumstances should you use old oil to grease the saw chain! This can cause damage to the oil pump, saw rail and chain! Use only special saw chain oils with good adhesion properties. Since the saw chain oil can penetrate the environment during operation, special biologically degradable vegetable based saw chain oils should be used. -
Page 25: Warranty
WARRANTY Product model Date of sale Company Serial number Client's signature Username Please read and agree to the terms of the warranty. The manufacturer warrants the product against faulty materials and workmanship for a period of 1 year from the date of first purchase to the original purchaser. The warranty is applicable when the product is used in a “home owner”... - Page 26 GBR Corporation Ltd. /©2020 Energizer. Energizer, Personaje de Energizer y ciertos diseños gráficos son marcas comerciales de Energizer Brands, LLC y subsidiarias relacionadas y son utilizadas bajo licencia por GBR Corporation Ltd.
