Summary of Contents for Kapego DV512

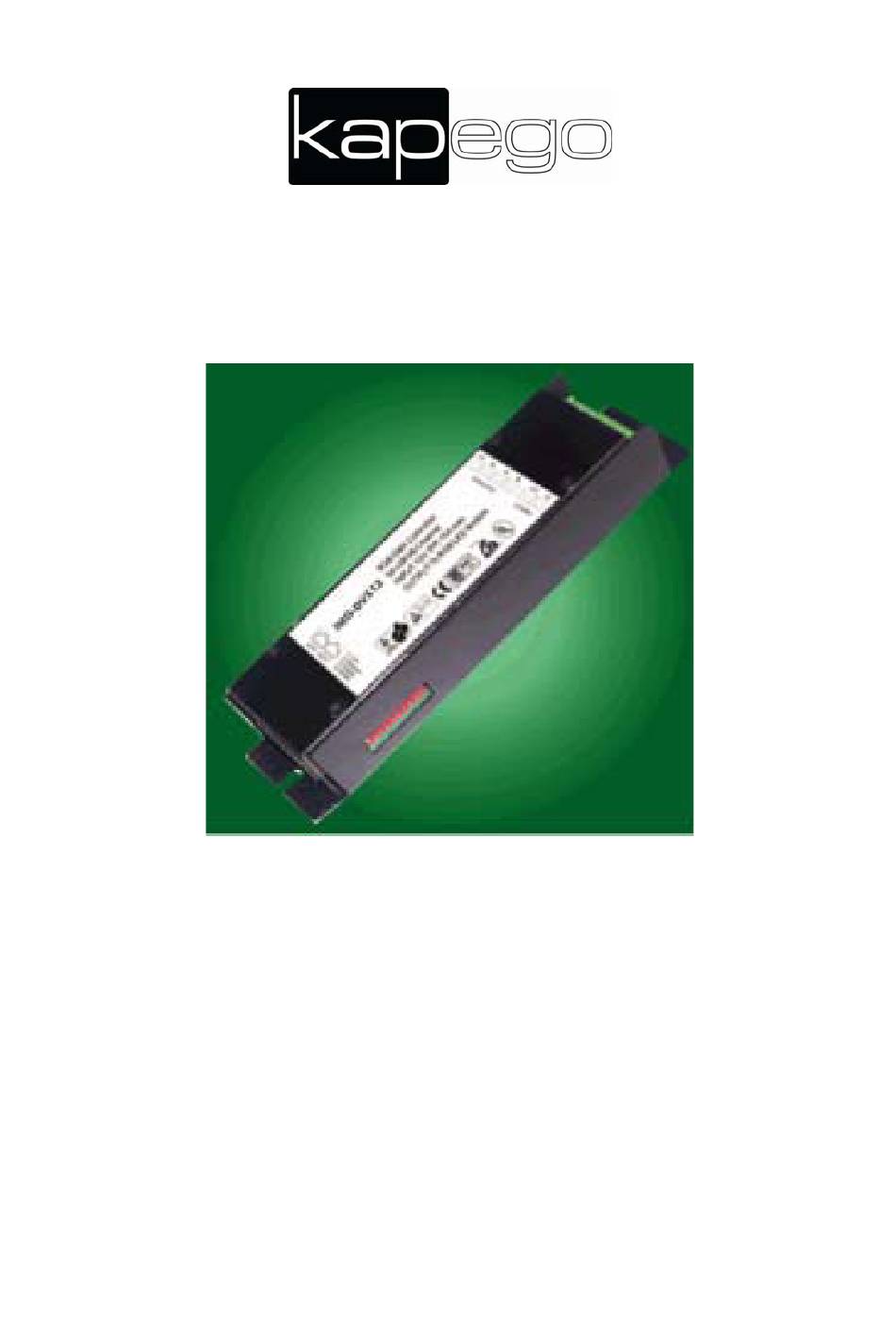

- Page 1 U S E R ’ S M A N U A L DMX 512 DRIVER...
-
Page 2: Table Of Contents
D M X 5 1 2 D R I V E R Table of contents Safety instructions ........................... 3 SUMMARIZE ........................... 4 Features ............................4 TECH. CHARACTERISTICS ......................4 Internal Block Digram ........................5 ... -
Page 3: Safety Instructions
D M X 5 1 2 D R I V E R 1. Safety instructions FOR SAFE AND EFFICIENT OPERATION Be careful with heat and extreme temperature Avoid exposing it to direct rays of the sun or near a heating appliance. Not put it in a temperature bellow 41°F /5°C, or exceeding 95°F /35°C. -
Page 4: Summarize
D M X 5 1 2 D R I V E R 2. SUMMARIZE Thank you for using DV512 decoder. With advanced micro-computer control technology, PX series convert the widely used DMX512/1990 signal to analog signal. Can choose 1~3 output channel,256-level brightness control. For connecting of light console and analog device, or lighting&building lamps controlling. -
Page 5: Internal Block Digram
D M X 5 1 2 D R I V E R 5. Internal Block Digram 6. Appearance (1) DMX signal input interface(RJ11) (2) DMX signal output interface(RJ11) (3) Address setting interface (4) Driver output interface (5) Power input interface 7. -
Page 6: How To Use
V+ pin on decoder. 8. How To Use DV512 is controlled by DMX-512 digital signal。The frontage is DMX512 transmitter， take IMG- DMX512 for example, to control 0~24V analog devices. We suppose to drive LED to introduce it. The connecting is below：... -
Page 7: Connecting Of Dmx-512 Signal
Rating power in 24V： 360 W DMX-512 Address Setting The DIP switch on IMG-DV512 can set the binary value of the DMX512 address to receive data. The correlative bits is the 1-9 bits of the DIP switch, the 1st bit is LSB, the 9th bit MSB 512 addresses totally. -
Page 8: The Contents About The Product Install And Usage Principle
D M X 5 1 2 D R I V E R Example 2：Set to 226 Set the 8th,7th,6th,1st bit to “1”，others set to“0”，then the sum of the 1~9 is 128+64+32+1，then add 1 to it，is the start address 226. That is：[ 128 + 64 + 32 + 1 ] + 1 = 226 The contents about the product install and usage Principle：... -
Page 9: Install Cases
D M X 5 1 2 D R I V E R Install Cases: (in attached drawing,the unconscionable of install cases were labeled by "X") (1)The bad install manners of take away the heat and the right ways 12.1.1. (2)The install manners with weak signal and the right ways 9 / 11... -
Page 10: Troubleshooting Guide
D M X 5 1 2 D R I V E R Troubleshooting Guide If still can not figure out, please contact our technician. 10 / 11... - Page 11 D M X 5 1 2 D R I V E R Importeur: B&K Braun GmbH Industriestraße 1 D-76307 Karlsbad-Ittersbach www.bkbraun.com info@bkbraun.com 11 / 11...
