TPM 106-D404-XNT Quick Start Manual

TPM
Product Type
106-D404-XNT
Screw terminal 32-channel digital output
Specifications
Size: (L124 x W77 x H42 mm)
Series Interface: Half duplex RS-485 with transformer isolation
Cable Type: CAT5 UTP/STP Ethernet Cable
Surge Protection: 10KV
Transfer Rate: 2.5Mbps, 5Mbps, 10Mbps, 20Mbps
IO isolation Voltage: 3.75KVrms
Output Types: NPN open collector with Darlington transistors
Switch Capacity: each output channel is 350mA/channel maximum at 24V DC
Response Time: On to Off about 50μs, Off to On about 8μs
Over Current Protection: 3A (max) for each port (8-channel)
Input Voltage: +18V DC ~ +30V DC
Power Consumption: 3W typical
Working Temperature: 0 ~ 60°C

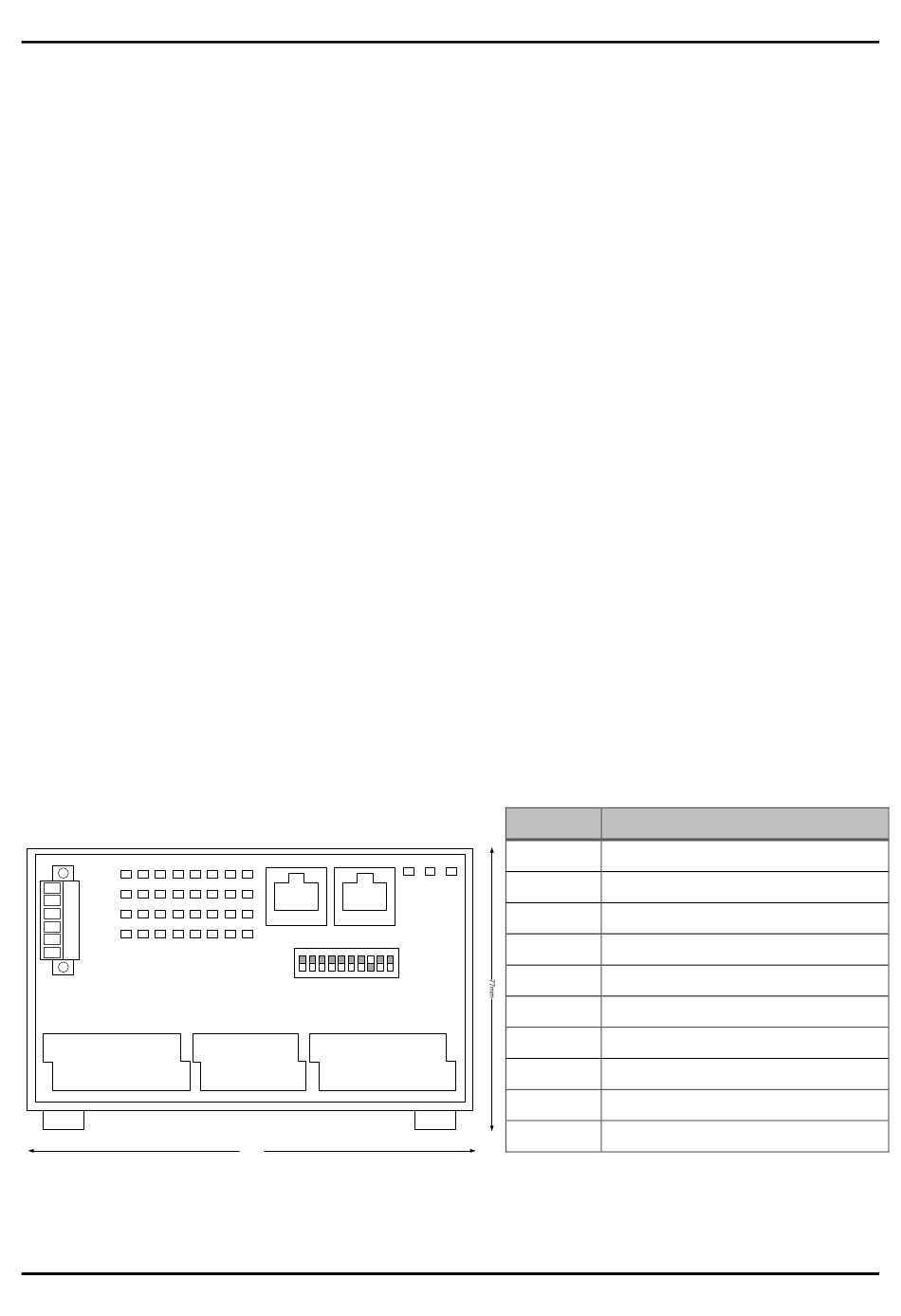

IO interface
CN5
CN1
Date 20240408
CN4 CN3
RUN ERR PWR
SW301
CN6 CN2
124mm
Product quick start guide
Label
CN1 Output I/O terminal
CN2 Output I/O terminal
CN3 Motionnet communication Interface
CN4 Motionnet communication interface
CN5 Power source
CN6 Power output terminal
S301 Device configuration switch
RUN Communication active indicator
ERR Communication error indicator
PWR DC power indicator
