FCI Amphenol Mintek 10168632-001HT Manual

Minitek ® 1.50mm Hand Tool

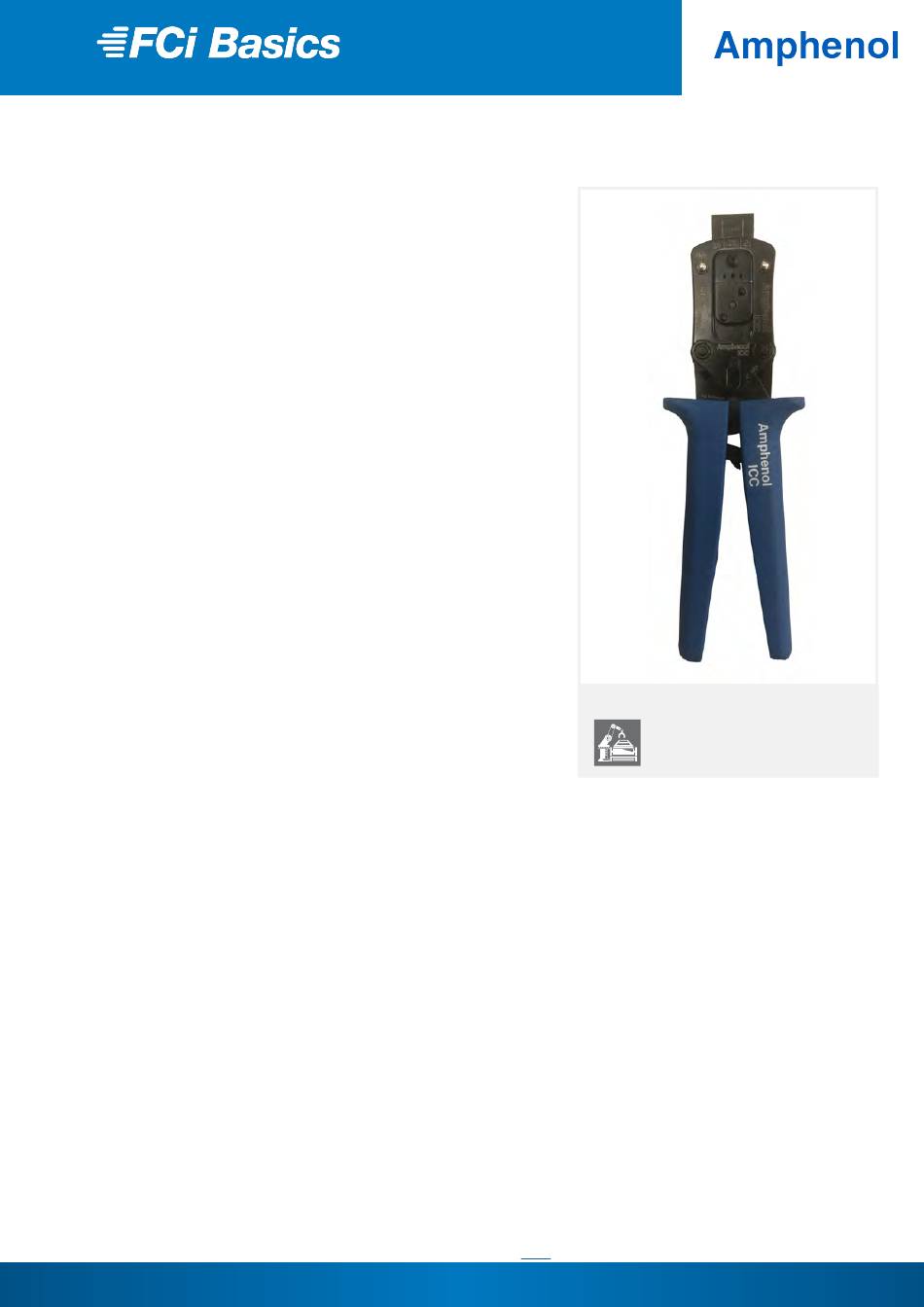

The FCI Basics' crimping hand tool is designed for applications in the
prototyping phase or small production quantities. The hand tool has a
mechanism which opens automatically after making the last advance of
the ratchet.
This hand tool is dedicated for Minitek
Minitek ® 1.50mm connector system is the ideal solution for devices that
require connectors with robust features and the ability to carry more
signal lines in less space. It is designed with a positive locking system
and 'audible click' for secure mating retention.
Minitek ® 1.50mm solution includes terminals, crimp housings and PCB
headers in right angle and vertical surface mount configurations in a
single row design and is available from 2 to 15 circuits
§
Minitek ® Hand tool P/N: 10168632-001HT (AWG 24-26-28)
§
Contact P/N:
- 10135176-001LF
§
Ergonomic handle for an optimal grip
Amphenol CS recommends using the hand tool for prototyping and small production quantities.
This tool should only be used for the terminals and wire gauges specified in this document.
To learn more about how to use our all-in-one Crimping Hand Tool,
www.amphenol-cs.com
® 1.50mm Crimp-to-Wire product.
TARGET MARKETS
click to watch the video.
