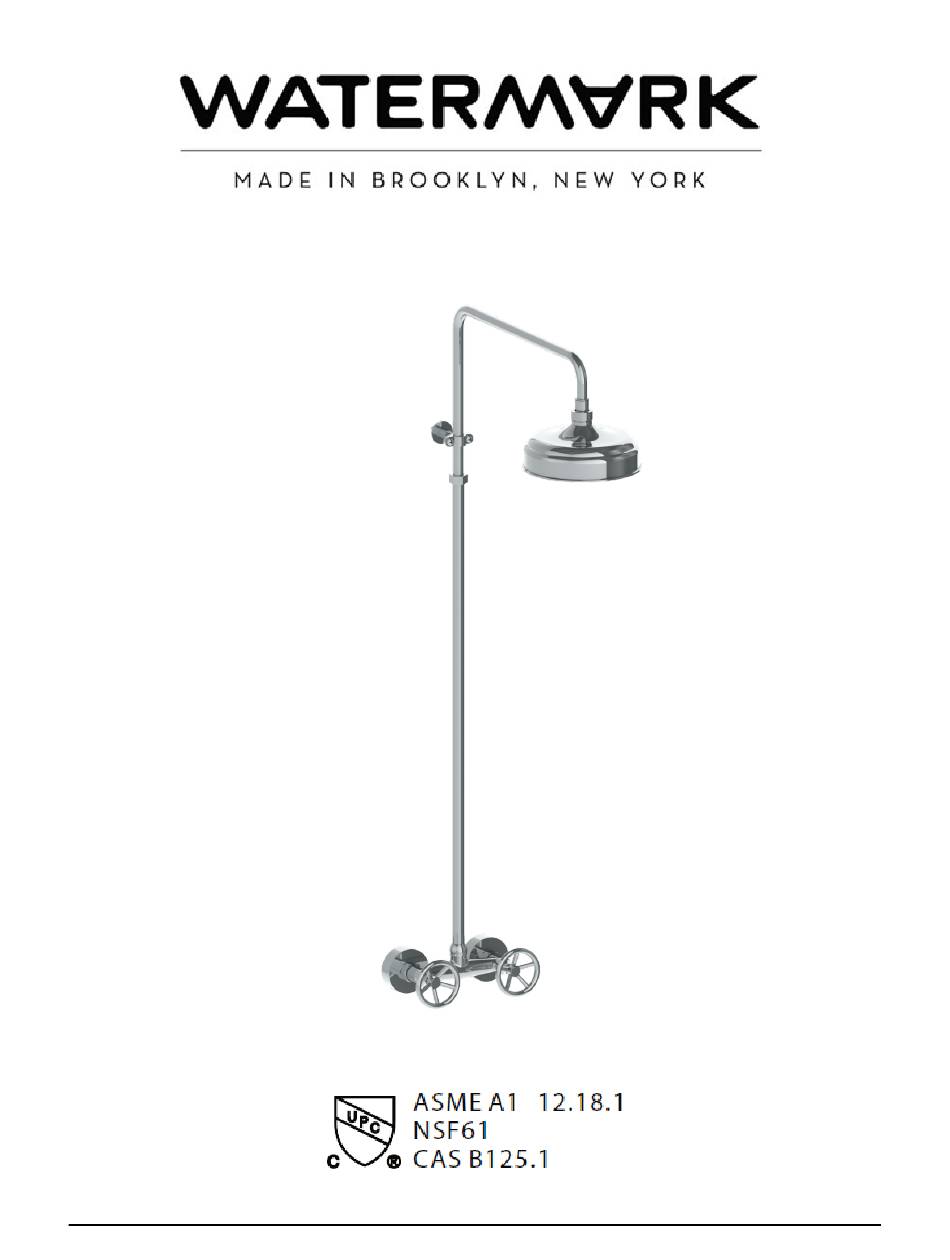

- Page 1 INSTALLATION INSTRUCTION Exposed Shower System 31-6.1 EXPOSED SHOWER SYSTEM Page 1...
- Page 2 DIMENSIONS (Shown below is 31-6.1) EXPOSED SHOWER SYSTEM Page 2...
-
Page 3: Parts Breakdown
PARTS BREAKDOWN EXPOSED SHOWER SYSTEM Page 3... - Page 4 PARTS BREAKDOWN (CON’D) EXPOSED SHOWER SYSTEM Page 4...
-
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS ATTENTION 1. The cartridges in the main body have been tested and adjusted by the factory. DO NOT take the cartridges apart. 2. Ensure to clean water supply pipe before installation to avoid clogging. TO KEEP THE QUALITY OF THE FAUCET PLEASE FOLLOW THESE INSTRUCTIONS •... - Page 6 STEP (2) Choose desired height of the shower/rain head (13), and then align the riser (10) with the mixer body (4) to mark the location to install the riser seat base (18). With location of the riser seat base (18) determined above, drill a hole in the wall for the wall anchor (19).
-
Page 7: Important Installation Information
STEP (5) Install shower/rain head (13) into the riser (10) using a crescent wrench or fitting wrench. Verify the stability of the entire system. STEP (6) Check for leakage and stability issues before use. Cartridge Installation Thread the 502 cartridge (5) into the mixer body (4), and fit the cartridge escutcheon (6) through the 502 cartridge (5) to thread it onto the mixer body (4).
