Summary of Contents for Clark FOT-SCPD

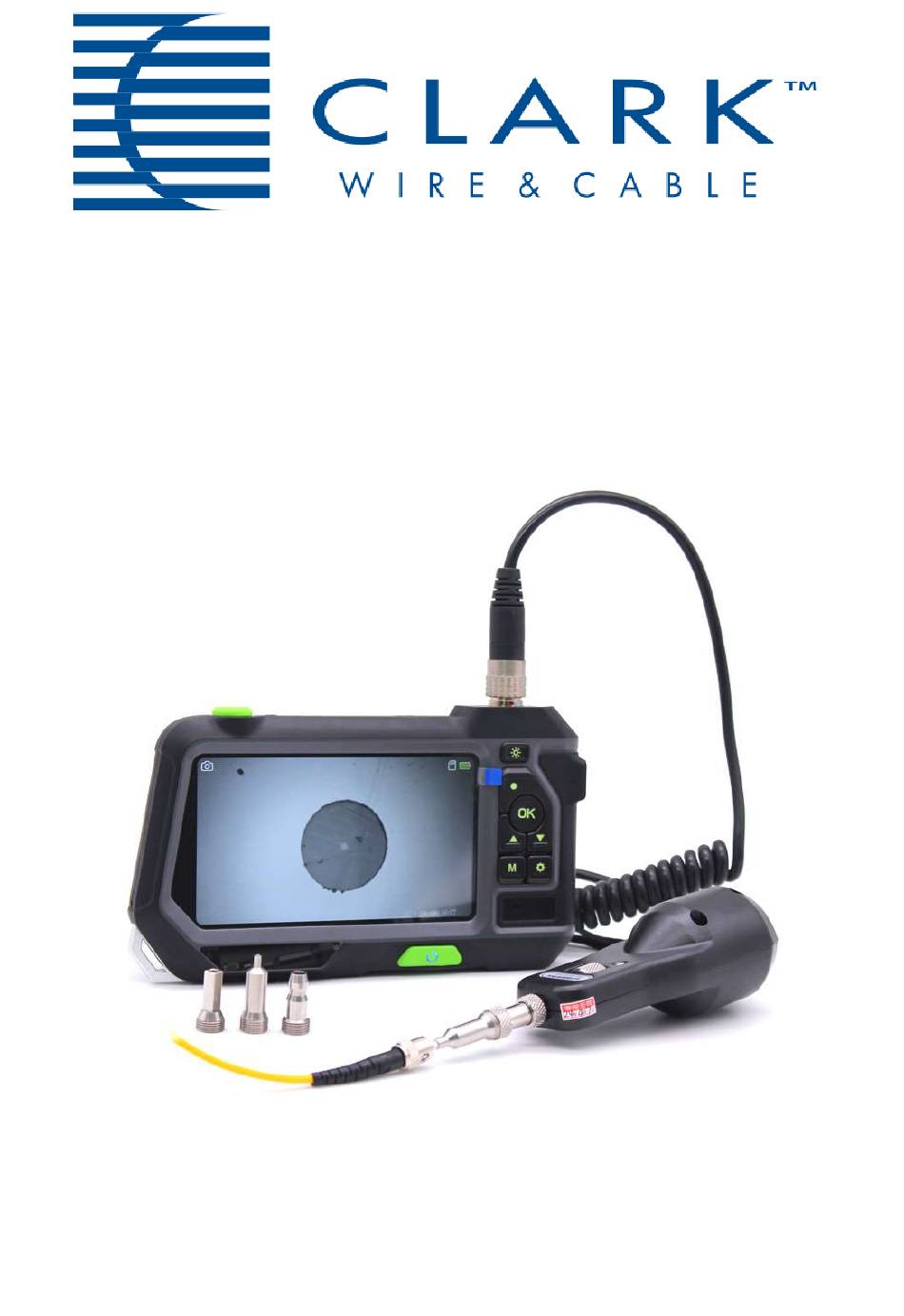

- Page 1 FOT-SCPD FIBER OPTIC CLEANING SCOPE KIT User Guide Fiber Microscope Operation Manual...
-
Page 2: Safety Summary
Operators should not operate this instrument with any of its covers removed, nor should they allow anyone else to do so. Do not attempt any unauthorized service to this instrument. Always return the instrument to Clark Wire & Cable for repair to ensure that safety features are maintained. -
Page 3: Table Of Contents
CONTENTS Page Overview Features Description Operation Specifications SC/ST/SMPTE304M One-Click Cleaner MU/LC Fiber One-Click Cleaner Fiber Optic Cassette Cleaner... -
Page 4: Overview
Therefore, inspection of fiber optic connectors should be performed whenever a connection is to be made. The FOT-SCPD scope is a handheld microscope specifically designed for fiber optic connector end face inspection. -
Page 5: Features
Features FC/SC/ST/E2000/LC/MU/SMPTE compatible 5-inch TFT display Up to 200X/400X overall magnification TF card storage up to 32G Snapshot, video recording and playback 180° image rollovers Flashlight function... -
Page 6: Description
Description 1. Main Unit Handle and probe interface Handle internal light control (factory-locked) Snap key: take photos / start video / end video Enter key: confirm the selection / freeze frame screen Select key: up and down Mode switch button: switch between the three functional modes of photo, video and playback Set the key: Enter / exit the setting interface Power button: long press power-on / shutdown... - Page 7 USB-C charging interface TF card slot Auxiliary lighting Auxiliary lighting lamp switch Loudspeaker Mic pick-up Reset button...
- Page 8 The device is equipped with a TF memory card, which has been installed in the body card slot. Press in the card slot to pop up the storage card. Use the card reader to view or copy photos or videos taken by the inspection host. 2.
- Page 9 3. Standard adapters 2.5mm tip for PC male connectors 1.25mm tip for PC male connectors Tip for LC/PC female connectors Tip for SC/PC female connectors Tip for SMPTE 304m female pins Tip for SMPTE 304m male pins...
-
Page 10: Operation
Operation 1. Probe installation 1.1 Component installation Always install adapter tips carefully to avoid damage to the mechanism. 1.2 Focus adjustment Gently rotate the focus adjustment knob to bring the image into focus. Do not overturn or force the knob into postion as damage may occur. - Page 11 3. Card Insert the TF card before using the device. 4. Power on/off Press the “Power On/Off” button to turn the unit on and off. 5. Photo and video Press the photo button to take a photo/video, and the photo/video file is saved in the DICM folder of the TF card. 6.
-
Page 12: Specifications
Specifications Mainframe Display 5" LCD Video resolution AVI (1280x720) Photo resolution JPEG (1920x1080) Image / Video Storage 32GB TF card Image rollovers 180° Dimensions 180mm x 100mm x 30mm Weigh(including battery, 11.29 oz. Protective sleeve) Power Supply Replaceable battery or universal input 5V DC adapter Rechargeable Li-Ion,5V/2A, Battery... - Page 13 Standard Accessories Inspection Probe Mainframe AC power adapter/battery charger Rechargeable battery pack 2.5mm tip for PC male connectors 1.25mm tip for PC male connectors Tip for SC PC female connectors Tip for LC PC female connectors 2.0 Tip male pins 2.0 Tip female pins Operation Manual / Carrying case Optional Accessories...
-
Page 14: Sc/St/Smpte304M One-Click Cleaner
User Guide Fiber optic cleaning supplies FC/SC/ST/E2000/SMPTE304M One-click Cleaners The oil and dirt on the fiber adapter head can be removed with a single touch or "click" “One-click” is a high performance, high efficiency fiber adapter head cleaning tool. Please read the operating instructions carefully before using this product. -
Page 15: Product Structure
Product structure Description Function cleaner tip Lead the cleaning tape to the optical connector endface cleaner tube Lead the cleaning tape to the optical connector endface latch Press the latch to lengthen or shorten the cleaner tube shell Move the shell to clean optical endface guide cap As the dust cover or be the adapter for the cleaning tip... - Page 16 Application When inserting the adapter, be careful not to tilt the “one-click” cleaning rod. When inserting, do not use excessive force, otherwise it may damage the adapter head and the cleaning rod.
-
Page 17: Mu/Lc Fiber One-Click Cleaner
MU/LC Fiber One-Click The oil and dirt on the fiber adapter head can be removed with a single touch or "click". “One-click” is a high performance, high efficiency fiber adapter head cleaning tool. Please read the operating instructions carefully before using this product. - Page 18 Product structure Description Function cleaner tip Lead the cleaning tape to the optical connector endface cleaner tube Lead the cleaning tape to the optical connector endface latch Press the latch to lengthen or shorten the cleaner tube shell Move the shell to clean optical endface guide cap As the dust cover...
- Page 19 Application When inserting the adapter, be careful not to tilt the “one-click” cleaning rod. When inserting, do not use excessive force, otherwise it may damage the adapter head and the cleaning rod.
-
Page 20: Fiber Optic Cassette Cleaner
Fiber optic cassette cleaner Overview The cassette type optical fiber cleaner is composed of a casing, a rotating mechanism, a thrust mechanism and a cleaning belt. The cleaning belt is woven by special fiber, has good water absorption, anti-static function and works well for ground in dirt and dust removal. -
Page 21: Technical Parameters
Effect test The cleaning effect of the product can be evaluated by the fiber end face detector. The enlarged photo before cleaning, as shown in Figure 1, can be seen that the obvious dirt adheres to the surface of the connector; the photo after using the cleaning cleaner, as shown in Figure 2, and the photo before cleaning In sharp contrast.
