  • Page 1 OWNER’S MANUAL FAIRFIELD GYM...

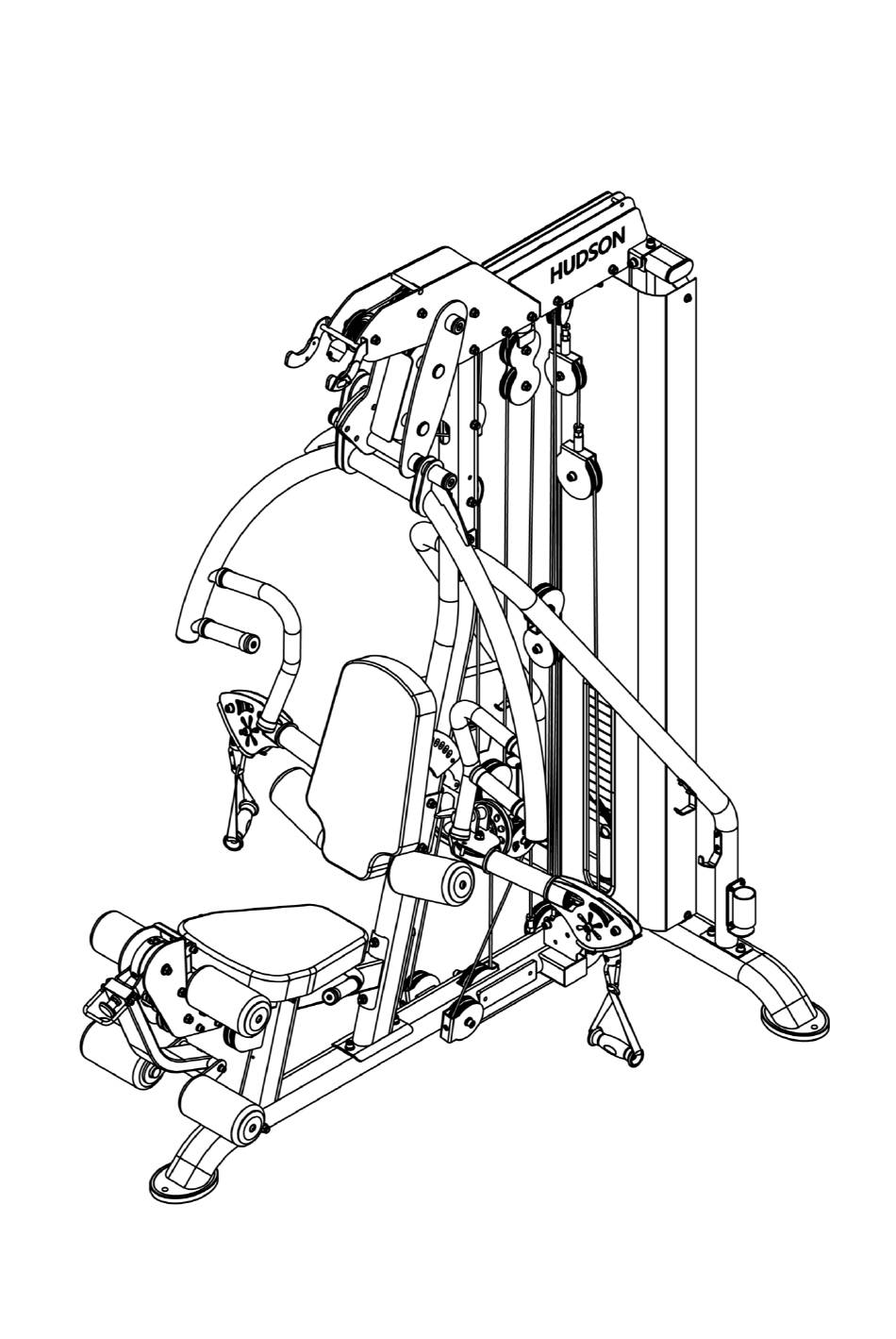

  • Page 2: Exploded View

    EXPLODED VIEW...

  • Page 3: Parts List

    PARTS LIST Nº English description Specification Front Base Frame Back Base Frame Front Upright Frame Back Upper Frame Front Upper Frame Upper Connection Frame Swing Arm Upper Rotating Stand Swing Arm Stand Back Cushion Adjustable Frame Back Cushion Rotating Frame Seat Cushion Adjustable Frame Handle Frame FOAM Rotating Frame...
  • Page 4 Shroud L Fixing Plate 40*54*45*3 Shroud Side Fixing Plate 40*80*50*3 Hook 20*84.6*55.6*3 Fixing Shaft Φ12*76*M8 FOAM Shaft Φ12*127*M8 Long Adjustable Shaft Φ18*Φ13.5*145*M8 Back Adjustable Guard Plate 196.7*35*2 Kick Handle Φ8*266 Right Decorative Sheet 428*147*5 Left Decorative Sheet 428*147*5 Bumper Sleeve Φ15*Φ10*70 limit Sleeve Φ26*Φ20*20...
  • Page 5 Bumper 45*40*8 PVC Rubber Foot 169*129*16 Φ38 End Cap Φ38*Φ9*6 Φ25 End Cap Φ34.5*Φ6.5*25 Φ25 Handle Ring Φ34.5*14*M6 Φ40 Handle Φ40*30*M8 Φ32 End Cap Φ42*Φ8.5*25 Φ32 Handle Ring Φ42*16*M6 FOAM Cover Φ80*Φ17*Φ9*6 Powder metallurgy sleeve Φ25*Φ18*Φ12.5*15 Φ12 Iron-base sleeve Φ25*Φ22*Φ12.2*10 Iron-base Powder sleeve Φ20*Φ16*Φ12.1*8 Φ20 Iron-base sleeve...
  • Page 6 Flat Washer Φ6.6*Φ12*1.6 Big Washer Φ6.6*Φ18*1.6 Flat Washer M5(Φ5.5*Φ10*1) Spring Washer Φ10 Spring Washer Φ8 Flat Nut Hex Flat-head Screw M6*6 Hex Flat-head Screw M6*10 Hex Socket-head Bolt M6*10 Hex Socket-head Bolt M6*20 Hex Socket-head Bolt M8*15 Hex Socket-head Bolt M8*20 Hex Socket-head Bolt M8*30...

  • Page 7: Assembly Steps

    ASSEMBLY STEPS Step 1. 1. Attach #1 to #2 using:  2 #125  2 #130  2 #154 NAME SPECIFICATION QUANTITY Front Base Frame Back Base Frame Flat Washer Φ11*Φ20*2 Spring Washer Φ10 Hex Socket-head Bolt M10*25...
  • Page 8 Step 2. 1. Install #14 to the designate position of #1 as the diagram shown using:  8 #124  8 #131  8 #140 NAME SPECIFICATION QUANTITY Front Base Frame Kick Leg Main Frame Flat Washer Φ9*Φ16*1.6 Spring Washer Φ8 Hex Socket-head Bolt M8*20...
  • Page 9 Step 3. 1. Attach #80 to #3 then attach #3 to #1 using:  2 #161  4 #125  2 #132 Do not tighten the bolts yet; 2. Attach #3 to #1 using:  2 #125  2 #130 ...
  • Page 10 Step 4. 1. Install 2 #39 to the designate position hole in diagram shown, through 2 #69 and 2 #100 in turn; 2. Remove #163, #164, #165 from #75 and set aside for later use; 3. Then put on 15#74 and #75;...
  • Page 11 Step 5. 1. Install #4 to the guide-god using:  2 #125  2 #130  2 #152 2. Then install #6 to vertical tube as shown in the diagram, align the corresponding hole,using:  2 #158  4 #125 ...
  • Page 12 Step 6. 1. Attach the U-shaped stand of #18 to the vertical tube using:  2 #156  5 #125  2 #132  1 #159  1 #130 Then tighten all the bolts. NAME SPECIFICATION QUANTITY Rotating Support Frame Flat Washer Φ11*Φ20*2 Spring Washer...
  • Page 13 Step 7. 1. First unscrew #143 and #86, remove #36 from #7, align #7 with the bearing hole as shown and then put on #36, Note that the end notch plane of #36 should be aligned with the M6 screw hole on #7; 2.
  • Page 14 Step 8. 1. Install #40 to the designate position in the diagram shown using:  6 #128  6 #137 NAME SPECIFICATION QUANTITY Front Shroud 1720*355*125*1.5 Big Washer Φ6.6*Φ18*1.6 Hex Socket-head Bolt M6*10...
  • Page 15 Step 9. 1. Take out #58 as shown, remove the buffer head with 3mm hex wrench to expose the cable terminal, and then screw one end of the hollow hex bolt into the threaded hole of the selected shaft; 2. Pass one end of the cable terminal up through the centre bore of the tube as shown; 3.
  • Page 16 Step 10. 1. Take out #59 according to the diagram, and refer to step 9, remove the cable buffer head, screw the other end of the hollow hex bolt to #21; 2. Insert the pulley according to the position shown in the diagram, and thread the cable according to the diagram, then put on the cable buffer head, the cable terminal, and screw on the hex counter-sunk screw M5*20;...
  • Page 17 Step 11. 1. Refer to Step 9, remove the plastic cable buffer head at both ends of #60, then pass the cable through #25, the length of the cable is divided into two sections, and pass down through the pulley as shown in the diagram;...
  • Page 18 Step 12.
  • Page 19 1. Screw the hollow hex bolt of #61 to the threaded hole as shown in diagram1 of #21, thread the other end into the pulley as shown in the diagram, and thread the cable in the direction shown; 2.The cable passes through as shown in diagram 2 and exits as shown in diagram 4, then it is threaded into the cable terminal according to diagram 3, and finally reset to the position shown in diagram 4.
  • Page 20 1. Screw #62 one end hollow hex bolt to the designate position in the diagram shown, and the other end terminal through the pulley as shown in the diagram; 2. Loosen #150, #125, #132 as shown in partial view, put one end of the cable terminal in #62 with 2#109 into the indicated position, then put back #150, #125, #132;...
  • Page 21 Step 14. 1. Insert #29 into the designate position in the diagram shown, install #98 at both ends, then secure with #144, #131 and #92 respectively; 2. Install #26 to the designate position in the diagram shown and thread into #45, The both ends are respectively fixed with #140, #131, #124 to ensure smooth rotation;...
  • Page 22 Step 15. 1. Loosen #131 and #141, Install #9 to the designate position in the diagram shown, then screw back #131 and #141; 2. Install #10 to #9 designate position in the diagram shown using:  #126  #133  #160 Make sure #10 rotates smoothly.
  • Page 23 Step 16. 1. Install #54 to the designate position in the diagram shown using:  5 #125  5 #154 2. Install 2 #98 to the designate position in the diagram shown using:  #144  #131  #92 NAME SPECIFICATION QUANTITY Back Cushion...
  • Page 24 Step 17. 1. Install #27 and #28 to the designate position in the diagram shown respectively using:  2 #156  4 #155  12 #125  6 #132 Please tighten all the bolts. Attn: The machine should be tilted to install #155 or remove #70 first, and then proceed with the installation of #155, #125, and #132.
  • Page 25 Step 18. 1. Install #49 and #50 to the designate position in the diagram shown respectively using:  #158  #125  #132 NAME SPECIFICATION QUANTITY Right Decorative Sheet 428*147*5 Left Decorative Sheet 428*147*5 Flat Washer Φ11*Φ20*2 Hex Socket-head Bolt M10*105...
