Automate Push Pro Programming Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Push
Pro
Programming Guide
MT02-0101-xxx013_v1.0_03052024
Next

Advertisement

loading
Need help?

Need help?

Do you have a question about the Push Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Automate Push Pro

Summary of Contents for Automate Push Pro

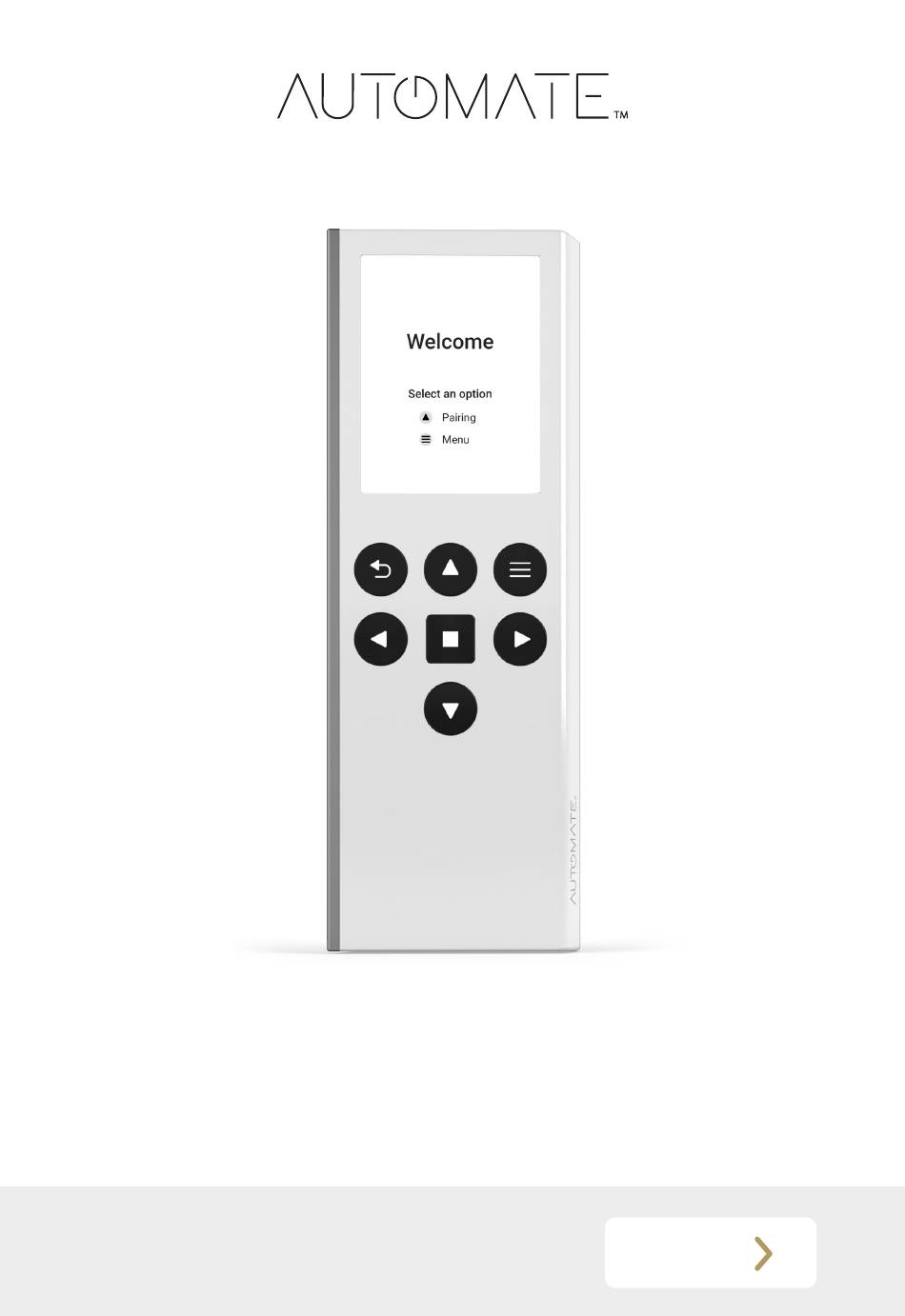

  • Page 1 Push Programming Guide MT02-0101-xxx013_v1.0_03052024 Next...
  • Page 2 Programming Guide P1 Locations P1 Locations Battery Management Battery Management Button Overview Button Overview Wall Mounting Wall Mounting How to Charge How to Charge User Guide Controlling Shades Controlling Shades Using the Remote Using the Remote Pairing Shades Pairing Shades Favorite Position Favorite Position Timers...
  • Page 3 Speed/Soft Stop Speed/Soft Stop Directions Directions Limits Limits Factory Reset Factory Reset Back Next...
  • Page 4 Safety Warning: Important safety instructions to be read before installation and use. Incorrect use can lead to serious injury and will void manufacturer’s liability and warranty. It is important for the safety of persons to follow the enclosed instructions. • Before using the device, read the instruction manual carefully to understand its proper use and maintenance.
  • Page 5 • Persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, should not be allowed to use this product. • Use of modification outside the scope of this instruction manual will void warranty. • Installation and programming to be performed by a suitably qualified installer.

  • Page 6: Specifications

    Specifications 14°F to 122°F Operating Temperature (-10°C to 50°C) Battery Type 1000mAh Li-Ion Ratings 5V DC 500mA Radio Frequency 433.92 MHz Transmitting Power 10 milliwatt RF Modulation IP Rating up to 328 ft* Transmission Distance (up to 100m*) * depending on environment Back Next...
  • Page 7 FCC ID: 2AGGZ003B9ACA57 IC: 21769-003B9ACA57 Do not dispose of in general waste WEEE LOGO For US Market min. 7mm height For EU Market FCC & ICES Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference...
  • Page 8 Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device contains licence- exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s).
  • Page 9 L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 10 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...
  • Page 11 Assembly Please refer to separate Rollease Acmeda System Assembly Manual for full assembly instructions relevant to the hardware system being used. Back Next...

  • Page 12: Battery Management

    Battery Management Battery Motors Prevent discharging the battery completely for extended periods, recharge as soon as the battery is discharged. Charging notes Charge your motor for 6-8hours, depending on the motor model, as per motor instructions. Note: During operation, if battery is low, the motor will beep 10 times to prompt the user it needs charging.
  • Page 13 P1 Locations Please refer to your motor programming manual for P1 button functionality. Internal Tubular Large Tubular 0.6 Cord Lift 0.8 Cord Lift Hold Curtain Tilt Motor Back Next...

  • Page 14: Wall Mounting

    Wall Mounting Use supplied fasteners and anchors to attach the base to wall. Back Next...

  • Page 15: Button Overview

    Button Overview Navigate Up / Shade Up Back Menu Navigate Left Navigate Right Enter / Stop Navigate Down / Shade Down Back Next...

  • Page 16: Charging The Remote

    Charging The Remote Step 1 Your PUSH Pro remote comes with an internal battery that might need to be charged before you use it for the first time. Back Next...
  • Page 17 To charge your remote, connect a compatible USB-C cable (not included) to the remote’s USB-C charging port. Plug the other end of the cable into a computer USB port and a USB wall adapter (5V 500mA, not included). A lightning bolt icon should appear, indicating that the remote is charging.
  • Page 18 First Use It is recommended to charge the remote fully before using it for the first time Battery is Full Battery is Low Battery must be recharged Battery is Charging Back Next...
  • Page 19 Turning On the Remote The PUSH Pro remote is designed for continuous operation and does not feature a physical power button. Press any button to activate the remote. The screen will turn on and you will be greeted by the welcome screen.
  • Page 20 Note: After pairing your first shade, the Smart Wake feature on your remote will be enabled automatically. This allows the display to turn on whenever you lift the remote for use. Back Next...

  • Page 21: Using Your Remote

    Using your Remote The PUSH Pro remote features easy to use, tactile buttons. To operate the remote, use Up, Down, Left, or Right navigations buttons Back Next...
  • Page 22 To select an option, press the Enter button. Back Next...
  • Page 23 Pairing a New Shade The PUSH Pro remote can store up to 30 different shades. Press the menu button on the remote. Using the navigation buttons, select “Shades,” then press the Enter button. Menu Menu Shades Shades Groups Groups Timers...
  • Page 24 Select Pair New Shade, then press the Enter button. Follow the on-screen instructions to pair your new shade. Back Next...
  • Page 25 Navigation and Controlling Shades Your Shades or Groups will appear by default on the main screen. To cycle through available shades and groups, use the Left and Right navigation buttons. Back Next...
  • Page 26 To adjust the height of your shade, press the Up or Down navigation buttons. Back Next...
  • Page 27 To stop your shade at your preferred height, press the Stop button. Note: Double-click the Stop button to activate the Shade Level-Setting mode. Then, use the Up and Down buttons to adjust the desired shade percentage. 100% refers to the shade being fully closed. Back Next...
  • Page 28 Setting Favorite Position The favorite position feature lets you assign a preferred level setting for each of your shades. Press the Menu button on the remote then using the navigation buttons select “Shades,” then press the Enter button. Back Next...
  • Page 29 Select the name of the shade you wish to configure. Then select Set Fav. Position Back Next...
  • Page 30 Follow the on-screen instructions. Back Next...
  • Page 31 Note: On the main screen, press and hold the Stop button for 5 seconds to adjust your shade to its favorite position. If you’re using this in a group, you’ll need to individually configure the favorite position for each shade. Any shades without a favorite position set will remain inactive.
  • Page 32 Shade Limits Press the Menu button on the remote. Using the navigation buttons, select “Shades,” then press Enter. Back Next...
  • Page 33 Select the name of the shade you want then press Enter. Select Set Upper Limit or Set Lower Limit and follow the on screen instructions. Note: Each shade offers multiple adjustable settings including speed and soft stop. These options can be accessed via each Shade in the menu.
  • Page 34 Naming your Shades Press the Menu button on the remote. Using the navigation buttons, select “Shades,” then press the Enter button. Select the name of the Shade you want to adjust and press the Enter button. Back Next...
  • Page 35 Select Edit name and follow the on-screen information. Back Next...
  • Page 36 Groups You can organize your shades into preassigned rooms or assign them to a custom group name of your choosing. Press the Menu button on the remote. Using the navigation buttons, select “Groups,” then press the Enter button. Back Next...

  • Page 37: Adding A New Group

    Adding a New Group Select the Add Group option using the navigation buttons and press the Enter button. Back Next...

  • Page 38: Naming A Group

    Naming a Group To create a personalized group name, choose the Custom option. The name can include up to 15 alphanumeric characters. Back Next...
  • Page 39 To select a predefined group name, choose from the list and press Enter. You’ll also have the option to edit the name at this point. Click Save to proceed. Back Next...
  • Page 40 Assigning Shades to a Group Using the navigation buttons, select each shade you want to include in the group by highlighting it and pressing the Enter button. Back Next...
  • Page 41 Settings are saved automatically. Press the Back button to go back to the previous screen once you’re done. Back Next...
  • Page 42 Timers The timer function allows you to set automatic behaviors for your shades and groups, such as opening, closing, or moving to your favorite position. Press the Menu button on the remote. Using the navigation buttons, select “Timers,” then press the Enter button. Back Next...
  • Page 43 Select Add Timer and adjust the on-screen settings to your preference. Note: On the Edit Timer screen, you can change the name, schedule the time, and program the actions you want your blinds to perform. Back Next...

  • Page 44: Remote Settings

    Remote Settings You can customize a variety of settings on your remote control. Press the Menu button on the remote. Using the navigation buttons, select “Remote Settings,” then press the Enter button. Back Next...
  • Page 45 Customizing Shade/Group Visibility You can customize the visibility of your shades and groups on the main screen. To show or hide a shade and/or group, go to the Shade or Group settings menu by pressing the Menu button on the remote. Back Next...
  • Page 46 Using the navigation buttons to select either “Shades” or “Groups” then press the Enter button. Select the shade or group you wish to customize. Back Next...
  • Page 47 Refer to the table below to adjust the settings to your preference. Setting Output Shade is hidden from Show <Off> main screen Shade is shown on Show <On> main screen Group is shown from Hide Group <Off> main screen Group is hidden on Hide Group <On>...
  • Page 48 Enable Configuration Mode This is an Installer mode that enables you to pair and adjust various settings, bypassing the usual step-by-step on screen instructions. Press the Menu button and select Settings by pressing the Enter button. Back Next...
  • Page 49 On the Remote Settings screen, press and hold the Back, Up and Menu buttons together for 5 seconds. To exit Configuration Mode, press the Back button. SECS Back Next...
  • Page 50 On Remote Using the navigation buttons, scroll to an available pairing slot marked as “#/30” This slot will appear blank on the screen, indicating that it has not yet been set up. Back Next...
  • Page 51 On Motor * Internal Tubular Motor pictured. Refer to “P1 Locations” for specific devices. Press the P1 button on the motor for 2 Seconds until the motor responds as below. SECS BEEP Within 4 secs hold the stop button on the remote for 3 secs.
  • Page 52 Check Direction Press Up or Down to check the motor direction. Back Next...

  • Page 53: Change Direction

    Change Direction If the shade direction needs to be reversed; press and hold the Up & Down arrow together for 5 seconds until the motor jogs. SECS Reversing motor direction using this method is only possible during initial set-up. Back Next...
  • Page 54 Set Top Limit SECS Move shade to desired top limit by pressing the Up arrow repeatedly. Then press and hold Up & Stop together for 5 seconds to save limit. Tap the arrow several times or hold Down if needed; press arrow to stop. BEEP Back Next...
  • Page 55 Set Bottom Limit SECS Move shade to desired bottom limit by pressing the Down arrow repeatedly. Then press and hold Down & Stop together for 5 seconds to save limit. Tap the arrow several times or hold Down if needed; press arrow to stop. BEEP Back Next...

  • Page 56: Factory Reset

    Factory Reset MOTOR RESET PROCEDURE To reset all settings in the motor press and hold the P1 Button for 14 seconds, you should see 4 independent jogs followed by 4x Beeps at the end. SECS (Internal Tubular pictured above. Refer to “P1 Locations” for specific devices.) SECS SECS SECS...
  • Page 57 Setting Favorite Position Move Shade to Press P2 on remote desired position BEEP Press STOP on Press STOP on remote remote BEEP BEEP Back Next...
  • Page 58 Deleting Favorite Position Press P2 on remote BEEP Press STOP on Press STOP on remote remote BEEP BEEP Back Next...

  • Page 59: Copying Channels

    Copying Channels EXISTING REMOTE Select the channel you want to transfer. Press P2 on Press P2 on remote remote BEEP BEEP Back Next...
  • Page 60 Copying Channels NEW REMOTE Select the channel you want to transfer then press the P2 button on the new remote within 4 seconds. BEEP Back Next...

  • Page 61: Motor Speed

    Motor Speed Press P2 on remote BEEP To increase speed BEEP BEEP To decrease speed BEEP BEEP Back Next...
  • Page 62 Enable Soft Stop To Enable ensure that the motor is at its maximum speed, and then: BEEP BEEP BEEP Back Next...
  • Page 63 Disable Soft Stop To disable ensure that the motor is at its minimum speed, and then: BEEP BEEP BEEP Back Next...
