EAE TD4-KNX Installation Manual

Installation Manual
TD4-KNX 4" Touch Display
EAE KNX TD4-KNX 4" Touch Display
Operation and Display
Description of the Device
•
4 inch color IPS, 480x480 resolution, capacitive touch screen
•
With switching, dimming, curtains control, scene, value send
and switch indicator
•
Room temperature control, Air conditioner, Floor heating and
Ventilation System
•
Audio control
•
RGB, RGBW, RGBCW control and colour temperature setting
•
Air quality display, with PM2.5, AQI, CO2, VOC etc.
•
Energy Metering display, with current, voltage, power, energy.
•
8 Time functions, 8 Scene Group functions
•
8 Logic functions, with AND, OR, XOR, Gate forwarding,
Threshold comparator, Format convert, Delay function and
Staircase lighting
•
Proximity sensor, Screen brightness setting,Colorful strip
indication,Touch vibration feedback
•
Time and Date display, Temperature and Humidity display,
Day/Night status send
•
Password protection, Screen saver and Panel block
•
Alarm function, Built-in temperature sensor
•
Main page navigation function
•
Weekly timer, support to edit on screen
Technical Data
Bus supply Bus voltage
Bus current
Bus consumption
Auxiliary Supply Voltage
Current
Consumption
Connections KNX
Auxiliary supply
Installation In a conventional 80mm or 86mm wiring box
Temperature range Operation
Storage
Transport
Proximity Sensor Approximately 30cm
Dimensions 86x101.3x10.5mm (32.2mm)
Weight 0.2kg
Box Plastic, polycarbonate
CE In accordance with the EMC guideline and low
voltage
Application Program Communication Objects
Number of Addresses(max)
Number of assignments(max)
© EAE Technology
Ikitelli Org.San.Bolg. Ziya Gokalp Mah. Eski Turgut Ozal Cad.
No: 20 34490 Basaksehir/Istanbul
21V-30V DC,via the KNX bus
<4.5mA/24V DC
<4mA/30V DC
<120mW
24-30V DC
<86mA/24V DC
<71mA/30V DC
<2.2W
Bus connection terminal
KNX auxiliary connection
-5°C ... + 45°C
-25°C ... + 55°C
-25°C ... + 70°C
-50
-254
-255
www.eaetechnology.com
Tel: +90 212 549 97 13
IM TD4-KNX 4" Touch Display R1.0
Installation

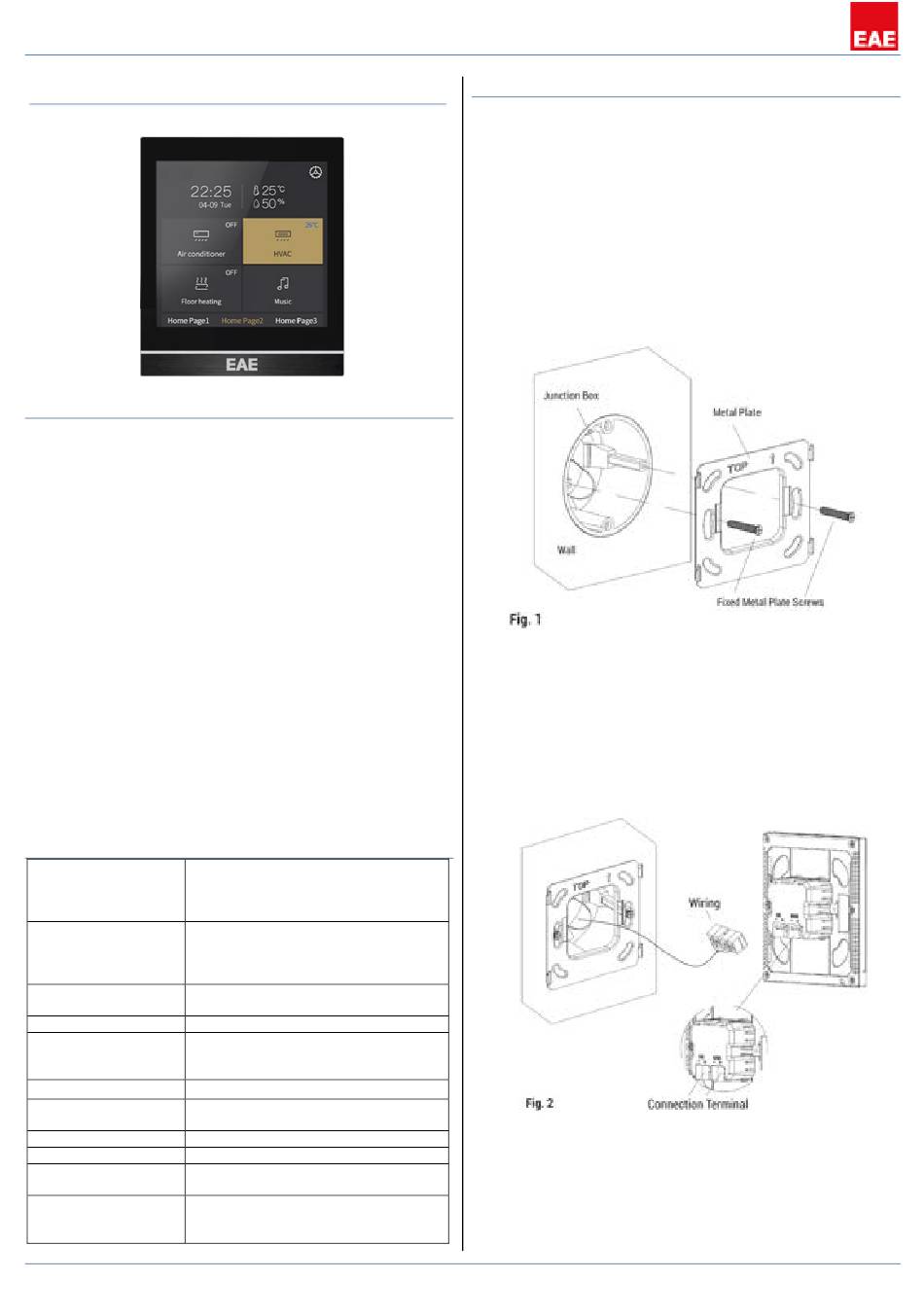

1. Install metal plate to the junction box on the wall with mounting
screws. Installation specification:
•
It is suggested that junction box should be parallel
•
with the wall horizon, shown as fig.1;
•
The upper direction is defined where marks with
•
arrow and "TOP" description on the metal plate;
•
Screwdriver should not drive too strong when installed,
otherwise it will result in the deformation of the metal plate.
•
The recommended strength is 0.6 ~0.8N.M (6 ~ 8Kgf.cm).
2. Remove the connection terminal on the device and connect it
correctly according to the wiring instructions. After wiring, install the
terminal to the corresponding position, then the wiring installation is
finished, as shown in Fig.2.
