Thank you for purchasing a Digital Proprietary Telephone (DPT).
Please read this manual carefully before using this product and
save this manual for future use. For more details, please refer to the
manuals of the PBX.

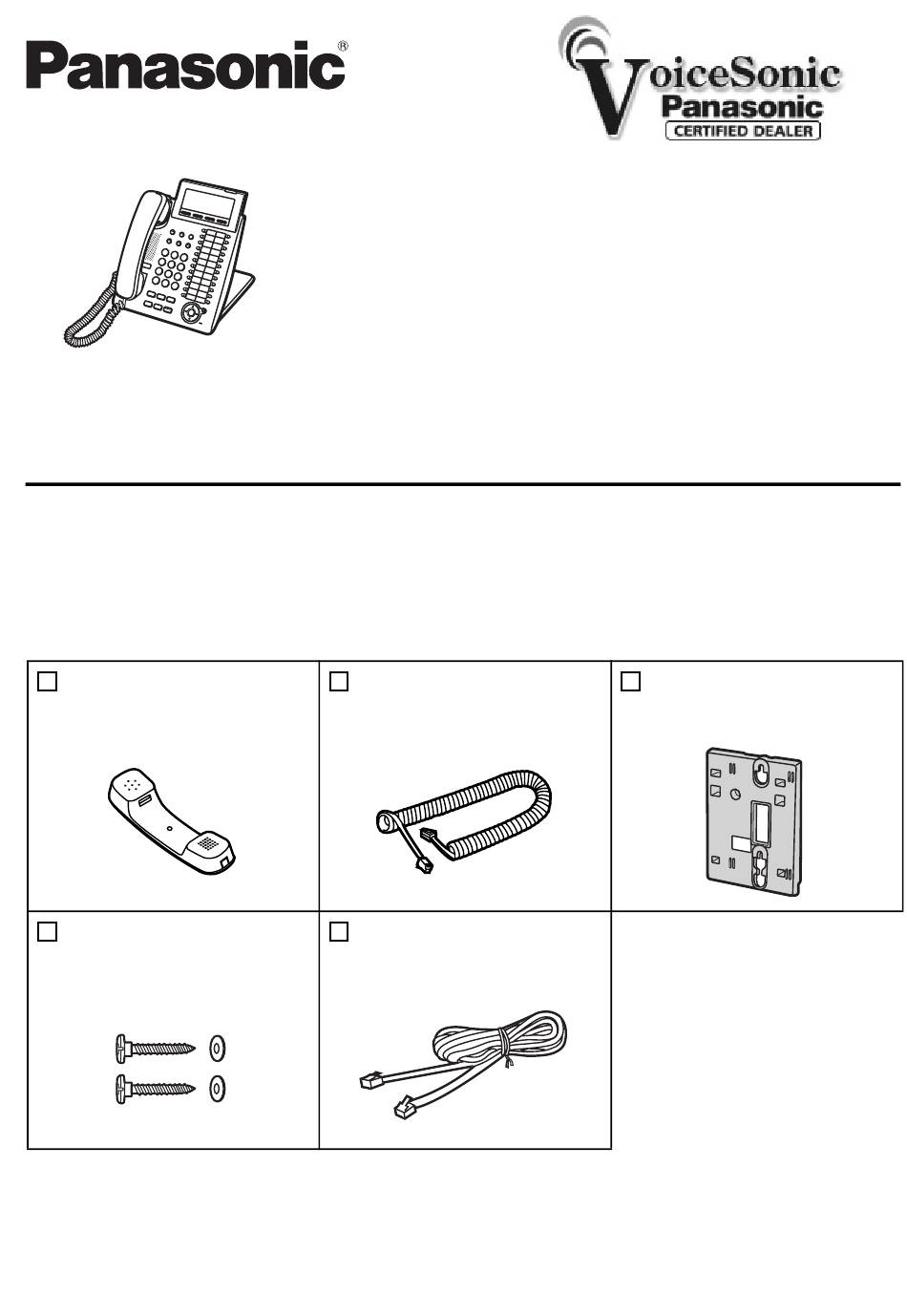

Accessories (included)
Handset: 1
Screws for wall: 2
For extra orders for the accessories, call toll-free: 877-289-2829.
*1
*2
This telephone comes with the wall mounting adaptor already attached.
To remove the adaptor, refer to step 1 on page 17.
Document Version 2009-03
KX-DT333/KX-DT343/KX-DT346
Model No.
*1
Handset Cord: 1
Telephone Line
Cord: 1
http://www.voicesonic.com
Phone: 877-289-2829
Quick Reference Guide
Digital Proprietary Telephone
www.voicesonic.com
Wall Mounting
*2
Adaptor
: 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Panasonic VoiceSonic KX-DT333
Summary of Contents for Panasonic VoiceSonic KX-DT333
- Page 1 Panasonic KX-DT333 http://www.voicesonic.com Phone: 877-289-2829 Quick Reference Guide Digital Proprietary Telephone KX-DT333/KX-DT343/KX-DT346 Model No. KX DT333, KXDT333, kx-dt333, KX DT343, KXDT343, kx-dt343, KX DT346, KXDT346,kx-dt346 Thank you for purchasing a Digital Proprietary Telephone (DPT). Please read this manual carefully before using this product and save this manual for future use.
- Page 2 When connecting DPTs via Digital XDP, this optional device cannot be used. Trademark: ® The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Document Version 2009-03...
-
Page 3: Location Of Controls
Location of Controls Location of Controls L M N Panasonic KX-DT346 A LCD (Liquid Crystal E INTERCOM: Used to make Display) or receive intercom calls. B PAUSE: Used to insert a F AUTO ANS (Auto Answer)/ pause when storing a MUTE: Used to receive an telephone number. - Page 4 Location of Controls H TRANSFER: Used to Q Navigator Key: Used to transfer a call to another adjust the volume and the party. display contrast or select desired items. I REDIAL: Used to redial the R CANCEL: Used to cancel last dialed number.
- Page 5 Settings Settings Speaker volume While in a hands-free conversation Handset/Headset While using the handset or volume headset Press Up to increase Ringer volume While on-hook or receiving a call or Down to decrease the volume. LCD Contrast While on-hook PAUSE PAUSE Ring Tone (CO)
-
Page 6: Features List
Features List Features List Icon Meanings = Flexible button = Off-hook = On-hook (CO) = Feature number = Talk = Confirmation Tone C. Tone Making Calls Calling To an extension To an outside party outside phone no. extension no. (CO) Redial REDIAL Quick Dialing... -
Page 7: During A Conversation
Features List System Speed Dialing To dial AUTO DIAL system speed dialing no. (3 digits) STORE Doorphone Call doorphone no. (2 digits) C. Tone During a Conversation Call Hold To hold To retrieve a call at the holding extension INTERCOM HOLD (CO) C. -
Page 8: Setting The Telephone According To Your Needs
Features List Setting the Telephone According to Your Needs Do Not Disturb Both Calls Outside Calls Cancel C. Tone Intercom Calls Timed Reminder To set 12 H hour/minute (4 digits) 24 H hour/minute (4 digits) Once Daily C. Tone To cancel To stop or answer the ring back INTERCOM C. -
Page 9: Making Use Of The Voice Mail Service
Features List Making Use of the Voice Mail Service Listening to a message From your own extension KX-TVA series Listen to Message VPS extension no. Deliver Message Mailbox Password* Mailbox Management * If you have no password, you can skip the Automated Attendant last step. - Page 10 Features List During playback Repeat Voice Guidance Exit • Consult your dealer for more details regarding feature numbers. • It is possible to assign flexible buttons as feature buttons. • Control panel/button names and descriptions can be found in "Location of Controls"...
- Page 11 Accessing Features Using the Display Accessing Features Using the Display Table 1 (Standard mode) Times Buttons " ’ (space) — < > & £ Table 2 (Option mode) Times 10 11 12 13 14 15 Buttons " ä ö ü À...
-
Page 12: Operation Board Angle Adjustment
Operation Board Angle Adjustment Operation Board Angle Adjustment The angle of the operation board can be set to one of eight angles (level 1 = 0°, level 8 = 45°). CAUTION: Hold the operation board until the operation board is secured at the desired angle. - Page 13 Connection Connection <Back view> Connect to: a digital proprietary telephone — Digital XDP connection a single line telephone — XDP or parallel connection The telephone line cord (included) Connect to a PBX. Clamp Headset Recommended: KX-TCA86, KX-TCA91, KX-TCA92 Do not use a KX-T7090 headset. •...
- Page 14 Installing KX-DT301/KX-NT303 Installing KX-DT301/KX-NT303 CAUTION: • To prevent damage to the telephone, be sure to unplug the extension line before you set up or remove the KX-DT301 (USB Module) or the KX-NT303 (Add-on 12 Key Module). • Connect the KX-NT303 first when installing both the KX-DT301 and the KX-NT303.
- Page 15 Installing KX-DT301/KX-NT303 KX-DT301 The USB Module can be connected between the DPT and the personal computer through USB interface to implement personal CTI (Computer Telephony Integration). 1. Open the cover. 2. Plug the flat cable into the connector as shown. 3.
- Page 16 Installing KX-DT301/KX-NT303 5. Insert the protrusions on the 6. Attach the KX-DT301 to your KX-DT301 into the 2 holes in unit with the screws (included the unit. with KX-DT301). 7. Install the USB driver. Refer to Installation Manual on the CD-ROM included with KX- DT301.
-
Page 17: Wall Mounting
Wall Mounting Wall Mounting 1. Remove the wall mounting adaptor from the unit as shown. 2. Set the operation board to level 1, then connect and secure the telephone line cords. • The cords can also be run from the top of the unit (page 13). 3. - Page 18 If the known working telephone operates properly, have the defective telephone repaired by an authorized Panasonic factory service center. If the known working telephone does not operate properly, check the PBX and the internal extension wiring.
-
Page 19: Important Notice
DO NOT send the product to the Executive or Regional Sales offices. They are NOT equipped to make repairs. Product service: Panasonic factory service centers for this product are listed in the service center directory. Consult your authorized Panasonic dealer for detailed instructions. -
Page 20: Important Safety Instructions
Important Information Important Safety Instructions When using this unit, basic safety precautions, including those below, should always be followed to reduce the risk of fire, electric shock and injury to persons. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on this unit. 3. -
Page 21: Fcc And Other Information
FCC Declaration of Conformity Trade Name: Panasonic Model Number: KX-DT343/KX-DT346 Responsible Party: Panasonic Corporation of North America One Panasonic Way Secaucus, NJ 07094 U.S.A. Telephone No.: 1-800-211-PANA (7262) This device complies with Part 15 of the FCC Rules. -
Page 22: Customer Information
If requested, this number must be provided to the telephone company. If trouble is experienced with this equipment KX-DT333, KX-DT343, and KX-DT346, for repair or warranty information, please contact: Panasonic Service and Technology Company-BTS Center 415 Horizon Drive Bldg. 300 Ste. 350-B Suwanee, GA 30024-3186... -
Page 23: Wall Mounting Template
wall One screw here WALL MOUNTING TEMPLATE 1. Drive the screws into the wall as indicated. 2. Hook the unit onto the screw heads. Note: Make sure to set the print size to correspond with the size of this page. If the dimensions of the paper output still deviate slightly from the measurements indicated here, use the measurements... - Page 24 For more information call 877-289-2829 or visit http://www.voicesonic.com Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd.
