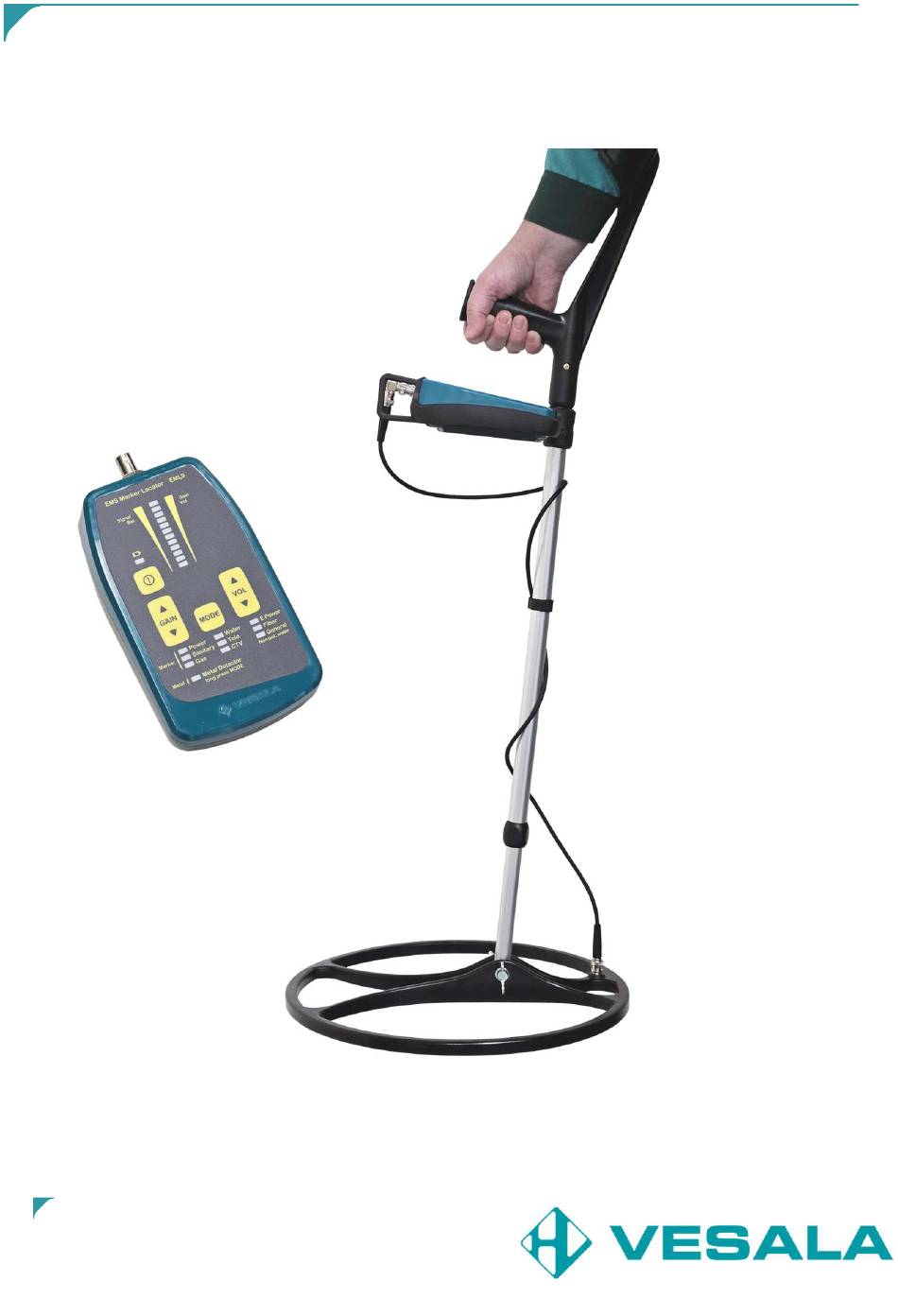

- Page 1 User Manual EMS Marker Locator EML9 IMPORTANT Read carefully before use. Keep for future reference. English Issued: 2024-08-22 Revised: 2024-08-28...
-
Page 2: Table Of Contents
2.2 Specifications ..............................5 2.3 Operating distances by marker type ......................6 2.4 Package contents............................... 7 2.5 EML9 parts and functions ..........................8 3 Operating Marker Locator EML9 ..........................9 3.1 Inserting batteries to EML9 ..........................9 3.2 Assembling the equipment ......................... 10 3.3 Start-up and changing operating mode .................... -
Page 3: Safety Notes
ATTENTION: This device produces a magnetic field that is considered safe for professional use. To avoid harm, it is recommended to keep pacemakers, metallic implants and magnetic data media at a distance of at least 60 cm from the working device. 3 (15) User Manual Vesala EML9 ENG... -
Page 4: General Description
The Vesala Electronic Marker Locator EML9 is an affordable EMS tracer. EML9 supports all nine industry standard EMS marker types coded according to the industry. Besides EMS marker locating, EML9 has a metal detector feature: Metal manhole and pit covers can be located up to 20 cm deep under dirt, asphalt or ice. -
Page 5: Specifications
See ”2.3 Operating distances by marker type” Electromagnetic environment ETSI TR 101 651: Class 3 - outdoor locations International standards this product is in EN 300 330 EN 301 489-1 conformance with EN 301 489-3 EN 303 454 5 (15) User Manual Vesala EML9 ENG... -
Page 6: Operating Distances By Marker Type
*) This is the typical maximum detection depth/distance with ball markers, when the power limiter jumper is in its place and the equipment meets the requirements of ETSI EN 300 330-1 V1.7.1 standard. **) 300x300x1 mm steel plate used as a reference piece. 6 (15) User Manual Vesala EML9 ENG... -
Page 7: Package Contents
The following items are supplied in the package: EMS Transceiver EML9-LV (V11738) Crutch-type carrying shaft, with a cradle for the transceiver EML9-KV (V17810) BNC antenna cord AK1 (V15201) 90 degree adapter for the antenna cord BNC-KA (X25930) ... -
Page 8: Eml9 Parts And Functions
Battery compartment is located at the back of the device. Device operates with six 1.5V LR6 (AA) batteries. If batteries are low, Power LED will blink. Rechargeable NiCd or NiMH cells can be used with certain limitations, see section 3.1. 8 (15) User Manual Vesala EML9 ENG... -
Page 9: Operating Marker Locator Eml9
Operating Marker Locator EML9 3.1 Inserting batteries to EML9 EML9-LV transceiver uses 6 pcs. LR6 (size AA) alkaline batteries, which are in the battery compartment at the bottom of the enclosure. Opening the battery lid screws requires a screwdriver. The device does not have to be removed from its cradle for battery change. -
Page 10: Assembling The Equipment
3.2 Assembling the equipment 10 (15) User Manual Vesala EML9 ENG... -
Page 11: Start-Up And Changing Operating Mode
3.3 Start-up and changing operating mode To turn EML9-LV on, press Power button until Power LED lights and a sound is heard. At the same time LED bar indicates the software version. When Power button is released, LED bar will display the battery level. -
Page 12: Adjusting Audio Volume And Receiving Gain
The device may fail to detect an EMS marker in a location where one is present. Missing indications can be caused by: Inductive loops, devices containing transformers, large cable coils, large metal objects nearby. Move the source of the interference further away or increase the sensitivity of EML9. 12 (15) -
Page 13: Taking Care Of Your Equipment
Taking care of your equipment 4.1 Maintenance EMS electronic marker locator EML9 does not have any parts that require maintenance by the user, excluding changing of batteries and adjusting the power limiter. 4.2 Cleaning If the device is dirty or wet, clean and dry the outer surface of the device with a soft cloth. Avoid getting dirt or water inside the device. -
Page 14: Output Power Limiter
Do not drop, throw or step on the device. H. Vesala Oy shall not accept liability for any financial losses, harm or injury incurred to people, the environment, or property, caused by the use or non-use of the device. -
Page 15: Supplier Contact Information
Supplier contact information Service, spare parts, replacement user manuals and technical support: H. Vesala Oy Peräsimentie 1, FI-03100 Nummela, Finland Tel. +358 44 200 2005, info@vesala.fi, www.vesala.fi 15 (15) User Manual Vesala EML9 ENG...
