Summary of Contents for VESALA CL43

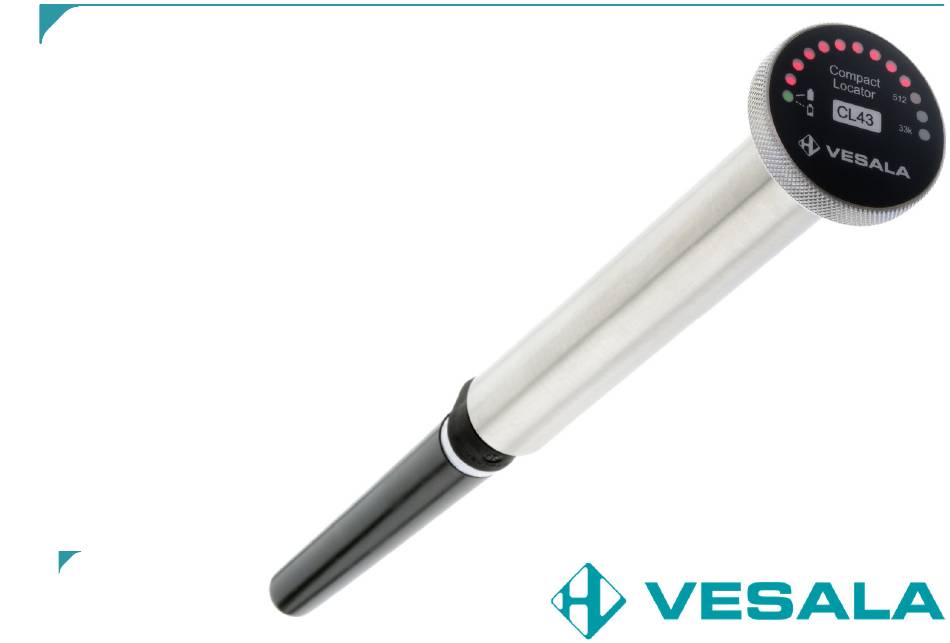

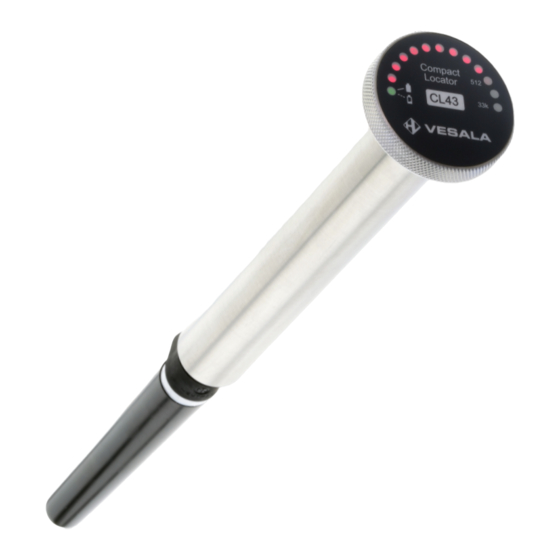

- Page 1 User Manual Vesala CL43 X2.1 ENG for Vesala CL43 Compact Locator version X2.1 combined with at least one of the following antennas: SA43, SA05, LA43 or KA43 IMPORTANT: Read carefully before use. Keep for future reference. English Issued: 2021-03-17 Revised: 2021-08-26...
-
Page 2: Table Of Contents
2.3 Package contents ................................9 2.4 Removing and inserting batteries ..........................10 2.5 Inserting and removing antennas ..........................11 2.6 CL43 parts and functions............................... 12 3 Operating CL43 Compact Locator............................13 3.1 Using antennas ................................. 13 3.2 Locating ducts with a sonde ............................14 3.3 Using signal generators .............................. -
Page 3: Safety Notes
The outer surface of CL43 Compact Locator is electrically conductive. Touching hazardously live circuits with CL43 Compact Locator may result in an injury or death. Dropping or placing CL43 Compact Locator on a live circuit may result in a short circuit, fire or property damage. Do not use CL43 Compact Locator near exposed, hazardously live circuits. - Page 4 Direct emergency responders to the location. In the event of property damage Quickly assess the situation. Turn off the power if possible. Prevent further damage by informing others about the accident. Repair or replace damaged property. 4 (28) User Manual Vesala CL43 X2.1 ENG...
-
Page 5: General Description
General description 2.1 Intended use CL43 Compact Locator is a hand held 512 Hz and 33 kHz receiver which can be used indoors or outdoors. When used with one or more signal generators CL43 Compact Locator can locate and identify cables, wires, circuit breakers, switches, fuses and cable faults. Together with a sonde CL43 Compact Locator can locate and identify ducts, pipes, cavities and their blockages. - Page 6 Current consumption 15...60 mA Nominal battery 4.5 V voltage Operating voltage 3.6...6.5 V range Enclosure Stainless steel, aluminium and polyamide, 180 x Ø46 mm Weight 232 g with LR03 batteries, no antennas attached 6 (28) User Manual Vesala CL43 X2.1 ENG...
- Page 7 ETSI EN 301 489-3 User control functions Gain setting in 7 or 5 steps depending on antenna, and stored data 10 dB/step Type of modulation Continuous wave or 100 % AM @ <10 Hz 7 (28) User Manual Vesala CL43 X2.1 ENG...
- Page 8 30 cm or up to 2 m when locating sondes KA43: E-field antenna for 32768 Hz, 90 x 23 x 20 mm, weight 30 g, red part is insulated, effective range up to 30 cm 8 (28) User Manual Vesala CL43 X2.1 ENG...
-
Page 9: Package Contents
512 Hz sondes KA43 Capacitive antenna (V14320), red, for identifying exposed open wires, wire pairs or single wires with a 33 kHz signal generator 9 (28) User Manual Vesala CL43 X2.1 ENG... -
Page 10: Removing And Inserting Batteries
Additional antennas or spares may be purchased separately. Other accessories or devices may be sold together with CL43 Compact Locator or included in the kit. Refer to their corresponding information for use. 2.4 Removing and inserting batteries Turn the user interface cap anti-clockwise and pull the battery holder out. -
Page 11: Inserting And Removing Antennas
2.5 Inserting and removing antennas CL43 Compact Locator always requires an antenna to operate. Choose antenna according to the locating task. To attach an antenna, push the antenna connector (1) into socket (2) aligned as in the image until the latch clicks. To remove an... -
Page 12: Cl43 Parts And Functions
The 512 and 33k LEDs display the receiving frequency after antenna insertion. Power LED Green LED indicates power on. LED blinks if batteries are weak. Speaker Indicates received signal strength; the higher the pitch and volume, the stronger the signal. 12 (28) User Manual Vesala CL43 X2.1 ENG... -
Page 13: Operating Cl43 Compact Locator
Although a proximity antenna is relatively insensitive to distant sources of interference, its limited range makes it ineffective when locating buried cables or ducts with the smallest sondes. In those cases, use a rod antenna instead. 13 (28) User Manual Vesala CL43 X2.1 ENG... -
Page 14: Locating Ducts With A Sonde
512 Hz sonde and SA05 Rod antenna making use of their low frequency which penetrates these materials. Approximate location: Hold the CL43 in 45° angle. Scan left and right with the antenna and move to the direction where the signal gets stronger in average. - Page 15 Exact longitudinal location: Hold CL43 vertically and approach the sonde in the duct. To define exact longitudinal location of the sonde, pinpoint signal minimum line. It runs transversely (90°) against the direction of the duct. Mark the minimum line to the ground.
- Page 16 1.4. Cancelling interference: To locate a sonde close to an interfering cable, duct or rail with a rod antenna: Rotate CL43 parallel to the source of interference (usually horizontal) thus minimizing its effect. Keep this attitude and move CL43 towards the sonde until a signal maximum is detected.
-
Page 17: Using Signal Generators
Locating is often affected by other nearby conductors and ducts. In order to use a signal generator with CL43, select a signal generator that outputs 33 kHz (32768 Hz) frequency. For safe and proper connection refer to signal generator information for use. -
Page 18: Locating Buried Cables
Use SA43 Rod antenna to track the cable route starting at the signal generator. Pinpoint the cable exact location using the minimum locating method. Tilt CL43 to a 45° angle and find a second minimum. Distance between the first minimum A and the second minimum B equals to cable depth. -
Page 19: Locating Cables And Wires At A Short Distance
Carefully scan which cable or wire gives the strongest signal. Using a low sensitivity may be necessary to distinguish between similar signal levels. 19 (28) User Manual Vesala CL43 X2.1 ENG... -
Page 20: Locating Cable Faults
It may be necessary to use the signal generator at a high output level. Refer to signal generator information for use if necessary. If received signal strength allows, use LA43 Proximity 20 (28) User Manual Vesala CL43 X2.1 ENG... -
Page 21: Identifying Circuit Breakers, Switches And Fuses In Low Voltage Network
Using a low sensitivity may be necessary to distinguish between similar signal levels. Opening the correct circuit breaker or switch or removing the fuse will considerably lower the received signal strength. 21 (28) User Manual Vesala CL43 X2.1 ENG... -
Page 22: Locating And Identifying Open Ends Of Wires
Strongest signal is above the right wire or pair. A minor minimum may be present in the middle of the pair. Due to cross talk, signal can be received elsewhere too but weaker. 22 (28) User Manual Vesala CL43 X2.1 ENG... -
Page 23: Taking Care Of Your Equipment
Always apply a small amount of white petrolatum or pure petroleum jelly to the cap threads and contact surfaces after cleaning these parts to ensure smooth cap operation and reduce wear. 23 (28) User Manual Vesala CL43 X2.1 ENG... -
Page 24: Troubleshooting
Antenna selection is wrong. Use LA43 Proximity antenna when working very close to a target. Signal generator level is too See signal generator manual for level high. adjustment. 24 (28) User Manual Vesala CL43 X2.1 ENG... - Page 25 See signal generator manual for proper or connection is wrong. connection. Signal source has shut down. Check that signal generator or sonde operates normally. Antenna is broken. Replace the antenna. See supplier contact information for replacement part. 25 (28) User Manual Vesala CL43 X2.1 ENG...
-
Page 26: Maintenance
Ø23.0 x Ø1.0 mm NBR70, part number N01238. When changing batteries check that the batteries have not leaked and the battery holder is in a working condition. Replacement battery holders, part number V14110, are available from the supplier. 26 (28) User Manual Vesala CL43 X2.1 ENG... -
Page 27: Modifying And Misuse
Do not drop, throw or step on the device. 4.6 Warranty CL43 Compact Locator has one-year warranty against material or manufacturing defects from the date of purchase. The warranty shall not cover batteries, normal wear and tear, misuse or faults resulting from modifying the product. -
Page 28: Supplier Contact Information
Declaration on conformity Hereby, H. Vesala Oy, declares that the radio equipment type CL43 Compact Locator version X2.1 is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU and 2015/863/EU. The full text of the EU declaration of conformity is available at the following internet address: www.vesala.fi/cl43/doc...
