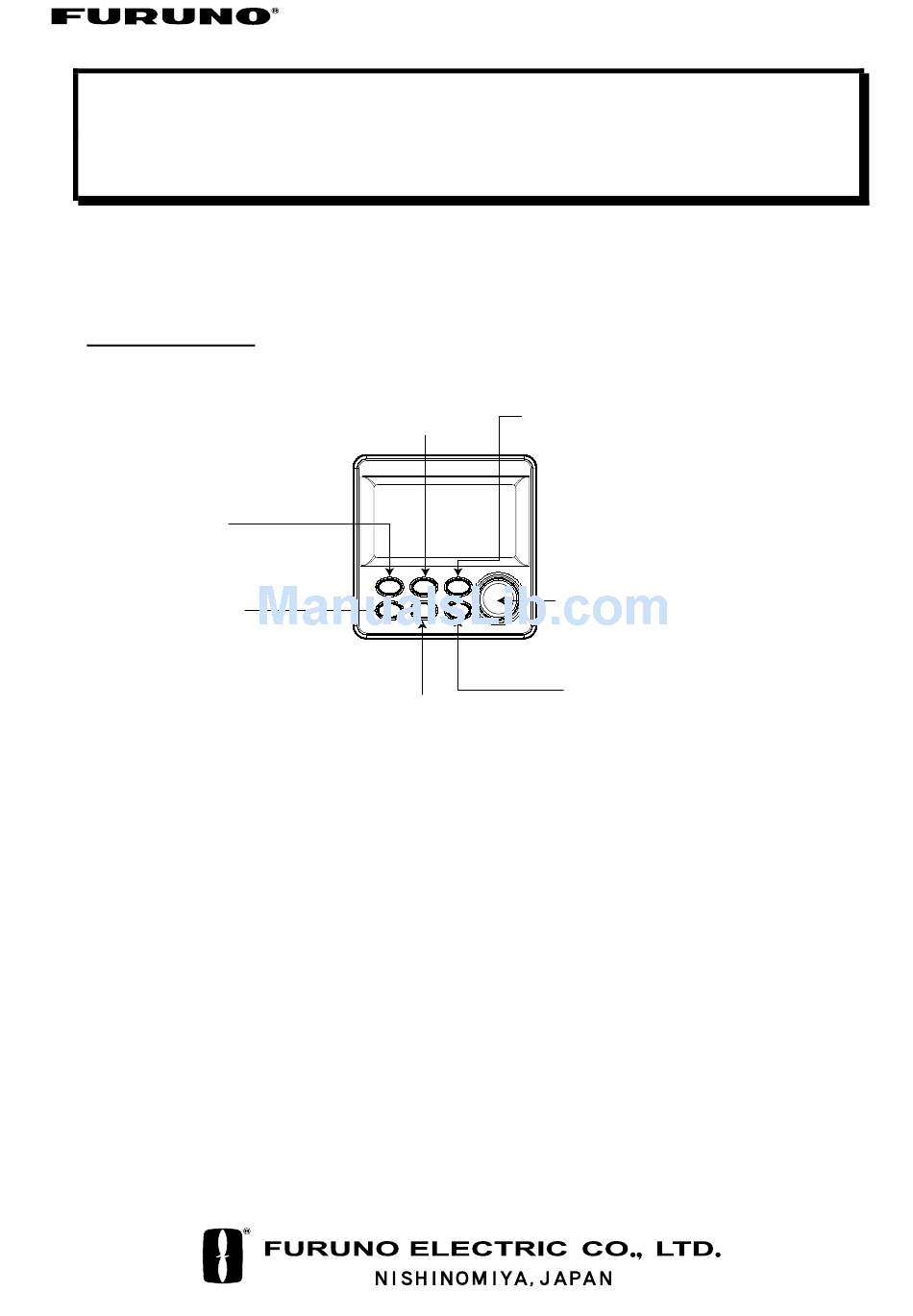

AUTOPILOT
The purpose of this Operator's Guide is to provide basic operating procedures for this
equipment. For more detailed information see the Operator's Manual.
Operating controls
PORT key
Steers the boat to port.
STBY/POWER key
Long press: Turns power off.
Mormentary press: Selects the
STBY (manual) mode.
Operator's Guide
TURN/MENU key
Once: Opens the TURN menu.
Twice: Opens the mode menus.
AUTO key
Selects the AUTO mode.
NAVpilot-511
STARBOARD (STBD) key
Steers the boat to starboard.
Course control knob
Rotate: Selects menu items and options;
Sets the course on Auto mode.
Push:
Confirms the menu setting.
NAV key
Selects the NAV mode.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Furuno Navpilot 511
Summary of Contents for Furuno Navpilot 511
- Page 1 AUTOPILOT NAVpilot-511 Operator’s Guide The purpose of this Operator's Guide is to provide basic operating procedures for this equipment. For more detailed information see the Operator's Manual. Operating controls TURN/MENU key Once: Opens the TURN menu. STARBOARD (STBD) key Twice: Opens the mode menus. Steers the boat to starboard.
- Page 2 Adjusting Brilliance/Contrast Steering in ADVANCED AUTO mode 1. Press the [TURN/MENU] key twice to show the main menu. 1. Connect the NAVpilot-511 to a navaid 2. Rotate the course control knob to select which output position data. CONTRAST/BRILLIANCE, and then 2.
- Page 3 FIGURE EIGHT Using the TURN mode After the boat has traveled the distance "d" The [TURN] key provides the various turning set on the menu, it starts turning in a figure motions depending on the used mode. The eight pattern, automatically returning to the arrows show the direction to turn.
-
Page 4: Remote Mode
Steer the boat by using the remote REMOTE mode controller. Turn on the remote controller switch to show “FU” or “NFU” on the control unit. For dodge type, there is no power switch. Dial type Dial type Button type Button and lever type Turn off the remote controller switch.
