ASDA tech ATA22AA009A User Manual

Dab+ radio
Hide thumbs

Advertisement

Quick Links

Download this manual
ATA22AA009A
DAB+ Radio

Advertisement

loading
Need help?

Need help?

Do you have a question about the ATA22AA009A and is the answer not in the manual?

Questions and answers

Related Manuals for ASDA tech ATA22AA009A

Summary of Contents for ASDA tech ATA22AA009A

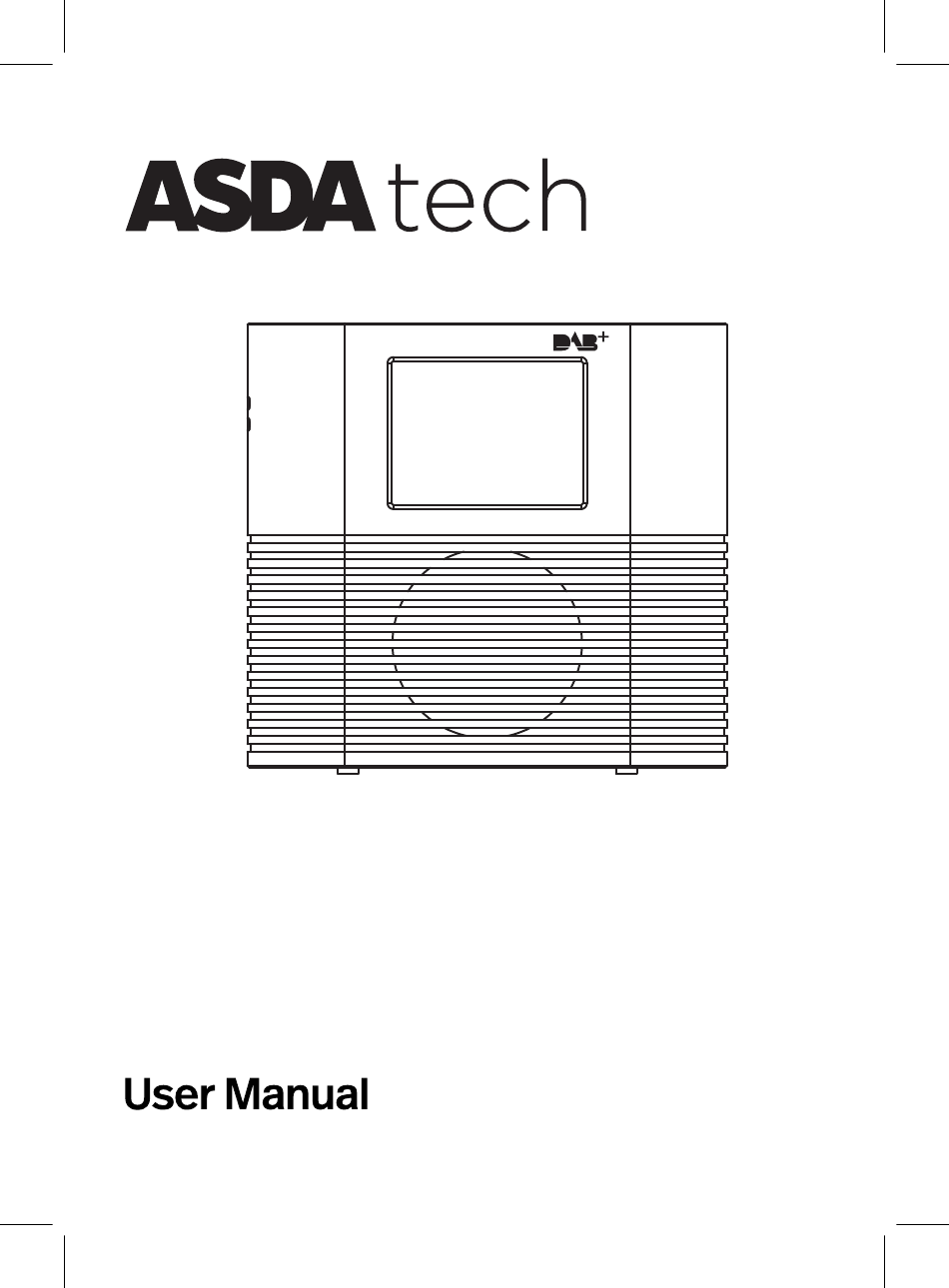

  • Page 1 ATA22AA009A DAB+ Radio...
  • Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER SERVICEABLE PART INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE:The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 3 Before using the unit, be sure to read all operating instruction carefully, please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna.
  • Page 4 11. Only use attachments / accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
  • Page 5 Service Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Replacement parts When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original parts.

  • Page 6: Front View

    PROdUCT OvERvIEW FRONT VIEW REAR VIEW DC 5V...

  • Page 7: Top View

    PROdUCT OvERvIEW TOP VIEW SELECT VOL- VOL+ ENTER POWER PRESET MODE MENU INFO TUN+ TUN- 1. Display 8. VOL- Button 2. Wrist Strap Hole 9. SELECT/ENTER Button 3. Speaker 10. VOL+ Button 4. Battery Compartment 11. PRESET Button 5. Telescopic Antenna /TUN- Button 6.

  • Page 8: Battery Installation

    BATTERY INSTALLATION 1. Disconnect the radio from power. 2. Remove the battery compartment door and insert 4 x 1.5 V (AA/LR6) size batteries, matching the polarity(+and-) as shown in the battery compartment. 3. Replace the battery compartment door. NOTE: The unit can also be operated by power supply through the power adapter. BATTERY SAFETY AND DISPOSAL ...

  • Page 9: Main Operation

    MAIN OPERATION 1. Press and hold the POWER/MODE button on the unit to power on the unit. "Welcome to Digital Radio DAB +" will appear on the screen. The DAB scanning process will start automatically, and a progressing bar will display. When finished, the first available DAB station will start to play.
  • Page 10 FM OPERATION Before FM operation, please completely extend the telescopic antenna, or adjust the position of the unit or the antenna for maximum signal strength. 1. Press MODE button to make the unit switch to FM mode. 2. Press and hold the SELECT/ENTER button on the unit to automatically search for the available stations.

  • Page 11: System Setting

    SYSTEM SETTING Press and hold MENU button to enter System Setting Mode. In System Setup Mode: Press SELECT button to confirm / enter sub-level menu; Press button to next item; Press button to previous item; Press MENU button to upper lever menu / exit System Setting Mode. Below is a table listing all the Setup items in each Function mode.

  • Page 12: Troubleshootting

    TROUBLESHOOTTING Check the following before requesting service: SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION Can’t power on Battery drained place the battery Adapter not plugged properly Check and plug the adapter properly Volume level in minimum position Press the VOL+ button to increase No sound or sound weak the volume...

  • Page 13: Specifications

    SPECIFICAT IONS DC 5V 1.2A Power Source: DAB Frequency: 174-240MHz PLL FM Frequency: 87.5-108.0MHz PACKAGE INCLUDES 1 x User Manual 1 x Main Unit 1 x AC/DC Adapter 1 x Wrist Strip DC voltage Polarity of output terminals Disclaimer Product features, specifications and appearance are subject to change without notice.
  • Page 14 ASDA, Leeds LS11 5AD/ASDA, Antrim BT41 4GY This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
