Summary of Contents for Haier HR-100

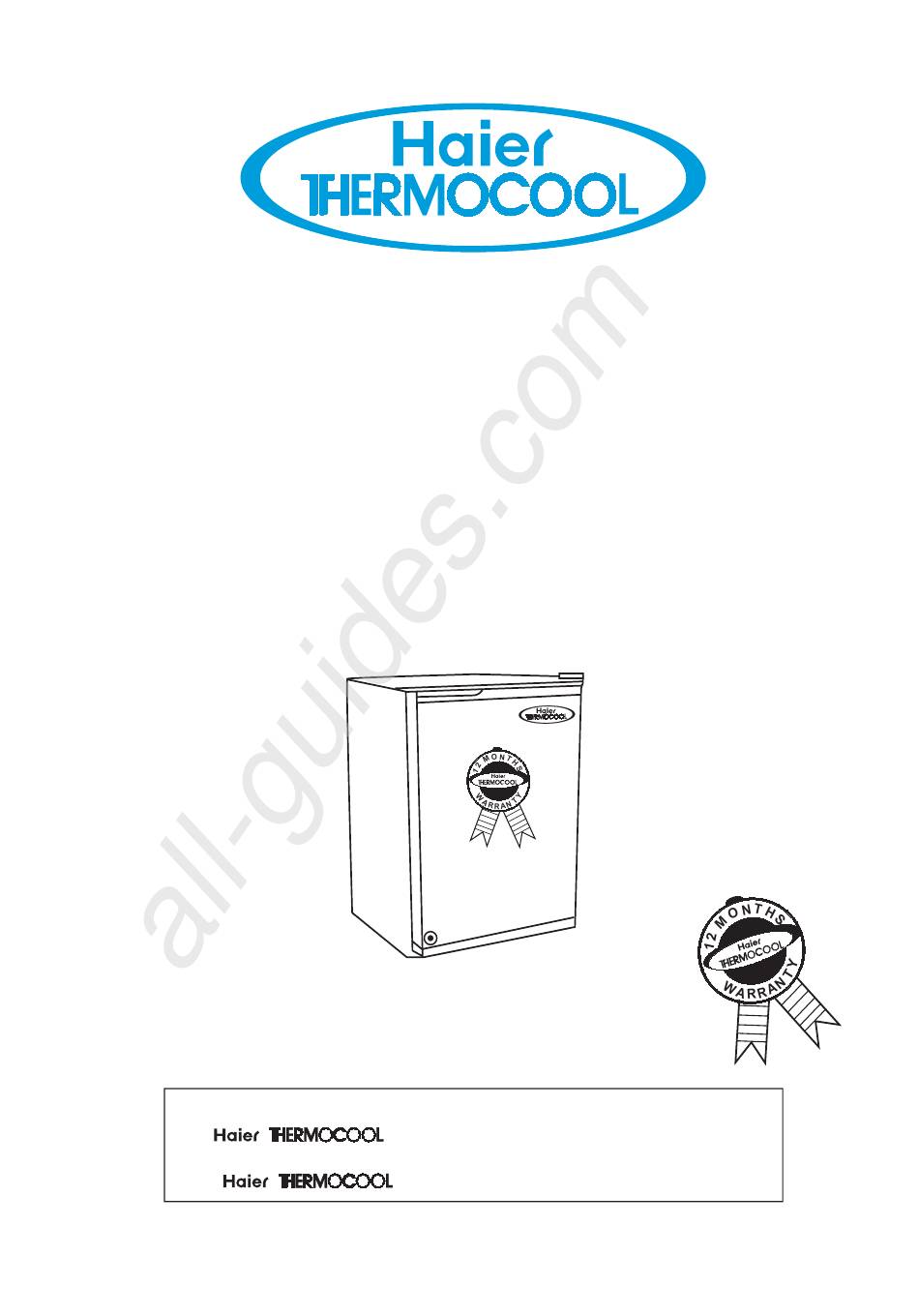

- Page 1 All manuals and user guides at all-guides.com HR-100 Refrigerator Owner’s Manual IMPORTANT : Congratulations for choosing a high quality refrigerator . Please read this owner's manual carefully before using your new refrigerator. Now you will be cool, with...
- Page 2 All manuals and user guides at all-guides.com Parts ==Ice-tray===== =Thermostat===== =Evaporator===== =Shelf =Drip tray======= =Bottle rack======= =Lock hinge The manufacturer reserves the right to improve the product from time to time without further notice.
- Page 3 All manuals and user guides at all-guides.com Cautions All these valuable materials may be taken Disposal of the old appliance to a waste collecting center and used again Before disposing an old appliance that goes after adequate recycling. out of use, please make sure it’s inoperative and safe.
-
Page 4: Specifications
All manuals and user guides at all-guides.com Cautions For the purpose of safety, the appliance If the supply cord is damaged, it must must be properly grounded in accordance be replaced by the manufacturer or its service with specifications. agent or a similarly qualified person in order to avoid a hazard. - Page 5 All manuals and user guides at all-guides.com Observations The appliance can be placed with its rear panel directly against the wall. For a good air circulation, the vent grille at the back of the worktop must not be blocked, It should be placed on flat and firm ground lest it gives off higher noise than usual.
-
Page 6: Basic Operation
All manuals and user guides at all-guides.com Basic Operation The appliance must stand on even flooring. If the appliance is to be placed on a soft carpet, support the appliance with a solid wood board. If the appliance is placed on the carpet directly, the high-temperature compressor may cause color fading of the carpet. - Page 7 All manuals and user guides at all-guides.com Operation Instructions Do not store frozen foods and ice creams in the refrigerator-Danger of thawing! Wrap or cover foods well before storing so as to avoid loss of water content and off-odor. The appliance can not be used to store medicine or scientific specimen.
- Page 8 All manuals and user guides at all-guides.com Defrosting/Cleaning Defrosting The surface of evaporator ices up when the refrigerator is working. When the frost layer is thick as 3mm, the refrigerator must be defrosted and cleaned. Otherwise, it may results in lower efficiency and high energy consumption.
- Page 9 All manuals and user guides at all-guides.com Defrosting/Cleaning Cleaning 1. Unplug the appliance. 2. Wash the inner compartment with lukewarm water and neutral detergent. 3. Dry the surface of the refrigerator thoroughly. Note: 1. Avoid splashing water on the freezer When a power failure is announced when cleaning.
-
Page 10: Troubleshooting
All manuals and user guides at all-guides.com Troubleshooting Before calling the service center, check the following points and see if you can solve the problem yourself. Problem Possible Causes Electrical connection is loose. No refrigeration Fuse is broken. Wrong temperature selection. The inner compartment is overfilled. -
Page 11: Wiring Diagram
All manuals and user guides at all-guides.com Troubleshooting HR-100 WIRING DIAGRAM THERMOSTAT WIRING DIAGRAM PLUG... - Page 12 All manuals and user guides at all-guides.com Troubleshooting MODEL HR-100 12Month's Guarantee Capacity Voltage:Frequency 220-240v, 50Hz Total Input Power 0.9 kw . h / 24h Energy Consumption Refrigerant R134a 45g Size (HxWxD in mm) 677x499x501 Net Weight 25kg Automatic Interior Light...
- Page 13 All manuals and user guides at all-guides.com produce high quality refrigerators which are strong, reliable,elegantly styled-yet practical and long lasting for the most demanding tropical climate and conditions. new generation refrigerators are convenient to use, highly efficient, energy saving and are built for quiet running to withstand voltage fluctuations.
