Thank you for purchasing this ICON Vehicle Dynamics product. Please read through this entire document before proceeding with
installation. If you are not confident in your mechanical skills, please seek the help of a professional to perform the installation. Check your
packages immediately upon arrival to ensure that everything listed is included, and to check for damage during shipping. If anything is
missing or damaged, or if you need technical assistance with any aspect of this installation, call (951) 689-ICON as soon as possible.
APPLICATION
These installation instructions apply to the following
products:
45201 21-uP FORD BRONCO PRO SERIES FRONT
WINCH BuMPER
COMPONENTS INCLUDED
(1)
21-uP FORD BRONCO WINCH BuMPER
(1)
21-uP FORD BRONCO FRONT BuMPER
WINCH MESH
HARDWARE INCLUDED
(4)
Bumper Sensor Mount
(10) M6-1.00 X 20MM SS Button Head Cap Screw
(8)
3/8-16 X 1.00 SS Button Head Cap Screw
(4)
Cable Tie Holder - Adhesive Backed
(4)
5-1/2 X 0.14 Nylon Cable Tie - Black
TOOLS REQUIRED
• Small flat blade screwdriver
• Body panel clip removal tool
• Side cutter & flush cutter
• 13mm & 15mm sockets and ratchet
• 4mm & 7/32" hex key and T-40 Torx driver bits
TECH NOTES
NOTE: These installation instructions are based on
a clean installation on to a stock vehicle. Previously
modified vehicles may require additional steps.
NOTE: Installation on Broncos equipped with
Adaptive Cruise Control requires relocation of
the ACC module with the following product (sold
separately):
45209 21-uP FORD BRONCO ACC RELOCATION
BKT
ICON TECH LINE:
951.689.ICON
INSTALLATION INSTRUCTIONS
21-UP BRONCO PRO SERIES
FRONT WINCH BUMPER
DOCUMENT: INST_45201_REVA • UPDATED: Aug 2022
IMPORTANT NOTICES - PLEASE READ FIRST
READ ALL INSTRUCTIONS THOROUGHLY
FROM START TO FINISH BEFORE BEGINNING
INSTALLATION! IF THESE INSTRUCTIONS ARE
NOT PROPERLY FOLLOWED SEVERE FRAME,
SUSPENSION OR TIRE DAMAGE MAY RESULT TO
THE VEHICLE!
ICON VEHICLE DYNAMICS RECOMMENDS
ALL INSTALLATION TO BE PERFORMED BY A
PROFESSIONAL SHOP/SERVICE TECHNICIAN.
PRODUCT FAILURE CAUSED BY IMPROPER
INSTALLATION WILL NOT BE COVERED UNDER
ICON'S WARRANTY POLICY.
INSTALLATION INSTRUCTIONS
1.
Ensure the vehicle is placed on a flat, level surface
with the transmission in PARK (or first gear for
vehicles equipped with a manual transmission),
the tires chocked, and the emergency brake ON.
Wear safety glasses from this point forward.

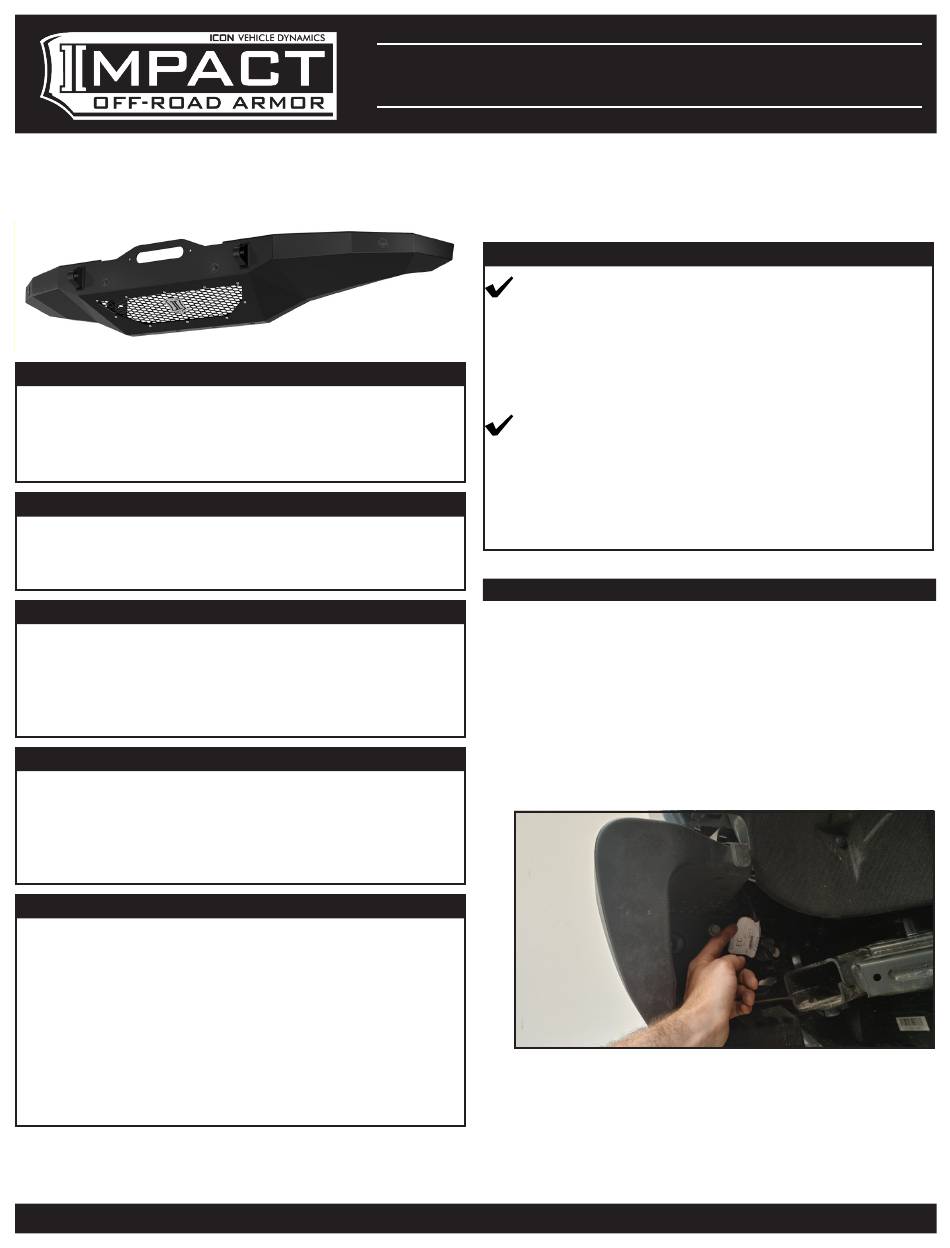

2. Behind the bumper on the left side (driver side)
look for a large electrical connector. Disconnect it
by depressing the locking tang and pulling the two
halves of the connector apart.
3. Remove the plastic inserts from the front of the
bumper on both ends, which may be blank or
surround the fog lights or tow hooks depending
on which factory bumper the Bronco is equipped
with. For the Modular Steel bumper, use a small
www.iconvehicledynamics.com
FIG. 1
