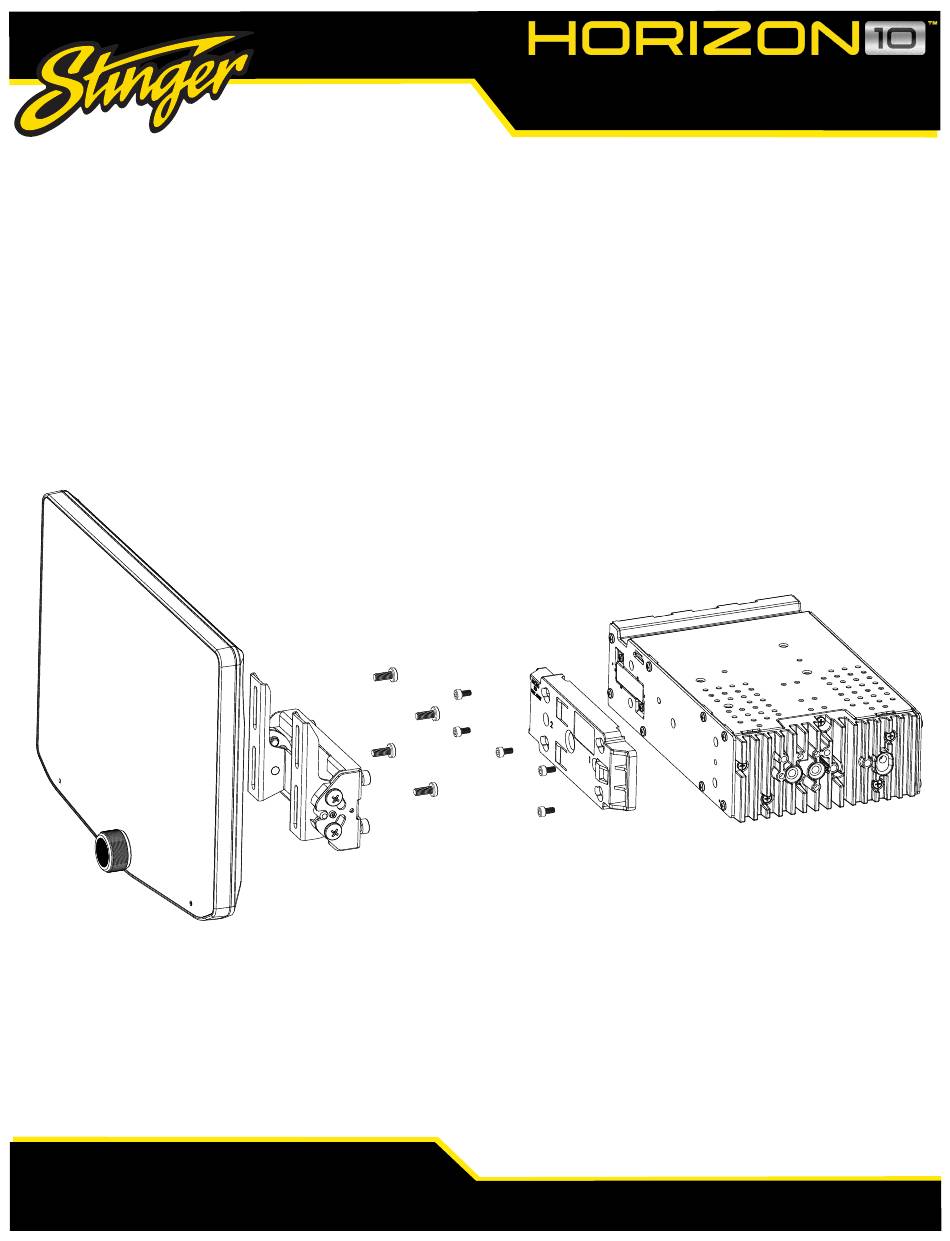

- Page 1 ® ® INSTALLATION GUIDE 10-INCH MODULAR MULTIMEDIA DISPLAY SYSTEM MODEL NUMBER: iX210 Copyright © 2024 StingerSolutions.com...
- Page 2 PRECAUTIONS Installation of this product requires technical skill and experience. It is recommended to have it professionally installed by an authorized Stinger / AudioControl / PAC / American International Dealer. Read entire instructions thoroughly before starting. Disconnect the vehicle's negative battery cable before making any wire connections.
-
Page 3: Table Of Contents
MODEL NUMBER: iX210 ® ® INSTALLATION GUIDE CONTENTS Contents............3 Parts List............4 Hardware Guide..........5 Dimensions............6 Basic Dash Kit Instructions........7 Wiring & Connections......8,9,10,11 Pre-Assembly..........12 Display Bracket Assembly.......13 Display Assembly........14,15 Multiple Mounting Options....16,17,18,19 Removing The Display Panel ....20-21 Accessory Control Wiring......22-23 Wake-Up Wire Diagram........23 Troubleshooting..........24 Upgrades/Options... -
Page 4: Parts List
Parts List DESCRIPTION PART NO Touch Panel Display ix210-D Radio Module ix210-M Mounting Brackets / Hardware Radio Bracket - Nose Bracket / Display Bracket Nose Bracket - Radio Bracket PSE-2000 LVDS Connector Rear Cover M3 X 6 Screw / For Nose Bracket M4 X 10 Screw / For Display Use PSE-2002 M5 X 10 Screw / For Nose Bracket... -
Page 5: Hardware Guide
Hardware Guide M2.6 X 6.5 M3 X 6 M4 X 10 M5 X 10 NOTE: Depending on the installation, not all hardware will be used. Only use designated screws as stated in this manual. Using the wrong screws will result in damage to internal components, which is not covered under warranty. -
Page 6: Dimensions
Dimensions (in) 9.73 0.87 7.11 1.41 0.28 DIMENSIONS ARE IN INCHES 7.01 4.33 1.97 4.44... -
Page 7: Basic Dash Kit Instructions
Installation Using A Dash Kit 1. Follow the Dash Disassembly instructions that are included with your specific dash kit. 2. Assemble the iX210 radio module onto the dash kit (see page 16). 3. Wire the iX210 26 PIN Power/Speaker harness to your aftermarket wire harness (see page 8). 4. -
Page 8: Wiring & Connections
Wiring and Connections 26 Pin Power / Speaker Harness Connect radio power and speaker connections to a vehicle specific harness (sold separately) referencing diagram below. Yellow Battery 12V (+) FUSE 15A Green/Black Rear Left Speaker - Green Rear Left Speaker + Purple/Black Rear Right Speaker - Purple... - Page 9 Wiring and Connections 16 Pin AV / Rear Camera Harness Audio/Video Inputs & Outputs / Rear Camera Video Input NOTE: For Camera set-up, refer to the HORIZON10 User Guide Audio Input Left White RCA Audio Input GND Audio Input Right Audio / Video Input Red RCA Audio Input GND...
- Page 10 Wiring and Connections 14 Pin Data and Accessory Control Wire Harness Steering Wheel Control, Accessory Control, ENLIGHT10 Connection NOTE: For Steering Wheel Control information, refer to the HORIZON10 User Guide For information on connecting the Accessory Control wires see page 22 Brown SWC Key 1 Steering Wheel Control...
- Page 11 Wiring and Connections 12 Pin PRE-Out Harness Audio Outputs Front, Rear, and Subwoofer Red RCA Right Subwoofer Subwoofer GND Subwoofer Output White RCA Left Subwoofer Subwoofer GND White RCA Left Rear Rear GND Rear Audio Output Red RCA Right Rear Rear GND White RCA Left Front 1...
-
Page 12: Pre-Assembly
Pre-Assembly Single or Double Din Applications: Align the Nose Bracket onto the Radio module where the NAV Card Slot lines up and the 2 locator pins on the back of the Nose Bracket line up with the 2 holes on the front of the radio module. -
Page 13: Display Bracket Assembly
Display Bracket Assembly Read Steps 2-4 to understand how the HORIZON10 assembles before starting the installation process. The display can be installed flat or with a slight angle for a better viewing angle. Loosen or remove the screws on the Display Bracket. (FIG. A). Loosen the screws, or move the screws for the best viewing angle (FIG. B / C). FIG. -
Page 14: Display Assembly
Display Assembly The Display Bracket can be mounted Right-side up (FIG.D) or Up-side down (FIG.E). Determine how the Display Bracket needs to be mounted for your application. NOTE: Ensure the LVDS Display Cable can still plug-in after the bracket is in the desired location (FIG F). You may need to rotate the Display Bracket for the LVDS cable to plug-in properly (FIG. - Page 15 Display Assembly cont; Align the 4 shoulder bolts on the Display Bracket attached to the LCD Panel with the 4 key holes on the Nose Bracket and push forward. Once the 4 shoulder bolts are aligned properly, slide the LCD assembly to the left to lock the assembly to the Nose Piece.
-
Page 16: Multiple Mounting Options
Multiple Mounting Options HORIZON10 can be configured for different mounting applications: Using a Single / Double DIN Dash Kit. Using Factory Radio Mounting Brackets. Single or Double DIN Dash Kit: Radio chassis mounts to the kit brackets in the sub-dash, not to the kit main frame Display Adjustment &... - Page 17 Using a Single or Double DIN Dash Kit cont; FIG. I FIG. J Radio Module Relocate M3 X 5 locking screw Locking screw to this hole LVDS Cable FIG. K FIG. L LVDS Cable LVDS Cable Cover FIG. M M2.6 X 6.5 Screw NOTE: Figures J, K, L &...
- Page 18 Using Factory Radio Brackets: Radio chassis mounts to the factory brackets in the sub-dash Display Adjustment & Mounting: 1. Use all four mounting screws and attach the radio module to the factory brackets (FIG N). a. Included (4X) M5 X 10 screws to mount the (radio module). b.
- Page 19 New holes in the factory brackets may need to be drilled for optimal screen position 1. Measure the hole span in the radio module mounting holes (2.3 inch). 2. Measure the height of where you want the radio module mounted. 3.
-
Page 20: Removing The Display Panel
Removing the Display Panel: In the event the display panel needs to be removed, follow the instructions below to prevent damage to the vehicle trim, radio display and installation kit. Locking Switch 1. Using a long flat-head screw driver, press-in the release switch behind the Display, and then slide to the right. - Page 21 FIG. O M2.6 X 6.5 Screw NOTE: Figure O, mounting bracket is not shown for presentation purpose LVDS Cable Cover A small flat head screw driver may be used to release connector lock in the event of difficulty in removal LVDS Cable...
-
Page 22: Accessory Control Wiring
B. Diagram using a standard 12 volt relay 1. Connect PIN 85 to any of the Accessory Control wires on the HORIZON10 (White/Black, SHOWN WITH STINGER’S SPXM1 CONTROLLING POPULAR 12V ACCESSORIES Gray/Black, Green/Black, Purple/Black). NOTE: If connecting multiple devices you will need one relay per Accessory Control wire. -
Page 23: Wake-Up Wire Diagram
Accessory Control Wiring Relay Diagram Fuse 12V Relay Accessory Control Switch output White/Black Gray/Black Green/Black Purple/Black Accessory output Wake-Up Wire Diagram (Optional not needed for normal operation) The HORIZON10 has the ability to start powering up, before the vehicle has been started for a faster boot-up. -
Page 24: Troubleshooting
See the Parental Control section, on Wired Android Auto Page 17 of the User Guide available on the Stinger website, for more information on the Android Auto Parental Control feature and how to access - Ensure a USB certified cable is being used locked channels. -
Page 25: Upgrades/Options
Upgrades/Options Navigation SD Card Navigation Ready Add optional iGO Navigation with part number SE-P24. Insert the purchased Front of radio module Micro SD card into the front of the radio module. HORIZON10 and iGO are optimized for ease of use and driving safety. - Page 26 ® ® NOTES:...
- Page 27 ® ® NOTES:...
- Page 28 ® ® NOTES: StingerSolutions.com IG-ix210 REV_A_070324 IG-ix210 REV_A_070324 Copyright © 2024...
