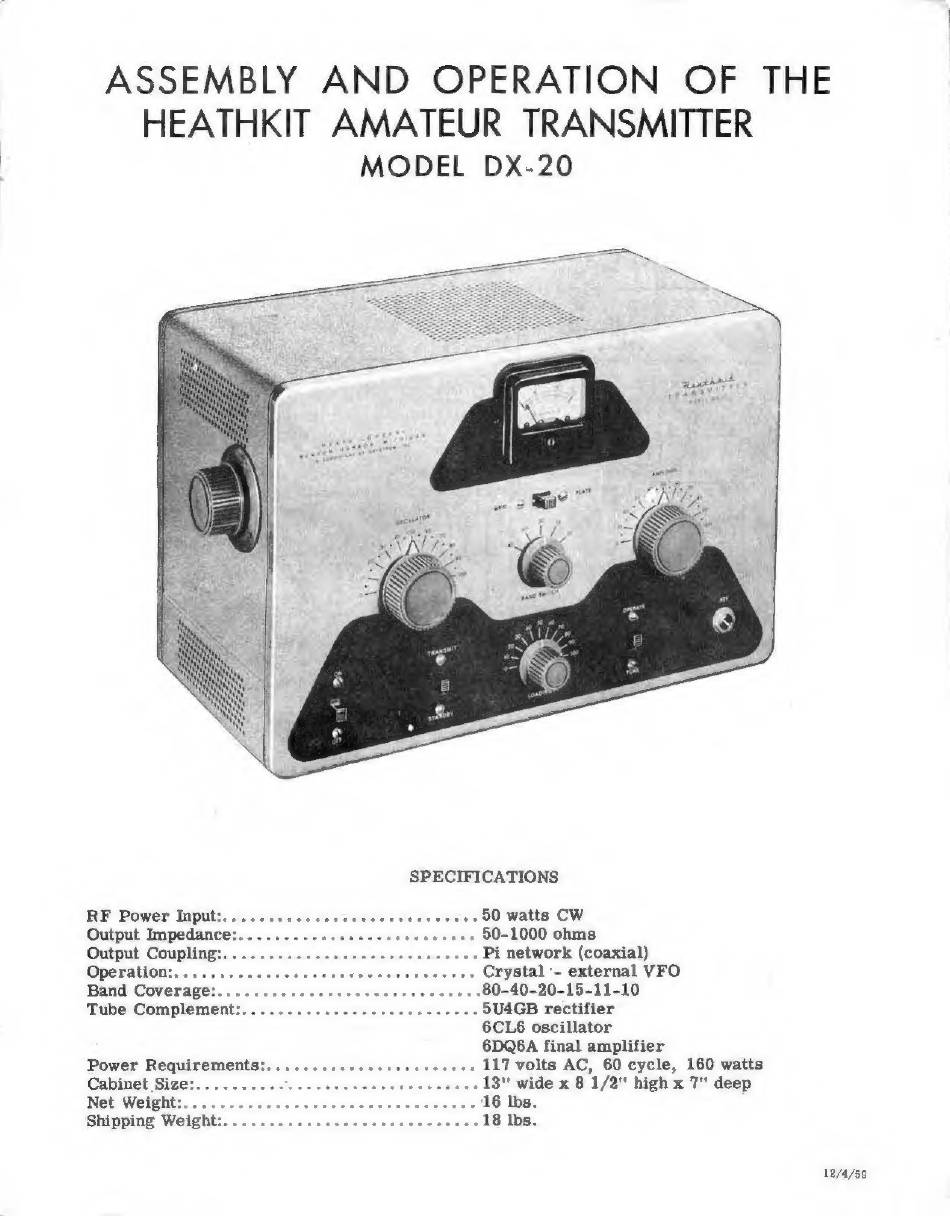

ASSEMBLY
AND
OPERATION
OF THE
HEATHKIT AMATEUR
TRANSMITTER
MODEL
DX-20
SPECIFICATIONS
RE Power Inputs si scesuss ms vexcae. i oa cased 50 watts CW
Output Impedance:...........
6. eee eee eee eee 50-1000 ohms
....- Pi network (coaxial)
Operation:......
. Crystal
'- external VFO
Band Coverage:.
...-80-40-20-15-11-10
Tube Compleme
.. 5U4GB rectifier
6CL6 oscillator
6DQ6A final amplifier
Power Requirements:.......-.---seeeeeeeeee
117 volts AC,
60 cycle,
160 watts
Cabinet Size:.
. 13" wide x 8 1/2" high x 7" deep
Net Weight:..
... 16 lbs.
Shipping Weig!
.-18 lbs.
12/4/59
