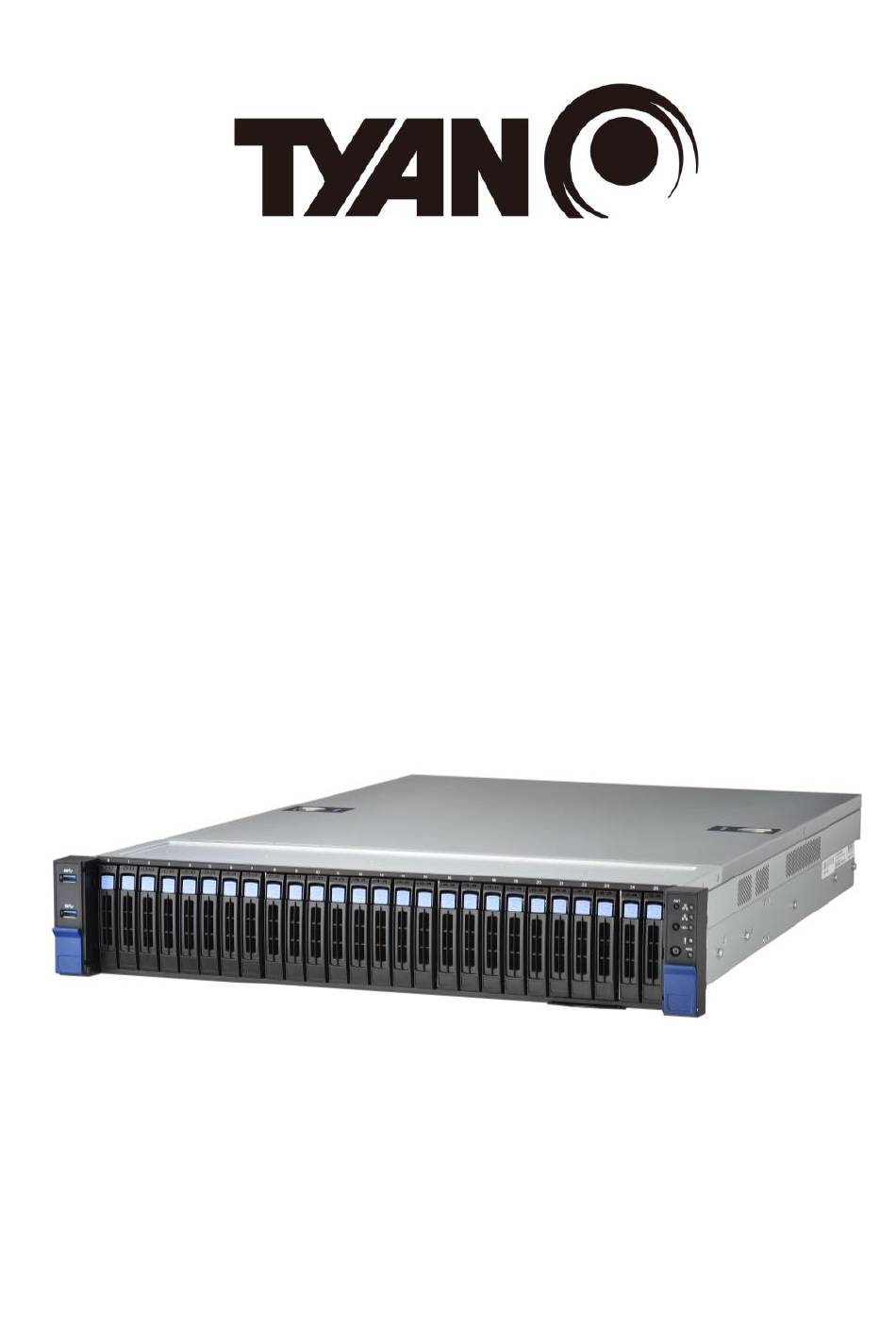

TS70A-B8056
TS70A-B8056-HE
Service Engineer's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS70A-B8056 and is the answer not in the manual?

Questions and answers

Related Manuals for TYAN TS70A-B8056

Summary of Contents for TYAN TS70A-B8056

  • Page 1 TS70A-B8056 TS70A-B8056-HE Service Engineer’s Manual...

  • Page 2: Trademark Recognition

    TECHNOLOGY CORPORATION and has been reviewed for accuracy and reliability prior to printing. MITAC assumes no liability whatsoever, and disclaims any express ® or implied warranty, relating to sale and/or use of TYAN products including liability or warranties relating to fitness for a particular purpose or merchantability. MITAC retains the right to make changes to produce descriptions and/or specifications at any time, without notice.
  • Page 3 This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. Notice for Europe (CE Mark) ● This product is in conformity with the Council Directive 2014/30/EU and 2014/35/EU. http://www.tyan.com...
  • Page 4 Warning This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. Safety: IEC/EN 62368-1 ● This equipment is compliant with CB/LVD of Safety: IEC/EN 62368-1. http://www.tyan.com...
  • Page 5 How this guide is organized This guide contains the following parts: Chapter 1: Overview This chapter provides an introduction to the TYAN TS70A-B8056 barebones and standard parts list, describes the external components, gives an overview of the product from different angles.

  • Page 6: Safety And Compliance Information

    Safety and Compliance Information Before installing and using TYAN TS70A-B8056, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.

  • Page 7: Safety Information

    TYAN products. Symbols on Equipment CAUTION: There is a risk of personal injury and equipment damage. Follow the instructions provided in the Tyan product documentation or displayed on the product. Read the e-manual. https://www.tyan.com/ CAUTION: Hazardous moving fan blade. Keep body parts away from moving fan blades.
  • Page 8 · Do not attempt to move a fully loaded rack. Remove equipment from the rack before moving it. · Do not attempt to move a rack on an incline that is greater than 10 degrees from the horizontal. http://www.tyan.com...
  • Page 9 This will reduce the risk of personal injury, fire, or damage to the equipment. The total rack load should not exceed 80 percent of the branch circuit rating. Consult the electrical authority having jurisdiction over your facility wiring and installation requirements. http://www.tyan.com...
  • Page 10 CAUTION: Risk of Explosion if Battery is replaced by an Incorrect Type. Replace the battery only with a spare designated for your equipment. Equipment Modifications · Do not make mechanical modifications to the system. TYAN is not responsible for the regulatory compliance of TYAN equipment that has been modified.
  • Page 11 – The product has been exposed to rain or water. – The product has been dropped or damaged. – The product does not operate normally when you follow the operating instructions. · Be sure to replace the cover before re-connecting the power cord. http://www.tyan.com...
  • Page 12 安全資訊 請保留和遵守隨本設備提供的所有產品安全與操作說明。本指南的說明與設 備文件的說明內容如有沖突，請遵守設備文件中的指導。 遵守產品上和操作說明中的所有警告。為降低人身傷害、電擊、火災及設備 損壞的風險，請遵守本指南中包括的所有注意事項。 在安裝、操作和維修產品之前，您必須先熟悉本指南中的安全資訊。 設備上的符號 警告： 該符號表示可能存在危險。如果未遵守注意事項， 則可能出現傷害。請查閱設備文件了解詳細資訊。 請於以下網站讀取電子手冊。 https://www.tyan.com/ 警告： 該符號表示可能存在危險的移動風扇葉片。 請保 持身體部位遠離移動中的風扇葉片。 警告： 該符號表示表面或元件高溫。如果接觸到表面，則 可能被燙傷。為降低被高溫元件燙傷的風險，請在 接觸之前先讓表面溫度冷卻下來。 警告： 該符號表示存在高壓電路或電擊危險。所有維修工 作應交由專業人員。 警告： 維修前須切斷所有電源。...
  • Page 13  機房環境 本裝置僅適用於機房或資訊室。  確保系統安裝的區域通風良好，溫度濕度等可控制。  確保機房電源的電壓和頻率與設備電力標籤上標示的電壓和頻率相符。  安裝系統時應遠離高壓、排氣管、散熱器等。  切勿在潮濕環境中使用本產品。  設備底座 請勿堵塞或蓋住系統的槽孔。  切勿將任何物件插入設備的槽孔。內部可能存在高壓。  可導電的物件可能造成短路並引起火災、電擊或設備損壞。  雙膝彎曲，用雙手提起設備。  設備機架 避免人身傷害或設備損壞指引： 遵守當地的職業健康和安全規定以及手工物料搬運的指導。  請勿嘗試獨自搬動機架，搬動機架至少需要兩人。  請勿嘗試搬動滿載的機架。從機架上卸下設備後再搬動它。  請勿嘗試在大於 10 度的斜坡上搬動機架，以免造成危險。  確保機架已正確固定到地板或天花板上。  如果是單機架安裝，確保穩定支腳已裝到機架。  如果是多機架安裝，確保各機架已咬合在一起。  http://www.tyan.com...
  • Page 14  從機架中拉出元件之前，確保機架是水平和穩定的。  確保一次只有一個元件被伸展。如果一次伸展一個以上的元件，則機架可  能會不穩定。 避免設備損壞指引： 機架寬度和深度必須保證能夠適當地進行維修和排列纜線。  保證機架內的通風良好。安裝不當或通風不良可能會損壞設備。  機架不能有實心或受限制的通風門。您必須在機架前後使用絲網門，或者  將門卸下以保證系統的良好通風。 如果您在機架中安裝設備，請勿將設備放在裝置上。這會造成通風不暢，  並可能會造成設備損壞。 確保產品與護欄正確咬合。與護欄咬合不良的產品可能會不穩定。  驗證為機架提供電源的交流電源分支電路沒有多載， 以降低人身傷害、  電擊、火災及設備損壞的風險。 機架總負載不應超過分支電路額定值的 80%。請向對您的設備連線和安  裝規定具有管轄權限的電力部門查詢。 設備電源線 只使用隨系統提供的電源線和電源裝置。系統可能配有一條或多條電源  線。 將電源線插入到能方便接觸到的接地電源插座。  在歐洲供電環境中，您必須將電源線上的綠色/ 黃色接頭接地。如果沒有  將綠色/黃色接頭接地，則可能由於大量電流洩露而造成電擊。 請勿在交流電源線或纜線上放置物件。將電源線或纜線放在人們不易踩到  http://www.tyan.com...
  • Page 15 頭。 為降低電擊風險，請在維修裝置之前，斷開所有電源線連接。  設備電池 本系統使用鋰錳電池。如果電池組處理不當，則會有起火風險。  請勿拆解、擠壓、穿刺電池，將其投入火中或水中，或使其與外部短路接  觸。 請勿將電池置於 60 F) 以上的高溫環境中。 C (140  ° ° 請勿嘗試給電池充電。  按照製造商的說明處理用過的電池。請勿將電池當作一般家庭垃圾處理。  若要對電池進行回收再用或正確處理，請使用公共收集系統，或將其送回授 權合作夥伴或其代理。 警告: 若置換不同型式之電池有起火或爆炸風險。請換上專為本產 品指定的備用電池。 設備改造 不要對本設備進行機械或電氣修改, 以免造成安全問題。對於被改造設備  的認證合格概不負責。 設備維修與維護 安裝內部元件和日常的產品維護應由熟悉程序、注意事項及高壓設備危險  的專業人員執行。 請勿任意拆裝設備. 任何未經授權或認證人員之設備拆裝可能造成嚴重的  http://www.tyan.com...
  • Page 16 安全問題. 任何問題, 請洽您的銷售人員或經銷商尋求協助。 除非安裝手冊或使用手冊中提及, 否則請勿嘗試維修您的設備. 永遠遵守  安裝手冊及使用手冊的說明。 在卸下機蓋和接觸內部元件之前，應先讓產品冷卻下來。  卸下機蓋和接觸內部元件之前進行工作時，應取下手錶、戒指或鬆散的珠  寶等物品。 請勿使用可能會橋接執行中部件的導電工具。  卸下或更換系統元件時，請戴上手套，以免被高溫的元件表面燙傷。  如果產品持續發生損壞，需要維修，請從交流電源插座上斷開產品，並交  由授權的服務提供商進行維修。下面是一些需要維修的情況： – 電源線、延長線或插頭損壞。 – 有液體濺到產品上，或異物進入到產品內。 – 產品遭到雨淋或進水。 – 產品跌落或損壞。 – 在您按照操作說明使用時，產品操作不正常。 操作環境溫度升高 如果將此設備安裝在封閉式或具有多個設備的機架上，機架的操作環境溫  度可能會高於設備房間的溫度。因此，在安裝此設備時必須考慮滿足生產廠 商規定的最高環境溫度 (Tma) 要求。 減少通風 將設備安裝於機架上不會造成安全操作設備所需的通風出現通風不良的狀  況。 http://www.tyan.com...
  • Page 17 機械負載 將設備安裝於機架上不會造成因為機械負載不均而出現危險的狀況。  電路過度負荷 必須考量將設備連接到供電電路時的狀況，而過流防護及供電線路可能出  現電路過度負荷的問題。對於這類疑慮，必須妥適考量設備標示牌的額定 值。 牢固的地面固定 務必使安裝於機架上的裝置在地面固定牢固。必須特別注意非直接接上電  源的其他分路供電 (例如使用電源排插座)。 警告使用者: 警告: 為避免電磁干擾，本產品不應安裝或使用於住宅環境。 連絡方式 製造商: 神雲科技股份有限公司 地址: 新竹科學園區新竹縣研發二路 1 號 3 樓 電話: 886‐3‐5779088 http://www.tyan.com...
  • Page 18 Taiwan BSMI RoHS Declaration 設備名稱：伺服器 / 型號（型式） ：TS70A-B8056 Equipment Name：Server / Type：TS70A-B8056 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻 多溴聯苯 多溴二苯醚 單位 鉛 汞 鎘 Unit Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd)
  • Page 19 Taiwan BSMI RoHS Declaration 設備名稱：伺服器 / 型號（型式） ：TS70A-B8056-HE Equipment Name：Server / Type：TS70A-B8056-HE 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻 多溴聯苯 多溴二苯醚 單位 鉛 汞 鎘 Unit Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd)

  • Page 20: Table Of Contents

    Table of Contents Chapter 1: Overview ................ 24 About the TYAN TS70A-B8056 ..........24 Product Model ................ 25 Features.................. 26 Standard Parts List ..............35 1.4.1 Box Contents ..............35 1.4.2 Accessories ..............35 About the Product ..............36 1.5.1 System Front View ............
  • Page 21 Advanced Menu ..............126 CPU Configuration ..............184 Chipset Menu ............... 187 Server Management ............. 219 Security ................. 228 Boot ..................233 Save & Exit ................237 Chapter 6: Diagnostics ..............239 Flash Utility ................239 AMIBIOS Post Code (Aptio) ..........240 http://www.tyan.com...
  • Page 22 Appendix I: Cable Connection Tables ......... 249 Appendix II: Fan and Temp Sensors ..........251 Appendix III: How to recover UEFI BIOS ........257 Appendix IV: FRU Parts Table ............259 Appendix V: Technical Support ............ 261 http://www.tyan.com...
  • Page 23 NOTE http://www.tyan.com...

  • Page 24: Chapter 1: Overview

    4800/4400/4000 MHz memory. Leveraging advanced technology from AMD TS70A-B8056 server system is capable of offering scalable 32 and 64-bit computing, high bandwidth memory design, providing a rich feature set and incredible performance, and lightning-fast PCI-E bus implementation. The TS70A-B8056 not only empowers your company in nowadays IT demand but also offers a smooth path for future application usage.

  • Page 25: Product Model

    Product Model The system boards within the Tyan barebone systems contain different features and chipsets, which are defined by the following models: B8056T70AE26HR-2T:  AMD-based platform, support (26) Hot-Swap 2.5’’ NVMe SSDs + S8056GM2NRE-2T MB, with 1000W/1600W 80+ Platinum PSU B8056T70AE26HR-2T-HE: ...

  • Page 26: Features

    12 Channels per CPU Memory voltage 1.1V PCIe (1) PCI-E Gen.5 x8 slot Pre-installed TYAN Riser (1) M7136T70-R24-2F riser card for for Card (PCIe Gen.5) (2) FH/HL PCIe 5.0 x16 slots / Expansion Slots (1) M7136T70-L28-1F riser card for for (1) FH/HL PCIe 5.0 x8 slot...
  • Page 27 Class A C-Tick Class A Operating Temp. 10° C ~ 35° C (50° F~ 95° F) Operating Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F) Environment In/Non-operating 90%, non-condensing at 35° C Humidity 90 http://www.tyan.com...
  • Page 28 Barebone (1) TS70A-B8056 Barebone Package Contains Manual (1) Quick Installation Guide RoHS RoHS 6/6 Compliant B8056T70AE26HR Specifications Form Factor 2U Rackmount Chassis Model TS70A System Dimension (D x W x H) 27.56" x 17.26" x 3.42" (700 x 438.5 x 87mm)
  • Page 29 Operating System OS supported list Please refer to our AVL support lists. FCC (SDoC) Class A CE (DoC) Class A Regulation CB/LVD VCCI Class A C-Tick Class A Operating Operating Temp. 10° C ~ 35° C (50° F~ 95° F) http://www.tyan.com...
  • Page 30 Environment Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F) In/Non-operating 90%, non-condensing at 35° C Humidity 90 Barebone (1) TS70A-B8056 Barebone Package Contains Manual (1) Quick Installation Guide RoHS RoHS 6/6 Compliant B8056T70AE26HR-2T-HE Specifications Form Factor...
  • Page 31 Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.2 / ACPI sleeping states S0, S5 Operating System OS supported list Please refer to our AVL support lists. FCC (SDoC) Class A CE (DoC) Class A Regulation CB/LVD VCCI Class A http://www.tyan.com...
  • Page 32 Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F) Environment In/Non-operating 90%, non-condensing at 35° C Humidity 90 Barebone (1) TS70A-B8056 Barebone Package Contains Manual (1) Quick Installation Guide RoHS RoHS 6/6 Compliant B8056T70AE26HR-HE Specifications Form Factor...
  • Page 33 12 Channels per CPU Memory voltage 1.1V PCIe (1) PCI-E Gen.5 x8 slot Pre-installed TYAN (1) M7136T70-R24-2F riser card for for (2) FH/HL PCIe Expansion Slots Riser Card (PCIe 5.0 x16 slots / (1) M7136T70-L28-1F riser card for for Gen.5) (1) FH/HL PCIe 5.0 x8 slot...
  • Page 34 Operating Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F) Environment In/Non-operating 90%, non-condensing at 35° C Humidity 90 Barebone (1) TS70A-B8056 Barebone Package Contains Manual (1) Quick Installation Guide RoHS RoHS 6/6 Compliant NOTE: 1. The specifications are subject to change without prior notice.

  • Page 35: Standard Parts List

    Standard Parts List This section describes TS70A-B8056 package contents and accessories. Open the box carefully and ensure that all components are present and undamaged. The product should arrive with packaged as illustrated below. 1.4.1 Box Contents If any items are missing or appear damaged, contact your retailer or browse to TYAN’s website for service:...

  • Page 36: About The Product

    The following views show you the product. 1.5.1 System Front View M1718T65-FPB Front Panel Board/ M1717T65-USB USB Board LAN1LED ID Button LAN2 LED Power Button with green LED ID LED USB 3.0 Port Warning LED USB 3.0 Port HDD LED 2.5” NVMe bays RESET Button http://www.tyan.com...
  • Page 37 HDD LED Green/Red HDD activity / Green blinking HDD fail / Red solid on Color State Description SATA/SAS HDD fail HDD fail LED No failure found SATA/SAS HDD ready Green HDD Power/Access LED Blinking SATA/SAS HDD access activity Power disconnected http://www.tyan.com...

  • Page 38: System Rear View

    Dedicate to OCP Card Serial Port (COM1)USB3.2 Dedicate to IPMI Port (LAN3) Gen1 Ports RJ45 LAN Port (LAN1/ LAN2) VGA Port ID LED (Blue) Add-On Card field ID LED State Color Description Blue System identified ID LED System not identified http://www.tyan.com...
  • Page 39 Right LED No Link Link Green 10Mbps Active Blinking Green Solid Green Link Green 100Mbps Solid Green Active Blinking Green Solid Yellow Link Green 1Gbps Solid Yellow Active Blinking Green Link Yellow Solid Yellow 10Gbps Solid Yellow Active Blinking Yellow http://www.tyan.com...

  • Page 40: System Top View

    1.5.3 System Top View http://www.tyan.com...
  • Page 41 HDD Module M1322T70A-BPE-8/ M1318T65-BP12E-2 HDD Backplane Board (3) System fans M7100F48B-PDB Power Distribution Board M7063F86-PBP Power Backplane Board Power Module Riser Card Bracket (M7136T70-L28-1F, M7136T70-R24-2F pre-installed) pre-installed) Memory Slots CPU Sockets PCIE#1 x24 (PESLOT1) /PCIE#2 x16 (PESLOT2) M.2 Area http://www.tyan.com...
  • Page 42 NOTE http://www.tyan.com...

  • Page 43: Chapter 2: Setting Up

    Caution! To avoid damaging the motherboard and associated components, use torque force within the range kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 44: Precautions

    Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to TS70A-B8056 or injury to yourself.  Ground yourself properly before removing the top cover of the system.

  • Page 45: Installing Motherboard Components

    CPUs, memory modules and add on cards. 2.1.1 Removing the Chassis Cover Follow these instructions to remove TS70A-B8056 chassis cover. 1. Press the latches simultaneously and slide the chassis cover backwards. 2. Slide to lift the rear top cover up.

  • Page 46: Removing The Riser Bracket

    2.1.2 Removing the Riser Bracket 1. Use a screwdriver to loosen two thumb screws. Then lift up the Riser Card Brackets. http://www.tyan.com...

  • Page 47: Replacing The Chassis Cover

    2.1.3 Replacing the Chassis Cover Follow these instructions to replace TS70-B8056 chassis cover. 1. Place the chassis cover on top. 2. Push the latches simultaneously and slide the chassis cover forwards until it clicks. http://www.tyan.com...

  • Page 48: Installing The Cpu And Heatsink

    2.1.4 Installing the CPU and Heatsink Follow the steps below on installing CPU and CPU heat sink. The TS70A-B8056 supports single AMD Zen 4 (Genoa) series CPU. The following installation is based on an AMD SP5 socket. Use a T20 Torx screwdriver to loosen the screws securing the force frame.
  • Page 49 2. Do not drop the carrier frame or touch the package pad to avoid component damage. Carefully close the rail frame with the installed package. Then push both edges of the rail frame firmly until it locks in place. http://www.tyan.com...
  • Page 50 To secure the heatsink, use a T20 Security Torx to tighten the screws. Tighten the six screws in a sequential order (123456) to secure the heat sink. Disassemble the heatsink in a sequential order (654321) to loosen the heatsink. http://www.tyan.com...

  • Page 51: Installing The Airduct

    Then apply new thermal grease before reinstalling the heatsink. 2.1.5 Installing the Airduct Follow the steps below on installing Airduct to the heat sink. Press down the airduct onto the heatsink. http://www.tyan.com...

  • Page 52: Installing The Memory

    The airduct installation has finished. 2.1.6 Installing the Memory Follow these instructions to install the memory modules onto the motherboard. Unlock the clips. Insert the memory module. http://www.tyan.com...

  • Page 53: Installing The Pci-E Card

    Lock the clips. 2.1.7 Installing the PCI-E Card Follow these instructions to install the PCI-E card. 1. Unscrew the riser card bracket. Unscrew to remove the dummy bracket. http://www.tyan.com...

  • Page 54: Installing Hard Drives

    Replace the riser card bracket into the chassis and use a screw driver to fasten the thumb screw. 2.1.8 Installing Hard Drives The TS70A-B8056 supports twenty-six 2.5” hot-swap NVMe SSDs. Installing 2.5” Hot-Swap Hard Drives Follow these instructions to install a 2.5” SSD. Warning!!! Always install the hard disk drive to the chassis after the chassis has been secured on the rack.
  • Page 55 Slide the HDD tray out. http://www.tyan.com...
  • Page 56 Open the lock to place the 2.5” hard disk drive into the HDD tray. Lock the tray lever to secure HDD. Reinsert the HDD tray into the chassis. Push to secure the locking lever until it clicks into place. http://www.tyan.com...

  • Page 57: Installing The M.2 Latch

    Follow these instructions to install the M.2 Latch. 1. Take out the M.2 Latch from the AK box. 2. Measure the length of the M.2 card and insert the latch into the appropriate hole. 3. Insert the M.2 Latch into the appropriate hole. http://www.tyan.com...
  • Page 58 4. Insert the M.2 card into the slot. Pull the latch to lock the M.2 card. 5. One latch can fix two M.2 cards. http://www.tyan.com...

  • Page 59: 2.1.10 Installing Ocp Card

    Follow these instructions to install the OCP Card. Here is a sample showing how to install the dual-port LAN card M7062-I599-2T. Unscrew the riser card bracket. Remove the riser card bracket from the chassis. Use a screwdriver to release the OCP card slot. Take out the OCP bracket. http://www.tyan.com...
  • Page 60 Insert the LAN card into the OCP slot and Push forward the OCP card to the OCP slot. The OCP card installation has been completed. http://www.tyan.com...

  • Page 61: Rack Mounting

    Rack Mounting After installing the necessary components, the TYAN TS70A-B8056 can be mounted in a rack using the supplied rack mounting kit. Sliding Rail Kit  Sliding Rails x 2  Rail screw Pack x 1 2.2.1 Installing the Server in a Rack Follow these instructions to mount the TYAN TS70-B8056 into an industry standard 19"...
  • Page 62 Repeat steps 2 to 4 to secure the sliding rail to the other side of the server. NOTE: Use a screwdriver to slightly push the latch open and then push the inner rail forwards to unlock. http://www.tyan.com...
  • Page 63 Attach the outer rail to the rack. Pull the latch open and align the square stud with the square hole on the rack rail. Please note that the square stud must be fully attached inside the square hole and then close the latch to lock. Rear Front http://www.tyan.com...
  • Page 64 http://www.tyan.com...

  • Page 65: Rack Mounting The Server

    Rack mounting the Server Draw out the middle rail to the latch position. When the inner rails come to a stop, pull the tab to release the latch and push the whole system in. Secure the unit to the rack. http://www.tyan.com...

  • Page 66: Chapter 3: Replacing Pre-Installed Components

    Front Panel Board, M1718T65-USB Board, Power Distribution board, M1322T70A-BPE-8 HDD Backplane, M7126T65-PDB M7063F86-PBP Power Backplane Board. M7136T70-L28-1F M7136T70-R24-2F Riser cards, P2305-4E PCIE Re-timer Board, System fan and Power supply unit etc. Disassembly Flowchart The following flowchart outlines the disassembly procedure. http://www.tyan.com...

  • Page 67: Removing The Cover

    Removing the Cover Before replacing any parts you must remove the chassis cover first. Follow Chapter 2.1.1 to remove the cover of the TS70A-B8056. Replacing Motherboard Components Follow these instructions to replace motherboard components, including the motherboard. 3.4.1 Replacing the Riser Card...
  • Page 68 Re-timer Board to replace with a new one on both left and right riser card. Unscrew the M7136T70-L28-1F / M7136T70-R24-2F riser card to replace with a new one. Follow the steps described earlier in reverse to reinstall the riser card bracket. P2305-4E PCIE Re-timer Board http://www.tyan.com...

  • Page 69: Pci-E Riser Cards Specification

    M7136T70-L28-1F Riser Card M7136T70-R24-2F Riser Card M7136T70-L28-1F/ M7136T70-R24-2F Riser Card M7136T70-L28-1F: 68.47mmx131mm,T=1.6mm Form Factor M7126T65-L32-3F: 73.8mm x 132.99mm,T=1.6mm  Specifications PCI-E Gen5 x16 SLOT x2 (J1)  PCI-E Gen5 x8 SLOT x1(J3)  4P PWR Connector x1(PWR1) Signal Signal (PWR1) +12V http://www.tyan.com...

  • Page 70: Replacing The Front Panel Board

    1 Unscrew to release the Front Panel Board cover. 2 Remove the Front Panel Board cover. 3 Unscrew and disconnect the Front Panel Board to replace a new one. 4 Follow the steps described earlier in reverse to reinstall the Front Panel Board. http://www.tyan.com...

  • Page 71: Front Panel Board Specifications

     IO: 2x15-pin Front Panel Header (J4)  3 Buttons: Reset Button (J3), ID Button (J5), Specifications Power Button with LED (J6)  6 LEDs: LAN1 LED, LAN2 LED, ID LED (LED3), Fault LED (LED6), HDD LED, Power LED http://www.tyan.com...

  • Page 72: Fpb Led Definitions

    System event Healthy FAULT_LED(LED6) alert Amber Solid on HDD fail Green(default)or HDD Present& HDD_LED Blue Solid on Standby Green(default)or HDD active Blue Blinking Reset Button Reset Button ID Button ID Button Power Button Green Solid on PS-ON Power Button w/LED http://www.tyan.com...

  • Page 73: Replacing The Usb Board

    2 Remove the USB front cover. Disconnect the USB cable and then unscrew the Front USB Board to replace with a new one. Follow the steps described earlier in reverse to reinstall the the Front USB Board and Front USB Bezel. http://www.tyan.com...

  • Page 74: Usb Board Specifications

    3.6.1 USB Board Specifications M1717T65-USB USB Board 48mmx19mm,T=1.6mm Form Factor  USB 3.0 Connector (J1, J2) Specifications  20-pin Header Input Connector (J3) http://www.tyan.com...

  • Page 75: Replacing The System Fan

    Take out the fan from the chassis. Release the four screws to detach the fan module. Use a screwdriver to press the latch and move the latch in the direction as the arrow shows to get off the fan cage. http://www.tyan.com...
  • Page 76 Follow the steps described earlier in reverse order to replace a new fan module into the chassis. http://www.tyan.com...

  • Page 77: Replacing The Hdd Backplane Board

    M1318T65-BP12E-2 Disconnect all cables connected to thM1322T70A-BPE-8/ HDD backplane Board. Unscrew the HDD BP Board. Release the HDD Backplane from the hook. Follow the procedures described earlier to reinstall the HDD backplane board bracket into the chassis. http://www.tyan.com...

  • Page 78: Hdd Backplane Board Features

    Here shows the M1322T70A-BPE-8 HDD Backplane Board in details. Front View Rear View Form Factor PCB Dimensions: 131mm*76mm*3mm  (2)10Pin FAN Header  (4) MCIO Connector Input Specifications  (8) NVME HDD Output Overview  (2) SMbus Header  (2) FAN Connectors(Fan1/Fan2) http://www.tyan.com...

  • Page 79: Connector Definition

    MCIO1 SLIMSAS Connector MCIO2 SLIMSAS Connector MCIO3 SLIMSAS Connector MCIO4 SLIMSAS Connector Power Connector HDR_1 SMBUS Header HDR_2(For Broadcom 9460-16i) SMBUS Header JTAG1 CPLD JTAG Header HDD BP ADDRESS_SELECT Header FAN signal Header Fan1 FAN Header Fan2 FAN Header http://www.tyan.com...
  • Page 80 Front View Rear View PCB Dimensions: 76mm*33.5mm*3mm Thickness: Layer: 8 layers Slimsas Connector (J1) SATA + NVMe Connector(NVME0) SATA + NVMe Connector(NVME1) Integrated I/O SATA Connector(SATA0) SATA Connector(SATA1) 4P Power Connector (PW1) Nvme(#0~#23) *width x4 / Nvme(#24~#25) *width x2 http://www.tyan.com...

  • Page 81: Replacing The Power Distribution Board

    Power Distribution Board in your system. Disconnect all cables connected to the power distribution board. Unscrew to take off the power distribution board and replace with a new one. Insert the PDB into the chassis following the above procedures in reverse. http://www.tyan.com...

  • Page 82: Power Distribution Board Features

    (1) ATX 24-pin power connector  (1) ATX 20-pin power connector  (3) ATX 8-pin power connector   Integrated I/O (1) ATX 4-pin power connector  (2) HDD 4P power connector  (1) DOM 5V power connector  (1) PMBUS connector http://www.tyan.com...

  • Page 83: Pin Definitions

    3.9.2 Pin Definitions Location Definition PWR1 ATX Power 12x2 ATX Power 10x2 ATX Power 4x2 ATX Power 4x2 ATX Power 4x2 ATX Power 2x2 HDD Power 4x1 HDD Power 4x1 PMBUS DOM_5V_PW1 DOM Power http://www.tyan.com...

  • Page 84: Replacing The Power Backplane Board

    Replacing the Power Backplane Board Follow these instructions to replace the M7063F86-PBP Power Backplane Board. Unscrew the Power BP Board bracket from the chassis. Remove the bracket beside and release the power distribution tray. Slide to take out the power backplane board tray. http://www.tyan.com...
  • Page 85 Unscrew to replace with a new power backplane board. Follow the steps described earlier in reverse order to reinstall the power backplane board tray into the chassis. http://www.tyan.com...

  • Page 86: Replacing The Power Supply

    Follow these instructions to replace the power supply module in your system. Press the latch to pull the power supply out. After replacing a new power supply, press and hold the latch to push the power supply back into the chassis. http://www.tyan.com...

  • Page 87: Disconnecting All Motherboard Cables

    3.12 Disconnecting All Motherboard Cables Disconnect all cables connected to the motherboard. http://www.tyan.com...

  • Page 88: Chapter 4: Board Information

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 5~7kgf/cm (4.35~6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 89: Board Image

    Board Image S8056GM2NE-2T This picture is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above picture. http://www.tyan.com...

  • Page 90: Block Diagram

    Block Diagram S8056 Block Diagram http://www.tyan.com...

  • Page 91: Motherboard Mechanical Drawing

    Motherboard Mechanical Drawing http://www.tyan.com...

  • Page 92: Board Parts, Jumpers And Connectors

    The board you receive may not look exactly like the above diagram. The DIMM slot numbers shown above can be used as a reference when reviewing the DIMM population guidelines shown later in the manual. For the latest board revision, please visit our web site at http://www.tyan.com. http://www.tyan.com...
  • Page 93 COM2 Switch Jumper (J6) g. SMBUS SEL Jumper (3PHD1) c. BMC Jumper (J2) h. CPLD force PowerOn SEL Jumper (J3) d. COM1 Switch Jumper (J8) i. Clear CMOS Jumper (J75) e. COM1 Switch Jumper (J9) j. Reset Jumper (J33) http://www.tyan.com...
  • Page 94 ID LED BMC heartbeat LED (D1_2) VIII PWR_GOOD LED (D52) PROCHOT LED (D26) PWROK LED (D57) PSU_ALERT LED (D31) CPU RESET LED (D58) Jumper Legend OPEN - Jumper OFF Without jumper cover CLOSED - Jumper ON With jumper cover http://www.tyan.com...
  • Page 95 FPIO_2: Front Panel Connector Signal Signal PWRLED+ VDD_33_DUAL IDLED+ PWRLED- IDLED- HDDLED+ SYS_FAULT1- HDDLED- SYS_FAULT2- PWR_SW# LAN1LED+ LAN1LED- RESET_SW# SMBDATA SMBCLK IDLED_SW# INTRUSION# LAN2LED+ NMI_SW# LAN2LED- PSMI_HD1: PSMI Connector Signal SMB_CLK SMB_DAT PSU_SMBALERT_N V3.3 IPMB_HD1: 4-pin IPMB Connector Signal IPMB_DAT IPMB_CLK VCC3_AUX http://www.tyan.com...
  • Page 96 TACH2 TACH7 TACH3 TACH8 TACH4 TACH9 TACH5 TACH10 PWM3 PWM2 TACH11 TACH12 PWM4 TACH13 TACH15 TACH14 TACH16 PWM5 PWM7 PWM0 USB3_FPIO1: USB3.2 Gen1 Header Signal Signal P0_RX_N P0_RX_P P1_RX_N P1_RX_P P0_TX_N P0_TX_P P1_TX_N P1_TX_P P0_N P0_P P1_N OC_N P1_P http://www.tyan.com...
  • Page 97 COM2: COM Port Header Signal Signal COM2_DCD COM2_DSR COM2_RXD COM2_RTS COM2_TXD COM2_CTS COM2_DTR COM2_NRI HDR_1/2/3/4/5: 7-pin NVMe Hot Plug Function Connector Signal Signal VCC3_AUX HP0_SCK HP0_SDA CPU01_SMBALERT_N_C TYPEA_USB3: Vertical Type-A USB3.0 Connector Signal Signal USB3_N3_RX_TYPEA VCC5 USB3_P3_RX_TYPEA USB2_N8_TYPE_A_R USB2_P8_TYPE_A_R USB3_N3_TX_TYPEA USB3_P3_TX_TYPEA http://www.tyan.com...
  • Page 98 BMC_RXD2 RXD_OUT BMC_TXD5 BMC_RXD5 (Default) Pin1-2 closed: Normal Mode Pin2-3 closed: Debug Mode J8/J9: COM1 Switch Jumper Signal Signal BMC_TXD1 TXD_OUT BMC_RXD1 RXD_OUT FTDI_UART_RXD FTDI_UART_TXD (Default) Pin1-2 closed: Normal Mode Pin2-3 closed: Debug Mode J66: Intrusion Header Signal SCM_CHASSIS_INTR_L http://www.tyan.com...
  • Page 99 NGFF1: M.2 Connector Signal Signal VCC3 VCC3 VCC3_AUX M2_LED_N VCC3 VCC3 VCC3 VCC3 PCH_PE1_M2_1_RX_N PCH_PE1_M2_1_RX_P PCH_PE1_M2_1_TX_N PCH_PE1_M2_1_TX_P M2_SMB_CLK_R PCH_PE0_M2_0_RX_N M2_SMB_DAT_R PCH_PE0_M2_0_RX_P PCH_PE0_M2_0_TX_N M2_PERST_N_R PCH_PE0_M2_0_TX_P M2_2_PEWAKE_N CLK_100M_M2_DN CLK_100M_M2_DP PE_M.2_DETECT_N VCC3 VCC3 VCC3 http://www.tyan.com...
  • Page 100 A27 B27 CPU0_PE4_HDD0_SDA1 A28 B28 GND CLK_100M_DB2000_CPU0_N A29 B29 RST_NVME1_CPU0_PERST_N VME2_DP CLK_100M_DB2000_CPU0_N A30 B30 FM_CPU0_PE4_PRSTNB_N VME2_DN A31 B31 GND CPU0_PE4_RX_DN<1> A32 B32 CPU0_PE4_TX_DN<1> A33 B33 CPU0_PE4_TX_DP<1> CPU0_PE4_RX_DP<1> A34 B34 GND CPU0_PE4_RX_DN<0> A35 B35 CPU0_PE4_TX_DN<0> A36 B36 CPU0_PE4_TX_DP<0> CPU0_PE4_RX_DP<0> A37 B37 GND http://www.tyan.com...
  • Page 101 Signal VDD_33_DUAL J56: ESPI TPM Header Signal Signal SPI_TPM_CONN_CLK P3V3_AUX RST_PLTRST_TPM_CONN_ FM_TPM_CONN_PRSNT_R_ SPI_TPM_CONN_MOSI IRQ_TPM_CONN_PIRQ_N SPI_TPM_CONN_MISO P3V3 SPI_PCH_TPM_CONN_CS_N NC_TPM_PIN6 J3: CPLD force pwron options SEL Connector Signal Signal FORCE_PWRON_LVC3 Rpu 1k (Default) Pin1-2 closed: Normal Mode Pin2-3 closed: POWER ON http://www.tyan.com...
  • Page 102 J75: Clear CMOS Jumper Signal Signal VDD_RTC P0_VDD_RTC (Default) Pin1-2 closed: Normal Mode Pin2-3 closed: Clear CMOS 3PHD_1: VRM SMBUS SEL Connector Signal Signal VR_I2C_CPU0_EN (Default) Pin1-2 closed: VRM SMBus to BMC Pin2-3 closed: BMC SMBus open（for Power FW update） http://www.tyan.com...

  • Page 103: Led Definitions

    LED Definitions http://www.tyan.com...
  • Page 104 SYSTEM PROCHOT OR BMC NOT ready Signal VDD_33_DUAL PSMI_PSU_ALERT_LED_L v. D31 PSU_ALERT LED State Description NORMAIL PSU_ALERT Signal VDD_33_DUAL HDD_ACT_LED_ALL_L vi. D39 SATA & M.2 LED State Description HDD non-activity Blue HDD activity Signal viii. D52 PWR_GOOD LED VDD_5_DUAL P0_PWR_GOOD_LED- http://www.tyan.com...
  • Page 105 POWER OFF Green SYSTEM POWER GOOD Signal VDD_5_DUAL P0_PWROK_LED- ix. D57 PWROK LED State Description CPU POWER OFF Green CPU POWER OK Signal VDD_5_DUAL P0_RESET_LED_L x. D58 CPU RESET LED State Description CPU RESET NORMAIL CPU RESET NOT SEND OUT http://www.tyan.com...

  • Page 106: Installing The Processor And Heatsink

    Installing the Processor and Heatsink The types of processors supported by the S8056 are listed in the 1.3 Features section on page 17. Check our website at http://www.tyan.com for the latest list of ® validated AMD processors for this specific motherboard.
  • Page 107 Carefully close the rail frame with the installed package. Then push both edges of the rail frame firmly until it locks in place. Close the force frame. Then use a T20 Torx screwdriver to tighten the screw to secure the force frame. http://www.tyan.com...
  • Page 108 The following diagram illustrates how to install the heatsink on the AMD Socket: 1. Align and install the CPU heatsink onto the top of the CPU socket. 2. Use a T20 Torx screwdriver to tighten the heatsink screws in a sequential order(123456). http://www.tyan.com...

  • Page 109: Thermal Interface Material

    CPU lid (applying too much will actually reduce the cooling). NOTE: Always check with the manufacturer of the heat sink & processor to ensure that the thermal interface material is compatible with the processor and meets the manufacturer’s warranty requirements. http://www.tyan.com...

  • Page 110: Tips On Installing Motherboard In Chassis

    Be especially careful to look for extra stand-offs. If there are any stand-offs present that are not aligned with a mounting hole on the motherboard, it will likely short components on the back of the motherboard when installed. This will cause malfunction and/or damage to your motherboard. http://www.tyan.com...
  • Page 111 Some chassis include plastic studs instead of metal. Although the plastic studs are usable, MiTAC recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look like and how they should be installed. http://www.tyan.com...

  • Page 112: Installing The Memory

    Installing the Memory Before installing memory, ensure that the memory you have is compatible with the motherboard and processor. Check the TYAN Web site at http://www.tyan.com details of the type of memory recommended for your motherboard. http://www.tyan.com...
  • Page 113 4800 4000 4800 3600 3600 3DS RDIMM* 2SxR 4800 2SxR 2SxR 3600 *For 3DS RDIMM When x = 2 DIMM Ranks = 4 When x = 4 DIMM Ranks = 8 When x = 8 DIMM Ranks = 16 http://www.tyan.com...
  • Page 114 P0_CHB_DIM0 P0_DIMM_H0 P0_CHH_DIM0 P0_DIMM_B1 P0_CHB_DIM1 P0_DIMM_H1 P0_CHH_DIM1 P0_DIMM_C0 P0_CHC_DIM0 P0_DIMM_I0 P0_CHI_DIM0 P0_DIMM_C1 P0_CHC_DIM1 P0_DIMM_I1 P0_CHI_DIM1 P0_DIMM_D0 P0_CHD_DIM0 P0_DIMM_J0 P0_CHJ_DIM0 P0_DIMM_D1 P0_CHD_DIM1 P0_DIMM_J1 P0_CHJ_DIM1 P0_DIMM_E0 P0_CHE_DIM0 P0_DIMM_K0 P0_CHK_DIM0 P0_DIMM_E1 P0_CHE_DIM1 P0_DIMM_K1 P0_CHK_DIM1 P0_DIMM_F0 P0_CHF_DIM0 P0_DIMM_L0 P0_CHL_DIM0 P0_DIMM_F1 P0_CHF_DIM1 P0_DIMM_L1 P0_CHL_DIM1 http://www.tyan.com...
  • Page 115 √ √ √ P0_CHG_DIM1 √ P0_CHH_DIM0 √ √ √ √ √ P0_CHH_DIM1 √ P0_CHI_DIM0 √ √ √ √ √ √ P0_CHI_DIM1 √ P0_CHJ_DIM0 √ √ √ P0_CHJ_DIM1 √ P0_CHK_DIM0 √ √ √ √ P0_CHK_DIM1 √ P0_CHL_DIM0 √ √ P0_CHL_DIM1 http://www.tyan.com...
  • Page 116 Align the memory module with the socket，such that the DIMM NOTCH match the KEY SLOT on the socket. Seat the module firmly into the socket by gently pressing down until it sits flush with the socket. The locking levers pop up into place. http://www.tyan.com...

  • Page 117: Installing Add-In Cards

    Doing so allows air to circulate within the chassis more easily, thus improving cooling for all installed devices. NOTE: You must always unplug the power connector from the motherboard before performing system hardware changes to avoid damaging the board or expansion device. http://www.tyan.com...

  • Page 118: Connecting External Devices

    Connecting external devices to the motherboard is an easy task. The motherboard supports a number of different interfaces through connecting peripherals. See the following diagrams for the details. S8056GM2NE-2T S8056GME NOTE: RJ45 (1Gb) LAN3 is from Realtek RTL8211F chipset. RJ45 (10Gb) LAN1/LAN2 are from Intel X710 chipset. http://www.tyan.com...

  • Page 119: Installing The Power Supply

    S8056 motherboard. The S8056 supports EPS 12V power supply. PWR1: ATX 24-pin Main Power Connector Signal Signal +3.3V_1 +3.3V_4 +3.3V_2 -12V COM_1 COM_4 +5V_1 PS-ON# COM_2 COM_5 +5V_2 COM_6 COM_3 COM_7 PWR_OK 5VSB +5V_3 +12V_1 +5V_4 +12V_2 +5V_5 +3.3V_3 COM_8 http://www.tyan.com...
  • Page 120 +12VDIG_1 COM_1 +12VDIG_ 2 COM_2 +12VDIG_3 COM_3 +12VDIG_4 COM_4 NOTE: 1. You must unplug the power supply before plugging the power cables to motherboard connectors. 2. Two ATX 2x4 pin power connector are for 400W CPU + 24 DIMMs. http://www.tyan.com...

  • Page 121: Finishing Up

    In the rare circumstance that you have experienced difficulty, you can find help by asking your vendor for assistance. If they are not available for assistance, please find setup information and documentation online at our website or by calling your vendor’s support line. http://www.tyan.com...

  • Page 122: Chapter 5: Bios Setup

    The table below shows how to navigate in the setup program using the keyboard. Function Left/Right Arrow Keys Change from one menu to the next Up/Down Arrow Keys Move between selections Enter Open highlighted section PgUp/PgDn Keys Change pages Change options Exit http://www.tyan.com...
  • Page 123 The following pages provide the details of BIOS menu. Please be noticed that the BIOS menu are continually changing due to the BIOS updating. The BIOS menu provided are the most updated ones when this manual is written. Please visit TYAN’s website at http://www.tyan.com for the information of BIOS updating.

  • Page 124: Main Menu

    It displays BIOS related information. Product Name It displays Product information. BIOS Version It displays BIOS version information Build Date and Time It displays the time when built Memory Information It displays the total memory size. Memory Frequency It displays Memory frequency http://www.tyan.com...
  • Page 125 System Date Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 2005-2099 Months: 1-12 Days: dependent on month System Time Adjust the system clock. HH (24 hours format): MM (Minutes): SS (Seconds) Access Level Administrator http://www.tyan.com...

  • Page 126: Advanced Menu

    S5 RTC Wake Settings Enable system to wake from S5 using RTC alarm Serial Port Console Redirection Serial Port Console Redirection PCIe Device Configuration Onboard PCIE Slot Configuration USB Configuration USB Configuration Parameters Onboard Device Configuration Onboard Device and Function Configuration. http://www.tyan.com...
  • Page 127 Redfish Host Interface Parameters Tls Auth Configuration Press<Enter> to select Tls Auth configuration. iSCSI Configuration Configure the iSCSI parameters VLAN Configuration(MAC:428E435C3DD8) VLAN Configuration(MAC: 428E435C3DD8) MAC: 428E435C3DD8-IPv4 Network Configuration Configure IPv4 network parameters.(MAC: 428E435C3DD8) MAC: 428E435C3DD8-IPv6 Network Configuration Configure IPv6 network parameters.(MAC: 428E435C3DD8) http://www.tyan.com...
  • Page 128 Enable/Disable IPv4 HTTPs boot support. If disabled, IPv4 HTTPS boot support will not be available. Disabled / Enabled IPv6 PXE Support Enable/Disable IPv6 PXE boot support. If disabled, IPv6 PXE boot support will not be available. Disabled / Enabled http://www.tyan.com...
  • Page 129 Wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. http://www.tyan.com...
  • Page 130 Wake system from S5 Enable or disable system wake on alarm event. Select Fixed time, system will wake on the hr::min::sec specified. Select dynamic time, system will wake on the current time+ increase minute(s) Disabled / Fixed Time / Dynamic Time http://www.tyan.com...
  • Page 131 Console Redirection Settings The settings specify how the host computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. NOTE: Console Redirection Settings menu only appear when Console Redirection was set to [Enabled]. http://www.tyan.com...
  • Page 132 0 if the num of 1’s in the data bits is even. Odd: parity bit is 0 if the num of 1’s in the data bits is odd. Mark: parity bit is always 1. Space: parity bit is always 0. Mark and Space parity do not allow for error detection. None / Even / Odd / Mark / Space http://www.tyan.com...
  • Page 133 With this mode enabled only text will be sent. This is to capture Terminal data. Disabled / Enabled Resolution 100x31 Enable or disable extended terminal resolution. Disabled / Enabled Putty KeyPad Select FunctionKey and KeyPad on Putty. VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400 http://www.tyan.com...
  • Page 134 0 if the num of 1’s in the data bits is even. Odd: parity bit is 0 if the num of 1’s in the data bits is odd. Mark: parity bit is always 1. Space: parity bit is always 0. Mark and Space parity do not allow for error detection. None / Even / Odd / Mark / Space http://www.tyan.com...
  • Page 135 With this mode enabled only text will be sent. This is to capture Terminal data. Disabled / Enabled Resolution 100x31 Enable or disable extended terminal resolution. Disabled / Enabled Putty KeyPad Select FunctionKey and KeyPad on Putty. VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400 http://www.tyan.com...
  • Page 136 Bootloader is selected, then Legacy Console Redirection is disabled before booting to legacy OS, when Always Enable is selected, then Legacy Console Redirection is enabled for Legacy OS. Default setting for this option is set to Always Enable. Always Enable / BootLoader http://www.tyan.com...
  • Page 137 VT-UTF8 / VT100 / VT100+ / ANSI Bits per Second Select serial port transmission speed. The speed must be matched on the other side. Long or noisy lines may require lower speeds. 9600 / 19200 / 57600 / 115200 http://www.tyan.com...
  • Page 138 ‘start’ signal can be sent to restart the flow. Hardware flow control uses two wires to send start/stop signal. None / Hardware RTS/CTS / Software Xon/Xoff Data Bits EMS / Parity EMS / Stop Bits EMS Read only. http://www.tyan.com...
  • Page 139 5.3.4 PCIe Device Configuration Option ROM Dispatch Policy Option ROM Dispatch Policy settings. PCIe Slot Bifurcation PCIe Slot Bifurcation settings. PCIe Slot Speed PCIe Slot Speed settings. http://www.tyan.com...
  • Page 140 Enable or Disable LAN2 Option Rom Enabled / Disabled PESLOT1x16 Option ROM Enable or Disable Option ROM execution for selected Slot. Enabled / Disabled PESLOT1x8 Option ROM Enable or Disable Option ROM execution for selected Slot. Enabled / Disabled http://www.tyan.com...
  • Page 141 PESLOT2 Option ROM Enable or Disable Option ROM execution for selected Slot. Enabled / Disabled OCP3.0 Option ROM Enable or Disable Option ROM execution for selected Slot. Enabled / Disabled http://www.tyan.com...
  • Page 142 NOTE：After the OCP card overheats, it will be power off for a period of time. During this period , it is not supported to wake on LAN. NVMe1/2/3/4 Selects PCIE port Bifurcation for NVMe1/2/3/4 slot. x16 / x8x8 / x4x4x4x4 NVMe5/6/7/8 Selects PCIE port Bifurcation for NVMe5/6/7/8 slot. x16 / x8x8 / x4x4x4x4 http://www.tyan.com...
  • Page 143 NVMe9/10/11/12 Selects PCIE port Bifurcation for NVMe9/10/11/12 slot. x16 / x8x8 / x4x4x4x4 NVMe13/14/15/16 Selects PCIE port Bifurcation for NVMe13/14/15/16 slot. x16 / x8x8 / x4x4x4x4 /SATAx8/SATAx8 http://www.tyan.com...
  • Page 144 Auto / GEN1(2.5 GT/s) / GEN2(5 GT/s) / GEN3(8 GT/s) / GEN4(16 GT/s) / GEN5 (32GT/s) NVMe5/6/7/8 Maximum Link Speed for NVMe 5/6/7/8 slot. Auto / GEN1(2.5 GT/s) / GEN2(5 GT/s) / GEN3(8 GT/s) / GEN4(16 GT/s) / GEN5 (32GT/s) http://www.tyan.com...
  • Page 145 Auto / GEN1(2.5 GT/s) / GEN2(5 GT/s) / GEN3(8 GT/s) / GEN4(16 GT/s) / GEN5 (32GT/s) NVMe13/14/15/16 Maximum Link Speed for NVMe 13/14/15/16 slot. Auto / GEN1(2.5 GT/s) / GEN2(5 GT/s) / GEN3(8 GT/s) / GEN4(16 GT/s) / GEN5 (32GT/s) http://www.tyan.com...
  • Page 146 USB Mass Storage Driver Support Enable/Disable USB Mass Storage Driver Support. Disabled / Enabled Port 60/64 Emulation Enable I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes. Disabled / Enabled http://www.tyan.com...
  • Page 147 Maximum time the device will take before it properly reports itself to the Host Controller. AUTO uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. Auto / Manual http://www.tyan.com...
  • Page 148 Disabled / Enabled Primary Display Select active Video type. Onboard / External NMI Button Enable or disable NMI button. Disabled / Enabled Chassis Intrusion Detention Enable：When a chassis open event is detected, the BIOS will display the event. Disabled / Enabled http://www.tyan.com...
  • Page 149 Clock Spread Spectrum Enable/Disable Clock Spread Spectrum. Disabled / Enabled http://www.tyan.com...
  • Page 150 5.3.7 Super IO Configuration Serial Port 1 Configuration Set Parameters of serial Port 1 (COMA) Serial Port 2 Configuration Set Parameters of serial Port 2 (COMB) http://www.tyan.com...
  • Page 151 Serial Port has set to Enabled, the following items will be appear. Change Settings Allows the user to change the device resource settings. New settings will be reflected on this setup page after system restarts. Auto / IO=3F8h; IRQ=4; / IO=2F8h, IRQ=4, / IO=3F8h; IRQ=4, / IO=2E8h, IRQ=4, http://www.tyan.com...
  • Page 152 Disabled / Enabled NOTE: Serial Port has set to Enabled, the following items will be appear. Change Settings Select an optimal settings for Super IO device. Auto / IO=3F8h; IRQ=3; / IO=2F8h, IRQ=3, / IO=3E8h; IRQ=3, / IO=2E8h, IRQ=3, http://www.tyan.com...
  • Page 153 Enable/Disable BMC Alert Beep. On / Off PMBus support PMBus Support Disabled / Enabled NOTE: When PMBus support was set to Enabled Number of PSU Item will appear. Number of PSU User can select PSU number for needed 1 / 2 http://www.tyan.com...
  • Page 154 5.3.8.1 Sensor Data Register Monitoring When you enter the Sensor Data Register Monitoring submenu, you will see the following dialog window pop out. Please wait 8~10 seconds. NOTE 1: SDR can not be modified. Read only. http://www.tyan.com...
  • Page 155 http://www.tyan.com...
  • Page 156 http://www.tyan.com...
  • Page 157 5.3.9 PCI Subsystem Settings SR-IOV Support If system has SR-IOV capable PCIe devices, this option Enables or Disables Single Root IO virtualization Support Enabled / Disabled PCI Express Settings Change PCI Express Devices Settings http://www.tyan.com...
  • Page 158 PCI Express Subsystem Maximum Payload Set Maximum Payload of PCI Express Device or allow System BIOS to select the value. Auto / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048 Bytes / 4096 Bytes http://www.tyan.com...
  • Page 159 5.3.10 NVMe Configuration Read only. http://www.tyan.com...
  • Page 160 Enables or disables BIOS support for security device. O.S. will not show Security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Enabled / Disabled Disable Block sid Override to allow SID authentication in TCG Storage device. Enabled / Disabled http://www.tyan.com...
  • Page 161 Network Controls the execution of UEFI and legacy PXE OpROM UEFI / legacy Storage Controls the execution of UEFI and legacy PXE OpROM UEFI / legacy Video Controls the execution of UEFI and legacy Video OpROM UEFI / legacy http://www.tyan.com...
  • Page 162 Other PCI devices Determines OpRom execution policy for devices other than network, storage, or video UEFI / legacy http://www.tyan.com...
  • Page 163 5.3.13 Redfish Host Interface Settings Redfish Enable/Disable AMI Redfish. Disabled / Enabled http://www.tyan.com...
  • Page 164 5.3.14 Tls Auth Configuration Server CA Configuration Press <Enter> to configure Server CA. http://www.tyan.com...
  • Page 165 5.3.14.1 Server CA Configuration Enroll Cert Press <Enter> to enroll cert. Delete Cert Press <Enter> to delete cert. http://www.tyan.com...
  • Page 166 5.3.14.1.1 Enroll Cert Configuration Enroll Cert Using File Enroll Cert Using File Cert GUID Input digit character in 11111111-2222-3333-4444-1234567890ab format. Commit Changes and Exit Commit Changes and Exit Discard Changes and Exit Discard Changes and Exit http://www.tyan.com...
  • Page 167 5.3.14.1.2 Delete Cert Configuration FEXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXX GUID for CERT Disabled / Enabled http://www.tyan.com...
  • Page 168 5.3.15 ISCSI Initiator Configuration Attempt Priority Change the priority using +/- keys. Use arrow keys to select the attempt then press +/- to move the attempt up/down in the attempt order list. Host iSCSI Configuration Host iSCSI Configuration settings http://www.tyan.com...
  • Page 169 Change the priority using +/- keys. Use arrow keys to select the attempt then press +/- to move the attempt up/down in the attempt order list. Host Attempt / Redfish Attempt Commit Changes and Exit Commit Changes and Exit. http://www.tyan.com...
  • Page 170 Save changes and reboot. iSCSI Initiator Name The worldwide unique name of iSCSI Initiator. Only IQN format is accepted. Range is from 4 to 223. Add an Attempt Add one or more attempts Attempt 1 Attempt 2 Attempt 3 http://www.tyan.com...
  • Page 171 Delete Attempts Delete one or more attempts Change Attempt Order Change attempt sequence http://www.tyan.com...
  • Page 172 5.3.15.3 Add an Attempt Read only. http://www.tyan.com...
  • Page 173 IPv4 / IPv6 / Autoconfigure Connection Retry Count The minimum value is 0 and the maximum is 16. 0 means no retry. Connection Establishing Timeout The timeout value in milliseconds. The minimum value is 100 milliseconds and the maximum is 20 seconds. http://www.tyan.com...
  • Page 174 Target Port Target Port. Boot LUN Hexadecimal representation of the LU number. Examples are: 4752-3A4F-6b7e-3F99, 6734-9-156f-127, 4186-9. Authentication Type Authentication method: CHAP, Kerberos, or None. CHAP / None Save Changes Must reboot system manually for changes to take place. http://www.tyan.com...
  • Page 175 IPv4 / IPv6 / Autoconfigure Connection Retry Count The minimum value is 0 and the maximum is 16. 0 means no retry. Connection Establishing Timeout The timeout value in milliseconds. The minimum value is 100 milliseconds and the maximum is 20 seconds. http://www.tyan.com...
  • Page 176 Target Port Target Port. Boot LUN Hexadecimal representation of the LU number. Examples are: 4752-3A4F-6b7e-3F99, 6734-9-156f-127, 4186-9. Authentication Type Authentication method: CHAP, Kerberos, or None. CHAP / None Save Changes Must reboot system manually for changes to take place. http://www.tyan.com...
  • Page 177 Disabled / Enabled Attempt 3 MAC: 36:02:0B:83:D7:63, PFA: Bus 35 / Dev 0 / Func 3, iSCSI mode: Disabled, IP version: IPv4. Disabled / Enabled Commit Changes and Exit Commit Changes and Exit. Discard Changes and Exit Discard Changes and Exit. http://www.tyan.com...
  • Page 178 Change the order of Attempts using +/- keys. Use arrow keys to select the attempt then press +/- to move the attempt up/down in the attempt order list. Attempt 1 / Attempt 2 / Attempt 3 Commit Changes and Exit Commit Changes and Exit. Discard Changes and Exit Discard Changes and Exit. http://www.tyan.com...
  • Page 179 5.3.16 VLAN Configuration Enter Configuration Press ENTER to enter configuration menu for VLAN configuration. http://www.tyan.com...
  • Page 180 5.3.16.1 Enter Configuration VLAN ID VLAN ID of new VLAN or existing VLAN, valid value is 0~4094 Priority 802.1Q Priority, valid value is 0~7 Add VLAN Create a new VLAN or update existing VLAN Remove VLAN Remove selected VLANs http://www.tyan.com...
  • Page 181 Disabled / Enabled Local IP Address Enter IP address in dotted-decimal notation. Example: 162.168.10.12 Local NetMask Enter Netmask in dotted-decimal notation. Example:255.255.255.0 Local Gateway Enter Gateway in dotted-decimal notation. Example:192.168.10.1 Local DNS Servers Enter DNS Servers in dotted-decimal notation. Example:192.168.10.8 192.168.10.9 http://www.tyan.com...
  • Page 182 Save Changes and Exit Save Changes and Exit 5.3.18 MAC: 92044C4359EF-IPv6 Network Menu Enter Configuration Menu Press ENTER to enter configuration menu for VLAN configuration. http://www.tyan.com...
  • Page 183 Duplicate Address Detection on a tentative address. A value of zero indicates that duplicate address detection is not performed. Policy Automatic or manual Automatic / manual Save Changes and Exit Save changes for interface ID, DAD transmit count, policy, and data in advanced configuration. http://www.tyan.com...

  • Page 184: Cpu Configuration

    CPU Configuration CPU Configuration CPU Configuration Parameters http://www.tyan.com...
  • Page 185 5.4.1 CPU Configuration Submenu SVM Mode Enable/disable CPU Virtualization Enabled / Disabled SMEE Control secure memory encryption enable Enabling both SMEE and SME-Mk is not supported. Results in #GP CPU0 Information View Information related to CPU0 http://www.tyan.com...
  • Page 186 5.4.1.1 CPU0 Information http://www.tyan.com...

  • Page 187: Chipset Menu

    Chipset Menu PCIe Compliance Mode PCIe Link Compliance Mode Settings North Bridge North Bridge Parameters AMD CBS AMD CBS Setup Page AMD PBS AMD PBS Setup Page http://www.tyan.com...
  • Page 188 5.5.1 North Bridge Configuration North Bridge Configuration Memory Information Total Memory： xxxxx MB CPU 0 Information View Memory Information related to CPU 0 http://www.tyan.com...
  • Page 189 5.5.1.1 CPU 0 Information http://www.tyan.com...
  • Page 190 AMD CBS Menu CPU Common Options CPU Common Parameters DF Common Options DF Common Parameters UMC Common Options UMC Common Parameters NBIO Common Options NBIO Common Parameters FCH Common Options FCH Common Parameters Soc Miscellaneous Control Soc Miscellaneous Control parameters http://www.tyan.com...
  • Page 191 Enable/disable PFEH, cloak individual banks, and mask deferred error interrupts from each bank. Enabled / Disabled / Auto Core Performance Boost Disable CPB Disabled / Auto Global C-state Control Controls IO based C-state generation and DF C-states. Disabled / Enabled / Auto http://www.tyan.com...
  • Page 192 When this option is enabled, uncorrected errors detected by the PSP FW or SMU FW that should cause a cold reset, will hang and not reset the system. Disabled / Enabled / Auto Log Transparent Errors Log transparent errors in MCA in addition ot debug registers. Disabled / Enabled / Auto http://www.tyan.com...
  • Page 193 FIVE (5 + 0) / SIX (6 + 0) / SEVEN (7 + 0) SMT Control Can be used to disable symmetric multithreading. To re-enable SMT, a POWER CYCLE is needed after selecting the ‘Auto’ option. Disabled / Enabled / Auto http://www.tyan.com...
  • Page 194 5.5.2.1.2 Prefetcher Submenu L1 Stream HW Prefetcher Option to Enable | Disable L1 Stream HW Prefetcher Disabled / Enabled / Auto L2 Stream HW Prefetcher Option to Enable | Disable L2 Stream HW Prefetcher Disabled / Enabled / Auto http://www.tyan.com...
  • Page 195 5.5.2.2 DF Common Options Submenu PSP error injection support Enable EINJ support False / True http://www.tyan.com...
  • Page 196 Specifies the number of desired NUMA nodes per socket. Zero will attempt to interleave the two sockets together. NPS0 / NPS1 / NPS2 / NPS4 Memory interleaving Allows for disabling memory interleaving. Note that NUMA nodes per socket will be honored regardless of this setting. Disabled / Auto http://www.tyan.com...
  • Page 197 ACPI Submenu ACPI SRAT L3 Cache As NUMA Domain Enabled: Each CCX in the system will be declared as a separate NUMA domain. Disabled: Memory Addressing \ NUMA nodes per socket will be declared. Disabled / Enabled / Auto http://www.tyan.com...
  • Page 198 5.5.3 UMC Common Options Submenu DDR Addressing Options DDR addressing parameters DDR Timing Configuration DDT Timing parameters DDR RAS DDR RAS parameters DDR Security DDR Security parameters http://www.tyan.com...
  • Page 199 5.5.3.1 DDR Addressing Options Submenu Chipselect Interleaving Interleave memory blocks across the DRAM chip selects for node 0. Disabled / Auto BankSwapMode BankSwapMode value: 0=Disabled, 1= SwapCPU Auto / Disabled / Swap CPU http://www.tyan.com...
  • Page 200 Auto / Enabled Memory Target Speed Specifies the memory target speed in MT/s. The valid input is 3200, 3600, 4000,4400,4800,5200, 5600. Value in decimal. Auto / DDR3200 / DDR3600 / DDR4000 / DDR4400 / DDR4800 / DDR5200 / DDR 5600 http://www.tyan.com...
  • Page 201 Enable or Disable DRAM Run Time Post Package Repair. Disabled / Enabled RCD Parity Enable RCD command and address parity. Auto / Disabled / Enabled Write CRC Enable write CRC on DDR5 DRAM. Program to UMC:: RecCtrl.RecEn [1] Auto / Disabled / Enabled http://www.tyan.com...
  • Page 202 Program Rate value for DRAM Corrected Error Counter function. Only meaning when PcdAmdDdrEccErrorCounterEnable is set to LeakMode (Value:0x00-0x1F). DRAM Corrected Error Counter Start Program starting count value for DRAM Corrected Error Counter function. Only meaningful when PcdAmdDdrEccErrorCounterEnable is not Disable(0x00 – 0xFFFF). FFF5 http://www.tyan.com...
  • Page 203 DRAM Scrub Time Provide a value that is the number of hours to scrub memory. Disabled / 1 hour / 4 hours / 6 hours / 8 hours / 12 hours / 16 hours / 24 hours / 48 hours http://www.tyan.com...
  • Page 204 0xFF: Auto – ABL chooses Writeback Suppression to be Enabled by default Disable / Enable / Auto DRAM X4 WriteBack Suppression To enable/Disable X4 device Error Correction Writeback suppression 0: X4 Writeback Suppression Disabled 1: X4 Writeback Suppression Enabled 0xFF: Auto Disable / Enable / Auto http://www.tyan.com...
  • Page 205 / x16 / Auto DRAM ECC Enable Use this option to enable / disable DRAM ECC. Auto will set ECC to enable. Disabled / Enabled / Auto DRAM UECC Retry DRAM UECC Retry. Program to UMC:: RecCtrl.RecEn[2] Disabled / Enabled / Auto http://www.tyan.com...
  • Page 206 5.5.3.4 DDR Security Submenu TSME Transparent Secure Memory Encryption Auto / Disabled / Enabled Data Scramble Data scrambling Enabled / Disabled http://www.tyan.com...
  • Page 207 PCIe ARI Support Enables Alternative Routing-IO Interpretation Enabled / Disabled / Auto PCIe Ten Bit Tag Support Enables PCIe ten bit tags for supported devices. Auto = Disable Enabled / Disabled / Auto SMU Common Options NBIO RAS Common Options http://www.tyan.com...
  • Page 208 SMU Common Options Submenu TDP Control Auto = Use the fused TDP Manual = User can set customized TDP Manual / Auto PPT Control Auto = Use the fused PPT Manual = User can set customized PPT Manual / Auto http://www.tyan.com...
  • Page 209 Enable or Disable Data Fabric to go to a low-power state when the processor has entered Cx states Disabled / Enabled / Auto CPPC Enable = Enable the feature : Disable = Disable the feature Disabled / Enabled / Auto HSMP Support Select HSMP support enable or disable Disabled / Enabled / Auto http://www.tyan.com...
  • Page 210 NBIO SyncFlood Generation This value may be used to mask SyncFlood caused by NBIO RAS options. When set to TRUE syncFlood from NBIO is masked. When set to FALSE NBIO is capable of generating SyncFlood. Disabled / Enabled / Auto http://www.tyan.com...
  • Page 211 (SCI). A value of 2 provides for Firmware First handling of errors through generation of a system management interrupt (SMI). Firmware First / Firmware First but allow OS First / OS First / Auto Edpc Control Disabled; (1) Enabled; (3) Auto Enabled / Disabled / Auto http://www.tyan.com...
  • Page 212 When ‘ Sync Flood on PCIe Fatal Error’ is True, PcdAmdPcieSyncFloodOnFatal should be set to True. When ‘Sync Flood on PCIe Fatal Error’ is False, PcdAmdPcieSyncFloodOnFatal should be set to False. When ‘Sync Flood on PCIe Fatal Error’ is Auto. PcdAmdPcieSyncFloodOnFatal Auto / True / False http://www.tyan.com...
  • Page 213 5.5.5 FCH Common Options Submenu Ac Power Loss Options FCH RAS Options http://www.tyan.com...
  • Page 214 5.5.5.1 AC Power LOSS Options Submenu Restore Ac Power Loss Select Restore AC Power Loss Method Power Off / Power On / Last State http://www.tyan.com...
  • Page 215 5.5.5.2 FCH RAS Options Submenu Reset after sync flood Enable AB to forward downstream sync-flood message to system controller. Disabled / Enabled / Auto http://www.tyan.com...
  • Page 216 Soc Miscellaneous Control Submenu ABL Console Out Control Enable: Enable ConsoleOut Function for ABL Disable: Disable ConsoleOut Function for ABL Auto: Keep default behavior Disabled / Enabled / Auto PSP error injection support Enable EINJ support False / True http://www.tyan.com...
  • Page 217 5.5.7 AMD PBS Submenu AMD CPM RAS related settings http://www.tyan.com...
  • Page 218 Pcie Device UnCorr Error Sev Reg Initialize the PCIe AER Uncorrected Error Severity registers of PCIe Device 7EF6030 DDR4 DRAM Hard Post Package Repair This feature allows spare DRAM rows to replace malfunctioning rows via an in-field repair mechanism Disabled / Enabled http://www.tyan.com...

  • Page 219: Server Management

    OS Watchdog Timer If enabled, starts a BIOS timer which can only be shut off by management Software after the OS loads. Helps determine that the OS successfully loaded or follows the OS Boot Watchdog Timer policy. Disabled / Enabled http://www.tyan.com...
  • Page 220 Enable or Disable BMC logo Disabled / Enabled System Event Log Press<Enter> to change the SEL event log configuration. BMC network configuration Configure BMC network parameters BMC User Settings Press<Enter> to Add. Delete and Set Privilege level for users. http://www.tyan.com...
  • Page 221 No / Yes, on next reset / Yes, on every reset Log EFI Status Codes Disable the logging of EFI Status Codes or log only error code or only progress code or both. Both / Disabled / Error Code / Progress Code http://www.tyan.com...
  • Page 222 5.6.2 BMC Network Configuration Submenu http://www.tyan.com...
  • Page 223 Configuration Address Source Select the configure LAN channel parameters statically or dynamically (by BIOS or BMC). Unspecified option will not modify any BMC network parameters during BIOS phase. Unspecified / Static / DynamicBmcDhcp / DynamicBmcNonDhcp http://www.tyan.com...
  • Page 224 5.6.3 BMC User Configuration Submenu Add User Press <Enter> to Add a User. Delete User Press<Enter> to Delete a User. Change User Settings Press<Enter> to Change User Settings. http://www.tyan.com...
  • Page 225 5.6.3.1 BMC User Configuration Submenu http://www.tyan.com...
  • Page 226 5.6.3.2 Delete User Configuration Submenu http://www.tyan.com...
  • Page 227 5.6.3.3 Change User Configuration Submenu http://www.tyan.com...

  • Page 228: Security

    Security Administrator Password Set Administrator Password. User Password Set User Password. Security Frozen Mode Enable or disable HDD security freeze lock. Disable to support secure erase function. Disabled / Enabled Secure Boot Customizable Secure Boot settings http://www.tyan.com...
  • Page 229 When Secure Boot Mode was set to [Custom], the following items will be available to set up. Restore Factory Keys Force System to User Mode. Install factory default Secure Boot key databases Reset To Setup Mode Delete all Secure Boot Key databases from NVRAM http://www.tyan.com...
  • Page 230 Force System to User Mode. Install Factory Default Secure Boot key databases. Reset To Setup Mode Delete all Secure Boot Key database from NVRAM Enroll Efi Image Allow the image to run in Secure Boot mode. Enroll SHA256 hash certificate of a PE image into Authorized Signature Database (db) http://www.tyan.com...
  • Page 231 EFI_CERT_SHAXXX 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, External, Mixed Forbidden Signatures Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin) http://www.tyan.com...
  • Page 232 OsRecovery Signatures Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHAXXX 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, External, Mixed http://www.tyan.com...

  • Page 233: Boot

    Enable or disable Quiet Boot option. Disabled / Enabled Endless Boot Enabled or Disabled Endless boot Disabled / Enabled Wait for “ESC” if Error Enabled or Disabled Wait ESC key Function. When chassis intrusion, CMOS Clear or BMC not Response. Disabled / Enabled http://www.tyan.com...
  • Page 234 USB Device BBS Priorities Set the order of the legacy devices in this group Add New Boot Option Add a new EFI boot option to the boot order Delete Boot Option Remove an EFI boot option from the boot order http://www.tyan.com...
  • Page 235 5.8.1 Add Boot Option Configuration Add boot option Create new boot option Path for boot option Enter the path to the boot option in the format Fs0:\path\ filename.efi Create Creates the newly formed boot option http://www.tyan.com...
  • Page 236 5.8.2 Delete Boot Option Configuration Delete Boot Option Remove an EFI boot option from the boot order. Device Name / Select one to Delete http://www.tyan.com...

  • Page 237: Save & Exit

    Reset system setup without saving any changes. Save Changes Save changes done so far to any of the setup options. Discard Changes Discard changes done so far to any of the setup options. Restore Defaults Restore/Load Default values for all the setup options. http://www.tyan.com...
  • Page 238 Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. Boot Override Device Name http://www.tyan.com...

  • Page 239: Chapter 6: Diagnostics

    BIOS flash failure, you must contact your dealer for a replacement BIOS. There are no exceptions. TYAN does not have a policy for replacing BIOS chips directly with end users. In no event will TYAN be held responsible for damages done by the end user.

  • Page 240: Amibios Post Code (Aptio)

    South Bridge initialization before microcode loading 0x05 OEM initialization before microcode loading 0x06 Microcode loading 0x07 AP initialization after microcode loading 0x08 North Bridge initialization after microcode loading 0x09 South Bridge initialization after microcode loading 0x0A OEM initialization after microcode loading 0x0B Cache initialization http://www.tyan.com...
  • Page 241 Memory initialization. Memory presence detection 0x2D Memory initialization. Programming memory timing information 0x2E Memory initialization. Configuring memory 0x2F Memory initialization (other) 0x30 Reserved for ASL (see ASL Status Codes section below) 0x31 Memory Installed 0x32 CPU post-memory initialization is started. http://www.tyan.com...
  • Page 242 CPU microcode is not found or microcode update is failed. 0x5A Internal CPU error 0x5B Reset PPI is not available. 0x5C – 0x5F Reserved for future AMI error codes S3 Resume Progress Codes 0xE0 S3 Resume is started (S3 Resume PPI is called by the DXE IPL). http://www.tyan.com...
  • Page 243 Progress Codes Memory not installed Memory was installed twice (installPEIMemory routine in PEI Core called twice). Recovery started DXEIPL was not found. DXE Core Firmware Volume was not found. Recovery failed S3 Resume failed Reset PPI is not available. http://www.tyan.com...
  • Page 244 OEM DXE initialization codes 0x90 Boot Device Selection (BDS) phase is started 0x91 Driver connecting is started 0x92 PCI Bus initialization is started 0x93 PCI Bus Hot Plug Controller initialization 0x94 PCI Bus Enumeration 0x95 PCI BUS Request Resources http://www.tyan.com...
  • Page 245 Legacy Option ROM initialization 0xB3 System Reset 0xB4 USB hot plug 0xB5 PCI bus hot plug 0xB6 Clean-up of NVRAM 0xB7 Configuration Reset (reset of NVRAM settings) 0xB8 – 0xBF Reserved for future AMI codes 0xC0 – 0xCF OEM BDS initialization codes http://www.tyan.com...
  • Page 246 System is entering S4 sleep state. 0x05 System is entering S5 sleep state. 0x10 System is waking up from the S1 sleep state. 0x20 System is waking up from the S2 sleep state. 0x30 System is waking up from the S3 sleep state. http://www.tyan.com...
  • Page 247 Status Code Description 0x40 System is waking up from the S4 sleep state. System has transitioned into ACPI mode. Interrupt controller is in 0xAC APIC mode. System has transitioned into ACPI mode. Interrupt controller is in 0xAA APIC mode. http://www.tyan.com...
  • Page 248 NOTE http://www.tyan.com...

  • Page 249: Appendix I: Cable Connection Tables

    Rear Backplane (BP) Board to S8056GM2NE-2T-B/MB HDD BP Cable Connect to S8056GM2NE-2T-B/MB M1318T65-BP12E-2  MCIO 8I To MCIO 8I MCIO1  HDR 7P Cable HDR_1 HDR_4 System FAN cable Connect to HDD BP 1 M1322T70A-BPE-8  FAN3 FAN1  FAN4 FAN2 http://www.tyan.com...
  • Page 250 M7126T65-PDB Connect to HDD BP M1322T70A-BPE-8    Power Supply Cables M7126T65-PDB Connect to S8056GM2NE-2T-B/MB  PWR1  PSMI PSMI_HD1 Power Supply Cables M7126T65-PDB Connect to HDD BP M1318T65-BP12E-2  SWITCH CABLE Chassis Connect to S8056GM2NE-2T-B/MB  Chassis http://www.tyan.com...

  • Page 251: Appendix Ii: Fan And Temp Sensors

    (rpm) Temp Sensor: SYS_Air_Outlet(U40) MB_Air_Inlet(RT2) OCP_Air_Inlet (RT3) etc. They detect the system temperature around. NOTE: The system temperature is measured in a scale defined by AMD, not in Fahrenheit or Celsius. http://www.tyan.com...
  • Page 252 BIOS Temp Sensor Name Explanation: http://www.tyan.com...
  • Page 253 http://www.tyan.com...
  • Page 254 Temperature of the OCP_Air_Inlet Area OCP_Card_Temp Temperature of the OCP_Card_Area M.2_NVMe_SSD_1 Max Temperature of M.2_NVMe_SSD_1 M.2_NVMe_SSD_2 Max Temperature of M.2_NVMe_SSD_2 SYS_FAN_1A Fan Speed of SYS_FAN_1A SYS_FAN_1B Fan Speed of SYS_FAN_1B SYS_FAN_2A Fan Speed of SYS_FAN_2A SYS_FAN_2B Fan Speed of SYS_FAN_2B http://www.tyan.com...
  • Page 255 Temperature of NVME_SSD_3 U.2_NVME_SSD_4 Temperature of NVME_SSD_4 U.2_NVME_SSD_5 Temperature of NVME_SSD_5 U.2_NVME_SSD_6 Temperature of NVME_SSD_6 U.2_NVME_SSD_7 Temperature of NVME_SSD_7 U.2_NVME_SSD_8 Temperature of NVME_SSD_8 U.2_NVME_SSD_9 Temperature of NVME_SSD_9 U.2_NVME_SSD_10 Temperature of NVME_SSD_10 U.2_NVME_SSD_11 Temperature of NVME_SSD_11 U.2_NVME_SSD_12 Temperature of NVME_SSD_12 http://www.tyan.com...
  • Page 256 Temperature of NVME_SSD_16 U.2_NVME_SSD_17 Temperature of NVME_SSD_17 U.2_NVME_SSD_18 Temperature of NVME_SSD_18 U.2_NVME_SSD_19 Temperature of NVME_SSD_19 U.2_NVME_SSD_20 Temperature of NVME_SSD_20 U.2_NVME_SSD_21 Temperature of NVME_SSD_21 U.2_NVME_SSD_22 Temperature of NVME_SSD_22 U.2_NVME_SSD_23 Temperature of NVME_SSD_23 U.2_NVME_SSD_24 Temperature of NVME_SSD_24 U.2_NVME_SSD_25 Temperature of NVME_SSD_25 http://www.tyan.com...

  • Page 257: Appendix Iii: How To Recover Uefi Bios

    UEFI recovery bootloader that would prevent the recovery process itself from working. In no event shall Tyan be liable for direct, indirect, incidental, special or consequential damages arising from the BIOS update or recovery.
  • Page 258 “Flash update completed. Press any key to reset the system” displayed on screen. Remove the USB disk and reboot. If your system does not have video output or the POST code halts at “FF” on the right-lower portion of the screen, please contact Tyan representatives for RMA service. http://www.tyan.com...

  • Page 259: Appendix Iv: Fru Parts Table

    Appendix IV: FRU Parts Table TS70A-B8056 FRU Parts Item Model Number Part Number Picture Description Power POWER SUPPLY,1600 W,CHICONY, FRU-PS-0410 471100000518 Supply R18-1K6P1WA, FRU-TH-0480 343B02100002 HEATSINK 2U 400W Heatsink FAN,R80W12BS2M9-57T09 ,80*80*56mm,8 FAN module FRU-TS-0330 336210000066 PIN (2*4), WIRE L=80MM Riser card...
  • Page 260 NOTE http://www.tyan.com...

  • Page 261: Appendix V: Technical Support

    MITAC serves multiple market segments with the industry’s most competitive services to support them. https://www.tyan.com/SupportCenter Please feel free to contact us directly for this service at tech-support@tyan.com Help Resources: 1. See the TYAN’s website for FAQ’s, bulletins, driver updates, and other information: http://www.tyan.com...
  • Page 262 Return Merchandise Authorization (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you. ® TS70A-B8056 Service Engineer’s Manual V1.0j...
