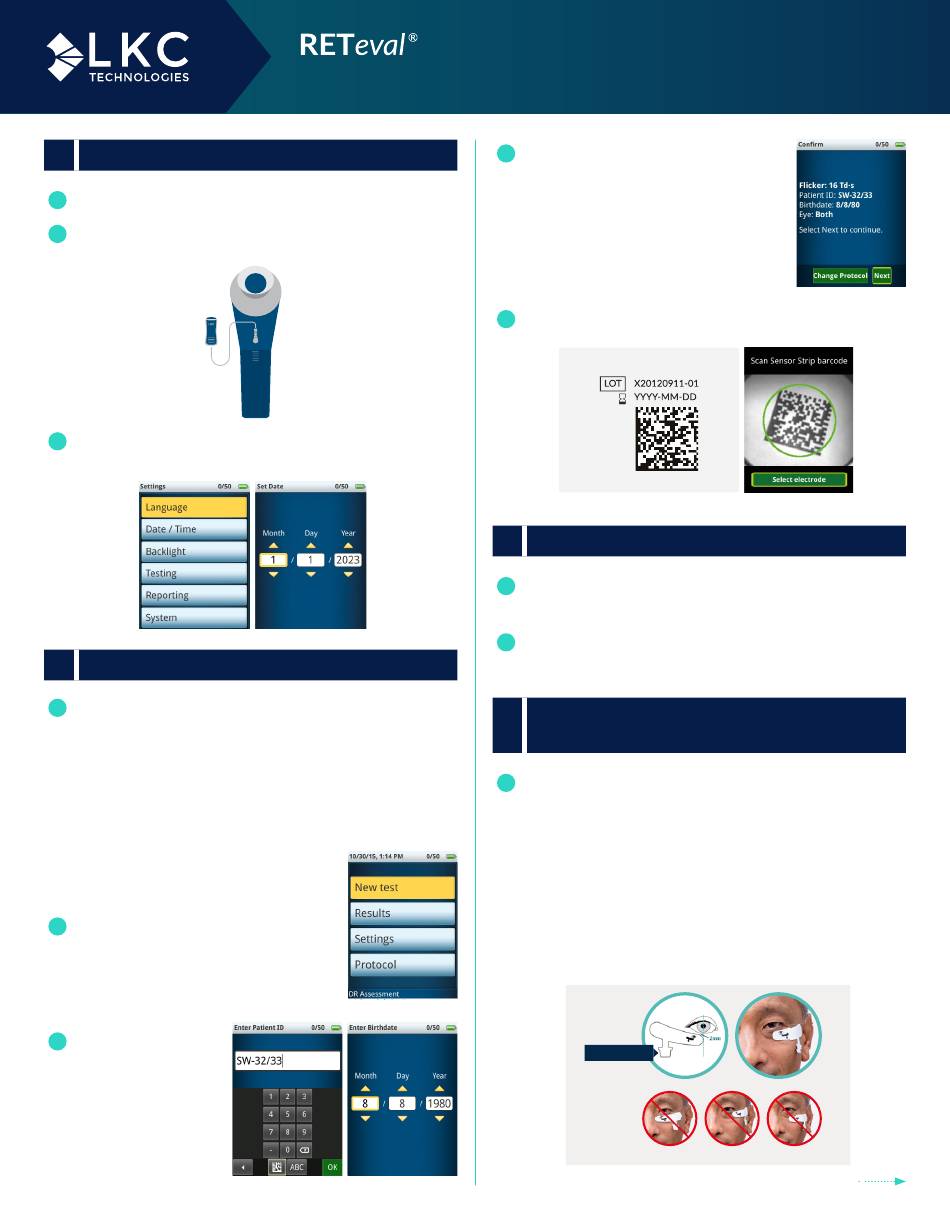

LKC TECHNOLOGIES RETeval Quick Reference Manual

1. SET UP
1 Press the power button.
2 Connect the Sensor Strip lead wire as shown below (cable
towards the top of device).
3 Navigate using the joystick to "Settings" and select your
"Language" and "Date/Time. "
2. CONFIGURE DEVICE FOR TESTING
1 Choose the testing protocol you'd like to use:
• Go to "Protocol" then "Change"
• Choose a protocol from the list, then press "Save"
TIP: Candela protocols (ending in cd), should
be used with DILATED patients. Troland protocols
(ending in td) can be used with either
NON-DILATED or DILATED patients.
2
Select "New Test" on the main menu.
3
Use the joystick or
patient data barcode
application to enter
the patient ID and
birthdate. You can
download the barcode
application at
lkc.com/barcode.
ERG QUICK REFERENCE GUIDE
4
Confirm that the protocol, patient ID, and
birthdate are correct. Select "Next" to
proceed, or select "Change Protocol" to
choose a different protocol if needed.
5 Scan the Sensor Strip barcode from packaging.
3. PATIENT PREPARATION
1 Apply a pea-sized amount of Nuprep
and using a gentle circular motion clean below each eye and
temple area where the Sensor Strip will be placed.
2 Wipe the area under the lashes with a tissue to ensure that
the surface is dry prior to applying the Sensor Strip.
PLACE SENSOR STRIPS AND
4.
CONNECT CLIP
1 Hold the Sensor Strip by the connection tab while placing it as
follows:
• Narrow end of Sensor Strip should line up with middle
of pupil
• Sensor Strip should be about 2 mm below the lower eyelid
lash line
• Avoid hair and eyelashes when applying the Sensor Strip
TIP: The Sensor Strip should be visible on the RETeval screen
during testing. If it's not, the Sensor Strip placement is likely
too far below the eye.
CORRECT:
CONNECTION TAB
INCORRECT:
TOO NASAL
Gel on a clean pad
®
TOO TEMPORAL TOO INFERIOR
