LKC TECHNOLOGIES RETeval Quick Reference Manual

QUICK REFERENCE GUIDE

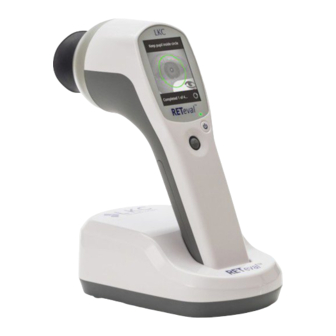

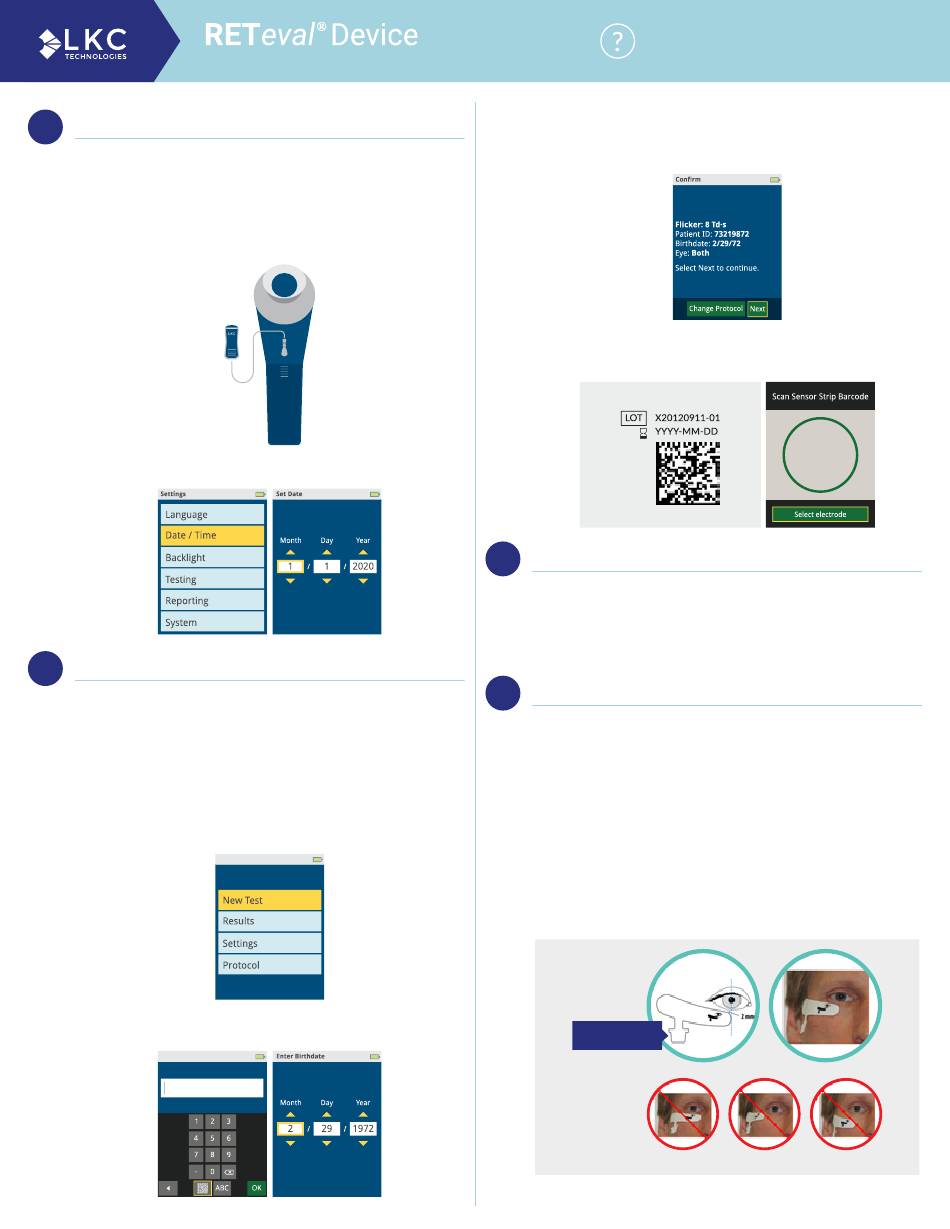

SET UP
1
1. Unpack device and press the power button near the
bottom right of the screen.
• TIP: Only press the power button once shortly. Do not
hold down.
2. Connect the Sensor Strip lead as shown below (cable
towards the top of device).
3. Navigate using the joystick to "Settings" and select your
"Language" and "Date/Time."
CONFIGURE DEVICE FOR TESTING
2
1. Choose the testing protocol you'd like to use:
• Go to "Protocol" then "Change"
• Choose a protocol from the list, then press "Save"
• TIP: Candela protocols (ending in – cd) should be used
with DILATED patients. Troland protocols (ending in -td)
can be used with either NON-DILATED or DILATED
patients.
2. Select "New Test" on the main menu.
3. Use the joystick or patient data barcode application (www.
lkc.com/download) to enter the patient ID and birthdate.
Questions? We are here for you. Send us an email
support@lkc.com or call +1(301) 840-1992
4. Confirm that the protocol, patient ID, and birthdate are
correct. Select "Next" to proceed, or select "Change
Protocol" to choose a different protocol if needed.
5. If using Sensor Strip electrodes, scan the Sensor Strip
barcode from packaging. Choose "Select electrode" to pick
a different electrode type.
3 PREP PATIENT
1. Apply a pea-sized amount of Nuprep
and using gentle circular motion clean below each eye and
temple area where the electrode will be placed. Remove
any remaining Nuprep Gel prior to applying the Sensor
Strip.
PLACE SENSOR AND CONNECT CLIP
4
1. Hold the LKC Sensor Strip by the electrode connection tab
while placing it as follows:
• Narrow end of Sensor Strip should line up with
middle of pupil
• Sensor Strip should be about 2 mm below the lower
eyelid lash line
• Avoid hair and eyelashes when applying the Sensor
Strip
• TIP: The Sensor Strip should be visible on the RETeval
screen during testing. If it's not, the electrode placement
is likely too far below the eye.
CORRECT:
ELECTRODE
CONNECTION TAB
INCORRECT:
TOO NASAL
®
Gel on a clean pad
TOO TEMPORAL TOO INFERIOR
