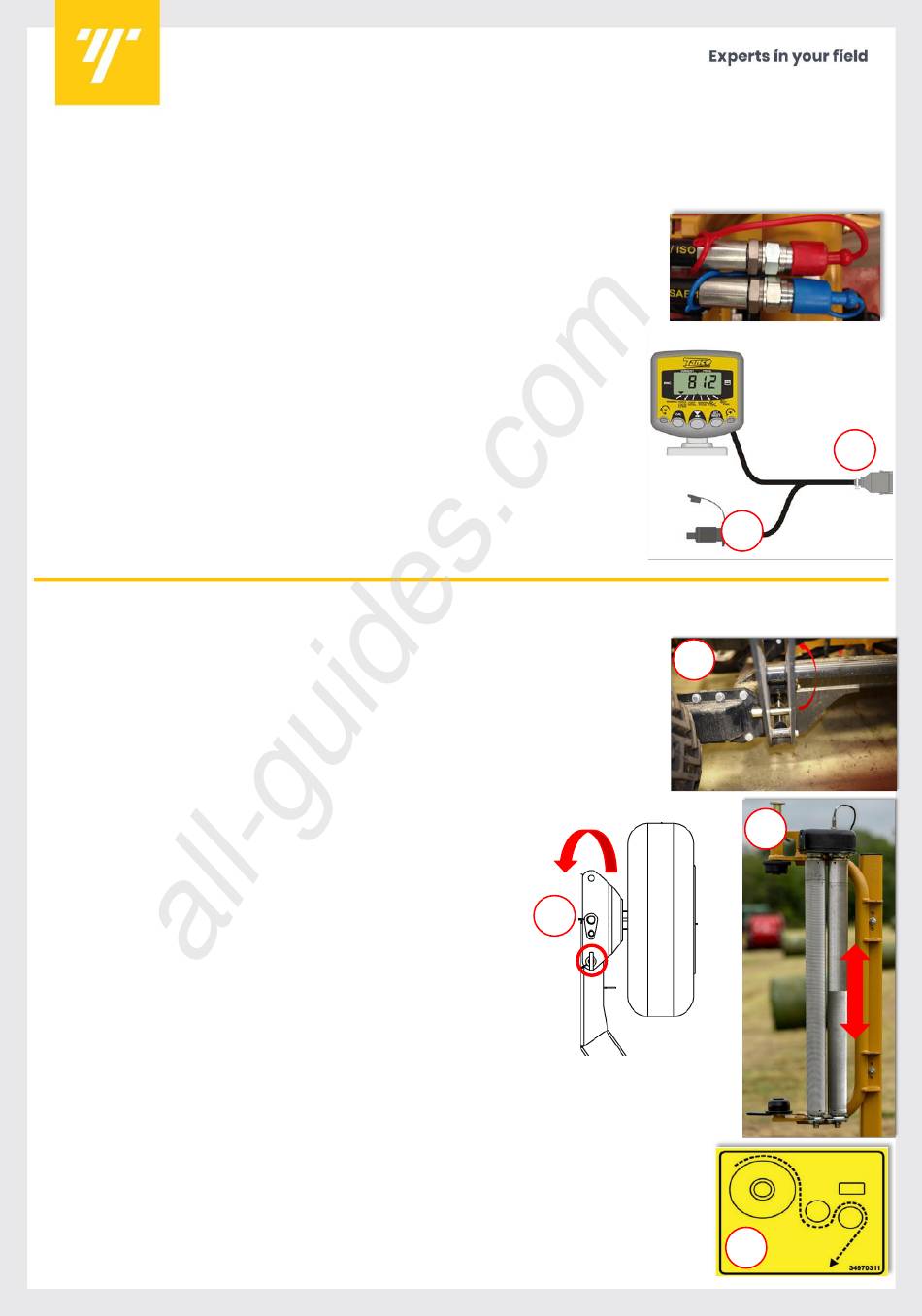

E100 SA QUICK REFERENCE GUIDE
The quick reference guide is not a substitute for the Operators Manual!
Please refer to Operators Manual for more detailed information
TRACTOR CONNECTION
1. Hydraulics
Red pipe
> Supply (25-30lpm)
Blue pipe
> Return (Free flow return!!)
2. Electrics
1.
Connect 12V supply to 3pin plug
2.
Connect wrapper harness to controller
3.
Control levers
Mount the control levers in the tractor cab. Place it in
a position that is in comfortable reach to the
operator.
ENTERING THE WORKING POSITION
1. Remove the transport pin from the load arm.
2. Remove the locking pin from the swivel axle
and rotate the wheel into the working
position. Reinsert the locking pin.
3. Adjust the position of the dispenser to
ensure that the film will be applied to the
centre of the bale.
4. Add the film roll into the dispenser, ensuring
that it is threaded correctly, and attach the
film to the Cut & Start.
All manuals and user guides at all-guides.com
1
2
2
1
3
4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tanco E100 Instructions for use
Summary of Contents for Tanco E100 Instructions for use
- Page 1 All manuals and user guides at all-guides.com E100 SA QUICK REFERENCE GUIDE The quick reference guide is not a substitute for the Operators Manual! Please refer to Operators Manual for more detailed information TRACTOR CONNECTION 1. Hydraulics Red pipe > Supply (25-30lpm) Blue pipe >...
- Page 2 All manuals and user guides at all-guides.com CONTROL LEVERS OPERATION Loading Unloading / Cut &Start Wrapping (Table rotation) CONTROLLER OPERATION Current No. of Wraps Target No. of Wraps Channel Indicator RUN-ON Time + (Increase time to stop) RUN-ON Time – Reset Store Total (Reduce time to stop) - Set...
- Page 3 All manuals and user guides at all-guides.com OPERATION Loading Lower the load arm to the ground using lever No. 1. Once the bale is inside the load arm, the bale can be loaded onto the table by operating lever No.1 in the opposite direction.
- Page 4 All manuals and user guides at all-guides.com ENTERING THE TRANSPORT POSITION 1. Remove the locking pin from the swivel axle and rotate the wheel into the transport position. Reinsert the locking pin. 2. Rotate the table into the loading position. 3.
