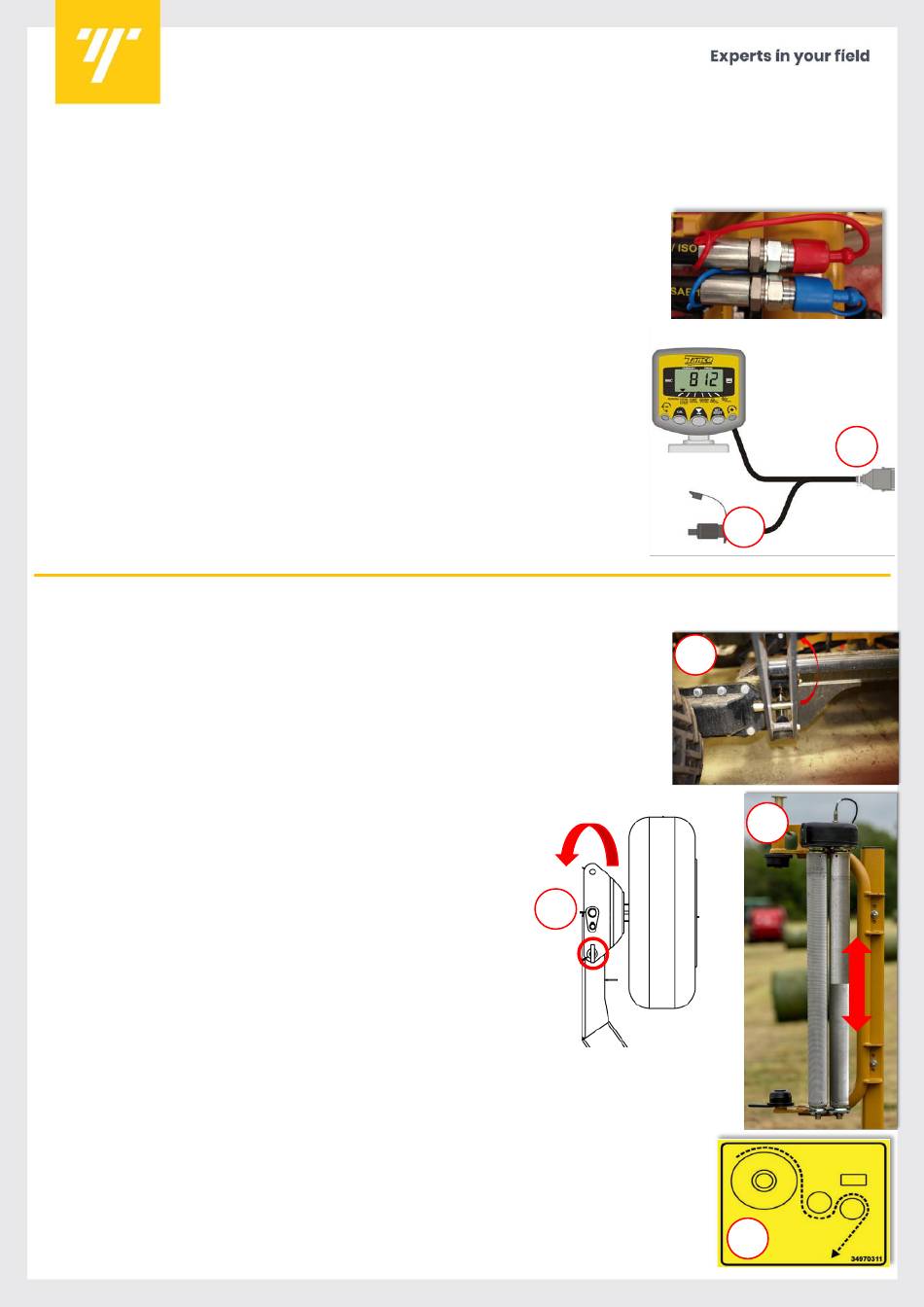

E100 SA QUICK REFERENCE GUIDE

The quick reference guide is not a substitute for the Operators Manual!

Please refer to Operators Manual for more detailed information

TRACTOR CONNECTION

1. Hydraulics

Red pipe

> Supply (25-30lpm)

Blue pipe

> Return (Free flow return!!)

2. Electrics

Connect 12V supply to 3pin plug

Connect wrapper harness to controller

Control levers

Mount the control levers in the tractor cab. Place it in

a position that is in comfortable reach to the

operator.

1. Remove the transport pin from the load arm.

2. Remove the locking pin from the swivel axle

and rotate the wheel into the working

position. Reinsert the locking pin.

3. Adjust the position of the dispenser to

ensure that the film will be applied to the

centre of the bale.

4. Add the film roll into the dispenser, ensuring

that it is threaded correctly, and attach the

film to the Cut & Start.

Table of Contents

Do you have a question about the E100 SA and is the answer not in the manual?

Page 1 E100 SA QUICK REFERENCE GUIDE The quick reference guide is not a substitute for the Operators Manual! Please refer to Operators Manual for more detailed information TRACTOR CONNECTION 1. Hydraulics Red pipe > Supply (25-30lpm) Blue pipe > Return (Free flow return!!) 2.
Page 2 CONTROL LEVERS OPERATION Loading Unloading / Cut &Start Wrapping (Table rotation) CONTROLLER OPERATION Current No. of Wraps Target No. of Wraps Channel Indicator RUN-ON Time + (Increase time to stop) RUN-ON Time – Reset Store Total (Reduce time to stop) - Set Program Key Select Channel...
Page 3 OPERATION Loading Lower the load arm to the ground using lever No. 1. Once the bale is inside the load arm, the bale can be loaded onto the table by operating lever No.1 in the opposite direction. Once the bale is loaded, the load arm can be lowered using lever No.
Page 4 SETTING NO. OF WRAPS This is a guideline only! Misshapen bales may require more wraps to achieve full coverage Model Bale Diameter 4 layres 6 layres 8 layres E100 SA 120 cm 16 wraps 24 wraps 32 wraps E100 SA 150 cm...
