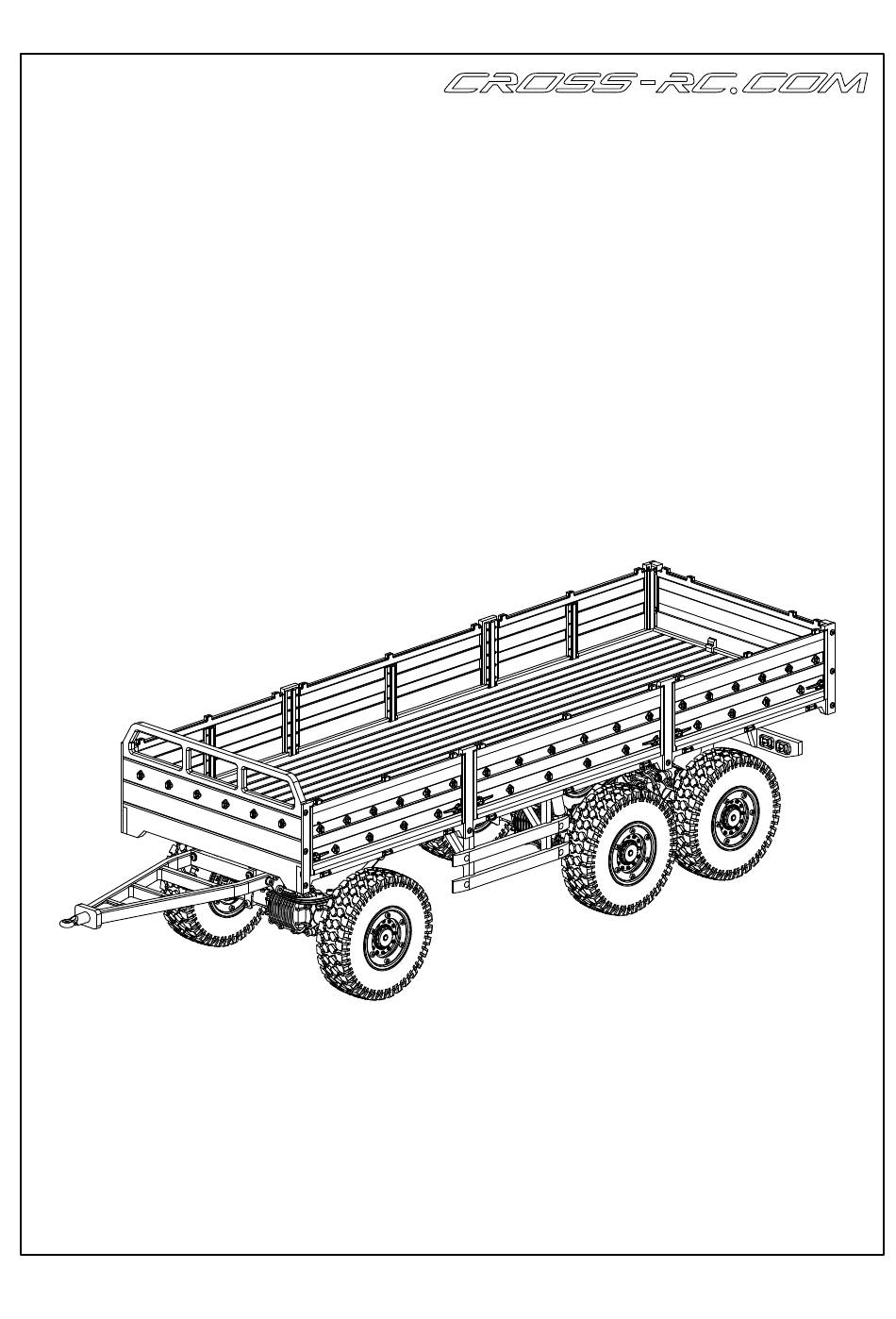

- Page 1 T004 (Installation instruction)
- Page 2 To prevent serious personal injury and/or property damage,operate all remotely CAUTIONS controlled models in a responsible manner as outlined herein. Safety Precautions 1.1 Choose a right place to operate your RC model. 1.2 Do not operate your RC model on the street or highway. It can cause a serious damage or a serious accident. 1.3 Never operate your RC model near people or animals.
- Page 3 Plank 60802/60901 64201 60909 64202 60902 60907 60911 28601 60809 60810 60813 28606 28903 60910 64204 28904 60918 28901 64203 01 05 05 01 03 28902 60917 60915 63202 28705 28706 28707 28905 28906 28907...
- Page 6 20804 28902 28901 20804 28904 28903...
- Page 7 20804 28601 28705 28705 28606 28905 28907 28707 28906 28907 28905 28906 28903 28907 28706 28901 28903...
- Page 8 63202 64202 64202 61609 64201 64202 Direction of attention...
- Page 9 60915 64203 64203 64203...
- Page 10 64204 64204 60810 60810...
- Page 11 60909 60909 PAINT...
- Page 12 60813 60809 PAINT 60902 PAINT 60910 60911 Bearing installation position can not be painted 60917 60918...
- Page 13 50000 M2x6 M2x6 42302 71000 20001 71000 M2x6 M4x4 M4x4 20103 42304...
- Page 14 FA21 41206 FA10 20104 M3x12 FA21 FA21 FA21 5x 10x4 41206 FA21 FA10 M3x12 M2x6 M2x6 20105 M2x6...
- Page 15 FA10 71015 FA10 22101 M3x12 71014 22102 71013 71003 FA14 M3x22 FA14 M3x22...
- Page 16 60910 60917 60902 M3x12 FA18 M3x16 FA18 M3x12 M3x16 FA18 3x 7x0.5 Direction of attention FA18 M3x16 FA18 60902 M3x12 60917 71012 FA12 71012 71011 The screws must not be locked too tightly. Make sure the lug turns. FA12 M3x16 41308 71010 71011...
- Page 17 FA17 M3x20 30108 FA14 M3x22 FA17 M3x20 FA14 M3x22 FA18 FA18 3x 7x0.5 FA18 FA14 M3x22 20000 21304 41209 41209 21304 20000...
- Page 18 FA10 M3x12 M3x6 71013 22102 71005 71014 M3x6 22101 71004 71015 FA10 M3x12 71006 41308...
- Page 19 71007 41104 FA10 M3x12 FA10 41103 20203 20204 20204 FA15 M3x16 20103 20204 41103 20205 42304 FA15 M3x16...
- Page 20 FA21 41206 FA10 M3x12 20104 FA21 5x 10x4 FA21 FA21 41206 FA21 FA10 M3x12 M2x6 M2x6 20105...
- Page 21 FA14 M3x22 FA14 M3x22 FA14 M3x22 20202 FA20 FA19 FA19 20204 41107 6x 2.4x1.8 FA19 20203 FA20 41105 8x 6x1.0 20203 41307 41106 20204 20201 20204 20204...
- Page 22 FA11 M3x14 FA11 M3x14 FA11 M3x14 FA11 M3x14 FA11 M3x14 FA11 M3x14 FA11 M3x14 FA11 M3x14...
- Page 23 M3x8 M2x6 20602 43022 M3x8 20604 FA11 M3x14 M3x8 FA18 3x 7x0.5 FA11 M3x14 FA18 43021 FA18 M2x6 FA11 20907 M3x14 M3x6 M3x6 M3x6 M3x16 M3x16 60918 60911...
- Page 24 M3x6 FA12 M3x16 FA12 M3x16 FA13 M3x20 M3x6 41123 FA13 20000 21304 41209 20000 41209 21304 21304 41209 41209 21304 20000...
- Page 25 FA16 Note:Firstly, the bearing flakes are M4x25 M3x16 installed on the lower fixed disk (60910) of the sleeve and the upper fixed disk (60911) of the bearing FA18 respectively, and then connected with the M4x20 countersunk head screw. M3x16 FA22 (15001) FA16 M4x25...
- Page 26 Red light Yellow light Reserved wires should be reserved for easy steering. (maximum steering) The line is hidden in the groove. 704 silica gel is needed. FA10 M3x12 FA18 FA10 M3x12 FA18 FA18 3x 7x0.5 FA18 Flat bed FA10 M3x12...
- Page 27 Step 4 Step 2 Location hole Step 1 After drilling Step 4 Location hole Location hole Step 3 Step 3 After Location hole drilling M2.5x12 M2.5x12 M2.5x6 M2.5x12 M2.5x12 M2.5x12 M2.5x12 Cargo bed M2.5x12 M2.5x12...
