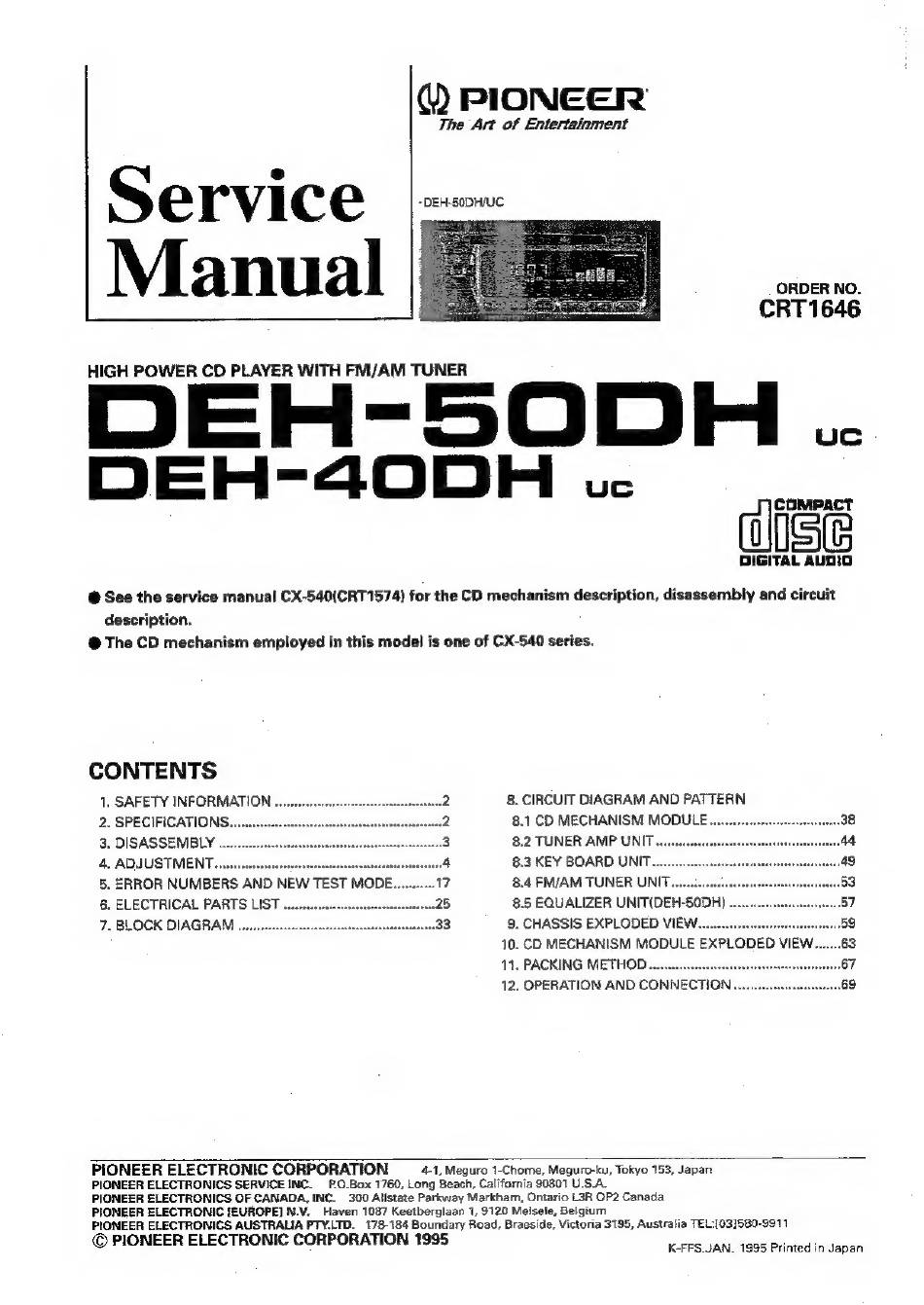

Pioneer DEH-50DH Service Manual

@ PIONEER
The Art of Entertainment
HIGH POWER CD PLAYER WITH FM/AM TUNER
DEH-SODF..
DEH-4A0DF- uc
ORDER NO.
CRT 1646
COMPACT
DIGITAL AUDIO
@ See the service manual CX-540(CRT1574) for the CD mechanism description, disassembly and circuit
description.
@ The CD mechanism employed in this model is one of CX-540 series.
CONTENTS
1, SAFETY INFORMATION 2 8. CIRCUIT DIAGRAM AND PATTERN
2. SPECIFICATIONS 2 8.1 CD MECHANISM MODULE
3. DISASSEMBLY . . . 3 8,2 TUNER AMP UNIT...
4, ADJUSTMENT.... 4 8.3 KEY BOARD UNIT..
5. ERROR NUMBERS AND NEW TEST MODE. 7 8.4 FM/AM TUNER UNIT.
6, ELECTRICAL PARTS LIST 5 8.5 EQUALIZER UNIT(DEH-SODH)
7. BLOCK DIAGRAM .... 3 9. CHASSIS EXPLODED VIEW...
10. CD MECHANISM MODULE EXPLODED VIEW..
11. PACKING METHOD...
12. OPERATION AND CONNECTION...
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. P.0.Box 1760, Long Beach, California 90801 U.S.A.
PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham, Ontario L3R OP2 Canada
PIONEER ELECTRONIC fEUROPE] N.V._ Haven 1087 Keetberglaan 1, $120 Meisele, Belgium
PIONEER ELECTRONICS AUSTRALIA PTY.LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL:103}580-9911
© PIONEER ELECTRONIC CORPORATION 1995 KEES DAN. 1095 Priatedinuapse
