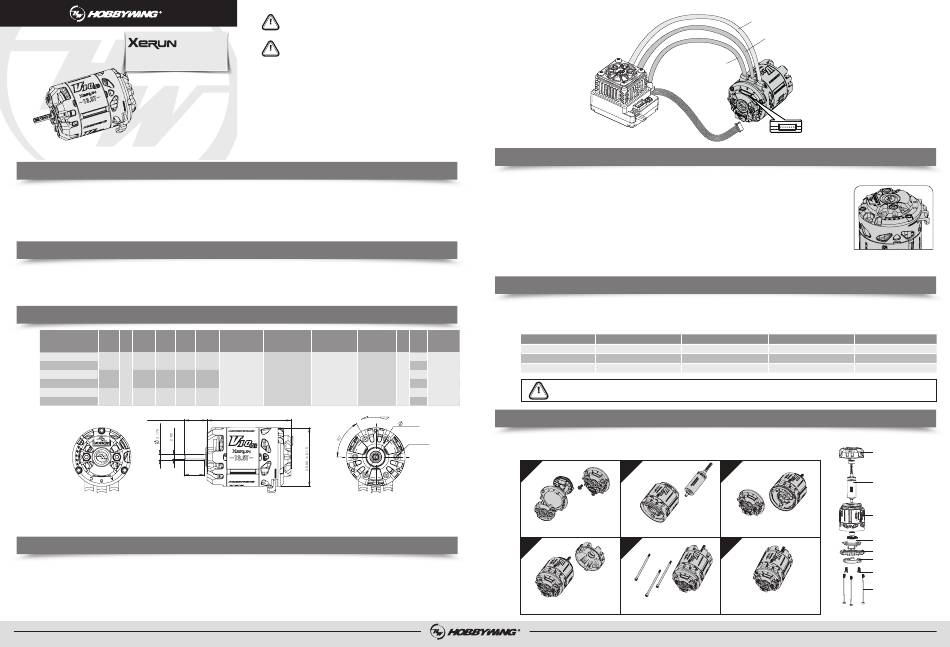

Hobbywing Xerun V10 G4R User Manual

V10 G4R
USER MANUAL
01
CAUTIONS
• To avoid short circuits, ensure that all wires and joints are well insulated before connecting the motor to related devices.
• Never allow this product or other electronic components to come in contact with water, oil, fuel or other electro-conductive liquids. If it happens, stop the use of the product immediately and clean and dry
completely before testing.
• Read the manuals of all the items being used in the build.Ensure gearing,setup,and overall install is correct and reasonable.
• Never apply full throttle if the pinion gear is not mounted on, because (under the no-load circumstances) high RPMs may get the motor damaged.
• All connections,must be made correctly.You may loose control,or run into major issues caused by improper, bad,weak,or poor connections.
• To avoid possible damage (result from overheat) to the product, please control the soldering time within 5 seconds when soldering the motor wires (a soldering iron with the power of at least 60W is needed).
• Stop usage if the motor exceeds 100℃/212℉. High temperature will damage the motor and cause the rotor to weaken. Hobbywing recommends activating the "Motor Thermal Protection" (of the ESC).
02
FEATURES
• Designed for STOCK racing.
• Innovative exposed stator maximizes the heat dissipation. Exposed stator windings increase overall cooling.
• Dual sensor interface design to meet various wiring/layout requirements.
• Specialized copper winding termination rings are thicker and wider to provide excellent power delivery and heat dissipation.
• The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
• Extremely high temperature wires are used to create an ultra high temperature resistance.Combined with high quality bearings,heavy duty copper solder tabs,ensures outstanding performance and durability.
03
SPECIFICATIONS
Max.
No-load
KV Resistance Output
LiPos Current
Model
(No-load) (Ω) Power
(A)
(W)
XERUN V10 G4R-13.5T
4100KV 0.0208Ω 5.4A 297W
XERUN V10 G4R-13.5T-ROAR
XERUN V10 G4R-17.5T
1-3S
3150KV 0.0357Ω 4.6A 213W
XERUN V10 G4R-17.5T-ROAR
XERUN X10 G4R-21.5T
2600KV 0.0551Ω 4.0A 166W
XERUN X10 G4R-21.5T-ROAR
13.90 ±0.50
12
Notes:
• Due to differences in competition rules,there are two versions of the motor, standard version and ROAR version.If the competition requires the motor to meet the ROAR rules,the ROAR
version can be used,which has a lower temperature rise;If the competition requires the motor to comply with EFRA rules, the standard version needs to be used , and ROAR version can
not be used.
• The KV value is measured when no load is applied to the motor, the motor timing is set to the value by default and the ESC timing is set to Zero.
• Never allow the motor to overheat, high temperatures may affect its performance. Please let the motor cool down before using it again.
04
INSTALLATION & CONNECTION
1. Installation of the motor
M3 mounting screws are needed there, and the mounting holes are 4mm in depth, before installing the motor on the vehicle, please carefully confirm whether the specification of the
screws is appropriate ,so as not to damage the motor due to excessive length.
2. How to Connect the Motor to an ESC
When connecting the motor and esc, please pay attention to the marked three-phase position of A, B and C to ensure that the three wires of the motor and esc are
connected correspondingly (A-A,B-B,C-C), otherwise, it cannot run normally and even damage the esc and motor. And then connect the sensor cable to the motor and ESC.
3. Inspection
Before powering on the esc, please check the motor installation and the order of all connections.
SHENZHEN HOBBYWING TECHNOLOGY Co., LTD. ・ 101-402 Building 4, Yasen Chuangxin Hi-tech Industrial Park, 8 Chengxin Road, Baolong Industrial Town, Longgang District, Shenzhen, China.
Thanks for purchasing this HOBBYWING product. This sensored brushless
motor is very powerful.Improper usage can be dangerous and may damage
ATTENTION
the product and related devices. Please take your time and read through the
following instructions before you start using the motor. We have the right
to modify the product design, appearance, features and usage requirements
without notification. We, Hobbywing, are only responsible for our product
CAUTIONS
cost and nothing else are result of using our product.
20240528
Current
@Max. Diameter/Length Shaft Diameter/ Bearing size
Stock Rotor
Output (mm) Length (mm) (mm)
Power(A)
70.7A
Ø=35.8mm(1.41in) Ø=3.175mm(0.125in) Front: D9*D4*t4
Φ7-12.5*25.2-HUS
49.4A
L=51.3mm(2.02in) L=13.9mm(0.55in) Rear: D8*D3*t4
37.7A
C.C.W
+ 0.50
51.30 - 0.20
Electronic Speed Controller
05
HW-SMB576DUL02
TIMING ADJUSTMENT
V10 G4R motors provide a wide end-bell timing adjustable range of 20-60 degrees, the following are the methods & principles you can follow when adjusting the
timing.
• You can adjust the motor timing after loosening the two screws on the rear end plate. Please adjust the timing as needed according to the mark (/white
lines) at the rear end of the motor and tighten both screws after the adjustment.
For obtaining the optimal performance, you can change the output range and characteristic of your power system through adjusting the motor timing.
And the timing is 43 degrees by default.
As shown in the picture, turn the rear end plate clockwise can reduce the timing and turn it counter-clockwise can increase the timing.
• Increasing the timing can increase the motor speed (/RPM), while that also increases the motor temperature and reduces the efficiency. A high(er) timing
usually requires a high(er) ratio.
• Please ensure your ESC is properly programmed before setting the motor timing. For detailed information about ESC programming, please refer to the
user manual of the ESC.
• After the timing adjustment, please ensure that your motor will not get overheat after running a whole pack (i.e. LiPo). You can get the information about
the motor temperature via a infra-red temperature gun or the data recording function of the ESC.. If the temperature is too high, please let the motor cool
down first and then test again. If the temperature is still too high, then please reduce the timing or increase the FDR (that is to replace the pinion gear with
fewer teeth or spur gear with more teeth.).
06
RECOM MENDED FDR
The FDR (Final Drive Ratio) is the ratio between the angular velocities of the pinion gear and the tyres. In simple terms, the number of laps the motor will rotate when the tyres spin one lap.
Different conditions like track type, grip, tyres, temperature, vehicle weight, gearing mode, driving mode influence the performance of your vehicle and have different requirements on the power system,
therefore one FDR can not be applicable for all conditions.
All the values in the table are initial FDRs recommended for the motors in Blinky mode. Please starts testing with the recommended values, and determine the final value as per the test results. If no
recommended FDR is applicable to your vehicle, please start with a big FDR and then adjust gradually as per the demand.
Weight STOCK
Poles Applications
(g)
13.5T
152g
17.5T
158g
21.5T
1/10&1/12
152g
2
STOCK Racing
158g
If possible, please exchange ideas with the drivers using the same power system in your community or club for getting the fundamental data applicable to the track you usually run.
152g
ATTENTION
158g
07
ASSEMBLY & DIS-ASSEMBLY
25.20
The motor is very strong in construction but also easy to disassemble for maintenance.
6-M3
We recommend checking the bearings and cleaning the motor periodically..
Please follow the steps (as shown below) to assemble the motor. When disassembling the motor, the sequences are reversed.
1
Install the rear end and sensor module
4
Install the front end plate
C
B
A
马 达
Sensor wire
Sensor port of motor
TC (Small Track) TC (Big Track) 2WD Off-road
4.7 4.0
4.0 3.5
3.5 3.0
2 3
Install the rotor Install the rear end module
5 6
Fasten the long screws Finished product
4WD Off-road
7.6 8.3
6.6 7.5
N/A N/A
Front end plate x1 Pcs
Rotor x1 Pcs
Stator x1 Pcs
Sensor module x1 Pcs
Rear end plate x1 Pcs
End cap x1 Pcs
Short screws x2 Pcs
M2.5 x 6.0mm
Long screws x3 Pcs
M2 x 41.3mm
May 28, 2024
