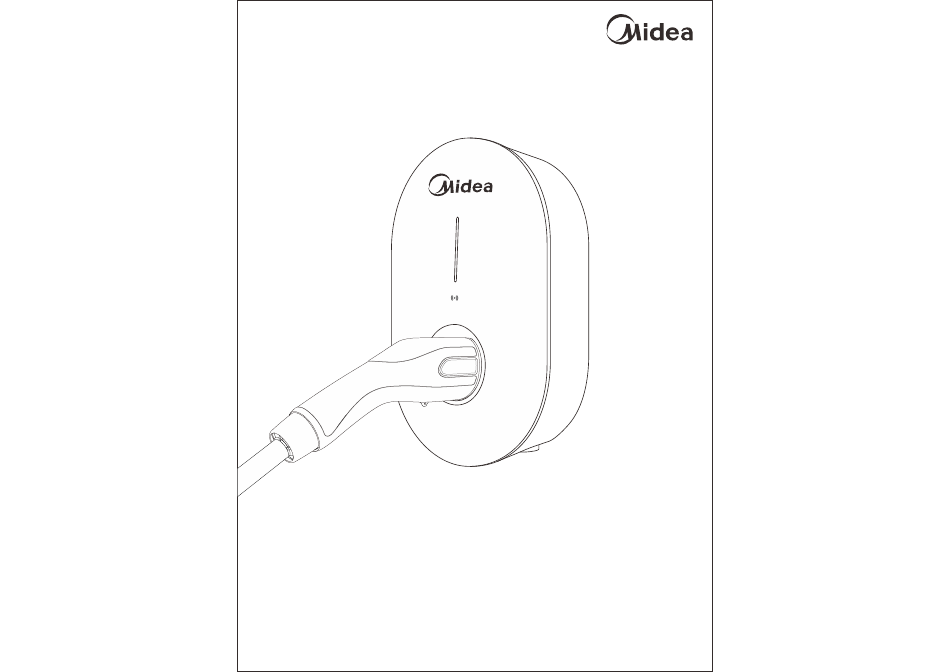

- Page 1 Installation Guide...
-
Page 2: General Safety Regulations
General Safety Regulations Important information Thank you for choosing MIDEA. Of course, you have made an excellent choi- ce, and we are sure you will be delighted with the features. Before using or maintain- ing this product, it is important to read the following safety instructions. - Page 3 Vehicles with gassing batteries cannot be charged. The product is intended exclusively for permanent wall mounting or mounting on a stand system provided by MIDEA, for indoor and outdoor use. In some countries, there is a requirement for a mechanical switching element to disconnect the charging point from the mains if a load contact on the product is welded (welding detection).
- Page 4 Safety Regulations/Notes Do not use a damaged product People can be seriously injured or killed if a damaged device is used. • Mark a damaged product to ensure that no one uses it. • Arrange for a qualified electrician to rectify the damage without delay. •...
-
Page 5: General Specification
General Specification Charging Mode (IEC 61851-1) 316mm*197mm*93mm Dimension(without cable) -30℃ to 50℃ Operating Temperature Storage Temperature -40℃ to 80℃ Relative Humidity (non-condensing) [%] Altitude [m above sea level] 2,000 CE mark(LVD 2014/35/EU, EMCD 2014/30/EU) Standards IEC 61851-1, IEC 61851-22, IEC 62196-2, IEC 62955... - Page 6 General Specification Charging Power 7,4kW(1P) 11kW(3P) 22kW(3P) Rated Voltage AC 230V 400V 400V Cable Section 3×6mm² 5×2.5mm² 5×6mm² 50Hz/60Hz Rated Frequency Ingress Protection IP55 Over Voltage Category CATⅢ External RCCB required per local regulations TypeA or TypeB 30mA TypeA+6mA DC Residual Current Protection CLASS Ⅰ...
- Page 7 Tools Required Tools ① Hammer ② Electric Drill ③ Pencil ④ Cutting Pliers ⑤ Utility Knife ⑥ Measuring Tape ⑧ Screwdriver ⑦ Ratchet Crimping Pliers ⑨ Screwdriver 20Irp Torxplus Recess 5 Lobe ⑩ Power Cable Terminals Ethernet Crimping Pliers...
- Page 8 Parts Included Accessories ×3 ×3 ×1 ×1 [4] Quick Start Guide [1] ST5 × 60 mm [2] Anchor [3] Installation Guide Screw ×1 ×2 [5] Opening Tool [6] RFID Card Wall Bracket Mounting Accessories (Optional) ×3 ×2 ×2 ×1 [7] φ5 × 8 mm [8] ST5 ×...
-
Page 9: Wiring Overview
If you purchased the 4G version, please insert the SIM card into the SIM card holder ① (position ). After power on, please set the APN of SIM card in MIDEA APP. (Please refer to APP guide.) *Applied to all versions!* ②... - Page 10 Wiring Overview No Wall Wall RS485 Ethernet Installation Step Bracket Bracket Interface Interface Step1-5-6 Step1-3-5-6 Step1-2-5-6 4G/WiFi Version Step1-2-3-5-6 Step1-4-6 Step1-3-4-6 Step1-2-4-6 Step1-2-3-4-6 DANGER Risk of explosion and fire If the product is operated in potentially explosive areas, explosive substances may be ignited by sparking of product components.
- Page 11 1-Uncover The Charger *Applied to all!* 20Ipr Torxplus® Recess 5 Lobe Unscrew the safety screw shown in 4 10 the picture. Insert the opening card into the notches on both sides and slide it up along the product gap to the position shown in the figure. Loosen the buckles and remove the front panel.
-
Page 12: Connect Ethernet Cable
2-Connect Ethernet Cable *Applied when only Ethernet connection is available!* Use sharp tools to puncture the waterproof plug of the wire. ⑨ Thread the Ethernet cable(without Jack) from hole into the enclosure of the Charger, then crimps the RJ45 connector and connect ③... - Page 13 Connect the other end of the RS485 harness to the smart meter. Energy Storage Charging Mode: Connect the other end of the RS485 harness to the Midea smart M0. Make sure the RS485 cable harness is connected correctly. Please refer to the APP [11] User Guide.
- Page 14 174.00 mm...
-
Page 15: Wall Bracket Installation
4-Wall Bracket Installation *Applied only to Charger with optional wall bracket! * ③ ② [10] 2× Recommended height 0.5m-1.3m Level the drilling template and mark Drill holes at place the fixing points are the fixing points on the wall. marked, insert the anchor screws into Suggested height is 0.5m-1.3m from the fixing holes. - Page 16 5-Install Charger On The Wall *Applied only to Charger without wall bracket! * ③ ② 3× Recommended height 0.5m-1.3m Level the drilling template and mark Drill holes on the marked fixing places. the fixing points on the wall. Insert the anchor screws into the fixing Suggested height is 0.5m-1.3m from holes.
- Page 17 6.a-AC Wiring *Applied to all!* ⑧ ⑦ Crimp the power cable terminals using Make an incision on the rubber the crimp pliers. Open the protective cap grommet for the power supply cable, and connect the AC power cable. insert the power supply cable through Please flip down the protective cap after the grommet.
- Page 18 6.b-Electrical Wiring TN-C Single Phase TN-C Three- Phase TN-S Single Phase TN-S Three- Phase TN-C-S Single Phase TN-C-S Three- Phase ATTENTION Ensure that the maximum voltage is less than 276 V between L & N inputs. Independent Grounding -16-...
- Page 19 6.c-Electrical Wiring TT Single Phase TT Three- Phase IT Three- Phase ATTENTION Ensure that the maximum voltage is less than 276 V between L & N inputs. Independent Grounding -17-...
-
Page 20: Led Status Display
LED Status Display Charger Status LED Color LED Status Standby Green Steady Plugged Blue Breathing Charging Green Breathing Charging Complete Blue Steady Authorized Orange Steady Fault Steady White Breathing Standby: Charger is in standby mode Plugged : Charger connector is plugged into EV charging inlet Charging : Charging in progress Charging Complete... - Page 21 (Please refer to the App Guide “Unlock 22kW Power”.) After receiving the unlock request, MIDEA will review the submitted application. Once approved, MIDEA will unlock the 22kW power of the Charger remotely. ATTENTION In order to unlock a 22kW Charger, the charger has to be connected to Internet.
- Page 22 Service ATTENTION Material damage due to improper cleaning Improper cleaning can damage the housing. • Wipe the housing with a dry cloth or a cloth lightly moistened with water or spirit (94 % vol.). • Do not use running water. •...
- Page 23 60364-6 and the applicable national regulations (e.g. in Germany: DIN VDE0105-100). • Carry out a functional test and charging simulation (e.g.using a MIDEA test box and standard-compliant test equipment). DANGER Risk of electric shock due to improper cleaning The product contains electrical components that carry high voltage. In case of improper cleaning, people can be seriously injured or killed due to electric shock.
- Page 24 Frequency Range RF Function Maximum Transmit Power With Module(MEV-AC22-WIFI/MEV-AC11-WIFI/MEV-AC007-WIFI) WIFI(2.4G) 2412~2472MHz 17.5±2dBm 2402~2480MHz 5.65dBm RFID 13.56MHz 20.25 dBµA/m @ 3m With Module(MEV-AC22-4G/MEV-AC11-4G/MEV-AC007-4G) 4G(LTE) 703~2620MHz 23±2dBm WIFI(2.4G) 2412~2472MHz 17.5±2dBm 2402~2480MHz 5.65dBm RFID 13.56MHz 20.25 dBµA/m @ 3m...
