Modus Furniture ROCKPORT Assembly Instructions Manual

Uph poster queen bed
Hide thumbs

Advertisement

Quick Links

Download this manual

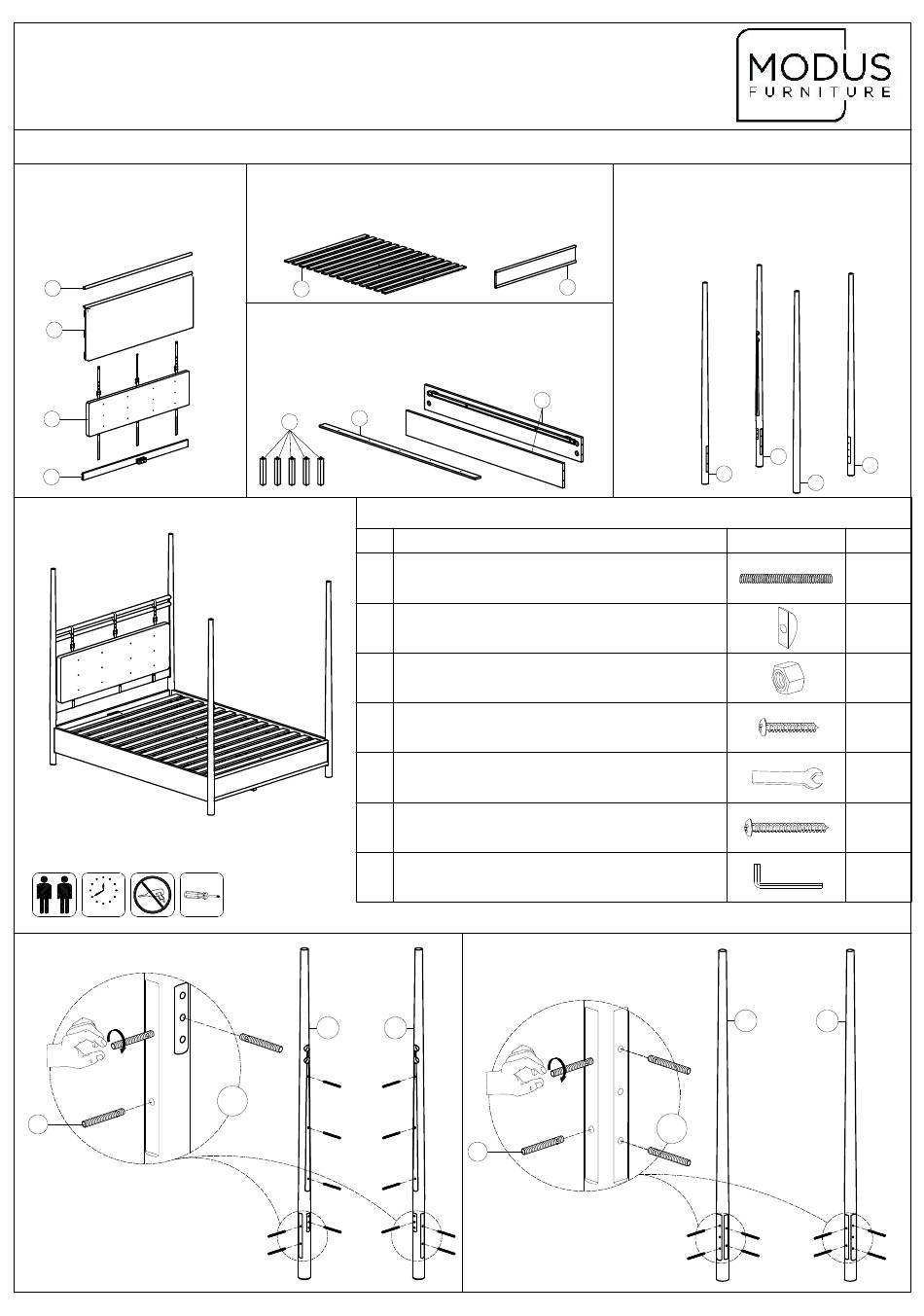

ROCKPORT UPH POSTER QUEEN BED
BOX #1 :
A. TOP STRETCHER
B. UPH HEADBOARD PANEL
C. UPH HEADBOARD CUSHION
D. BOTTOM STRETCHER
A
B
C
D
FULLY ASSEMBLED
00:40
Not provided
STEP 1:
1
ASSEMBLY INSTRUCTIONS
PARTS PACKING CONFIGURATIONS
BOX #2 :
1 PC
E. FOOTBOARD
1 PC
F. SLAT ROLL
1 PC
1 PC
F
BOX #3 :
G. SIDE RAILS
H. SLAT SUPPORT LEG
I. CENTER SLAT SUPPORT
I
H
No.
1
2
3
4
5
6
7
J
12x
G
HARDWARE KIT PACKED IN BOX #2
Description
THREADED BOLT (8x90mm)
HALF MOON WASHER (7x14x27mm)
HEX NUT (M8)
WOOD SCREW (4x30mm)
WRENCH (13mm)
WOOD SCREW (4x50mm)
ALLEN KEY (4mm)
STEP 2:
K
1
BOX #4 :
1 PC
J. HEADBOARD LEFT POST
1 SET
K. HEADBOARD RIGHT POST
L. FOOTBOARD LEFT POST
M. FOOTBOARD RIGHT POST
E
2 PCS
5 PCS
1 PC
J
8x
1 PC
1 PC
1 PC
1 PC
K
M
L
Quantity
20 PCS
20 PCS
20 PCS
11 PCS
1 PC
2 PCS
1 PC
L
M

Advertisement

loading
Need help?

Need help?

Do you have a question about the ROCKPORT and is the answer not in the manual?

Questions and answers

Related Manuals for Modus Furniture ROCKPORT

Summary of Contents for Modus Furniture ROCKPORT
