Product Name:
Shutter-door Bathroom 64.2in. Tall Cabinet in White
SKU #:
WHIF631
Thank you for purchasing this Winsome House product. This product has been manufactured with the highest
standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged
parts. If any parts are missing or damaged, do not attempt to assemble or use the product.

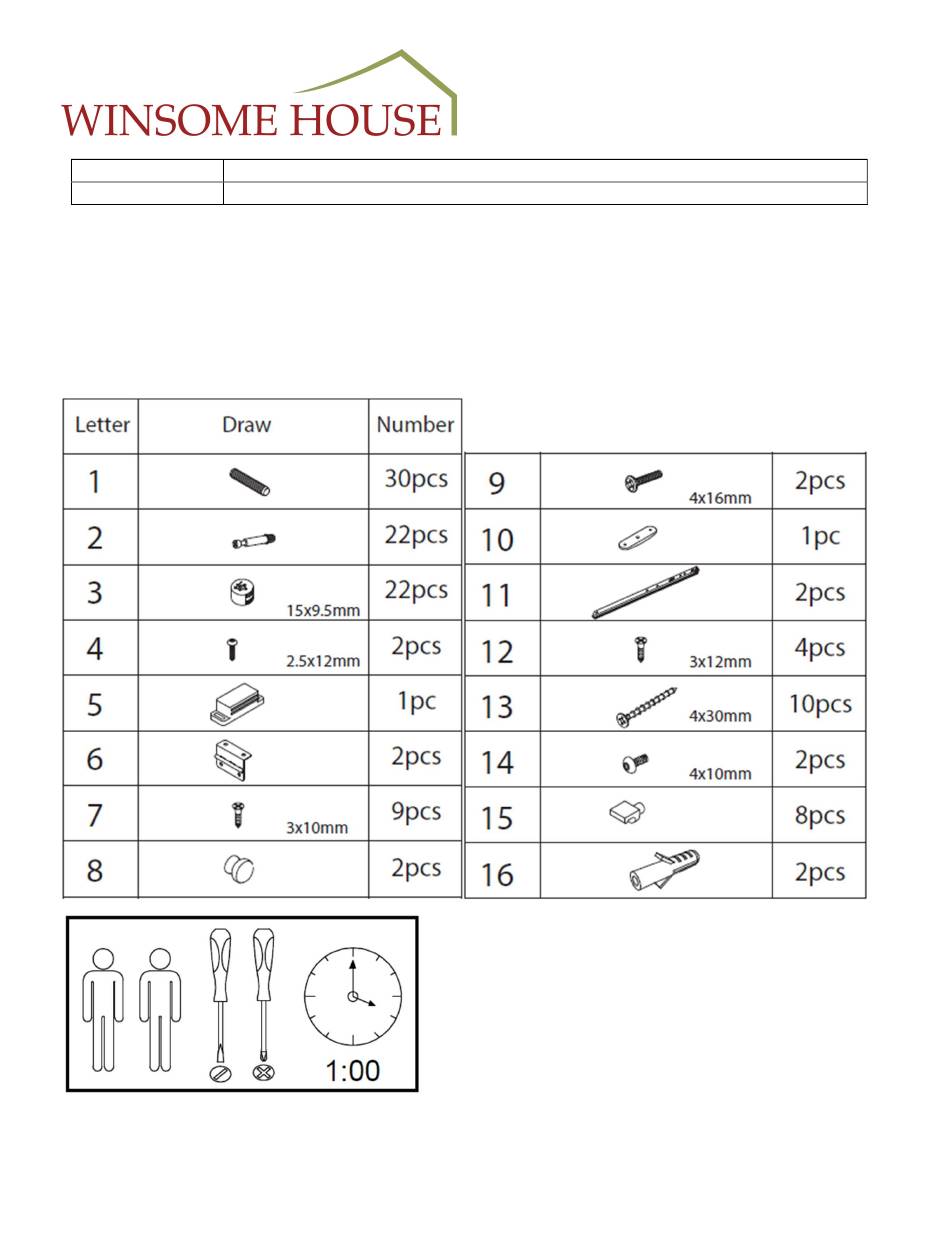

Hardware:
Tools required for assembly: Philips screwdriver and Flathead Screwdriver (if using power tools, use with care)
All manuals and user guides at all-guides.com
Contact: sales@winsomehouse.com
Instruction Manual
Please save this manual for future reference.
Advertisement
Related Manuals for Winsome house WHIF631
Summary of Contents for Winsome house WHIF631
- Page 1 Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Thank you for purchasing this Winsome House product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY. Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged parts.
- Page 2 All manuals and user guides at all-guides.com Instruction Manual Please save this manual for future reference. Product Name: Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Panels: Contact: sales@winsomehouse.com...
- Page 3 Product Name: Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Step 1 Make sure the pins are installed correctly as shown with the “check mark” below: Below shows how the pins are used to assemble the panels together.
- Page 4 Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Assemble the top of the cabinet (best to prepare on an open flat (soft) surface): Insert pins (2) to panels (A, B, C, D, and E) as shown in Figure A.
- Page 5 Product Name: Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Step 2 Align (6) to shutter and screw in (7). Align (10) and screw in (7). Screw in (9) and screw in knob on the front side. Contact: sales@winsomehouse.com...
- Page 6 Please save this manual for future reference. Product Name: Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Step 3 Insert pins (1) to panels B, C, U, and G. Refer to Figure A for assembly guide for inserting locknuts on panel (G). Contact: sales@winsomehouse.com...
- Page 7 Please save this manual for future reference. Product Name: Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Step 4 Slide in back panel (H) as shown below. Insert pins (1) to panels (B, C, and I). Screw in (13) to panel (I).
- Page 8 Please save this manual for future reference. Product Name: Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Step 5 Slide in back panel (J) as shown below. Step 6 Add pins to the top panels (B and C). Secure with top panel (A). Refer to Figure A for assembly guide for inserting locknuts on panels (B and C).
- Page 9 Please save this manual for future reference. Product Name: Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Step 7 Insert pins into panel (D), and attach the side section (K, L, and M) with pins (1) and locknuts. Contact: sales@winsomehouse.com...
- Page 10 Please save this manual for future reference. Product Name: Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Step 8 Insert pins into panel (E), and attach the side section (K, L, and M) with pins (1) and locknuts. Contact: sales@winsomehouse.com...
- Page 11 All manuals and user guides at all-guides.com Instruction Manual Please save this manual for future reference. Product Name: Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Step 9 Slide in back panel (N) as shown below. Contact: sales@winsomehouse.com...
- Page 12 Please save this manual for future reference. Product Name: Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Step 10 Insert pins (1) into panel (I), and attach the bottom section (D and E) with pins (2) and locknuts (3). Contact: sales@winsomehouse.com...
- Page 13 Product Name: Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Step 11 Insert pins (2) to front drawer panel (O). Screw in (13) to panels (P and Q) to (R). Slide in bottom panel (S). Assemble front drawer panel (O) to panels (P and Q) then lock nuts (3).
- Page 14 All manuals and user guides at all-guides.com Instruction Manual Please save this manual for future reference. Product Name: Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Step 12 Screw in (14) to sides of drawer Contact: sales@winsomehouse.com...
- Page 15 Product Name: Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 Step 13 Shelves (T) are adjustable, and may be placed in a few options in each section (1 shelf per section). First install the brackets inside the cabinet for where you want the shelves. To insert shelf (T) into the cabinet, tilt it at angle first to get it into the cabinet.
- Page 16 Product Name: Shutter-door Bathroom 64.2in. Tall Cabinet in White SKU #: WHIF631 WARNING: FOR YOUR SAFETY! To avoid injury and/or damage, please do not climb on the shelves as this may cause serious bodily injuries and/or product damage. Contact: sales@winsomehouse.com...
