Thank you for purchasing this Winsome House product. This product has been manufactured with the highest
standards of safety and quality.
Product Name:
SKU #:
Chair Assembly:
ID
DESCRIPTION
A1
ARM REST
A2
ARM REST SUPPORT
B2
LEGS CROSS BEAM
B4
BASE BOTTOM
SUPPORT
C8
TOP BACK REST
CROSS BEAM

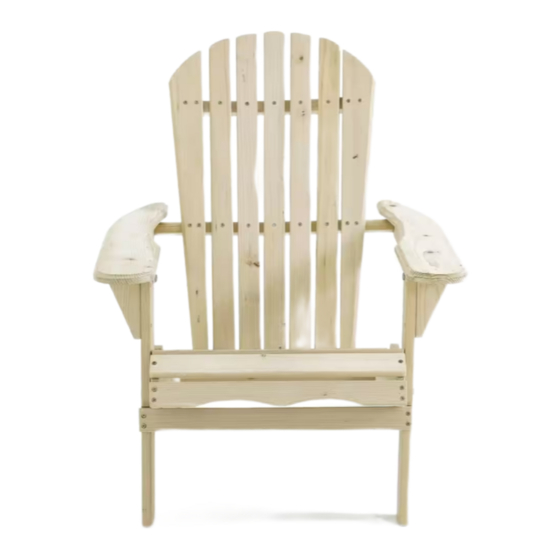

NATURE WOOD ADIRONDACK CHAIR
WHOF412
PARTS LIST
QTY
2PCS
2PCS
1PC
BASE
1PC
1PC
Please save this manual for future reference.
ID
DESCRIPTION
C1 –
C7
BACK REST PANELS
B1
BASE LEG
B3
FRONT SEAT SLAT
B5
SEAT SLATS
C9
MIDDLE BACK REST
CROSS BEAM
Instruction Manual
QTY
7PCS
2PCS
1PC
5PCS
1PC
Advertisement
Related Manuals for Winsome house WHOF412
Summary of Contents for Winsome house WHOF412
- Page 1 Instruction Manual Please save this manual for future reference. Thank you for purchasing this Winsome House product. This product has been manufactured with the highest standards of safety and quality. Product Name: NATURE WOOD ADIRONDACK CHAIR SKU #: WHOF412 Chair Assembly:...
- Page 2 PARTS LIST DESCRIPTION DESCRIPTION 2PCS BOTTOM BACK REST CROSS BEAM FRONT LEG 2PCS FRONT LEG CROSS BEAM ARM REST CONNECTION 2PCS FOLDING BRACKET HARDWARE LIST DESCRIPTION DESCRIPTION 59PCS+ 4PCS+ 3.5*40MM 8*55MM 6PCS+1 8*55MM WRENCH...
- Page 3 Important: ●Please assemble strictly in accordance with instruction. ●Please double-check to ensure that all parts of the package contents intact. ●Please note that weight capacity for this chair is 330lbs. ●When assembling Adirondack chair, please handle all panels and/or hardware with care to avoid any possibilities of damages and/or injuries.
- Page 4 ASSEMBLY INSTRUCTION STEPS...
- Page 6 Step 8...
- Page 8 Step12...
