About This Scanner

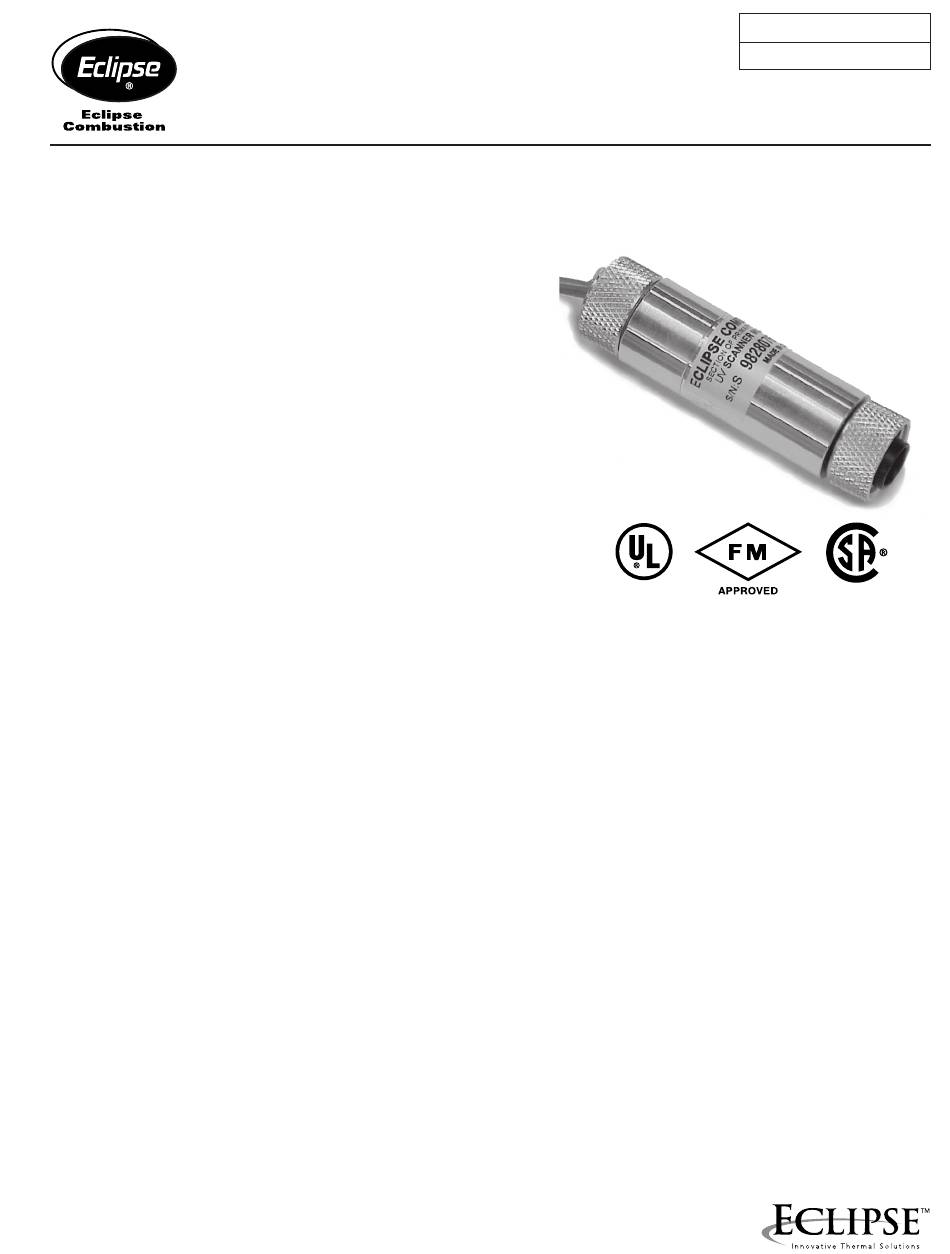

The model 5600-92SC (#21349) scanner features a highly
reliable solid-state detector for monitoring gas or oil flames
when used with Eclipse flame controls. The detector is
sensitive to a broad range of flame radiation from
ultraviolet to infrared making it ideally suited for use on
combination gas-oil burners. The scanner responds to the
flickering radiation of the flame and discriminates against
constant background light. This device will not produce a
flame signal if any internal components fail, therefore it can
be used on burner systems that continuously operate
longer than twenty-four hours. It is protected against
reverse connection and comes with a shielded cable lead.
The scanner is UL listed, CSA certified and FM approved.
This scanner operates with Veri-Flame controllers with
model numbers VF560xx7xx.
1.0 Specifications
Supply Voltage . . . . . . . . .
Supply Current . . . . . . . .
Supply Wiring . . . . . . . . .
Temperature Range . . .
Materials . . . . . . . . . . . . . .
Shipping Weight . . . . . . .
Options . . . . . . . . . . . . . . . .
2.0 Sensor Installation
Warning
Incorrect sensor installation may cause the sensor to generate a false flame signal. This can cause
unburned fuel to collect in the combustion chamber, resulting in explosions, injuries, and property damage.
w
Be certain that the flame sensor detects only the pilot and/or main flame of the intended burner by testing
the control system under varying operating conditions and firing rates. Follow the test procedures given in
this manual and the equipment provider's instructions after installation and at regularly scheduled
maintenance intervals.
Sensor Wiring
Route sensor wiring a sufficient distance from ignition and other high voltage wiring to avoid electrical interference.
Some areas may have high levels of electromagnetic fields or ground currents that require the use of special cables,
isolation and grounding methods. Figure 1 illustrates the sensor wired to an Eclipse Veri-Flame. The white wire
supplies power and carries the flame signal (S1), the black wire connects to circuit common (S2), and the shield is
connected to the housing. Internal scanner circuits create low impedance (10 ohm) from the shield to the black wire
circuit common.
12 Vdc nominal
15mA typical, 20mA maximum
6 ft. (183 cm) 2 conductor #18 AWG shielded cable. Shield is connected to housing.
0ºF to 176ºF (-20ºC to +80ºC)
Housing: Aluminum. Lens Support: Nylon.
7 oz (175 grams)
Magnifying lens assembly (Part # 49600-98), Insulated coupling (Part # 49099)
Heat Block Seal 23HBS (Part # 400011)
Solid State UV/IR
Instruction Manual
No. 855, 5/00
Scanner
Model 5600-92SC
Advertisement
Related Manuals for Eclipse 5600-92SC
Summary of Contents for Eclipse 5600-92SC
- Page 1 Some areas may have high levels of electromagnetic fields or ground currents that require the use of special cables, isolation and grounding methods. Figure 1 illustrates the sensor wired to an Eclipse Veri-Flame. The white wire supplies power and carries the flame signal (S1), the black wire connects to circuit common (S2), and the shield is connected to the housing.
-
Page 2: Test Procedures
Use isolated shielded pairs to avoid the possibility of interference (cross-talk) between wiring of multiple scanners. For longer wiring runs, use a pair of RG62A/U coax cables (Eclipse #21741) per scanner. Success of longer wiring runs is dependent upon site conditions, therefore the equipment layout should be redesigned to allow the control to be mounted closer to the burner. - Page 3 2) Observe the flame signal as the system comes up to temperature. Any degradation of the flame signal may be due to the background radiation masking the flickering content of the flame. Mask the background with a reducing orifice, lengthening the sighting pipe, or realigning the sensor. Eclipse Solid State Scanner Instruction Manual 855, 5/00...
-
Page 4: Maintenance
Process Conditions Test 1) Start the system normally. 2) Observe the flame signal as the system operates at various firing rates under process (at temperature) conditions. 3) Perform the Main Flame Failure Test under these conditions and verify that the control shuts down in less than 4 seconds after visually observing that the flame extinguished. - Page 5 Offered By: Power Equipment Company 2011 Williamsburg Road Richmond, VA 23231 Phone: 804-236-3800 Fax: 804-236-3882 www.peconet.com...
