AMT -150B Manual

Barrier gate
Hide thumbs

Advertisement

Table of Contents

WWW.AMTS.PK
（AMT-150B ）Barrier Gate
Specification
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMT-150B and is the answer not in the manual?

Questions and answers

Related Manuals for AMT AMT-150B

Summary of Contents for AMT AMT-150B

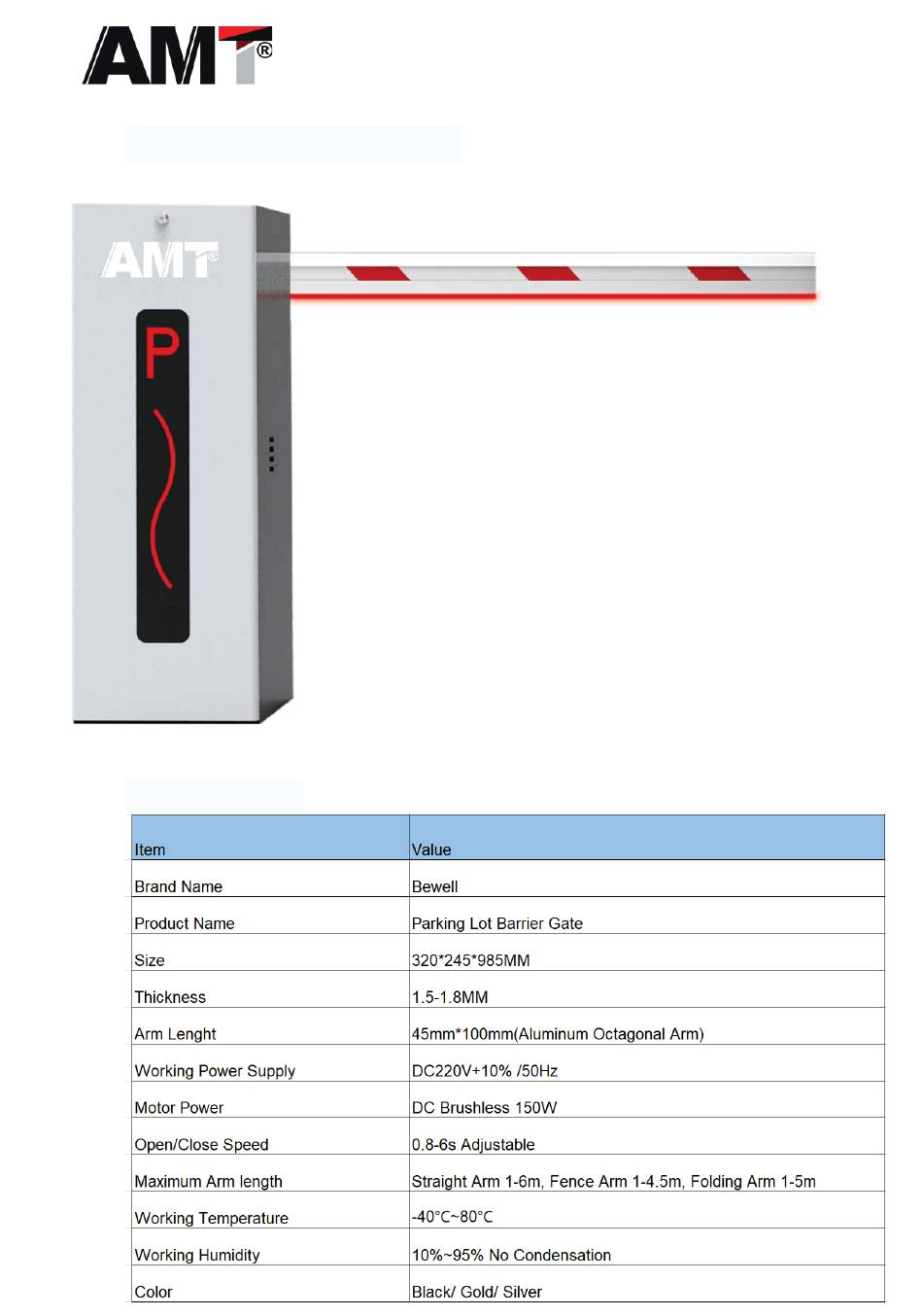

  • Page 1 WWW.AMTS.PK （AMT-150B ）Barrier Gate Specification...

  • Page 2: General Technical Specifications

    WWW.AMTS.PK DC Brushless Barrier Gate Mechanism Manual (Adopt DC brushless motor, providing smooth and strong power while the gate is running more smoothly and saving power) 1. Prroduct overview 1) The movement is installed by side fi xation mode, with a compact structure. 2) The main body of the movement is made of aluminum alloy, made by die - casting process.
  • Page 3 WWW.AMTS.PK 4. Overall dimension drawing 5.Install / Remove 1) Fixation of the movement core The m ovemen t is sid e -mounted, 6 nut co lumn s (φ18X 2 0) on the rig ht are embedded in the sheet metal, a nd the left movement is fi...
  • Page 4 WWW.AMTS.PK 2) Left and right movement swap This movement can realize the left and right direction without any replacement parts. For example, when the right movement is changed to the left movement, the rocker parts need to be replaced. The operation steps are as follows: A) Remove the clamp at both ends of the connecting arm with the external clamp and remove the connecting arm B) Release the rocker On the two screws, take out the rocker (you...
  • Page 5 WWW.AMTS.PK 3) Gate arm head installation When the brake arm head is installed, avoid striking as much as possible, but it is also necessary to ensure that when the spindle is equipped with through hole, the screw (M 10) and nut.(The main shaft personality is customized, need to be installed according to the actual situation, to avoid vigorously tapping)
  • Page 6 WWW.AMTS.PK 4) Remove arm Gate arm head is generally more diffi cult to remove, we recommend to use the following way of disassembly, the required materials : Inner hexagon screws M12X50 2, M14X50 1,2 M12 nuts, 1 disassembly bar. 6. Commissioning After the movement controller is energized, it is necessary to learn the horizontal and vertical position manually.
  • Page 7 WWW.AMTS.PK rocker, spin the lock arm to the level, and lock the screw can be tightened. 2) Vertical position of the gate arm The crank of the connecting arm is unfolded, and the two rotating points of the connecting arm are the three points of the output BWis of the reducer, which is the vertical position of the gate arm.
  • Page 8 WWW.AMTS.PK 7. Optional selection of the movement and the gate arm Movement model: D 01-0.8S, D 01-1.5S, D 01-3.0S Carbon fiber arm (φ 36) Elliptical arm (80 * 50) Ocagon pole (100 * 45) Gate rail (100 * 45 single layer) Club Movement...
  • Page 9 WWW.AMTS.PK 8. Spring configuration Specification of drawing spring: φ 3.5, φ 4.0, φ 4.5, φ 5.0, φ 6.0, φ 6.5 Carbon fiber arm Gate rail (100 * Elliptical Ocagon pole (φ 36) 45 single layer) arm (80 * 50) (100 * 45) club draw club...
  • Page 10 WWW.AMTS.PK Transparent Shell Version Control Board Manual Reminder: The contents of this manual are appl icable to the instal lat ion and debugging of the 24V brush less DC barrier controller.Please read it carefully before use. Chapter I Parmuct Installation and Commissioning Instructions 1.

  • Page 11: Main Board Wiring Diagram

    WWW.AMTS.PK 3. Main board wiring diagram Note: al l external signal l ines on the control board are not connected with network cables. Although the network cable communication is no problem, it is easy to break the core several t imes.
  • Page 12 WWW.AMTS.PK 5. Gate commissioning steps: Step 1: Gate arm and spring matching: Stop the gate lever at about 45 degrees and check whether the arm will slowly close or open (if the spring tension is too strong (allow the lever to open slightly larger), if the brake is not enough) Step 2 : Gate self-test learning switch limit : 1.
  • Page 13 WWW.AMTS.PK 4.Open the right wiring diagram of the gate (figure 1) Traffi c lights common Yin, common Yang connection method...
  • Page 14 WWW.AMTS.PK After the arm exceeds 90 degrees (overtune the L-9 parameter); the arm is less than 90 degrees (reduce the L-9 parameter) Close the bar above the horizontal (reduce L-6 parameters); arm below the horizontal (increase L-6) Note: 1. Determine whether the horizontal position of the gate railing and the advertising gate is in place (the pole will stop immediately after contacting the ground motor).

  • Page 15: Parameter Menu

    WWW.AMTS.PK 7. Parameter menu L — 1 Opening speed: the larger 20-95 the value, the faster the speed L —2 Close the gate speed: the 20-95 larger the value, the faster the speed Stability: the smaller the L —3 8- 15 value, the smoother, too small may not be...
  • Page 16 WWW.AMTS.PK Anti-smash car strength: the greater the L —c value of anti-smash car strength, the 0- 101 value is greater than 100 anti- smash cancelled Positive and reverse gate movement L —d mode: 0 / 3: left and right running direction of the same motor 1 / 2: left and right running direction of the same motor Operation speed of the off...
  • Page 17 WWW.AMTS.PK Opening gate counting function: 0: with no count 1: with count 2: The L —8 port has regular open signal 0- 1-4 band memory mode 4 Fleet mode (press the remote stop button after the opening, press remote control Switching button) L —9 Vertical adjustment: The...
  • Page 18 WWW.AMTS.PK Running speed: the larger the 0-49 number, the faster the speed, only used for the speed adjustment of the main board power on self- inspection Open the gate in place stability: the L 25 L 25 smaller the value, the more stable, too 8- 15 small may not open in place 8.Adjustment descript ion of the opening and c los ing of the...
  • Page 19 WWW.AMTS.PK Relay output mode when the switch is in place: 0 Traffic light mode 1 In-place detection status mode 3 Light sensing mode 5 in place relay output for 2 seconds Deldrop time setting: setting value is the delay drop time (seconds) 0-255 The function 000 means that this feature is not enabled...
  • Page 20 WWW.AMTS.PK 2. Each position description of the switch arm The switch arm is opened in the vertical position A position The horizontal position of the gate lever is B position place 1 Location Gate lever in position> 90° Gate lever opening is in place at a position 2 Location <90°...
  • Page 21 WWW.AMTS.PK 1. Schematic diagram of each interval of the switch in operation...
  • Page 22 WWW.AMTS.PK b. Observe whether the motor stops when the switch lever is in place and that it is in place. If the switch lever is in place and the motor is still running, the L-6 or L-9 parameters should be changed. 4.
  • Page 23 WWW.AMTS.PK 2. Description of each section during the gate operation 3. The speed and stroke adjustment method of each interval The bigger the numbers, the Shutdown speed faster the speed is The larger the number is, Turn off the the larger the deceleration brake and slow down the trip Angle is...

  • Page 24: Remote Control Function

    WWW.AMTS.PK 9.Remote control function 1. Remote control matching Step 1. Long press the "Menu" key to enter the menu, select the L-F option, click the "Menu" key to display 000, and then enter the remote control settings Step 2. press the remote control "any key" at this time the motherboard rang, display to "L-F"...

This manual is also suitable for:

D01-0.8sD01-1.5sD01-3.0s
