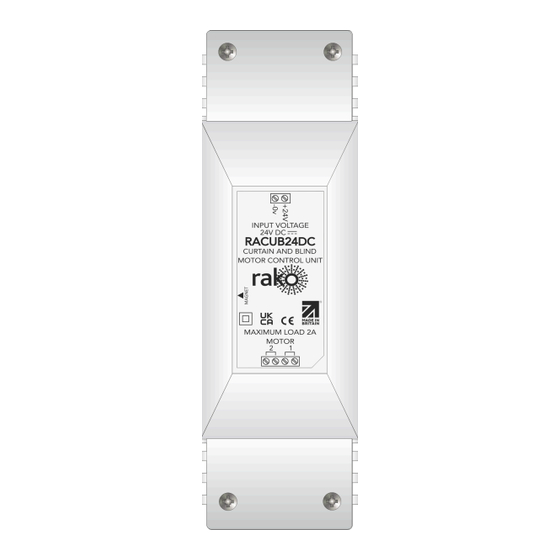

- Page 1 Instruction Manual RACUB24DC Mains Curtain & Blind Controller 2024 Version 2.0.0...
- Page 2 24VDC DC Motor 3 Installation Ensure the limits are set on the connected motors before energising the RACUB24DC. Installation should only be carried out by a competent electrician. ● RACUB24DC modules should be mounted in areas that are adequately ventilated, dry, and outside of any enclosed metal casings that may interfere with the wireless signal.
- Page 3 STEP 2 Insert the supply IN conductors. Replace the cover and clamp for the input side of the RACUB24DC. STEP 3 Connect the mains motor to the output terminals of the RACUB24DC. Always check with the motor manufacturer for compatibility before installing.
- Page 4 Rako wireless message and is a useful diagnostic indicator. 5 Programming the RACUB24DC Once the RACUB24DC has powered up, it can be tested working with a House 1 Room 4 Keypad using the Raise and Lower buttons, then the device is ready to be programmed. For instructions on how to program the RACUB24DC, see section “3.3 - Modules with magnet...
