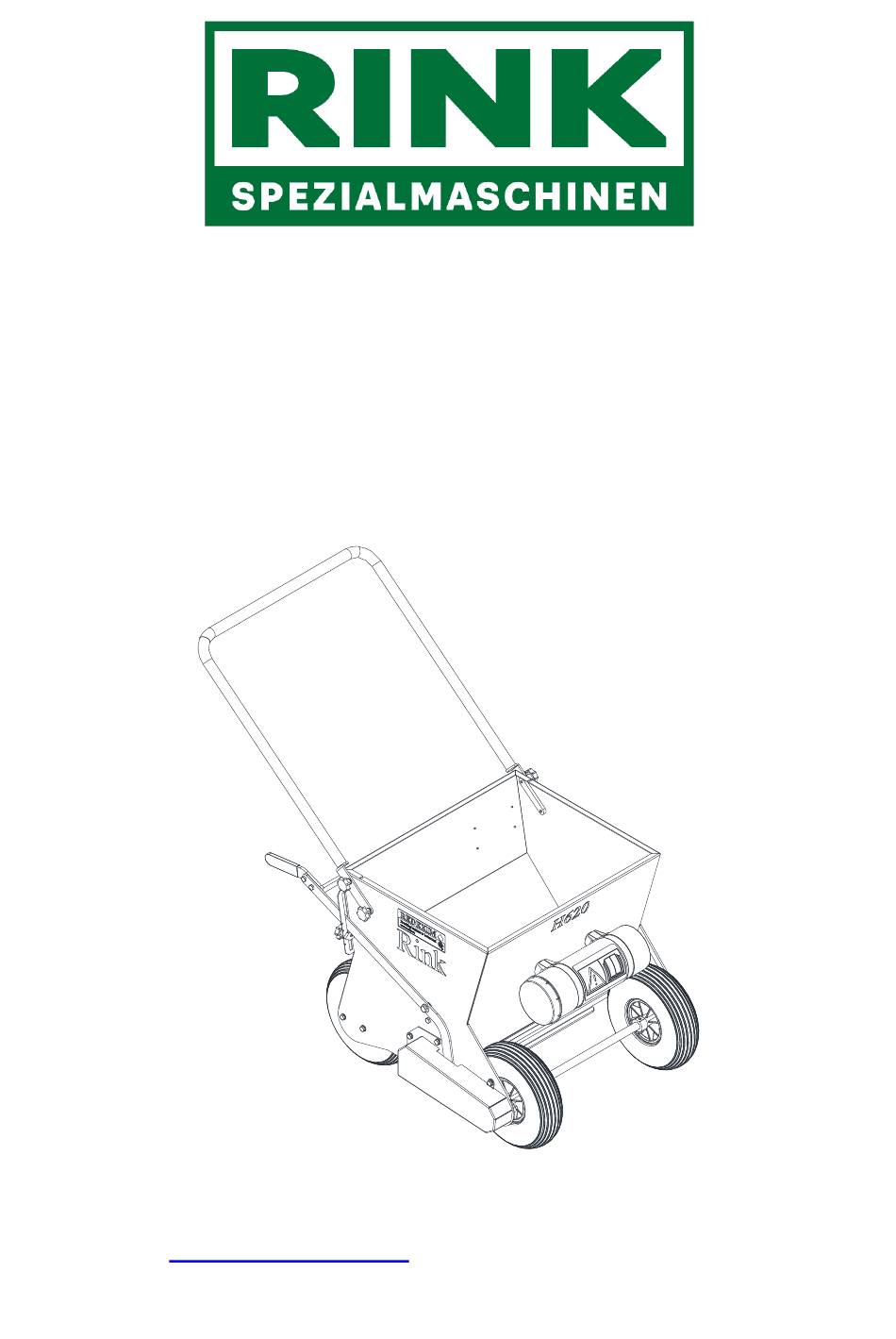

- Page 1 User Manual RINK – Spreader Model H620 RINK Spezialmaschinen GmbH, D-88279 Amtzell Telephone 07520/95690 Fax 07520/956940 www.rink-spezial.de info@rink-spezial.de...
- Page 2 - 2 - H620...
-
Page 3: Table Of Contents
Brush kit (for dry quartz sand and tennis court clay) ................. 12 Setting the scraper and guide plate ....................13 SPARE PARTS ......................14 Address for spare parts orders ......................14 RINK H620 Spreader ......................... 15 Brush kit ............................. 17 Scraper unit ............................18 Subject to technical changes. -
Page 4: Safety Instructions
➢ The RINK H620 Spreader is built according to state-of-the-art engineering practice and is safe to operate; however, the RINK H620 Spreader may pose a risk to life and limb of the user and other persons if it is not used, maintained and repaired by persons who are familiar with it and have been informed of the dangers. -
Page 5: Brief Description
BRIEF DESCRIPTION The RINK H620 Spreader is used for spreading fine-grained, loose materials such as sand, gravel, granulate or similar. The spreading device in the RINK H620 Spreader is chain- driven. The spreading depth/spreading quantity is set with a mechanical slide. This allows precise metering of the spreading material. -
Page 6: Preparing For First Use
PREPARING FOR FIRST USE Remove the RINK H620 Spreader from the box. Fit the push bar (1) to the hopper with star knob nuts (2) and washers (3). Depending on the arrangement of the star knobs, the push bar can be adjusted to the desired working height. -
Page 7: Operation
OPERATION Before each use Inspect the RINK H620 Spreader for externally visible damage and rectify any damage. Check the tire pressures. Loading Comply with the desired maximum ground pressure. Comply with the permissible maximum gross weight when loading. Operating elements... -
Page 8: Spreading
(1). The slide is completely open when the handle is in the lowest position; in the upper position, the slide is closed. The desired slide position can be set with the position indicator (2). Fig. 3: Setting the spreading depth - 8 - H620... -
Page 9: Care And Maintenance
CARE and MAINTENANCE General instructions Check the RINK H620 Spreader for defective parts at regular intervals. Lubricate the bearings and chain with multi-purpose grease (every 50 operating hours) To lubricate the bearings (4) and the chain (6), remove the protective cover (1) by loosening the screws (2). -
Page 10: Dismantling The Spreader Roller
Loosen the bearing set screws (6) on both sides of the spreader roller. Remove the side cover (7) by loosening the screws (8). Remove the spreader roller (9). Perform the procedure in reverse to install. Fig. 5: Dismantling the spreader roller - 10 - H620... -
Page 11: Troubleshooting
(see page 8) Spreading depth too Too little material is transported Increase the slide opening thin (see page 8) Spreading depth too Too much material is transported Reduce the slide opening thick (see page 8) Fig. 6: Troubleshooting H620 - 11 -... -
Page 12: Special Equipment
Brush kit (for dry quartz sand and tennis court clay) With the brush roller installed, the RINK H620 Spreader can be used to spread dry quartz sand and tennis court clay. To fit the brush roller instead of the spreader roller, proceed as follows: Remove the spreader roller and fit the brush roller in its place (1). -
Page 13: Setting The Scraper And Guide Plate
Spreading with a brush roller is only possible when the guide plate (3) is in place. This channels the spreading material to the brush roller. Dismantling the guide plate leads to clogging of the brush roller! Fig. 8: Adjusting the scraper H620 - 13 -... -
Page 14: Spare Parts
SPARE PARTS RINK H620 Spreader Address for spare parts orders Rink Spezialmaschinen GmbH Alfons-Stübe-Weg 4 D-88279 Amtzell Telephone (07520) 95690 Fax (07520) 956940 Email: info@rink-spezial.de Ordering spare parts To ensure fast processing of your spare parts order, you must provide the following... -
Page 15: Rink H620 Spreader
RINK H620 Spreader Fig. 9: RINK H620 Spreader H620 - 15 -... - Page 16 Spare parts list for the RINK H620 Spreader Part Order number Description Notes Quantity 16857 Hopper unit 16884 Slide unit 16864 Spreader roller unit 16867 Coupling 16865 Threaded coupling 16858 Side cover 16880 Threaded clamping plate 16887 Slide handle 16879...
-
Page 17: Brush Kit
Brush kit Fig. 10: Brush kit Spare parts list for the RINK brush kit Part Order number Description Notes Quantity 16895 Brush roller 16892 Guide plate 16891 Scraper unit 11041 Star knob nut M8x20 10550 Washer Ø8 10134 Spring washer... -
Page 18: Scraper Unit
Scraper unit Fig. 11: Scraper unit Spare parts list for the RINK scraper unit Part Order number Description Notes Quantity 16888 Fixing bar for rubber 16889 Fixing bar for rubber 16890 Rubber scraper 10219 Blind rivet 5x16 10357 Carriage bolt M6x20...
