SPLIT & MULT BUILD GUIDE AND MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPLIT and is the answer not in the manual?

Questions and answers

Related Manuals for AXiS MODULAR SPLIT

Summary of Contents for AXiS MODULAR SPLIT

  • Page 1 SPLIT & MULT BUILD GUIDE AND MANUAL...

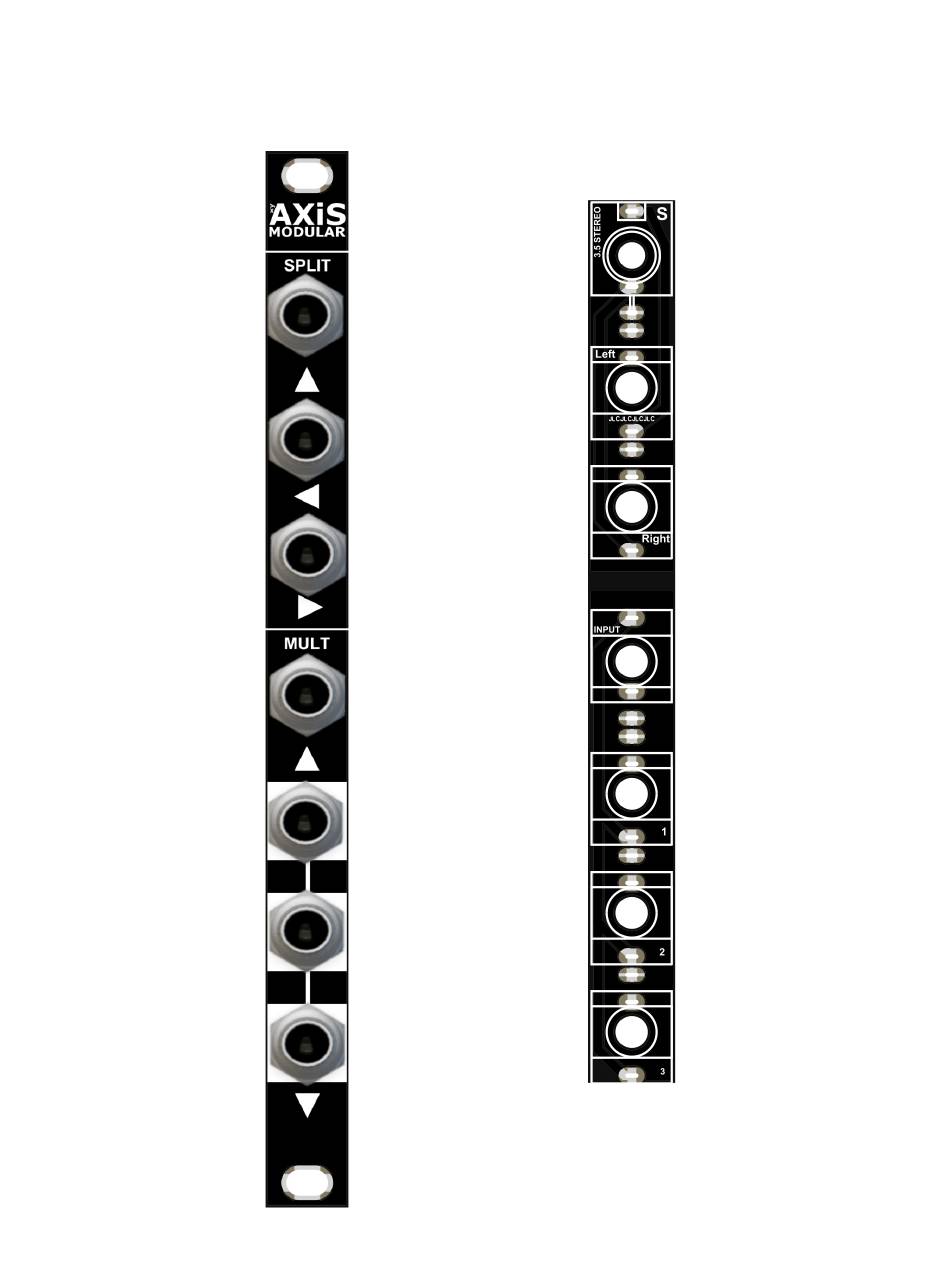

  • Page 2 Hello fellow DIYer! Thank you for purchasing the SPLiT & MULT D.I.Y. kit. This is a simple useful passive module for your Eurorack system. The module once built contains two separate sections. Top half is a stereo splitter which allows you to either input stereo devices into your eurorack or vice versa.
  • Page 3 Bill Of Materials PART DESIGNATOR 1 x Stereo Thonkiconn (Green)
  • Page 4 6 x Mono Thonkiconn (Black) Left, Right, Input, 1, 2, 3 7 x Nuts 1 x SPLIT & MULT Front Panel 1 x SPLIT & MULT pcb BUILD PROCESS First, grab the green stereo jack and the PCB. Place the Jacks where the silkscreen...
  • Page 5 Then grab one mono black jack socket and insert where it says INPUT just below the right channel silkscreen.
  • Page 6 Next, grab the front panel and place over and onto the jacks and finger tighten the two round knurled nuts. Remember to keep hold of the panel and PCB(or use an elastic band or masking tape wrapped around to hold them in position). Note: Make sure the jacks are in the correct position when in the panel as shown.
  • Page 7 Now, turn over the panel and PCB and solder the jacks into place. Tip: Solder one leg first and make sure the jack is straight before soldering the other two. If it needs adjusting then simply reheat the leg and carefully straighten the jack before attempting the other connections.
  • Page 8 Make sure the jacks are straight and sitting nicely and that the panel is laying flat, turn over and solder all of the mono jacks in place.
  • Page 9 Once soldering is done you can either trim the legs of the jacks or keep them as is(they don’t stick out too far). Check all your solder joints for any bridging or cracks and reflow as needed, then clean the PCB using a Flux cleaner. Now you should be good to go!
  • Page 10 2 HP utility?? Here are some ideas and uses: ● Plug in an iPad/iPhone and split out left and right channels to route into your system. You’ll probably need to boost the signal on each channel after. How about using the 2XiNPUT module for this job?? ●...
  • Page 11 < Stereo input/output < Left output/input < Right output/input < Input/output < Output 1/input < Output 2/input <Output 3/input...

  • Page 12: Tech Specs

    TECH SPECS Width: 2HP 100% authentic analogue. Module Depth: Teeny Power consumption: Zero High quality parts sourced from UK suppliers excluding PCB’s. Panel and PCB: FR4 Lead Free Packaging recyclable where possible. SPLIT & MULT Manual v1.0 May 2024...

This manual is also suitable for:

Mult
