- Page 1 SPLiT BUILD GUIDE AND MANUAL...
- Page 2 Hello fellow DIYer! Thank you for purchasing a SPLiT kit. This is a simple yet useful passive DIY module for your Eurorack system. It allows you to either input your small external devices such as iPhones, Korg NTS-1, Pocket Operators with your system easily or output...
- Page 3 Bill Of Materials PART DESIGNATOR 2 x Stereo Thonkiconn (Green)

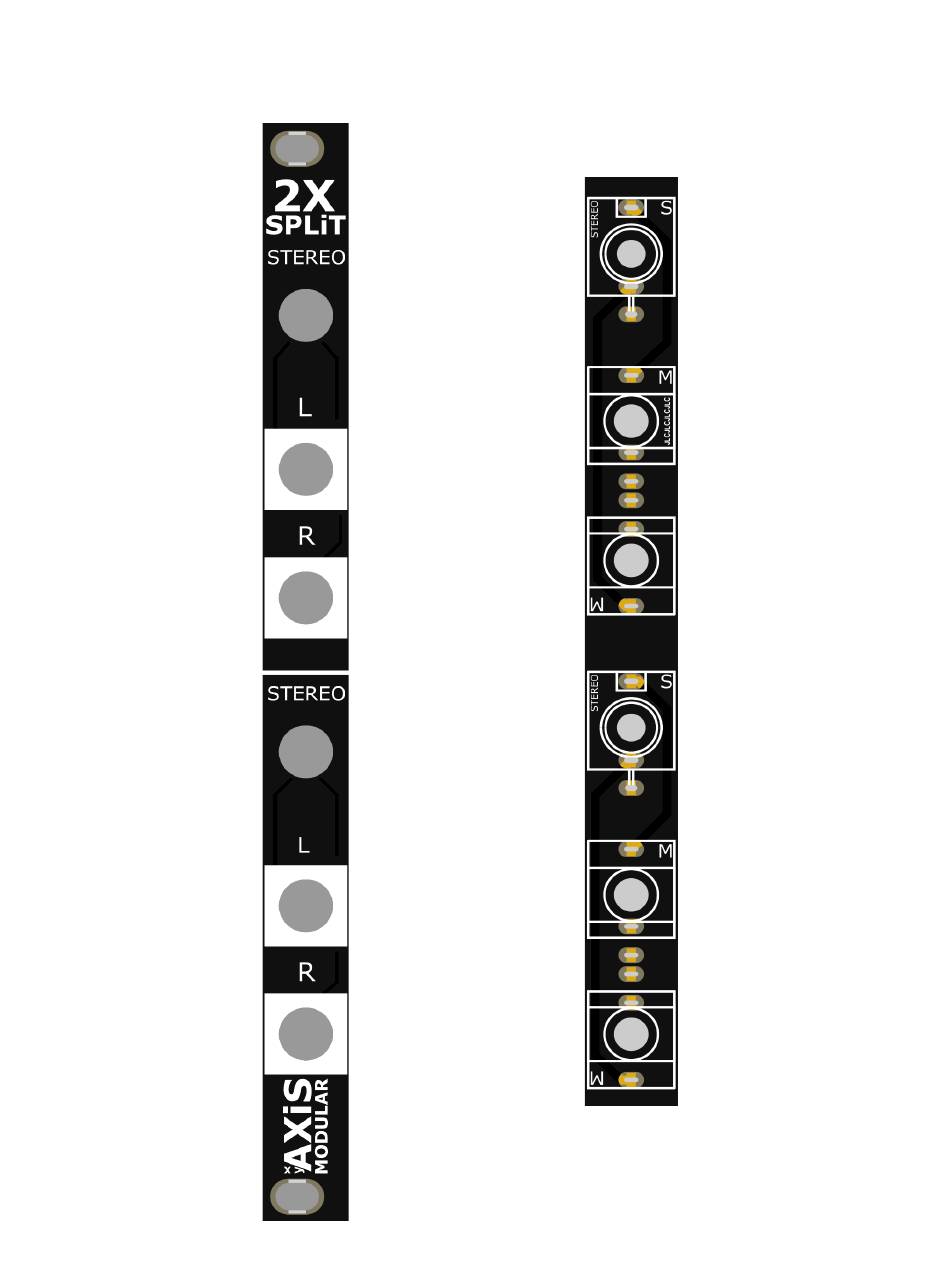

- Page 4 4 x Mono Thonkiconn (Black) 6 x Nuts (2 knurled and 4 hex) 1 x SPLiT Front Panel 1 x SPLiT PCB BUILD PROCESS First, grab the 2 x green stereo jacks and the PCB. Place each of the Jacks where...
- Page 5 Next, grab the front panel and place over and onto the jacks and finger tighten the two round knurled nuts. Remember to keep hold of the panel and PCB(or use an elastic band or masking tape wrapped around to hold them in position).
- Page 6 Note: Make sure the stereo jacks are in the correct position when in the panel as shown. Now, turn over the panel and PCB and solder the jacks into place. Tip: Solder one leg first and make sure the jack is straight before soldering the other two. If it needs adjusting then simply reheat the leg and carefully straighten the jack before attempting the other connections.
- Page 7 Now that the two stereo jacks are done, untighten the nuts and remove the front panel. Place the mono jack sockets onto the PCB and place them onto the PCB where the silkscreen displays ‘M’ Note: Each pair of jacks ground legs(the sticky out ones) face each other and do not worry if you accidentally bridge these when you solder them.
- Page 8 Make sure the jacks are straight and sitting nicely and that the panel is laying flat, turn over and solder all the mono jacks in place. Once soldering is done you can either trim the legs of the jacks or keep them as is(they don’t stick out too far).
- Page 9 2 HP utility?? Here are some ideas and uses: ● Plug in an iPad/iPhone and split out left and right channels to route into your system. You’ll probably need to boost the signal on each channel after. How about using the 2XiNPUT module for this job?? ●...
- Page 10 ● I’m sure there are many other uses that I haven’t thought of yet, can you think of any?? < Stereo input/output < Left output/input < Right output/input < Stereo input/output < Left output/input < Right output/input...
-
Page 11: Tech Specs
TECH SPECS Width: 2HP Module Depth: Teeny Power consumption: Zero High quality parts sourced from UK suppliers excluding PCB’s. Panel and PCB: Lead Free Packaging recyclable where possible.
