ELCOM RED111Y Customer's Operating And Assembly Instructions

Operating and
assembly instructions
28VDC In PE
RED111Y
Data
Power
B1
0
on
B2
off
B3
S-Addr. Termination Backbone Backbone
Cam Audio Out Mon
X/X a/b T/T L/L S/S X/X
RED111Y
Line coupler RMD 2-wire
Safety instructions
Electrical equipment may only be installed and
assembled by a qualified electrician in accord-
ance with the relevant installation standards,
guidelines, regulations, directives, safety and
accident prevention regulations of the country.
When installing and laying cables, always com-
ply with the applicable regulations and stand-
ards for SELV electrical circuits.
Failure to comply with these instructions may
result in damage to the device, fire or other
hazards.
These instructions are an integral component
of the product and must be retained by the end
user.
1 Elcom Kommunikation GmbH - Gottfried-Leibniz-Str.1 - D-74172 Neckarsulm - www.elcom.de -

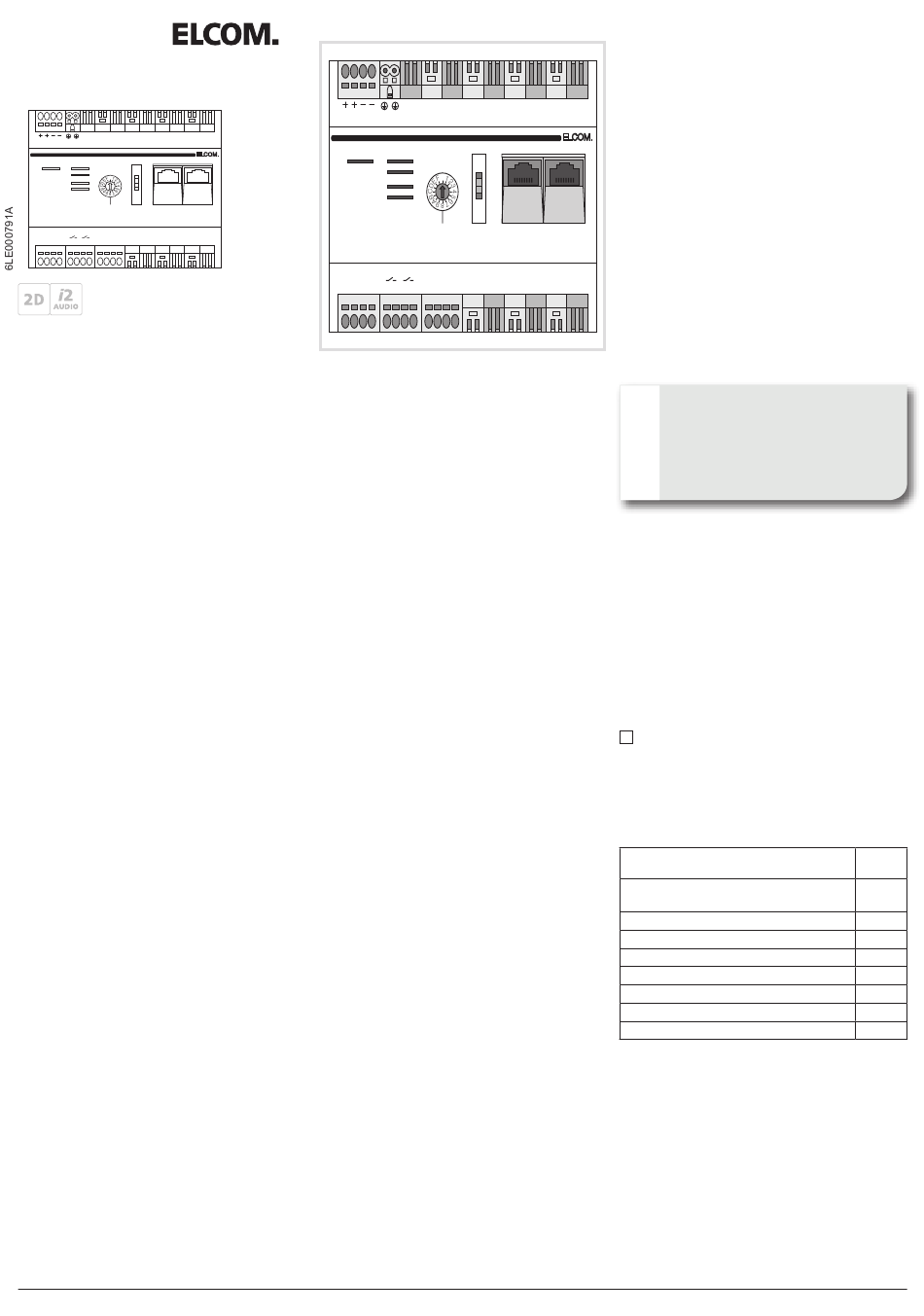

Design and layout of the device
(2) (1)
§
28VDC In PE
RED111Y
(3) (10)
Data
Power
B1
(11)
B2
B3
(12) (13)
Cam Audio
X/X a/b T/T L/L
(4) (5) (6) (7) (8)
Figure 1: Design and layout of the device
(1) PE connection for floating output
(2) Operating voltage connection 28 VDC In
(3) Operating/overload LED Power
(4) 2-wire video bus Cam X/X for connecting
video door stations
(5) i2 Audio a/b for connect e.g. audio door sta-
tions, bus switching relay, PBX interface
(6) Door release contact T/T (max. 24 V/1 A)
(7) Light sensor contact L/L (max. 24 V/1 A)
(8) Additional power supply Out S/S
(9) 2-wire bus Mon X/X for connection for indoor
stations video, indoor stations audio and floor
door stations
(10) Data-LED - data traffic in the coupler line
(11) B1, B2 and/or B3 LED - display of the back-
bone status
(12) S-Addr. Rotary switch for setting the
line address
(13) Switchable backbone terminator
(14) Backbone connections with RJ45 jacks
Function
Couplers connect single lines to a larger system
via the backbone line if necessary. Dropped calls
are minimized thanks to a well-planned coupler
structure.
Correct use
- Couplers for audio and/or video systems
- Mounting on DIN rail according to DIN EN
60715
- Not compatible with intercom systems of other
manufacturers
- Only suitable for use in indoor areas with no
drip and no spray water
Product characteristics
- Connect from up to 3 connections simultane-
ously
- Integrated video signal amplifier (0 ... 20 dB)
- Light sensor contact L/L for external compo-
nents
- Contact for manipulation protected door release
- Switchable backbone terminator
- Overload protection
- All connections with plug-in terminals
- Systems with up to 64 couplers, 150 main door
stations and 256 indoor stations (video and au-
dio) possible
ELCOM.
0
on
off
S-Addr. Termination Backbone Backbone
Out Mon
S/S X/X
(9)
Operational status displays
The LEDs on the front of the coupler display the
current operating status:
Operation/overload LED Power (3)
OFF The device is not ready for operation.
There is no operating voltage present.
GREEN The device is ready for operation.
RED The device is overloaded.
Data traffic LED Data (10)
Data traffic in the coupler line
RED
Backbone LED B1, B2 and B3 (11)
Flashing Video transmission via the displayed
backbone.
green
GREEN Video and/or audio transmission in the
displayed backbone wire pair.
Information for electricians
Installation and electrical connection
CAUTION!
ç
Risk of destruction of the device
Fault voltages can occur when work-
ing under live voltages.
Isolate from voltage before connect-
ing the installation environment.
When installing door communication systems,
comply with the general safety regulations for tele-
communications systems according to VDE 0800:
- Separate routing of power and door communi-
cation cables according to VDE 0800
- Partitions between power and door communica-
tion cables in shared trunkings
- Use of standard telecommunications' cables,
e.g. J-Y (St) Y with 0.8 mm diameter
Installing the device
„ Clip device onto DIN rail in accordance with
DIN EN 60715. The operating voltage
connection (2) must be at top.
The device will heat up during operation. Ob-
i
serve maximum operating temperature. Ensure
that adequate heat dissipation is provided.
Connecting the device
The following devices are suitable only from the
specified version for operation on the coupler.
Gerät
BTC-500 Built-in camera/door loud-
speaker
CCS-500 Stainless steel outdoor camera V1011
BVF-500 Video doorphone
BVF-510 Video doorphone
BVF-540 Video doorphone komfort
BVF-560 Video doorphone
BFT-510 Doorphone
BFT-540 Doorphone komfort
6LE000791A - 08/2015
Ab Ver-
sion
V2412
V1113
V2012
V2012
V1113
V2012
V2012
