PUSR USR-W630s User Manual

Wi-fi serial device server
Hide thumbs

Advertisement

Quick Links

Download this manual

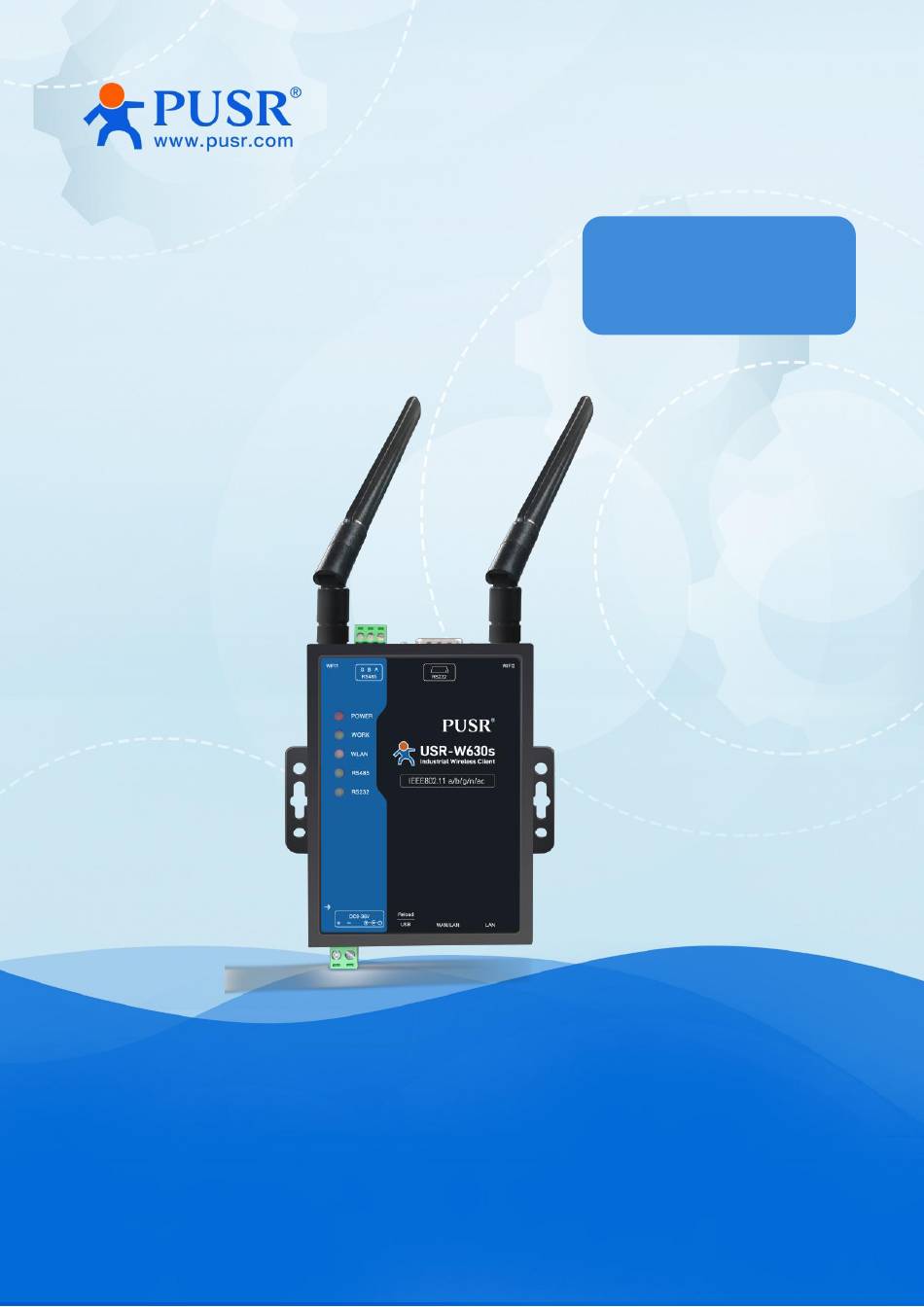

USR-W630s User Manual
Wi-Fi Serial Device Server
User Manual
(Cost effective)
USR-W630s
V2.0
Be Honest & Do Best
Your Trustworthy Smart Industrial IoT Partner
pusr.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the USR-W630s and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PUSR USR-W630s

Summary of Contents for PUSR USR-W630s

  • Page 1 USR-W630s User Manual  Wi-Fi Serial Device Server User Manual (Cost effective) USR-W630s V2.0 Be Honest & Do Best Your Trustworthy Smart Industrial IoT Partner pusr.com...

  • Page 2: Table Of Contents

    USR-W630s User Manual Content 1. Introduction ..............................- 4 - 1.1. Features ..............................- 4 - 2. Get Started ...............................- 5 - 2.1. Login router ............................- 5 - 2.2. Brief introduction of the webpage ......................- 6 - 3. Status & System ............................... - 6 - 3.1.
  • Page 3 USR-W630s User Manual 5. Serial device server function ..........................- 20 - 5.1. Serial port settings ..........................- 20 - 5.1.1. Time triggered mode ........................- 21 - 5.1.2. Length trigger mode ........................- 21 - 5.2. Communication settings (TCP/UDP socket) ..................- 22 - 5.2.1.

  • Page 4: Introduction

    USR-W630s User Manual 1. Introduction USR-W630s is a WIFI5 industrial wireless client with high speed, wide connection, low latency and high stability. It can carry more than 8 WIFI clients in AP mode. It has rich hardware interfaces: 1*RS232, 1*RS485, Ethernet port (1LAN+1WAN/LAN), WiFi antenna, supports AP/AP+STA/bridging mode, and can provide stable and reliable networking solution for different scenarios and different industries.

  • Page 5: Get Started

    2. Get Started 2.1. Login web page Power on the USR-W630s device，connect PC to USR-W630s via LAN port or via Wi-Fi, users can login router via Chrome or the other browser. The default network parameters are shown in the following table: Table 1.

  • Page 6: Brief Introduction Of The Webpage

    USR-W630s User Manual 2.2. Brief introduction of the web page On the left side of the web page is a tab page where you can specifically set some parameters of the module. Status: Mainly displays the device’s name information, firmware version, routing table, running status, serial port communication status, etc.;...

  • Page 7: Reboot Timer

    The page setup is as follows. Figure 4. Restart Schedule Settings 3.4. HTTP port USR-W630s can set the login web port number to prevent non-operation and maintenance personnel from easily logging into the wireless client for configuration. pusr.com - 7 -...

  • Page 8: Ntp

    USR-W630s User Manual Figure 5. HTTP Port settings 3.5. NTP Time synchronization: The local time can be synchronized through "Sync Browser Time" and the default time zone of the wireless client can be set. NTP calibration: The wireless client can perform network time adjustment, and the NTP client function is enabled by default.

  • Page 9: Parameters Backup/Firmware Upgrade

    Logs (kernel, application) support instant viewing, clearing, and log file export. Figure 8. Local Log 3.7. Parameters backup/firmware upgrade Parameter backup: Click the "Download Backup" button to back up the current parameter file as a compressed package file, such as backup- USR-W630s-2022-04-20.tar.gz, and save it locally. pusr.com - 9 -...

  • Page 10: Network Introduction

    Note: The configuration file of USR-W630s must be imported, otherwise configuration confusion may occur; Try to import and configure the same version of firmware. Large version differences may cause configuration confusion.

  • Page 11: Dhcp Client

    USR-W630s User Manual 1 wired WAN port, 1 wireless WAN port, the WAN port is the wide area network interface; Support DHCP client, static IP, PPPOE mode (only wired WAN port); Default DHCP client; The WAN port IP cannot be in the same network segment as the LAN port IP;...

  • Page 12: Pppoe

    USR-W630s User Manual Figure 12. Static IP settings 4.1.3. PPPoE Only wired WAN can be set, which needs to be filled in according to the correct user name and password given by the operator. Figure 13. PPPoE settings 4.2. LAN interface The LAN port is a local area network.

  • Page 13: General Setup

    USR-W630s User Manual Figure 14. LAN Interface settings Note: 1 LAN port, 1 WAN/LAN configurable; The default static IP address is 192.168.1.1, and the subnet mask is 255.255.255.0. This parameter can be modified, for example, the static IP is modified to 192.168.2.1;...

  • Page 14: Network Switch (Network Priority)

    USR-W630s User Manual network devices connected to the LAN port can automatically obtain IP addresses. Figure 16. DHCP Server settings Note: You can adjust the starting address of the DHCP pool and the address lease time; DHCP default allocation range starts from 192.168.1.100;...

  • Page 15: Wireless Ap

    USR-W630s User Manual Disable: Disable the network switching function and use the current Internet access method to access the Internet. Reference Mode Custom: Determine network status based on custom Custom reference address, Gateway: Refer to the gateway to determine network status...

  • Page 16: Client Information

    USR-W630s User Manual Figure 18. Wi-Fi settings Table 3. Wi-Fi settings Items Description Default Enable To choose whether to enable the Wi-Fi function. Enable Hide SSID To choose whether to hide the SSID. Disable If the SSID is hidden, the user cannot search for the Wi-Fi name on the mobile phone or PC.

  • Page 17: Wwan Settings (Sta Mode)

    USR-W630s User Manual Figure 19. Client Information 4.5. WWAN settings (STA mode) 2.4G or 5.8G wifi client function can be turned on. Figure 20. Wi-Fi Client Settings 4.5.1. 2.4G/5.8G STA configuration Figure 21. STA Settings pusr.com - 17 -...

  • Page 18: Ap Information

    AP to be connected; Only one of 2.4G and 5.8G STA can be enabled. 4.5.2. AP information If the USR-W630s connect to upper-level Wi-Fi successfully, the information will be displayed in this page. Figure 22. AP Information 4.6. DHCP function Static address assignment: Set at Network-DHCP.

  • Page 19: Wan/Lan Switching

    USR-W630s User Manual Note: Up to 100 rules can be added. Figure 23. DHCP Settings 4.7. WAN/LAN switching Figure 24. WAN/LAN Switching 4.8. Network diagnostics Illustrate: Online diagnostic functions, including Ping tool, routing analysis tool, and DNS viewing tool; Ping is a Ping tool that can perform a ping test on a specific address directly on the wireless client;...

  • Page 20: Serial Device Server Function

    Figure 25. Network Diagnose 5. Serial device server function USR-W630s is equipped with RS232/RS485, supports TCP, UDP, MODBUS, MQTT, HTTPD and other network protocols, and supports heartbeat packets, registration packets, AT command and other special functions. 5.1. Serial port settings In this interface, you can set the baud rate, data bits and other parameters of the serial port.

  • Page 21: Time Triggered Mode

    When W630s receives data from UART, it will continuously check the number of bytes received. A frame is considered complete if the number of bytes received reaches a certain "length threshold". USR-W630s sends this frame data to the network as a TCP or UDP packet. The "length threshold" here is the packaging length. The settable range is 5~1500 bytes.

  • Page 22: Communication Settings (Tcp/Udp Socket)

    USR-W630s User Manual 5.2. Communication settings (TCP/UDP socket) In this interface you can set the parameters of DTU. Figure 27. DTU settings Table 6. Detail parameters of DTU Items Description Default Name Set the name of this link. Null Protocol...
  • Page 23 USR-W630s User Manual Figure 28. TCP Client Table 7. Detail parameters of TCP client Items Description Default Enable Whether this link is enabled, ON (enabled)/OFF (disabled ). Name Set the name of this link. TCPC_X Description Set the remark information of this link.

  • Page 24: Tcps Mode(Tcp Server)

    USR-W630s User Manual Bind COM1-485: Data is transmitted by RS485 only. COM1-485 COM2-232: Data is transmitted by RS485 only. COM1+COM2：Data is transmitted by RS485 and RS232 both. The version can be TLS1.0 or TLS1.2. TLS Authentication NO AUTH: No certificate verification is required.
  • Page 25 USR-W630s User Manual Figure 30. TCP server parameters settings page Table 8. Detail parameters of TCP server Items Description Default Enable Whether this link is enabled, ON (enabled)/OFF (disabled ). Name Set the name of this link. TCPS_X Description Set the remark information of this link.

  • Page 26: Udpc Mode(Udp Client Mode)

    USR-W630s User Manual handling Discard New Data: When the storage space is used up, no new data will be stored. Caching Method Length Limit: Length Limit Package Quantity Limit: 5.2.3. UDPC Mode(UDP Client Mode) Select UDPC mode. Figure 31. Serial port parameters Figure 32.

  • Page 27: Udps Mode(Udp Server)

    USR-W630s User Manual Heartbeat packet HEX: hexadecimal type, type ASCII: character type. Heartbeat packet Heartbeat packet data content. None data Heartbeat packet The time interval for sending heartbeat packets, unit: seconds. time Registration Packet NONE: turn off the registration packet,...

  • Page 28: Mqtt Mode

    USR-W630s User Manual Figure 33. UDPS settings Table 10. Detail parameters of UDPS Items Description Default Enable Whether this link is enabled, ON (enabled)/OFF (disabled ). Name Set the name of this link. UDPS_X Description Set the remark information of this link.
  • Page 29 USR-W630s User Manual Items Description Default Enable Whether this link is enabled, ON (enabled)/OFF (disabled ). Name Set the name of this link. MQTT_X Description Set the remark information of this link. MQTT_X MQTT Version 3.1.1 or 3.1 3.1.1 Server Address IP or domain name of server.
  • Page 30 USR-W630s User Manual Package Quantity Limit: 5.2.5.2. Subscribe/Publish Topic The topic adding function is mainly used to add publishing or subscribing topics. Configuration parameters include basic parameters such as name, TOPIC, QOS , and whether to retain messages. The function of serial port association is to associate the topic with a certain serial port.
  • Page 31 USR-W630s User Manual 5.2.5.3. AWS Connection Connect to AWS via MQTT. Figure 36. AWS settings Table 12. Detail parameter of AWS Items Description Default Enable Whether this link is enabled. ON (enabled) / OFF (disabled) Name Set the name of this link.
  • Page 32 USR-W630s User Manual Offline Data ON: Offline data will be cached and sent when get online Cache again. OFF: Offline data will be not cached. Data Overflow Discard old Data: Store the latest data. Discard old Data handling Discard New Data: When the storage space is used up, no new data will be stored.

  • Page 33: Httpd Mode(Http Client)

    USR-W630s User Manual 5.2.6. HTTPD Mode(HTTP client) Figure 38. HTTP client settings Items Description Default Enable Whether this link is enabled, ON (enabled)/OFF (disabled ). Name Set the name of this link. HTTPD_X Description Set the remark information of this link.

  • Page 34: Heartbeat / Registration Package

    USR-W630s User Manual NO AUTH: No certificate verification is required. NO AUTH Authentication Server: Only the server certificate is verified. BOTH: Both client and server certificates need to be validated. 5.2.7. Heartbeat / Registration package 5.2.7.1. Registration Packet Description Registration Packet: It is used to enable the server to identify the source device of the data or as a password to obtain server function authorization.
  • Page 35 USR-W630s User Manual Figure 39. Items Description Default Network AT Whether to enable network AT commands. ON: enabled / OFF: Instruction disabled AT Data Header Password for network AT commands atnetcmd# Serial Heart ON: enable sending heartbeat packets to the serial port...

  • Page 36: Service Function

    Someone's Cloud platform. The USR-W630s default disables PUSR Cloud service function. The interface can be configured to report parameters such as traffic statistics, network status, and heartbeat packets. It also supports data reporting to private deployments.

  • Page 37: Ddns

    USR-W630s User Manual 6.2. DDNS DDNS (Dynamic Domain Name Server) is a service that maps a user's dynamic IP address to a fixed domain name resolution service. Each time a user connects to the network, the client program sends the dynamic IP address of the host to the server program located on the service provider's host through information transmission.

  • Page 38: User Defined Dns Service

    USR-W630s User Manual Domain Name DDNS applied domain name NULL Sync Time Unit: s Interval to detect IP address changes 6.2.2. User Defined DNS Service Figure 42. User defined DNS settings Items Description Default Enable Check to enable DDNS functionality...

  • Page 39: Snmpd

    6.3. SNMPD The USR-W630s device is equipped with SNMP (Simple Network Management Protocol) service, which allows you to remotely view device information, modify device parameters, and monitor device status using the SNMP protocol. It eliminates the need to be physically present on-site for monitoring and configuring the device. This device supports SNMP versions V2C and V3.

  • Page 40: Contact Us

    USR-W630s User Manual sysLocation Location of this device JiNan sysContact Person to contact for this device www.pusr.com sysName Name of this device Smart_Router 7. Contact Us Jinan USR IOT Technology Limited Address : Floor 12 and 13, CEIBS Alumni Industrial Building, No. 3 Road of Maolingshan, Lixia District, Jinan, Shandong, China Official website: https://www.pusr.com...
