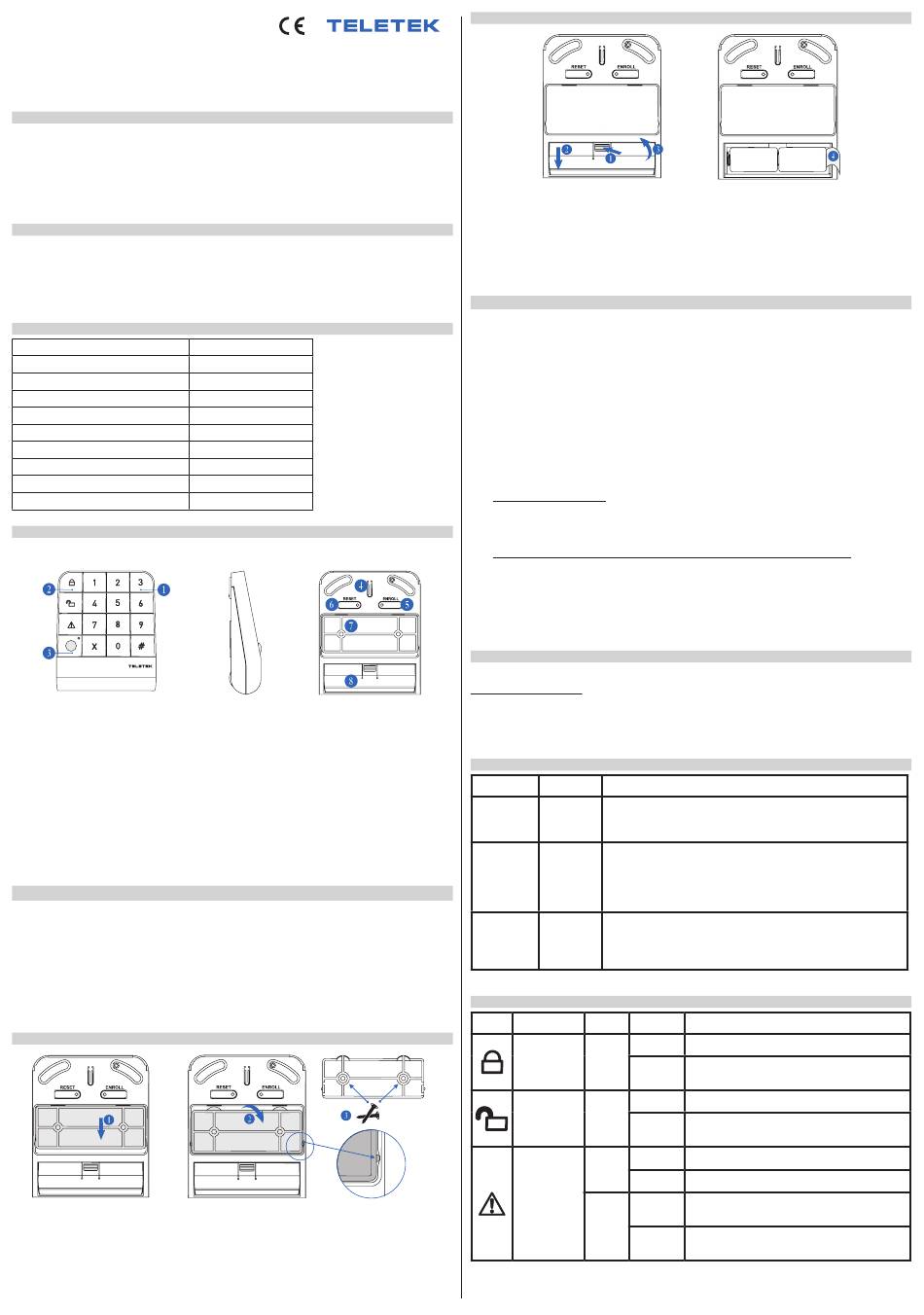

PAX KBD
Wireless Control Keyboard
Installation and Operation User Manual
Attention! This manual contains information on limitations regarding product use and function and
information on the limitations as to liability of the manufacturer. The entire manual should be carefully
read!
General Description
PAX KBD is a wireless control LED keyboard for operation with BRAVO Next and Eclipse
series control panels. The operation with Eclipse control panels is via PAX WL Expander
module. The keyboard is equipped with a wide-angle detection dual sensor for automatic
activation of the buttons' backlight in case of movement in front of it. The built-in light
sensor detects the amount of ambient light in the room and controls the keyboard
backlight activation for improving the battery life and conserve more energy.
Functional Features
• Arming in Full or Partial (Stay or Sleep) Arming Mode and Disarming of the system
• LEDs for system status – armed, disarmed, technical trouble, memory events
• Supports operation with up to 6 User codes, 1 Manager and 1 Engineer code
• Built-in sensors for buttons' backlight activation and ambient light
• Wall mounting bracket
Technical Characteristics
Battery (type CR123A)*
Battery life
Operation frequency
Communication type
Communication protocol
Radio distance (open space)
Indication type
Working temperature
Dimensions
Weight (including batteries)
PAX KBD Elements
Front view
1 - Operation buttons:
0-9
- Digit buttons for entering of user codes, address numbers, values
#
-
Enter into keyboard programming menus; confirmation of entered codes or values
X
-
Cancel operations; step back in programming menus; exit from programming menus
2 - System status buttons and indication - see on the next page
3 - Built-in sensors for buttons backlight activation and ambient light
4 - Tamper switch
5 - ENROLL Button
6 - RESET Button
7 - Mounting bracket
8 - Battery compartment
Installation Instruction
IMPORTANT NOTES: The PAX KBD wireless keyboard should be installed in a minimum
distance of at least 2 meters far from other sources of radio signals (power lines, Wi-Fi
or Bluetooth routers, wireless phone stations, etc.). The minimum distance between the
BRAVO Next panel/PAX Expander module and enrolled PAX KBD keyboard must be at
least 1 meter to guarantee the proper operation of the system.
You should consider also that the presence of electromagnetic disturbances may
trigger the near field sensor of PAX KBD and to turn on the background lights of
the device!
Mounting Bracket
1 - Slide down the mounting bracket to unlock the side pins.
2 - Pull up the bracket outside the rear back cover.
3 - Use the suitable screws, according the mounting surface, to mount the bracket on the
place of installation. The manufacture recommends using flat head screws 3.5x30mm.
4 - When the enrollment of the keyboard is finished, place it to the bracket as first match
the side pins into the holes and then pull down to lock.
Address: 2 Iliyansko shose Str,
1220 Sofia, Bulgaria
2 х 3 V/ 1500mAh
~1.5 years
* ATTENTION:
~868 MHz
Use only Panasonic
Two-way batteries approved by
the manufacturer, type
Beacon+
CR123A 3V/ 1500mAh!
Up to 1500m
Use only IEC 60086-4
tested batteries!
LED
-20°C - +55°C
102 x 84 x 25 mm
~140g
Side view Rear view
Batteries Compartment
1 - Press slightly the clip of the batteries compartment.
2 - Move the cover of the compartment downwards.
3 - Pull up the cover to open the compartment.
4 - Pull up the protective folio of the batteries to power up the keyboard and to start
enrollment to the system configuration.
5 - Close the batteries compartment.
Enrollment of PAX KBD to Control Panel
(You should also refer to BRAVO Next and PAX WL Expander module full
installation and operation manuals for more details.)
Important: BRAVO Next panel supports operation with only one PAX KBD!
In Eclipse hybrid system with PAX Expander module, the number of supported PAX KBD
keyboards depends on the type of the control panel.
Note: For already used PAX KBD, first perform RESET procedure!
• Enter in Device Programming menu of the used control panel.
• Select a free wireless device number.
• Initiate enrollment procedure – the panel starts searching for wireless devices in its
range.
• Enroll the keyboard as:
If the PAX KBD is new: Open the batteries compartment and remove the protection
folio – the green LED blinks twice accompanied with two sound signals, and after
that the enrollment procedure starts automatically. If the automatic enrollment is
failed, press the ENROLL button to initiate the process again.
If the PAX KBD has been already used - reset procedure has been done: Press the
ENROLL button on the back side – the operation red LED will blink fast for a while
and after that the enrollment procedure starts automatically.
• The keyboard will confirm the successful enrollment with three short beeps and blinking
of the icon for disarming in green.
• After exit from Device Programming menu, the keyboard is ready to use.
Resetting of PAX KBD
The resetting of a device is restoring of its default factory settings.
To reset the PAX KBD: With batteries on, press the "RESET" button on rear cover for
at least 7 seconds until you see 3 green blinks from the icon for disarming. The system
status indicators are blinking one-by-one in series – the keyboard in not enrolled to the
system.
Access Codes for Programming and Management
Type Code Functions
Engineer 7777 - Direct entry into "Device enrollment" mode.
(default) - Changing own code.
- Keyboard settings.
Manager 0000 - Arming/Disarming the system.
(default) - Setting, changing and deleting user access codes.
- Changing own code.
- Keyboard settings.
- Clearing the memory event indication.
User - - Arming/Disarming the system.
(1-6) - Changing own code.
- Keyboard settings.
- Clearing the memory event indication.
LED Indication for System Status
Icon Description Color State
Lights on System is Armed
Arming
Red
button
Blinking
Lights on System is Disarmed
Disarming
Green
button
Blinking
Lights on System is disarmed, trouble event presence
Yellow
Warning
Blinking
indicator
for troubles
Lights on
and memory
events*
Red
Blinking
*Note: In case of presence of a technical trouble and a memory event at the same time, the indication
for memory event is with higher priority.
3V 3V
+ - + -
(CR123A) (CR123A)
Description
- Enrolling to panel
- Entry in programming mode
- Confirmation for enrollment
- Entry at address in programming mode
Selected device (from the panel)
System is armed/disarmed, memory event
presence
Disabled value in programming mode; set
user code at address
