Riverside Furniture 50570 Quick Start Manual

email: info@riverside-furniture.com
Warning :
- Be sure to check all packing material carefully for small parts, which may have come loose inside the carton during shipment.
- To prevent possible scratches and damage, this furniture MUST BE ASSEMBLED BY TWO PEOPLE on a soft surface such as a
blanket or carpet.
Panel Headboard - 50570
H-A
Allen Head Bolt
Ø5/16" - 18 x 1-5⁄8"
2 pcs.
H-E
Panel Footboard - 50571
F-A
50572 - Bed Rails
2 pcs.
R-A

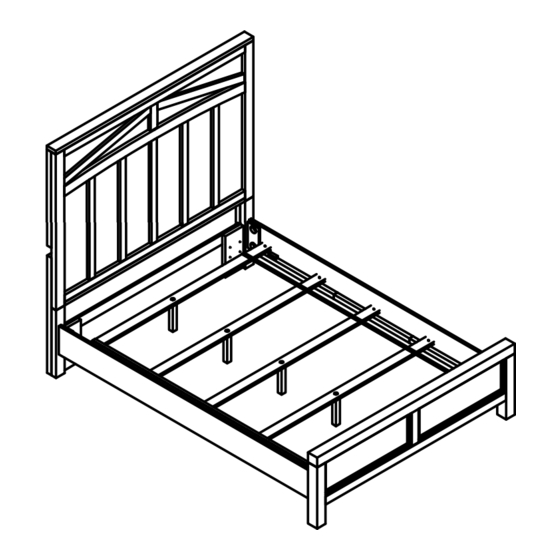

5/0 Queen Panel Bed
50570 -- 5/0 Panel Headboard
50571 -- 5/0 Panel Footboard
50572 -- 5/0-6/6 Side Rails
Assembly Instructions
Hardware and Parts packed with the Headboard
Headboard Post (Left )
H-B
Allen Head Bolt
Ø5/16" - 18 x 2-3⁄8"
10 pcs.
H-F
Hardware and Parts packed with the Footboard
Slats (61-3/16" long)
1 pc.
F-B
Hardware and Parts packed with the Bed Rails
Ø5/16'' Curved Washer
8 pcs.
R-B
Bozeman
Bedroom
Headboard Post ( Right)
1 pc.
H-C
Ø5/16''
Ø5/16'' x Ø19mm
Spring Washer
12 pcs.
H-G
Support leg
(7-7/8''x 1 -1/4'' x 1-1/4'')
5 pcs.
Ø5/16" - 18 x 3-1/8" Long Bolt
Ø5/16" x 17mm Nut
8 pcs.
R-C
Made in Viet Nam
5/0 Queen Panel Bed
Headboard Stretcher
H-D
Allen key
Flat Washer
12 pcs.
H-H
Wood Screw
Ø4 x 30 (mm)
5 pcs.
F-C F-D
12 mm Open Wrench
8 pcs.
R-D R-E
Page 1 of 6
