Crosley CR10 Instruction Manual

WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE. DO NOT REMOVE COVER. PILOT LAMPS SOLDERED IN PLACE. NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
A RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER - SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL
The lighting flash with arrowhead symbol, within an equilateral
triangle, is intended to alert user to the presence of uninsulated
'dangerous voltage' within the products enclosure that may be
of sufficient magnitude to constitute risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended
to alert user to the presence of important operating and
maintenance (servicing) instruction in the literature accompanying
the appliance.
SPECIFICATIONS
FREQUENCY RANGE FM 88-108 MHz
AM 530 - 1710 KHz
POWER CONSUMPTION 10w
POWER SOURCE AC 120V ~ 60Hz
ANTENNAS Built - in line cord antenna for FM
Built-in ferrite bar for AM
SPEAKER 114.3 x 69.8 (4 x2 % ) Oval 8 ohms
* DESIGN AND SPECIFICATION SUBJECT TO CHANGE WITHOUTNOTICE
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
1220 fast Osk See Lute, Kentucky 1o26
ven cradled com
IMPORTANT SAFETY INSTRUCTION
PLEASE READ CAREFULLY ALL THE FOLLOWING IMPORTANT SAFEGUARDS
THAT ARE APPLICABLE TO YOUR EQUIPMENT
1, Read Instructions - All the safety and operating instructions should be read before
the product is operated.
Retain instructions - The safety and operating instructions shouid be retained for
future reference.
Heed Warnings - All warnings on the product and in the operating Instructions
shouldbe adhered to.
Follow Instructions - All operating and use instructions should be followed.
'Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid
Cleaners or aerosol cleaners. Use a damp cioth for cleaning.
Attachments - Do not use attachments not recommended by the product manufacturer
as they may cause hazards.
'Water and Moisture - Do not use this product near water - for example, near a bath
tub, wash bow, kitchen sink, or laundry tub; in a wet basemert, or near a swimming
pool; and the like
A product and cart combination should be moved with care Quick stops, excessive
force, and uneven surfaces may cause the product and cart combination to overturn.
9. Ventilation - Slots and openings in the cabinet are providedfor
ventilation and to ensure reliable operation of the productand
to protect it from overheating, and these openings must not be
blocked or covered, The openings should never be blocked by
Placing the product on a bed, sofa, rug, or other similar surface.
'This product should not be placed in a built - in installation such
as a bookcase orrack unless proper ventilation is provided or
the manufacturer's instructions have been adhered to.
10. Power Sources - This product should be operated only from the type of power
'souroeindicated on the marking label, if you are not sure of the type of power supply
to your home. Consult your product dealer or local power company. For products,
intended tooperate from battery power, or other sources, refer to the operating
Instructions,
11, Grounding or Polarization - This product may be equipped with a polarized alternating-
'current line plug (a plug having one blade wider than the other). This plug will it into
the power outlet only one way. This is a safety feature. If you are unable to insert
the plug fully into the outlet try reversing the plug, If the plug
'shoud still fail to fit, contactyour electrician to replace
your obsolete outlet. Do not defeat the safety purpose A
Plug
of the polarized plug
12. Power - Cord Protection - Power - supply cords shouid be routed so that they are
not likely to be walked on or pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience receptacles, and the point where
they exit from the product.
13, Lightning - For added protection for this product during a lightning storm, or when
itis left Unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable system This will prevent damage to
the product dueto lightning and power - line surges.
14. Power Lines - An outside antenna system should not be located in the vicinity of
'overhead power lines or other electric light or power circuits, or where it can fall
into such power lines or circuits. When installing an outside antenna system, extreme
care should be taken to keep from touching such power lines or circuits as contact
with them might be fatal
N@ or on
©

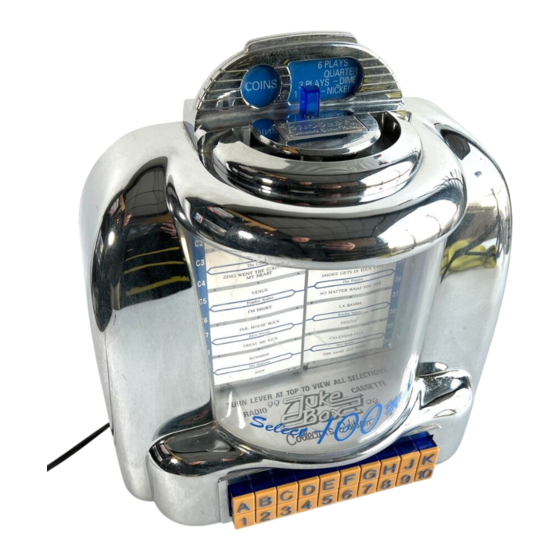

Diner Jukebox AM/FM Radio With Cassette
15. Overloading - Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock
16. Object and Liquid Entry - Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or short - out parts that
ould result in a fire or electric shock. Never spill liquid of any kind on the product.
17. Servicing - Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing
to qualified service personnel
18. Damage Requiring Service - Unplug this product from the wall outlet and refer
Servicing to qualified service personnel under the following conditions,
a. When the power-supply cord or plug is damaged.
b. If iquid has been spilled, or objects have fallen into the product
©. Ifthe product has been exposed to rain or water.
d. Ifthe product does not operate normally by following the operating instructions.
'Adjust only those controls that are covered by the operating instructions as
an improper adjustment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the product to its
normal operation
e. If the product has been dropped or damaged in ary way.
f. When the product exhibits a distinct change in performance - this indicates
a need for service.
19. Replacement Parts - When replacement parts are required, be sure the service
technician has used replacement parts specified by the manufacturer or have
the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock, or other hazards.
20. Safety Check - Upon competion of any service or repairs to this product, ask
the service technician to perform safety checks to determine that the product
is in proper operating condition.
21. Wall or ceiling Mounting - The product should be mounted to a wall or ceiling
only as recommended by the manufacturer.
22. Heat - The product should be situated away from heat sources such as radiators.
Heat registers, stoves, or other products(including amplifiers) that produce heat.
WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuart to Part 15 of the FOC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation
'This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful intereference to radio
or television reception, which can be determined by turning the equipment off and on
the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- _ Increase the separation between the equipmert and receiver.
- Connect the equipment into an circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio TV technician for help.
