CODECLOCK
TIMECODE DISPLAY AND DISTRIBUTION DEVICE
USER MANUAL
TMB authorizes its customers to download and print this electronically published manual for professional use only.
TMB prohibits reproduction, modification or distribution of this document for any other purposes, without express written consent.
Specifications are subject to change without notice. The information in this document supersedes all previously supplied information before the effective date
listed below. TMB has confidence in the accuracy of the document information herein but assumes no responsibility or liability for any loss occurring as a direct
or indirect result of errors or exclusions whether by accident or any other cause.
Effective 3 October 2024. © Copyright 2024, TMB. All rights reserved
Advertisement
Table of Contents
Related Manuals for ProPlex CODECLOCK
Summary of Contents for ProPlex CODECLOCK
-

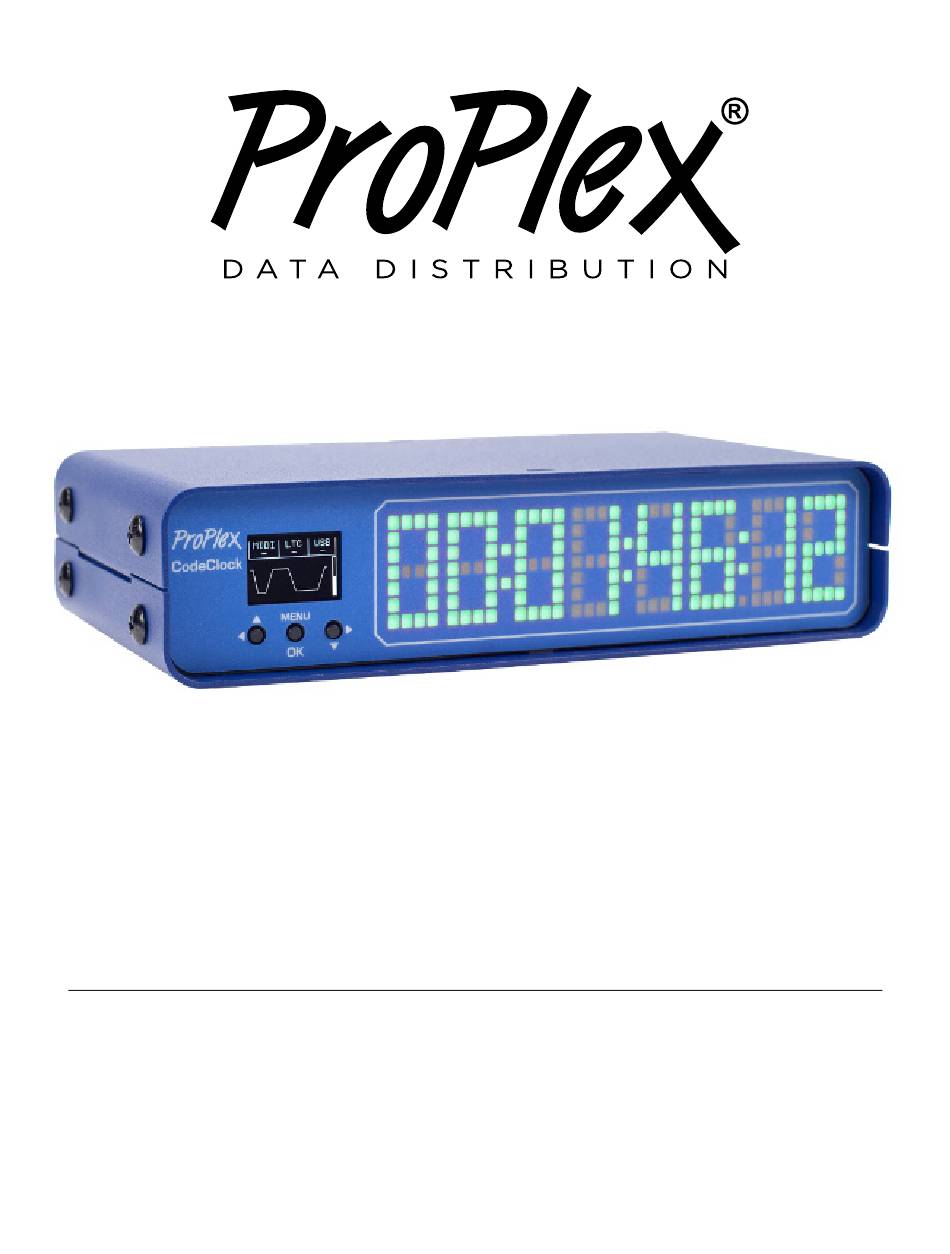

Page 1: Title Page
CODECLOCK TIMECODE DISPLAY AND DISTRIBUTION DEVICE USER MANUAL TMB authorizes its customers to download and print this electronically published manual for professional use only. TMB prohibits reproduction, modification or distribution of this document for any other purposes, without express written consent. -
Page 2: Table Of Contents
CODECLOCK USER MANUAL TABLE OF CONTENTS Title page ........................................1 Product Model ......................................1 Product photos ......................................1 Manual Edition notice, copyright, disclaimer ............................2 Table of contents......................................3 Overview ........................................4 Model Description ....................................4 Main Features ......................................4 Ordering Codes .....................................4 Model Overview ....................................5 Full dimensional wireframe drawings ............................6 Setup ..........................................7... -
Page 3: Table Of Contents
CODECLOCK USER MANUAL Pre-roll Frames ......................................16 Device Information ....................................16 Firmware Updater ....................................17 Passive Operation ....................................17 Attenuation Recommendations ..............................18 Cleaning and Maintenance ................................19 Technical Specifications ....................................19 Limited Warranty Information ................................20 Return Procedure ......................................21 Contact information ....................................22 3 / 22... -
Page 4: Overview

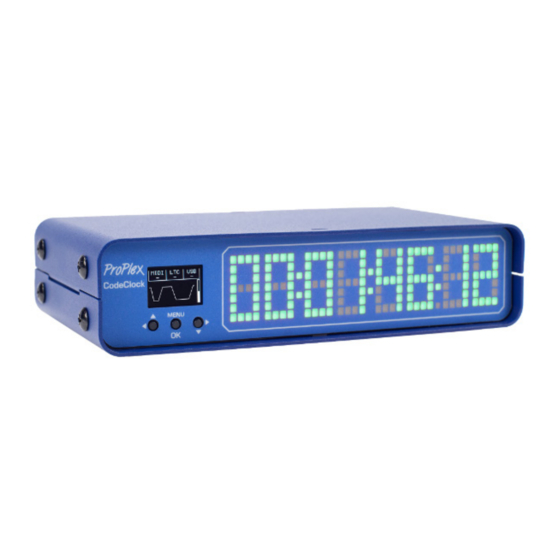

CODECLOCK USER MANUAL The ProPlex CodeClock is a member of our LTC Device system which is designed to generate, distribute and monitor timecode. Our rugged, compact mini-enclosure design is perfect for desktop programmers to throw in bag while also being flexible enough to install in a rack with an optional RackMount Kit. -
Page 5: Model Overview
CODECLOCK USER MANUAL MODEL OVERVIEW 5 / 22... -
Page 6: Full Dimensional Wireframe Drawings
CODECLOCK USER MANUAL FULL DIMENSIONAL WIREFRAME DRAWINGS 6 / 22... -
Page 7: Setup
CODECLOCK USER MANUAL SETUP Safety Precautions Please read these instructions carefully. This user guide contains important information about the installation, usage, and maintenance of this product • Ensure the device is connected to proper voltage, and that line voltage is not higher than that stated in the device specifications •... -
Page 8: What's Included
POWER REQUIREMENTS The ProPlex CodeClock is powered via USB-C cable connected to any standard 5 VDC wall charger or computer USB port The included cable retainer is a threaded insert which attaches to the USB-C cable. It provides some strain relief and helps... -
Page 9: Installation
ProPlex RackMount Kits are available for both Single-Unit and Dual-Unit mounting configurations To fasten the rack ears or joiners to the ProPlex PortableMount chassis, you must remove the two chassis screws on each side at the front of the chassis. These same screws are used to securely fasten the RackMount ears and joiners to the chassis For dual-unit configurations, both sets of front and rear chassis screws will be used IMPORTANT : Be sure to reinsert the screws into the unit after ears have been removed. - Page 10 CODECLOCK USER MANUAL RACKMOUNT INSTALLATION INSTRUCTIONS The Single-Unit Small RackMount Kit is comprised of two rack ears, ONE long and ONE short. The diagram below depicts the completed installation of the RackMount Kit. These rack ears are designed to be symmetrical, so that the short and long ears can be interchangeable The Dual-Unit Small RackMount Kit has TWO short rack ears plus TWO joiners.
-
Page 11: Installing The Dual Joiners
CODECLOCK USER MANUAL INSTALLING THE DUAL JOINERS The Dual-Unit Small RackMount Kit includes FOUR joining links and FOUR countersunk flat head screws. These links are designed to nest into each other and are secured with the included screws and threaded holes. -
Page 12: Operation
CODECLOCK USER MANUAL OPERATION The ProPlex CodeBride can be easily configured with the onboard OLED Display and navigation buttons on the front of the unit MENU MAP 12 / 22... -
Page 13: Home Screens
CODECLOCK USER MANUAL HOME SCREEN The CodeClock has 2 HOME SCREENS that display different parameters of incoming timecode streams. Cycle between these screens by pressing either the button Home Screen 1 The formats and rates of incoming timecode streams show at the top of the screen with the current active source highlighted. -
Page 14: Ltc Out Mode
The asterisk indicator will denote the currently selected output level Timecode Generator The CodeClock can generate clean, high output LTC out of the three isolated XLR3 ports (located on the rear of each unit) Use the button, then confirm selection with the... -
Page 15: Output Level
The asterisk indicator will denote the currently selected output level Clock Color The CodeClock allows the user to customize the display color of the RGB segments or use our ‘auto’ display Use the button, then confirm with the button to choose between the two color modes. -
Page 16: Custom Color
CODECLOCK USER MANUAL Custom Color User can customize the RGB color with hex digit values to select and highlight a digit, then press to confirm selection Then use to change value (from 0-F) and press again to save. As you alter the value, you should see the clock color intensity change in... -
Page 17: Firmware Updater
Passive Operation CodeClock is capable of passive operation where no power is needed to pass LTC through from input to outputs. We designed CodeClock so that each output uses an isolation transformer to help stabilize passive operation. -
Page 18: Attenuation Recommendations
The goal is to have incoming LTC at 0dBu (775mV) which is also the default output level for active CodeClock and the other LTC family devices If the incoming LTC signal is low, you may need to boost the level of the sound card in a system. -
Page 19: Cleaning And Maintenance
Dust build-up in connector ports can cause performance issues and can potentially lead to further damage during normal wear and tear CodeClock devices need occasional cleaning to maintain best performance, especially units used in harsher environmental conditions THE FOLLOWING ARE GENERAL CLEANING GUIDELINES: •... -
Page 20: Limited Warranty Information
USER MANUAL LIMITED WARRANTY INFORMATION ProPlex Data Distribution Devices are warranted by TMB against defective materials or workmanship for a period of two (2) years from the date of original sale by TMB. TMB’s warranty shall be restricted to the repair or replacement of any part that proves to be defective and for which a claim is submitted to TMB before the expiration of the applicable warranty periods. -
Page 21: Return Procedure
CODECLOCK USER MANUAL RETURN PROCEDURE Please contact TMB and request a repair ticket and Return Merchandise Authorization Number prior to shipping items for repair. Be prepared to provide the model number, serial number, and a brief description of the cause for the return as well as the return shipping address and contact information. -
Page 22: Contact Information
CONTACT INFORMATION LOS ANGELES HEADQUARTERS 527 Park Avenue | San Fernando, CA 91340, USA Tel: +1 818.899.8818 | Fax: +1 818.899.8813 sales@tmb.com TMB 24/7 TECH SUPPORT US/Canada: +1.818.794.1286 Toll Free: 1.877.862.3833 (1.877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 techsupport@tmb.com LOS ANGELES +1 818.899.8818 LONDON +44 (0)20.8574.9700 NEW YORK +1 201.896.8600 BEIJING +86 10.8492.1587...
