Genesis J9F18 AU000 (DIO) Manual

Copy OEM Logo Here
Electronic Installation Instructions
If this is a printed copy of the installation instructions, ensure you have the latest revision by
scanning the QR code or by entering the website address listed below before beginning
installation. Use the latest revision date as noted by "Rev. Date" above.
Application Notes
Instructional Symbols / Definitions
Denotes warnings that may lead to serious
physical injury or vehicle damage
Denotes cautions to be taken to avoid
physical injury or electronic component
damage
Denotes cautions to be taken to avoid
vehicle and component damage
Basic Required Tools
None
Part Weight (Gross)
0.40
lbs
0.18
kg
Notes to the Installer:
1) Read the entire Installation Instructions prior to beginning the installation of this accessory.
2) If applicable, scan the barcode label located on the accessory part or packaging prior to installing, to register the part. If this accessory is installed as a replacement, register the removal
of the old part before registering the new part. Old and new parts will have different barcode data, and the old registration cannot be reused.
3) Make sure the vehicle is completely clean and dry in the area(s) the part is to be installed.
4) Ensure the vehicle is properly protected in the area(s) that the accessory is to be installed.
5) NEVER place tools on painted surfaces, seating surfaces, dash pad, console or floor carpet/mats.
6) Always wear appropriate personal protective equipment, including gloves, safety glasses, etc., when required.
Kit Overview
No. Qty Description

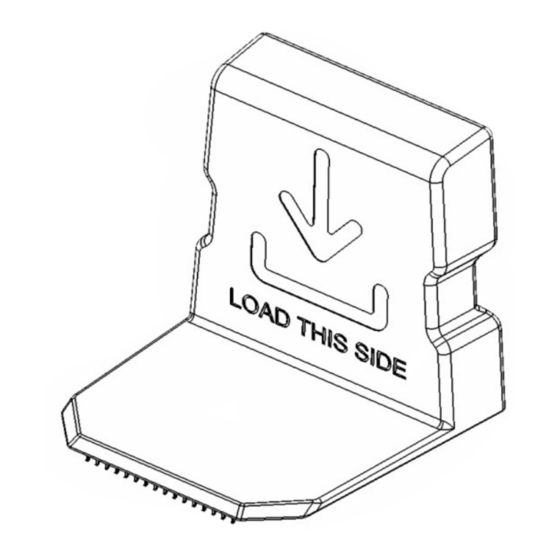

1 4 Cargo Block
2 1 Quick Reference Guide*
*Note: Item 2 is not included in PIO kit
ISHY025
Vehicle Model:
Model Year
(→)
Part No.
Language English
Rev. Date
www.hyundaiaccessories.com/admin_media_uploads/installationSheets/j9f18_au000.pdf
This product is intended for use on carpeted surfaces only, view application chart on Page 3
FMVSS 110 Compliance Information
All dealers must determine if the Net weight they have added in the form of all options or accessories, when added to the weight of all Port/Dealer
Installed options or accessories, exceeds the lesser of 1.5% of GVWR or 100 lbs. If the additional weight does exceed the lesser of the indicated
thresholds, a "Load Carrying Capacity Reduced" label must be installed. A black, fine-point, indelible marker must be used to write by hand onto the label,
the reduced carrying capacity in kilograms or pounds, which is the total weight of all added options and accessories.
Load Label Part Number: NP070 - 09003
1
Genuine Accessories
Multiple
Multiple
J9F18 AU000 (DIO)
J9F18 AU600 (PIO)
8/5/2024
Denotes quality processes to be checked
prior to moving to the next step
Denotes specific tools that are necessary
to complete a step
N
O
Denotes important information to be
T reviewed during the step
E
2
Revision Date
08/05/2024
Accessory: Cargo Blocks
Difficulty: ( A )
Note: Difficulty stated above reflects the minimum level of
expertise required to install the accessory:
(A) Customer
(B) Dealer Technician
(C) Master Technician or Specialist
Denotes personal protective equipment (PPEs) that
may be required for a step. Examples of safety
equipment icons noted below:
Glasses
Mask Hearing Protection
Gloves
Page 1 of 3
