JB-2
Quick Start Guide

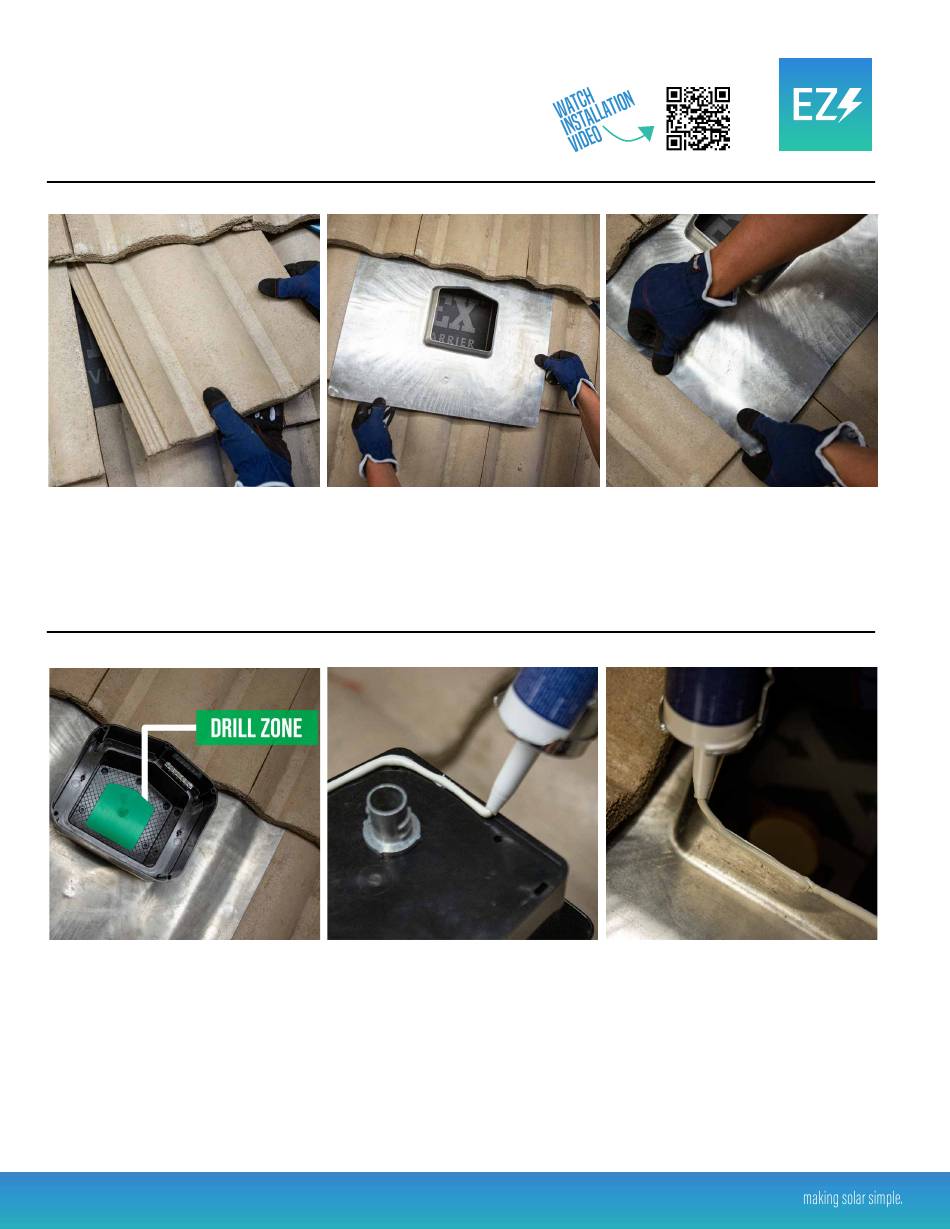

Determine location for the JB-2 on the roof. Remove tile, insert aluminum
flashing, center pentagon flashing in opening. Press firmly with both hands
to form the flashing to the contour of the roof tiles.
Within the Drill Zone, add the appropriately sized hole(s) into the attic.
Apply generous sealant to the underside following the sealant guide. Also
apply sealant to sidewalls of the raised portion of flashing. Install fittings
and connectors as needed. After connections are complete, finish by
installing lid. Hand tighten until screw head fits snug on lid.
