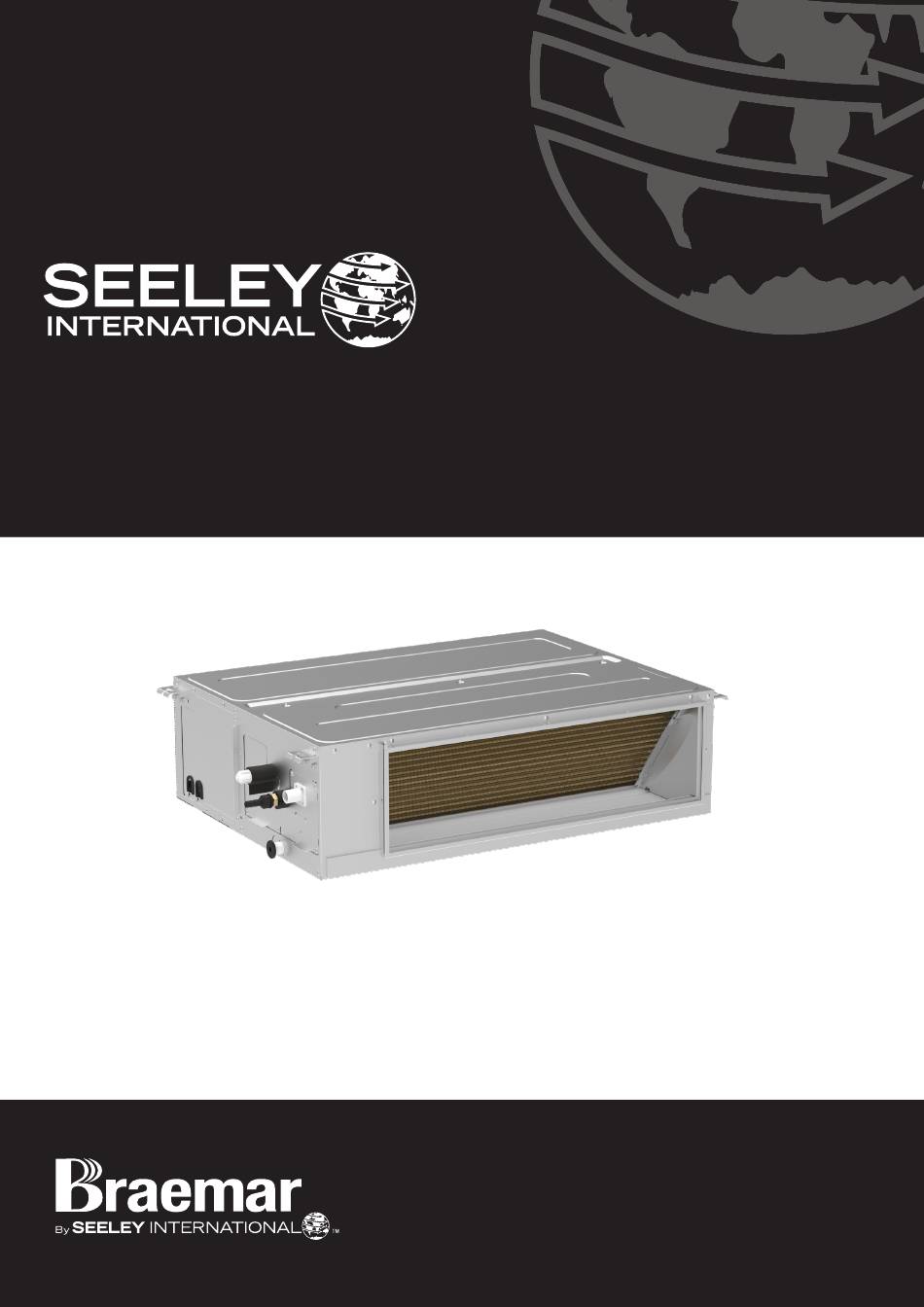

- Page 1 INSTALLATION MANUAL KDHA R32 SPLIT SERIES DUCTED INDOOR UNIT KDHA070D1S KDHA100D1S KDHA125D1S KDHA140D1S KDHA160D1S...
- Page 2 CHECKING RECEIVED PRODUCT Upon receiving the appliance, please inspect for damage. Claims for damage should be reported immediately with the transportation company. Check the model number of the appliance and ensure it matches the order. In the event an incorrect appliance or a damaged appliance is delivered, it must be returned to the supplier and must NOT be installed.
-
Page 3: Table Of Contents
WARNING! FAILURE TO INSTALL AND COMMISSION THE PRODUCT IN COMPLIANCE WITH THESE INSTRUCTIONS, OR FAILURE TO DO THE JOB PROPERLY AND COMPETENTLY, MAY VOID THE CUSTOMER’S WARRANTY. FURTHER, IT COULD EXPOSE THE INSTALLER AND/OR THE RETAILER TO SERIOUS LIABILITY. SEELEY INTERNATIONAL - INSTALLATION MANUAL |... -
Page 4: Safety Warnings
SAFETY WARNINGS Before installing the appliance, Appliance filled with flammable gas R32. read the installation manual first. Before repairing the appliance, Before using the appliance, read the read the service manual first. owner’s manual first. WARNING Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater. - Page 5 • Discharge capacitors in a way that won’t cause any spark. • Reclaim the refrigerant. e) Disposal • Ensure sufficient ventilation at the working place. • Reclaim the refrigerant. • Evacuate the refrigerant circuit. SEELEY INTERNATIONAL - INSTALLATION MANUAL |...
-
Page 6: Before Installation
• Servicing shall be performed only as recommended by Seeley International • For ducted systems, the supply and return air shall be directly ducted to the conditioned space. Open areas such as false ceilings shall not be used as a return air duct. - Page 7 Auxiliary devices which may be a potential ignition source shall not be installed in the duct work. Examples of such potential ignition sources are hot surfaces with a temperature exceeding 700°C and electric switching devices. Only auxiliary devices approved by Seeley International or declared suitable with the refrigerant shall be installed in connecting ductwork. Cabling Check that the cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects.
- Page 8 Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult Seeley International if in doubt.
-
Page 9: Typical Installation/Diagram Of Key Components
Vacuum Pump • Impact Drill • Refrigeration Gauges • Pipe Expander, Flaring tool • Measuring Tape • Pipe Cutter • Hole core drill • Torque Wrench • Knife • Open-end spanner set • Vacuum Gauge SEELEY INTERNATIONAL - INSTALLATION MANUAL |... -
Page 10: Installation
INSTALLATION COMPONENTS Parts listed below are supplied and should be used as required. Indoor Unit Accessories Name Appearance Q’ty Usage Drain Hose To connect with the hard PVC drain pipe Nut with Washer To fix the hook on the cabinet of the unit To be used together with the hanger bolt for installing the unit To be used together with the hanger bolt for installing... -
Page 11: Indoor Unit Dimensions
Which is not in a place with oil, fumes or sulfuretted gases in the air. • Which is not in the immediate surroundings of a laundry, bath, shower or swimming pool. • Which is not directly above an electric appliance. SEELEY INTERNATIONAL - INSTALLATION MANUAL |... -
Page 12: Indoor Unit Clearances
INSTALLATION cont. INDOOR UNIT CLEARANCES NOTE: Appliance must have access for Service and Repair. If not accessible, warranty may be void. Air Inlet 1000mm >250mm >500mm Fig 03 Fig 04 INSTALLING HANDING BOLTS NOTE: All hardware for hanging the Indoor Unit is to be supplied by the installer. Select a suitable location for securing the hanging bolts. -
Page 13: Flexible Ductwork Connections
Connect the return air duct to the new return air inlet with rivets. • Downwards return air will have higher noise levels compared to rear return air method. It is recommended to use a silencer and static pressure carton to reduce noise levels. Fig 12 SEELEY INTERNATIONAL - INSTALLATION MANUAL |... -
Page 14: Return Air Dimensions
INSTALLATION cont. RETURN AIR DIMENSIONS Dimension (mm) Supply Air Outlet Return Air Inlet Model Supply Air Outlet KDHA070D1S KDHA100D1S 1153 1188 KDHA125D1S KDHA140D1S 1170 KDHA160D1S Return Air Inlet Table 03 Fig 13 NOTE: Ensure that a minimum of 2 1/2 times the duct diameter of straight ductwork is installed, immediately downstream of the appliance before any divergence or branch-take offs. -
Page 15: Supply And Return Air Duct Installation
Install the round flange that will be connected to the fresh air duct. (Fig. 17) Ensure the air duct as well as the round flange are concealed and kept warm. Fig 16 Fig 17 SEELEY INTERNATIONAL - INSTALLATION MANUAL |... -
Page 16: Drain Options
INSTALLATION cont. DRAIN OPTIONS DRAIN OPTIONS Option 1: Pump drain only Fall 1:60 Note: 1. Electric box side only for ease of maintenance Recomended Safe Tray Fig 18 Option 2: Gravity Only WATER LIQUID LEVEL PUMP SWITCH When gravity drain used disconnect pump from indoor PCB. -
Page 17: Electrical Wiring
The specifications of the breaker listed in the table above are applied to the breaker with the working temperature at 40°C. If the working condition changes, they should be modified according to the related national standard. SEELEY INTERNATIONAL - INSTALLATION MANUAL |... -
Page 18: Wiring Precautions
ELECTRICAL WIRING - cont. Maximum Conditions* Cooling Heating Indoor Temperature 27°C DB / 19°C WB 20°C DB / 15°C WB Outdoor Temperature 35°C DB / 24°C WB 7°C DB / 6°C WB Table 13 WIRING PRECAUTIONS Before obtaining access to terminals, all supply circuits must be switched off and isolated. Follow the wiring schematic in Fig. -
Page 19: Wired Wall Controller - Xe7C-24Hc The Wired Wall Controller May Vary According To Installation
The communication line (wired controller) and power line must be separated with minimum distance of 20cm, otherwise it will result in a communication fault. Note: Refer to manual supplied with wired wall controller for operation and safety instructions. SEELEY INTERNATIONAL - INSTALLATION MANUAL |... -
Page 20: Error Codes
ERROR CODES Error codes will appear on the indoor unit display or a connected wired wall control (as a 2 digit letter/number combination - refer DISPLAY column below). Fig. 26 Display Malfunction Name Display Malfunction Name Outdoor fan IPM module protection ODU and IDU communication error Outdoor fan startup failure Mode conflict... - Page 21 Zero-crossing protection DC indoor fan Phase-loss protection Outdoor fan overcurrent protection Outdoor ambient temperature abnormal(Temperature DC indoor fan driver reset protection high opening heat mode or temperature over low open refrigeration mode) Table 14.2 SEELEY INTERNATIONAL - INSTALLATION MANUAL |...
-
Page 22: Servicing Requirements With Flammable Refrigerants
SERVICING REQUIREMENTS WITH FLAMMABLE REFRIGERANTS CHECKS TO THE AREA Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed. -
Page 23: Technical Specification
φ9.52 (3/8”) Outer Pipe Diameter Gas Pipe mm (Inch) φ15.88 (5/8”) Height Distance Length Cooling operation ambient temperature range °C -15 ~ 52 Temp Heating operation ambient temperature range °C -15 ~ 24 Table 17 SEELEY INTERNATIONAL - INSTALLATION MANUAL |... -
Page 24: Removal And Disposal
For complete warranty terms and conditions, refer to separate Warranty Booklet and/or www.braemar.net.au Warranty conditions are subject to property access and industry Safety Standards. Seeley International strives for continuous product improvements, therefore specifications are subject to change without notice. Unit colour may vary slightly from that depicted in this booklet. -
Page 25: Notes
NOTES SEELEY INTERNATIONAL - INSTALLATION MANUAL |... - Page 26 KDHA R32 Series Ducted Indoor Unit...
- Page 27 SEELEY INTERNATIONAL - INSTALLATION MANUAL |...
- Page 28 Online Support Portal (AUS/NZ) Scan or Click QR Code It is the policy of Seeley International to introduce continuous product improvement. Accordingly, specifications are subject to change without notice. Please consult with your dealer to confirm the specifications of the model selected.
