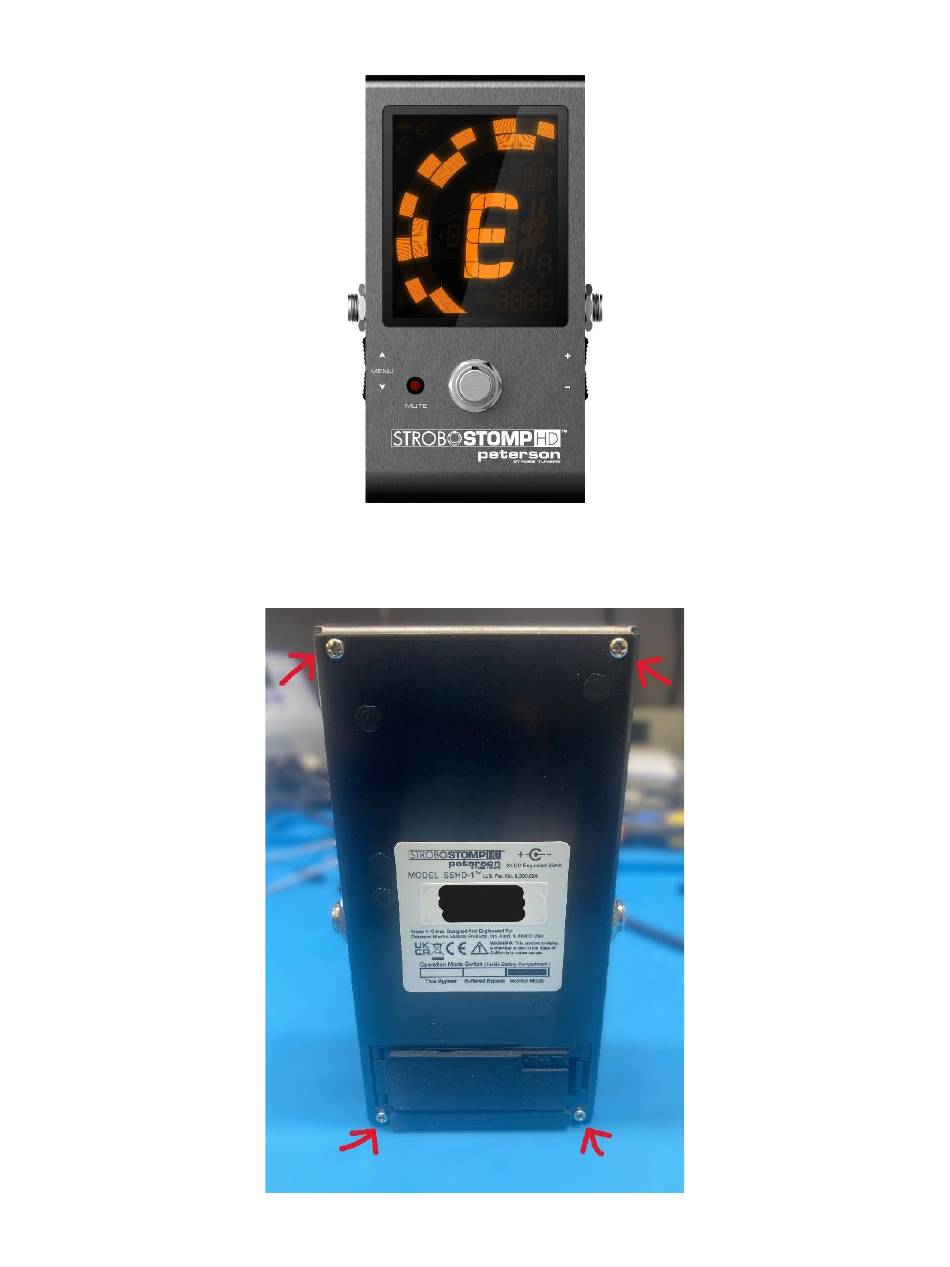

- Page 1 StroboStomp HD Plastic LCD Cover Replacement *Before anything, make sure you are wearing gloves to avoid leaving any fingerprints or smudges on the LCD and LCD cover* Remove the 4 screws from the back of the pedal.
- Page 2 StroboStomp HD Plastic LCD Cover Replacement *Before anything, make sure you are wearing gloves to avoid leaving any fingerprints or smudges on the LCD and LCD cover* Open the battery compartment and push in to lift the LCD board. Carefully lift the leads from the battery compartment to lift the LCD board...
- Page 3 StroboStomp HD Plastic LCD Cover Replacement *Before anything, make sure you are wearing gloves to avoid leaving any fingerprints or smudges on the LCD and LCD cover* Remove the glue and push out the release pin for the ribbon connector.
- Page 4 StroboStomp HD Plastic LCD Cover Replacement *Before anything, make sure you are wearing gloves to avoid leaving any fingerprints or smudges on the LCD and LCD cover* Using a sharp knife or plastic spudge, carefully remove the plastic screen cover and be carefully not to damage the actual display.
