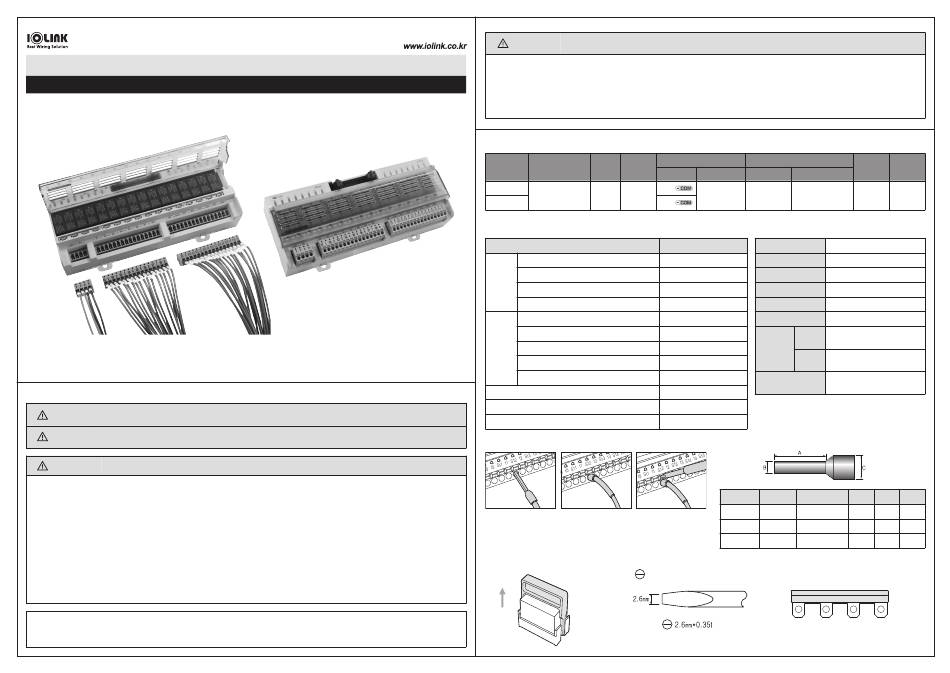

IOLINK R16G-EF Series User Manual

R16G-EF Series
16Points, Detachable Push-typed Screwless Terminal Block
Thank you for purchasing product of SAMWON ACT.
Please check model of product that you purchase first, and read this manual prior to use it.
Caution for Safety
●
Caution
Case that results in serious damage in human body or equipment, and fire if user handles this equipment wrongly
Warning
Case that results in slight damage in human body or equipment, and fire if user handles this equipment wrongly
Caution
1. Do Not use other voltage except appointed voltage. It may be the cause of fire or damage of equipment.
2. Use it within nominal voltage and current which are marked on load.
It may be the cause of fire or damage of equipment.
3. Check COMMON polarity of using controller (PLC, etc) first, and then select proper product.
It may be the cause of fire or damage of this equipment and user's.
1) COMMON Polarity of controller is '+' (NPN TYPE) : R16G-NC-EF
2) COMMON Polarity of controller is '-' (PNP TYPE) : R16G-PC-EF
4. Make controller and connection cable between relay boards after checking internal wiring of relay board and
PIN(terminal or socket) array of controller if you want to make it for yourself.
It may be the cause of fire, and malfunction or damage of this equipment and user's.
※ The connection cable for PLC of various makers is provided by us. Please refer to the
catalogue or contact Head or branch office if you need more detail models and specifications.
User's Guide
Warning
1. Terminal wiring of power line and connector for signal after making sure to shut off power so as that
it is prevented to be damaged or malfunctioned.
2. Read this user's guide which is attached to product, and check product's performance, specification,
operation pattern, signal, and how to handle prior to use. Keep user's guide please.
3. When replacing a relay, check how to replace the relay on the back of the manual before using it.
Model Configuration
●
Installation IO Coil Rated
Model
Relay Point(s) voltage
R16G-NC-EF OMRON
NPN
16 Point
G6B-1174P-FD-US 24V DC
(1a16)
R16G-PC-EF PNP
DC24V
G6B Relay Specification
●
Item G6B-1174P-FD-US DC24V
Arrangement SPST-NO (1a)
Nominal switching capacity (resistive load) 5A 250V AC / 5A 30V DC
Contact
Max. switching current 5A
Max. switching voltage 380V AC / 125V DC
Nominal voltage 24V DC
Pick-up voltage 70% max. of Rated voltage
Coil Drop-out voltage 10% min. of Rated voltage
Coil resistance 2,880Ω
Nominal operating power Approx. 200mW
Surge voltage between contact and coil 6,000V
Initial breakdown voltage between contact and coil AC 3,000V 50/60Hz 1min
Country of origin JAPAN
Method of removal wire
●
When using a stranded wire, Insert into the terminal block When disconnecting the wires,
use a ferrule or a round type without using a separate tool. keep the disconnect button
terminal. In case of a solid wire, pressed with the driver (- type)
use it without crimping tool. and disconnect the wires.
Appropriate tool
●
How to replace relay
●
• Driver
Common Interface
Coil Contact Coil Contact
Individual Com. Connector
Push type Terminal
(4P Short bar MIL-C-83503
3.81mm Pitch
built) 20Pin
Material/Specification
●
Case Modified PPO
Protective cover Polycarbonate
P.C.B Epoxy 1.6t
Terminal PA66
Pin header Phosphor bronze
Wire guard Strainless steel
Single
0.5~1.5㎟
wire
Applicable
wire
Twisted
UL : 16~22AWG / IEC : 1.5㎟
wire
Ambient -10℃ ~ +50℃
temperature (No condensation)
* Be sure to use a ferrule when using a stranded wire.
* It is recommended to use a round type terminal
when using a stranded wire with 1.5㎟.
Ferrule Selection
●
AWG/(㎟) DIN46228 Other
20/0.5 White White/Orange
18/0.75 Gray Blue/White
17/1.0 Red Red/Yellow
Accessories
●
•Short bar (4ea)
Dimen- Mounting
sions method
DIN Rail
173.570
(Channel)
A(㎜) B(㎜) C(㎜)
10.0 1.3 3.2
10.0 1.5 3.4
10.0 1.7 3.6
